Special Item

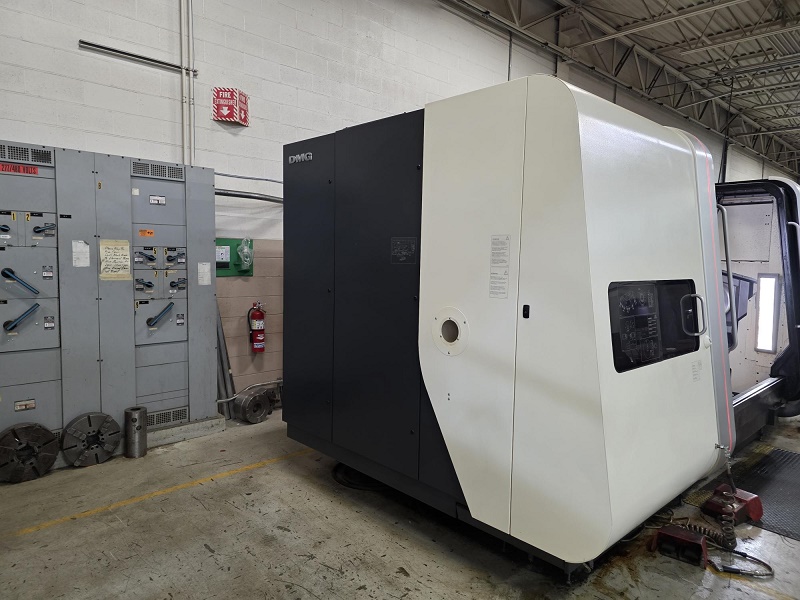

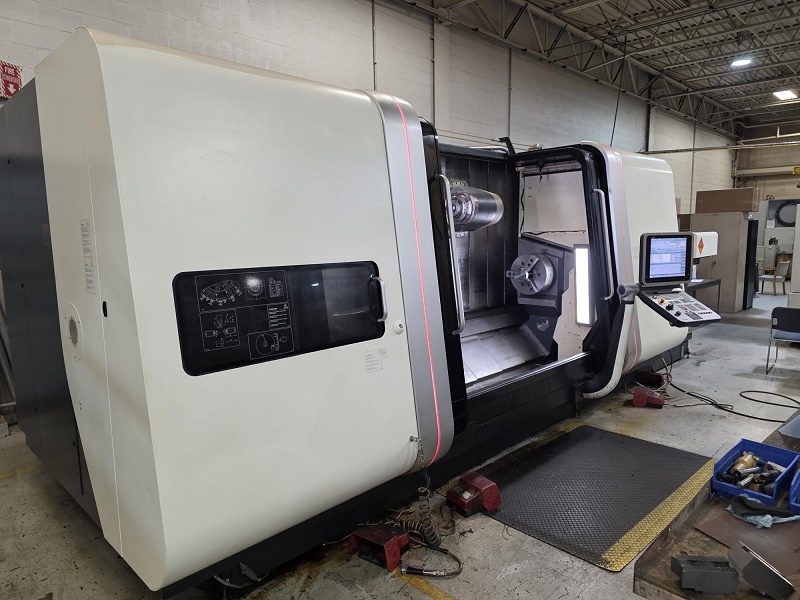

2011 DMG CTX GAMMA 2000 TC
Siemens 840D, 4.09" Bar, (2) 16" Chucks, 27.6" Dia, 79" Length, 70 HP, 2500 RPM, 36 Tools, Steady Rest Prep, Capto C6 Tooling, Chip Conveyor
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 16" (2)
-
Max Diameter Bar Capacity 4.09"
-
Spindle Motor 69.7 / 53.6 HP
-
Spindle Speed 2500 RPM
-
Tools 36
-
B-Axis Index 0.001 Degrees
-
B-Axis Spindle Speed 8000 RPM
-
B-Axis Tilt +/- 120 Degrees
-
Machine Weight 52,000 lbs.
-
Counter Spindle Bar Capacity 4.09"
-
Counter Spindle Motor 60.9 / 46.9 HP
-
Max Turning Diameter 27.6"
-
Max Turning Length 80.7"
-
Tool Type Capto C6
-
X1 Travel 25.59"
-
Y1 Travel +/- 7.87"
-
Z1 Travel 80.7"
-
Z2 Travel 75.19"
-
Z3 Travel 75.19"
Product Features
- Siemens Sinumerik 840D Solution Line with ERGOline Control
- 19" Color TFT
- USB and Ethernet Interface
- 5-Axis Simultaneous Machining
- B-Axis Upper Tool Spindle

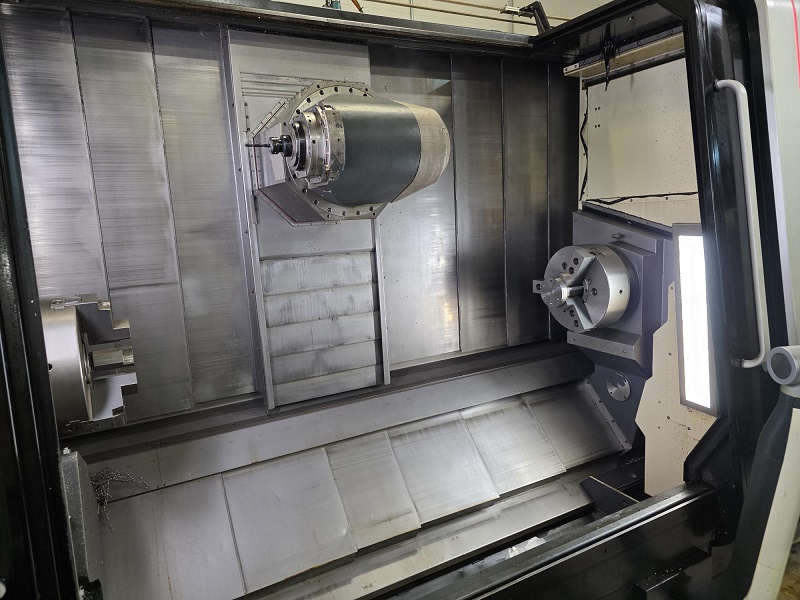

- Main and Counter Spindles
- Hydraulic Steady Rest Prep (Bracket Not Included)

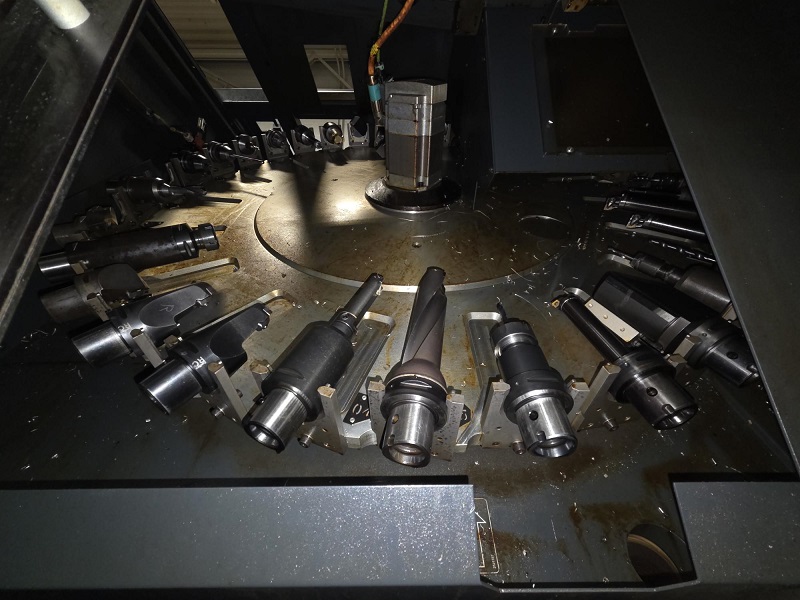

- 36 Tool Magazine (Capto C6)
- Y-Axis Live Tool Capability
- Absolute Direct Measuring Systems in X, Y and Z1
- Chip Conveyor Hinge-Type Side Exit
- High Pressure Coolant System (174 psi)
- Shop Turn with Windows Operating System
- Coolant Spray Gun
- Tailstock Function for Counter Spindle
- NC-Slide Z for Steady Rest Carrier
- Turning/Milling Spindle with Increased Torque
- Additional Magazine Above Counter Spindle (6 Capto C6 Long Boring Holders)
- 50 mm Longer Working Area

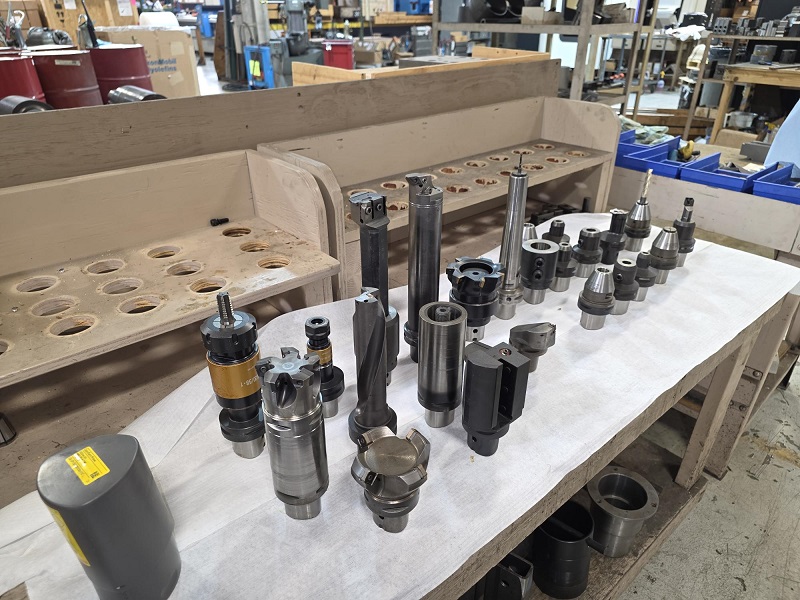

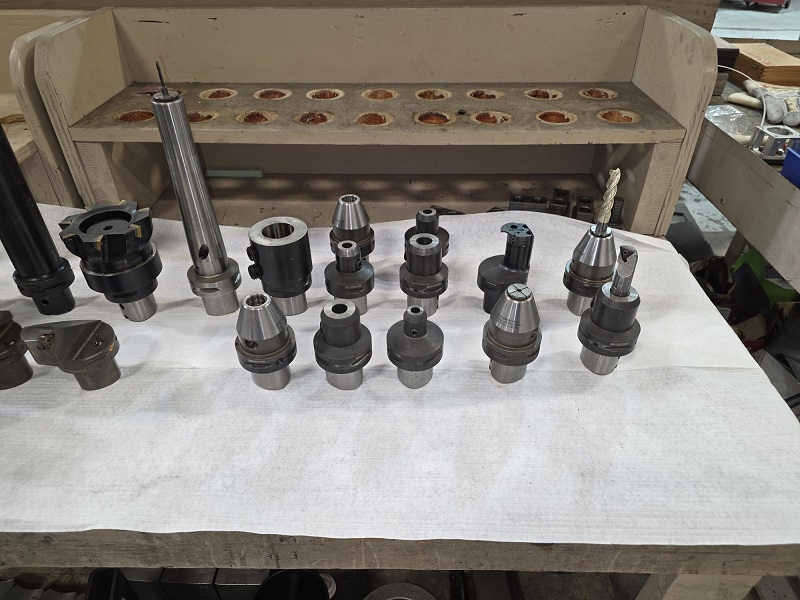

- Approximately (61) Capto C6 Tool Holders Included
- 9184 Power On Hard Meter Hours
- 4890 Cutting Hard Meter Hours
