Special Item

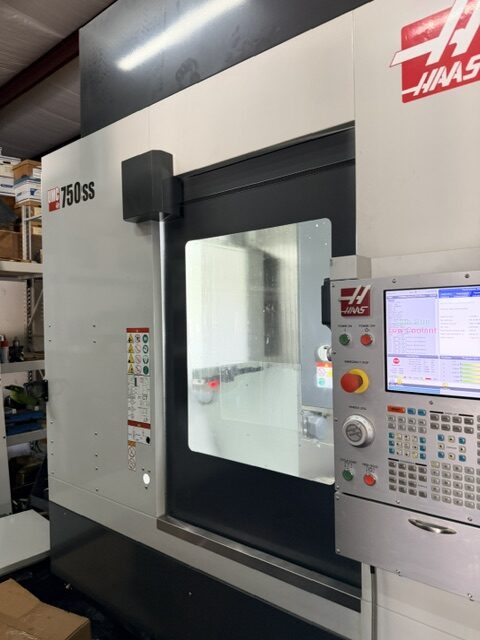

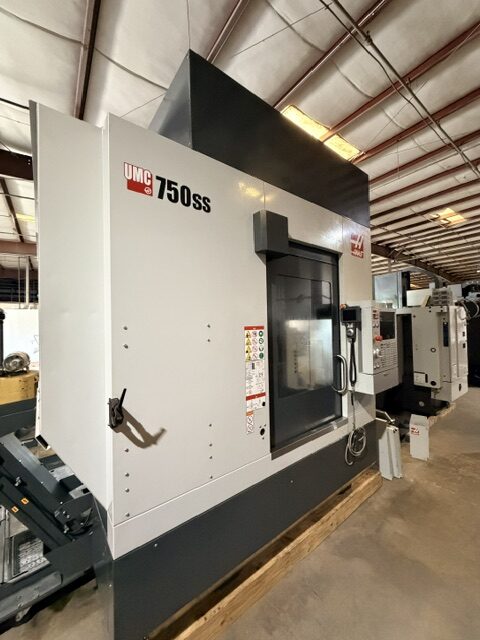

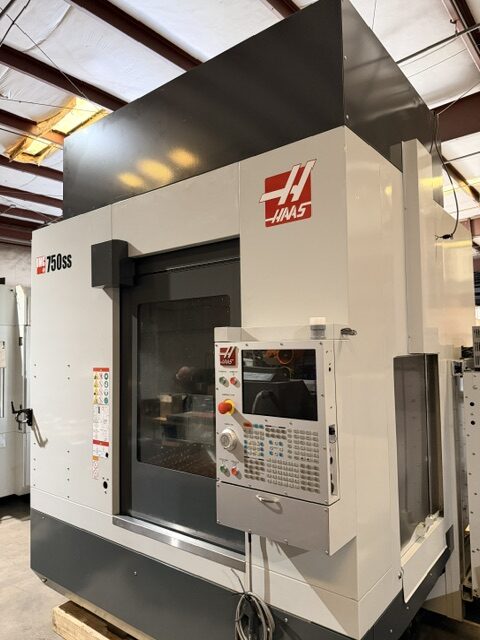

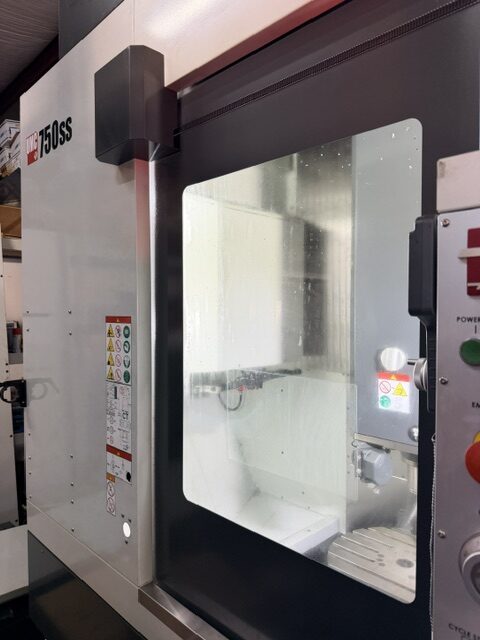

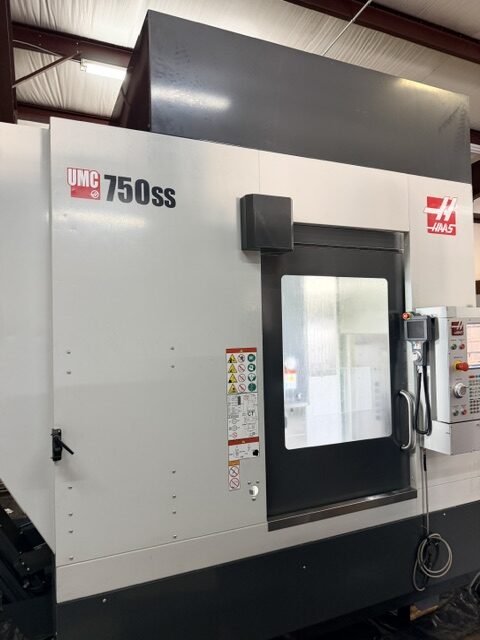

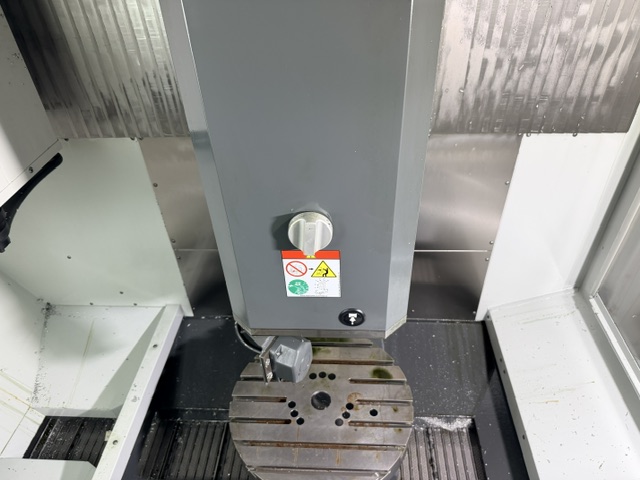

2024 HAAS UMC-750SS 5-AXIS

30.20.20", 12000 RPM, 30 HP, Cat 40, 25" x 20" Platter, 5-Axis Trunnion Table, 50 SMTC, TSC, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 20"
  • Z-Axis 20"
  • B-Axis (Table Tilt) -35 to 110
  • C-Axis (Table Index) .001 Deg
  • Table Size 24.8" x 19.7"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 50
  • Table Load Capacity 660 lbs.
  • Rapid Traverse Rates 1200 IPM
  • Max Tool Diameter 5" / 3"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 162" x 113" x 120"
  • Machine Weight 19,200 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Spindle Torque 90 ft. lbs.

Product Features

  • HAAS Next Generation Control
  • 12" Color TFT
  • 5-Axis Simultaneous Contouring Capability

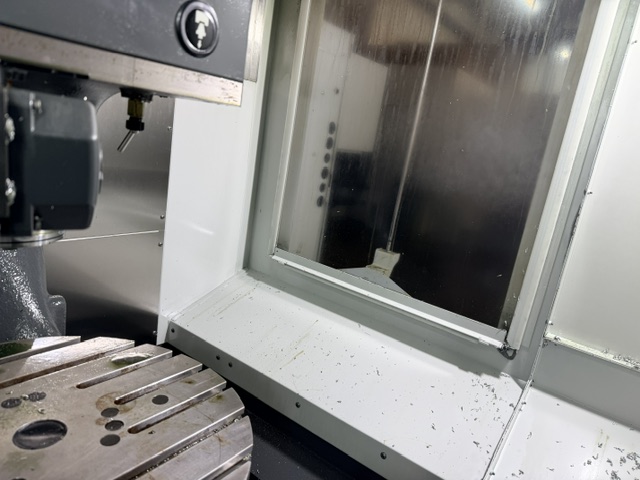

  • Integral Rotary/Tilt Trunnion Table
  • Through Spindle Coolant (300 psi)
  • 12,000 RPM Spindle Speed

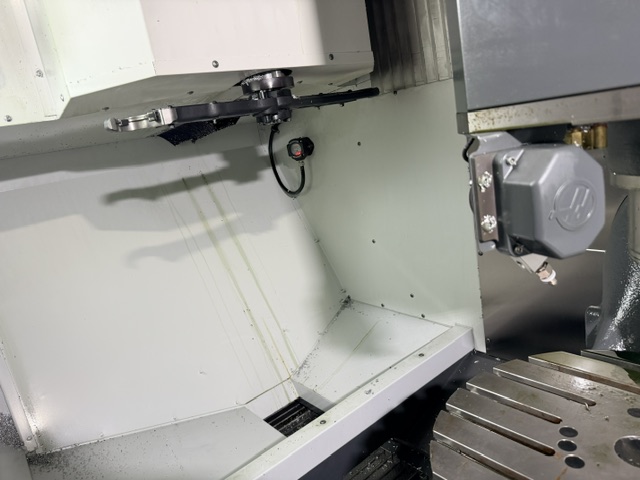

  • High Speed 50+1 Side Mount Tool Changer

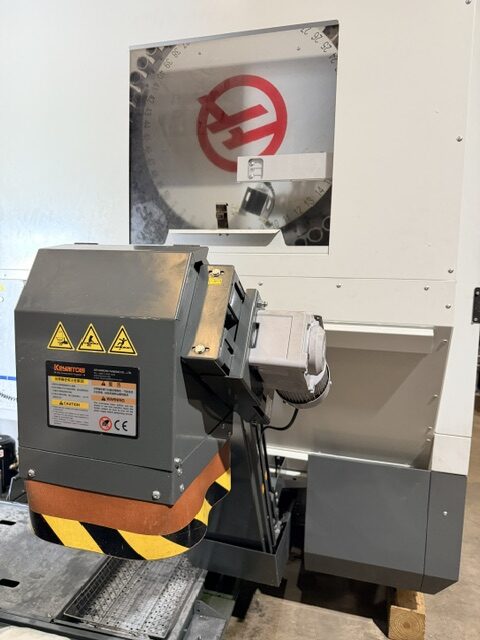

  • Belt-Type Chip Conveyor (Left Rear Exit)
  • Wireless Intuitive Probing System
  • Rotary Scales
  • Remote Jog Handle with Touchscreen Display
  • 95 Gallon Coolant Tank
  • High Speed Machining
  • Rigid Tapping
  • Top Cover
  • Spindle Orientation
  • Coordinate Rotation and Scaling
  • User Macro Variables
  • Chip Tray Filter Kit
  • Enclosure Exhaust
  • Manufacture Date September 2024
