Special Item

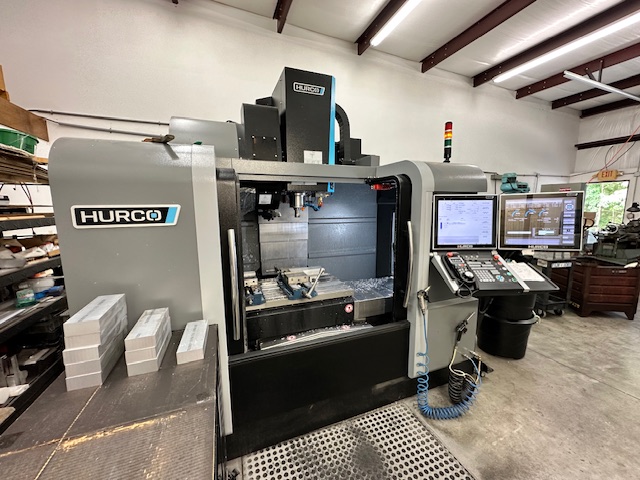

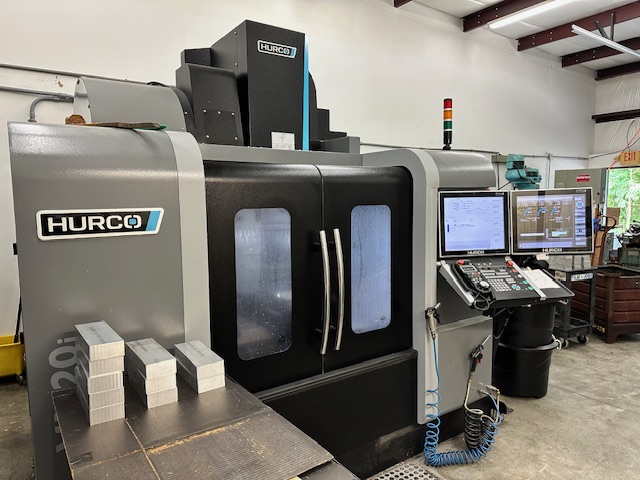

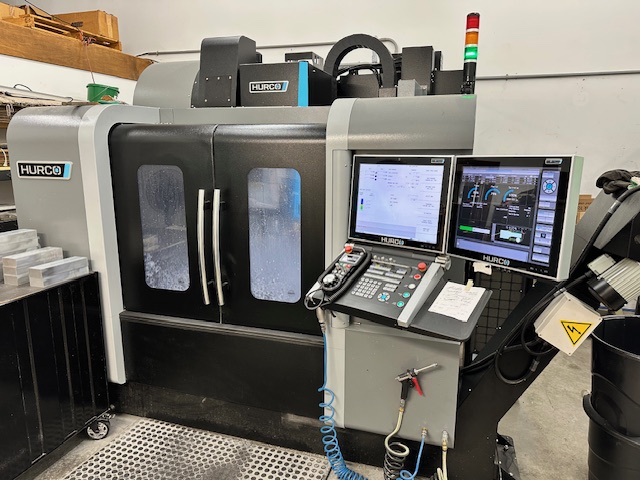

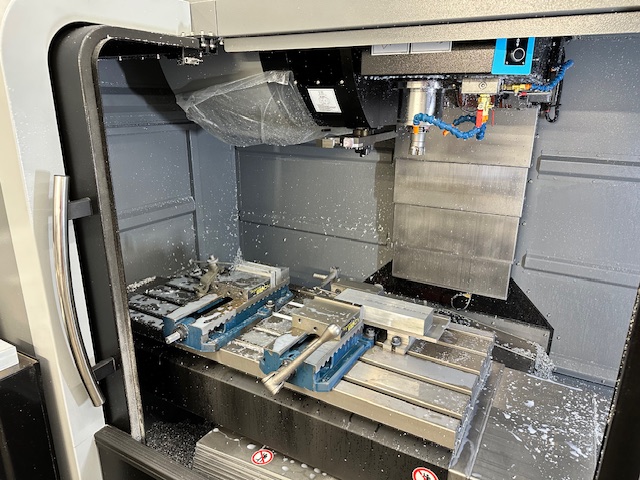

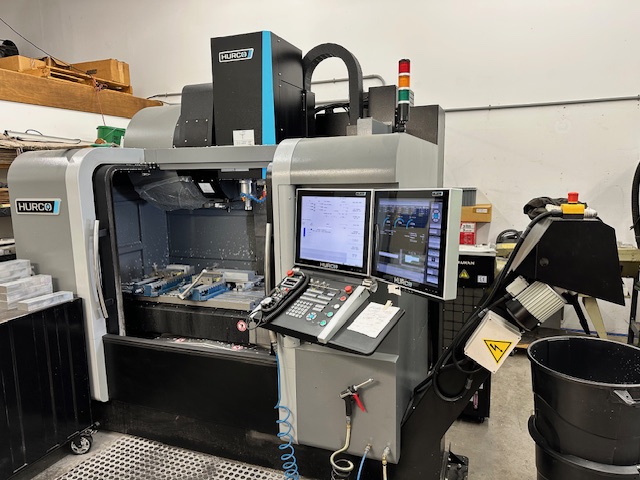

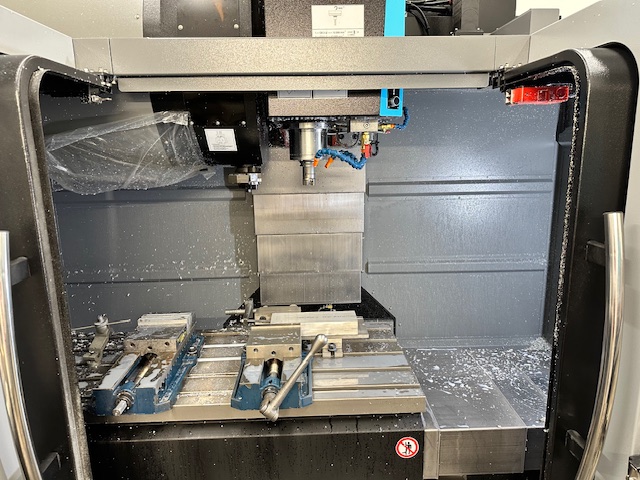

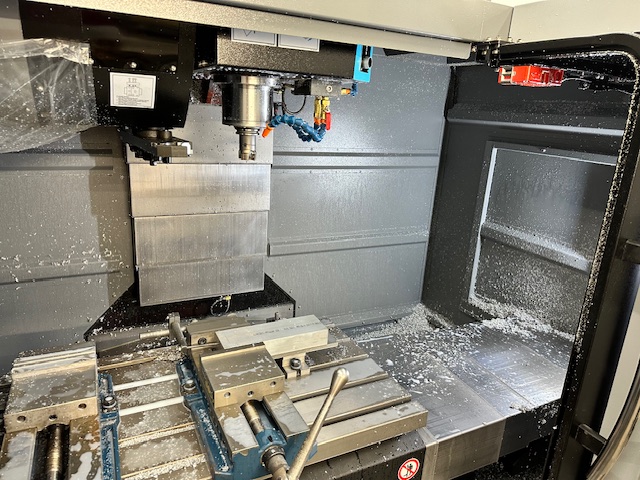

2023 HURCO VM20i

WINMAX CNC Control, 40.20.20", 12,000 RPM, #40, 24 Tools, Chip, Remote Jog Handle, Low Hours
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 40"
  • Y-Axis Travel 20"
  • Z-Axis Travel 20"
  • Table Size 46" x 20"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Tools 24
  • Rapid Traverse Rate 1102 IPM
  • Max Table Weight 3970 LBS
  • Max Tool Diameter 3.1"
  • Max Tool Weight 15.4 lbs.
  • Maximum Tool Length 9.8"
  • Machine Dimensions (L x W x H) 146.5" x 130.4" x 100"
  • Machine Weight 9127 LBS
  • Spindle Nose to Table Top 4" - 24"

Product Features

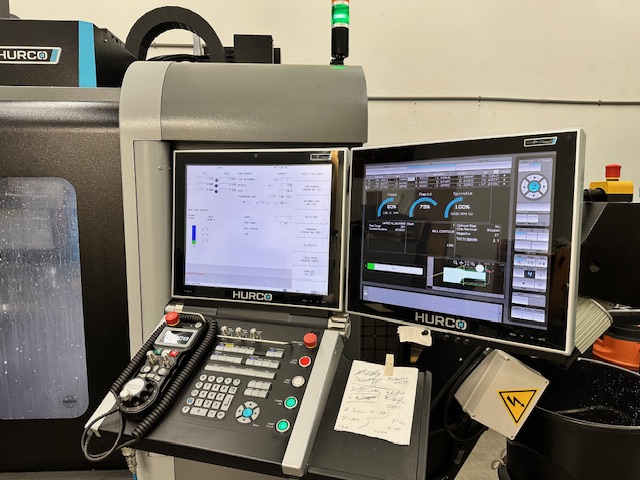

  • HURCO WINMAX CNC CONTROL
  • 12,000 RPM Spindle
  • CAT 40 Spindle Taper
  • 24 Position Side Mount Tool Changer
  • Tool and Material Library
  • NC / Conversational Merge
  • Ultipocket
  • Auxiliary Graphics Screen and Shelf
  • WINMAX Desktop Software Package
  • Remote Jog Handle
  • Spindle Chiller Unit
  • 3 Color Tower Light
  • Chip Conveyor (Right Side Exit)
  • 624 Spindle Hours
