Special Item

2022 BROTHER SPEEDIO R650X2

CNC-C00, 16000 RPM, 10 HP, BT-30, 40 Tools, TSC, Fourth Axis Table, Tool Presetter

Talk to a representative today!
(803) 548-8000

Product Details

X-Axis 25.59"
Y-Axis 15.75"
Z-Axis 12"
Table Size 23.6" x 11.8"
Spindle Speed 16,000 RPM
Spindle Taper BT 30
Spindle Motor (10 Min / Cont) 9.8 / 6.5 HP
Tools 22
Table Load Capacity 265 lbs.

Rapid Traverse Rates 1969 IPM
Max Tapping Speed 6000 RPM
Max Tool Diameter 3.1"
Max Tool Length 7.9"
Max Tool Weight 6.6 lbs.
Machine Weight 6000 lbs.
Pallet Change Time 2.8 Seconds
Spindle Nose to Table Top 7.9" - 19.9"
Tool Change Time (T - T / C - C) 0.8 / 1.6 Seconds

Product Features

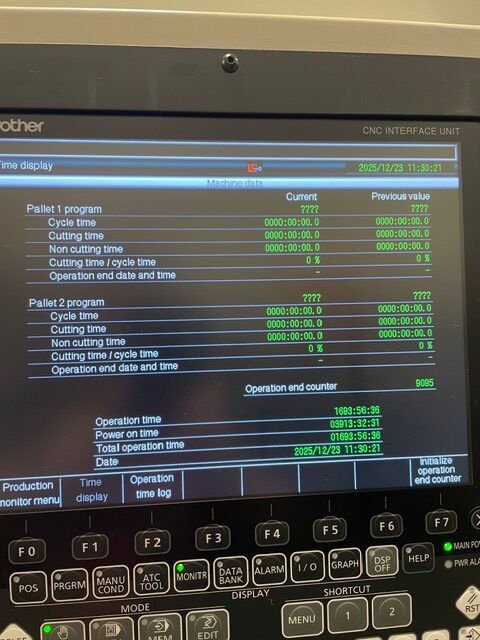

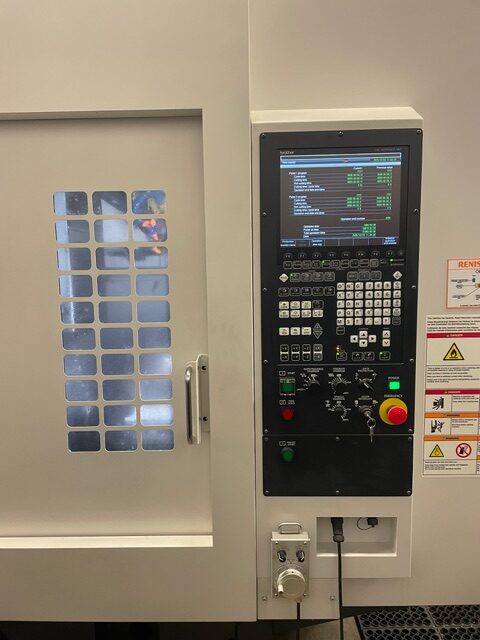

BROTHER CNC-C00 Control
12.1" Color LCD
USB Port
Ethernet Function

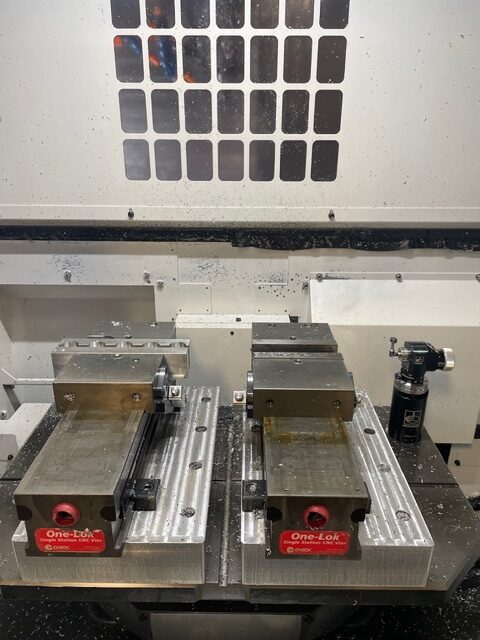

Spin-Type High Speed Two Pallet Changer
40 Position Turret
16000 RPM Spindle Speed
T200A Fourth Axis Rotary Table
Through Spindle Coolant (1000 PSI)
Tool Presetter
Renishaw OMP40 Probe
LNS Turbo MH250 Chip Conveyor
Mist Collector
Remote Jog Handle
Work Light Kit
High Capacity Coolant Tank
Manufacture Date February 2022
