Special Item

2019 HAAS ST-20Y

2.5" Bar, 8" Chk, 12" Max Dia, 21" Length, 20 HP, 4000 RPM, 24 Tools, Y-Axis, Tailstock, Tool Presetter, APC, Chip

Talk to a representative today!
(803) 548-8000

Product Details

Chuck Size 8"
Max Diameter Bar Capacity 2.5"
Max Swing Over Front Apron / Cross Slide 31.75" / 20.75"
Max Machining Length 21"
Spindle Motor 20 HP AC
Spindle Speed 4000 RPM
Spindle Nose A2-6
Tools 24
Milling Speed 6000 RPM

X-Axis Travel 9.3"
Z-Axis Travel 21"
Y-Axis Travel +/- 2.0"
Machine Dimensions (L x W x H) 142" x 90" x 89"
Machine Weight 10,500 lbs.
Max Turning Diameter 12"
Spindle Torque 150 ft. lbs.
Tailstock Taper MT#4

Product Features

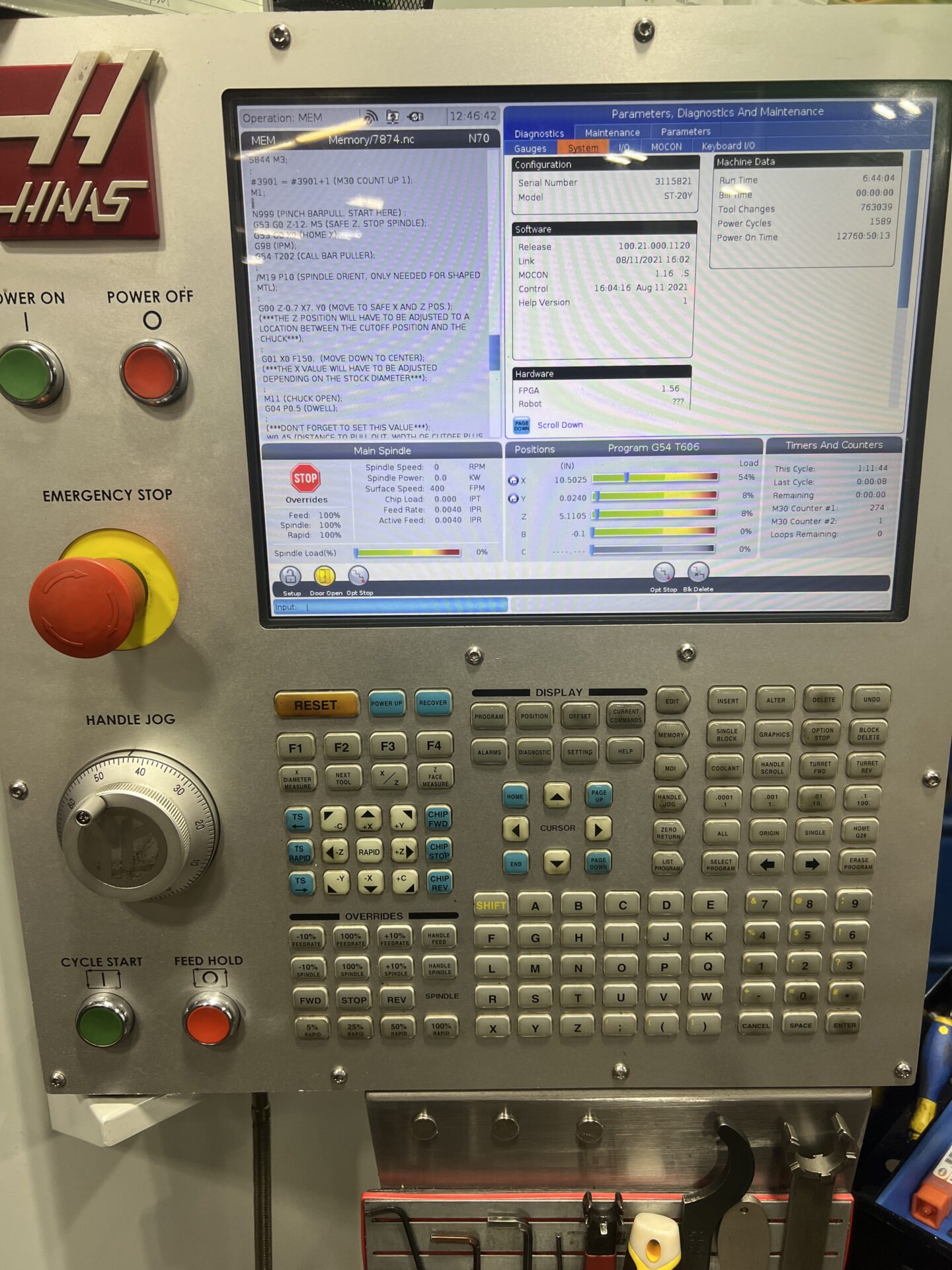

HAAS CNC Control
15" Color TFT
USB Port
Ethernet Capability
C & Y-Axis Milling Capability
6,000 RPM Milling Spindle Upgrade
8" Hydraulic Chuck

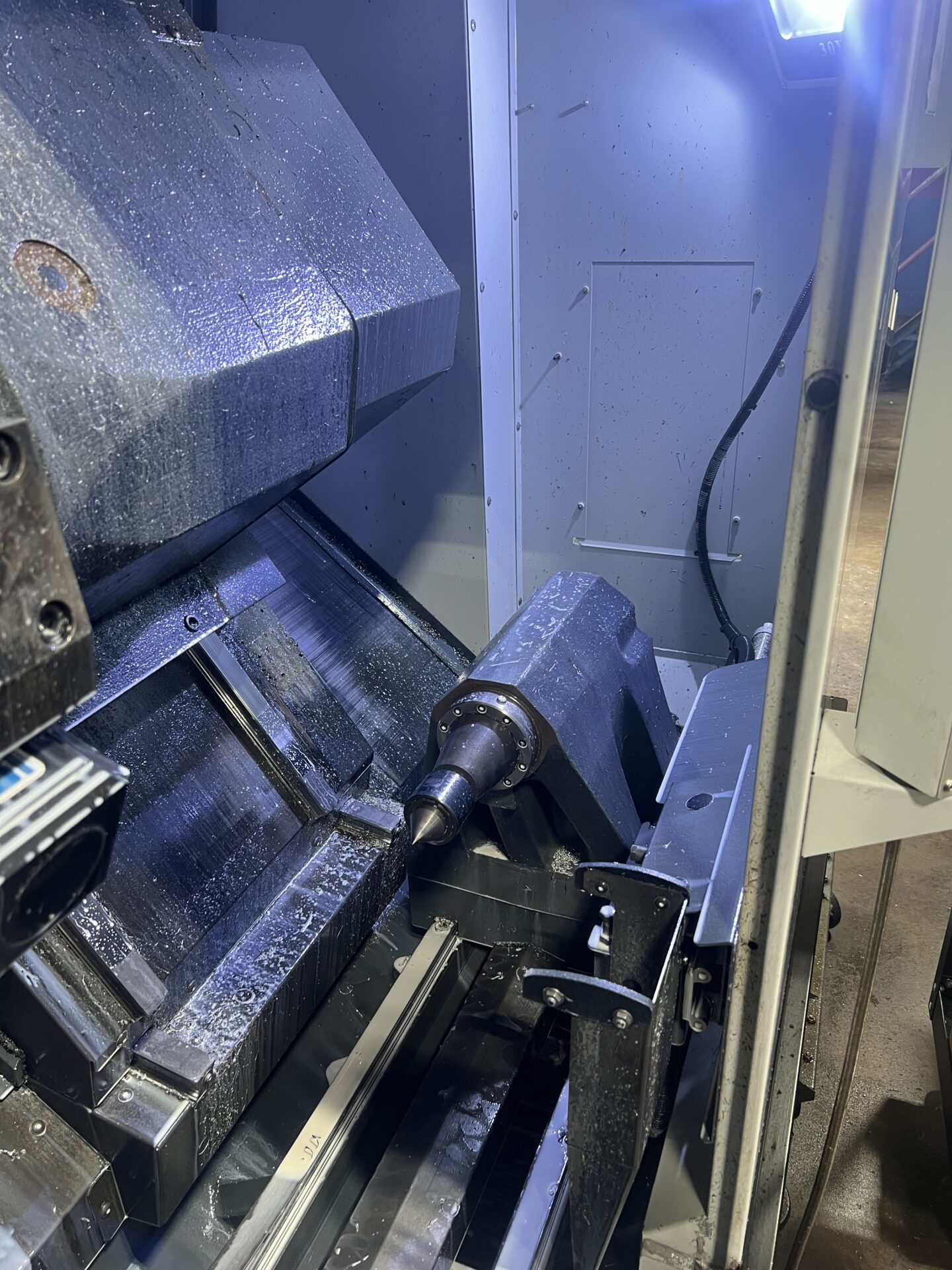

Fully Programmable Hydraulic Tailstock
Auto Parts Catcher
High Pressure Coolant (300 PSI)
Automatic Tool Presetter

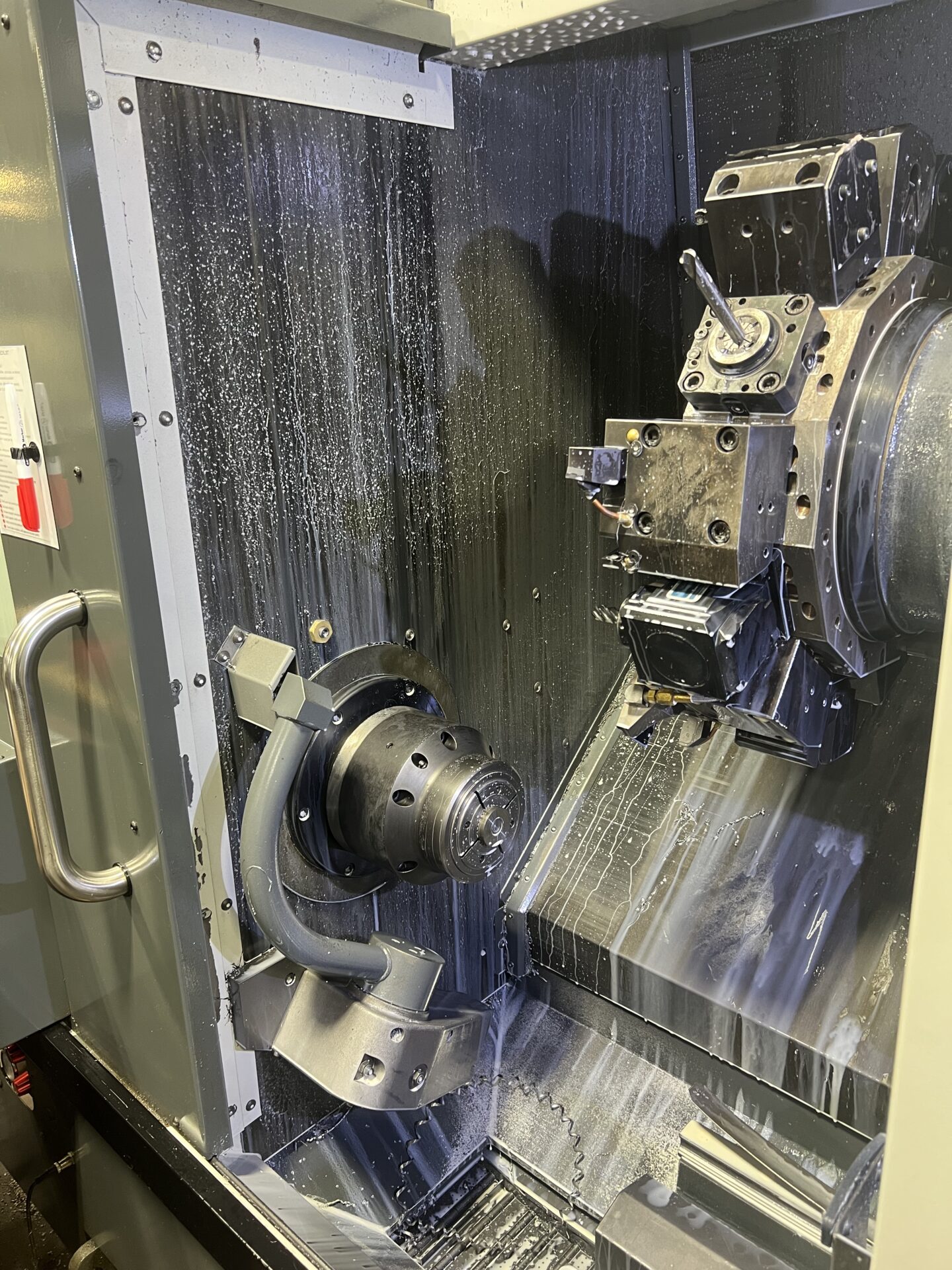

24 Position Turret
Spindle Orientation
Rigid Tapping
Chip Conveyor (Belt Type Right Side Exit)
(1) OD Live Holder
(1) Face Live Holder
(11) Spindle Liners
Manufacture Date July 2019
9059 Servo Time
4105 Motion Time
3619 Spindle Time
