< Back to Vertical M/C
Special Item

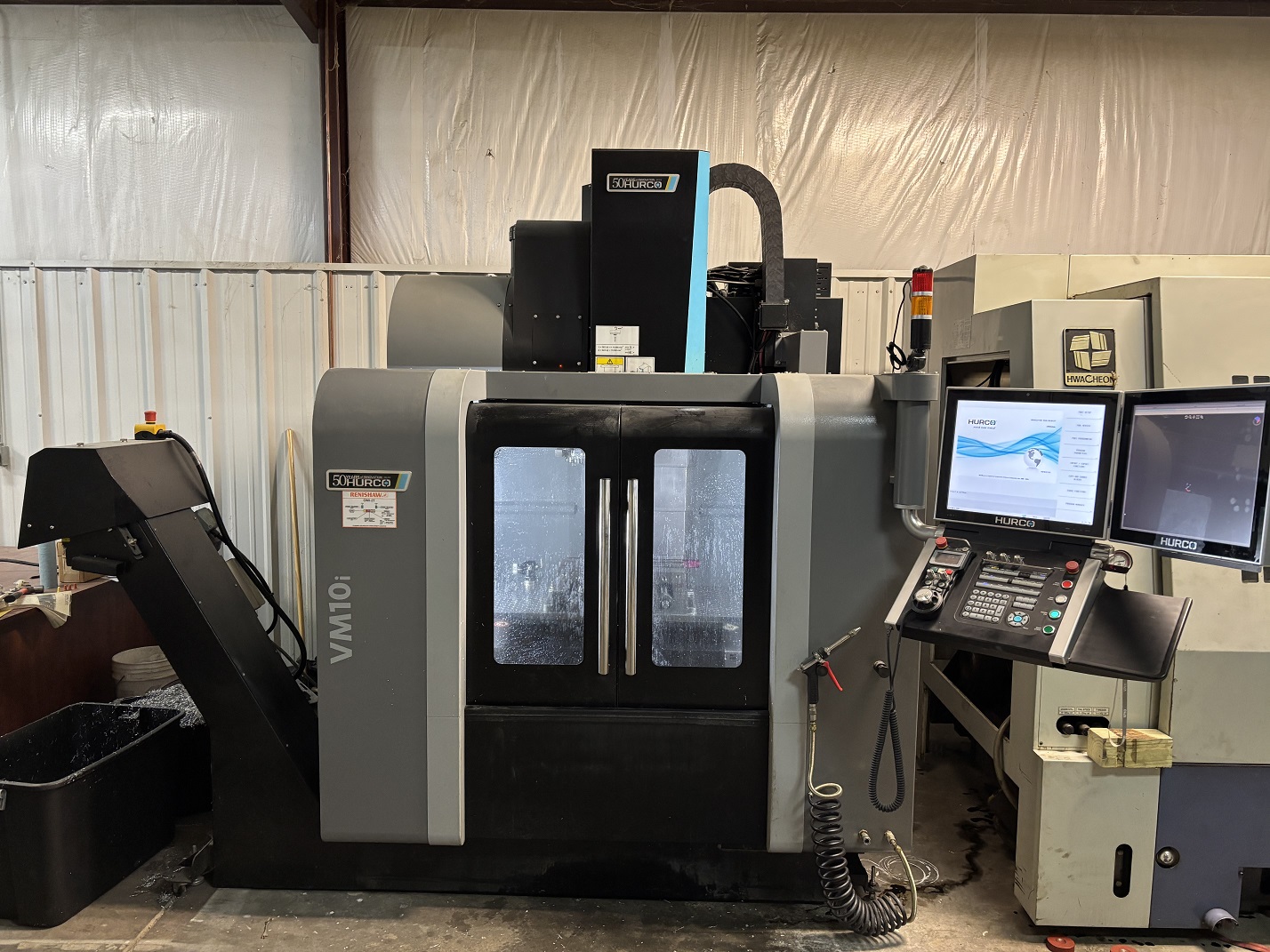

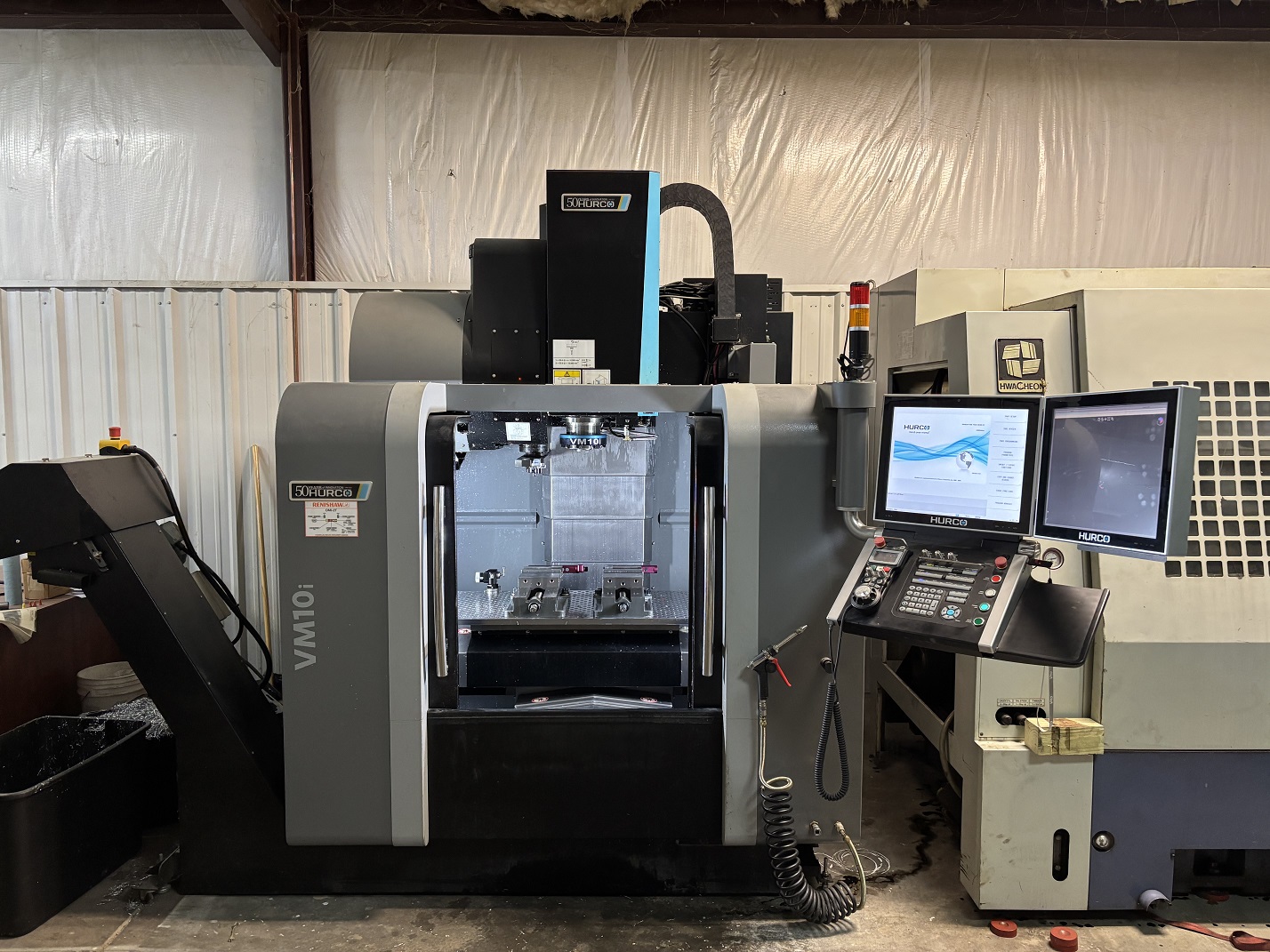

2018 HURCO VM-10i

Winmax, 26.16.20", 12000 RPM, Cat 40, 15HP, 20 Tools, Probes, Rigid Tap, Flood Coolant System, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 26"
  • Y-Axis 16"
  • Z-Axis 20"
  • Table Size 30" x 16"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 15 HP
  • Tools 24
  • Table Load Capacity 3300 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1181 / 944 IPM
  • Max Tool Diameter 3.1"
  • Max Tool Length 9.8"
  • Max Tool Weight 15.4 lbs.
  • Machine Dimensions (L x W x H) 128.5" x 133.2" x 101"
  • Machine Weight 7200 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Spindle Torque 54 ft. lbs.

Product Features

  • HURCO WINMAX CNC CONTROL
  • Dual Screen Color LCD
  • Conversational Programming
  • CAT 40 Spindle Taper
  • 12,000 RMP Spindle Speed
  • 20 Position Side Mount Tool Changer
  • Spindle Chiller Unit
  • Advanced Verification Graphic
  • NC Conversational Merge
  • DXF
  • Tool and Part Probing
  • Ultipockets
  • Insert Pockets
  • Helical Ramp
  • Rigid Tapping
  • Selectsurface Finish Quality
  • Tool and Material Library
  • UltiMotion
  • Tool Change Optimization
  • Ultimonitor
  • Remote Data Advanced
  • 3D Print Export
  • Linear Thermal Compensation
  • Flood Coolant System
  • Coolant Ring
  • Saunders Aluminum Sub Plate
  • Chip Conveyor (Left Side Exit)
  • 2438 Machine Hours
  • 862 Spindle Hours
