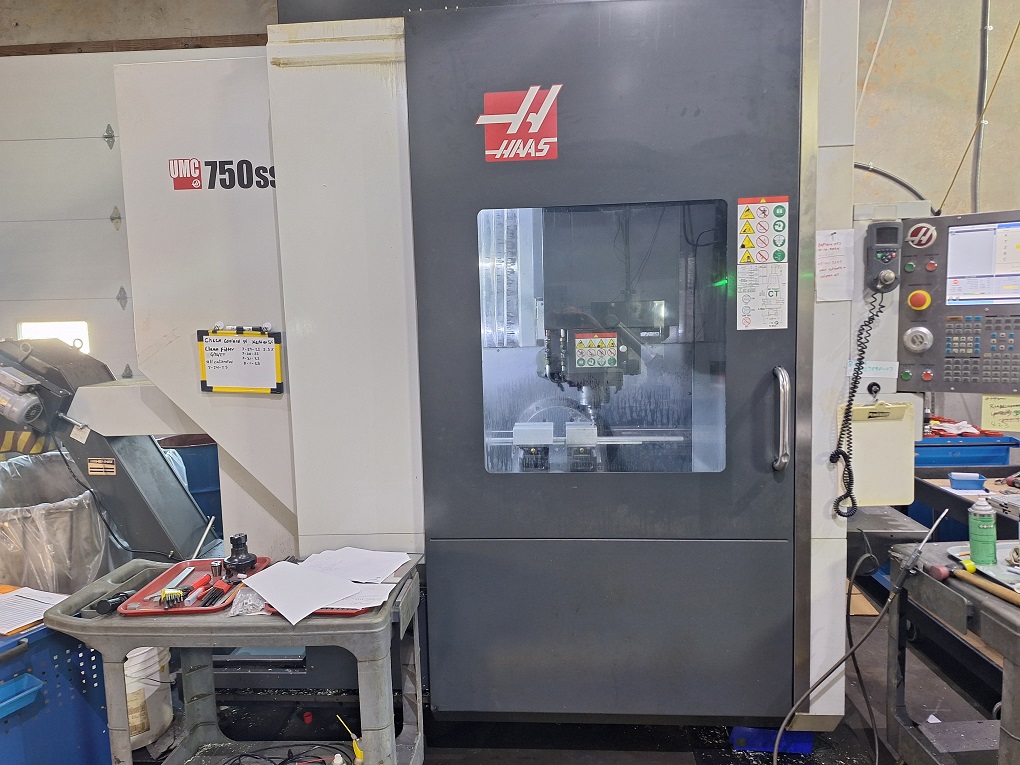

2018 HAAS UMC-750SS 5-AXIS

30.20.20", 15000 RPM, Cat 40, 40 SMTC, 30 HP, 5-Axis Trunnion, Probes, Through Spindle Coolant, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 20"
  • Z-Axis 20"

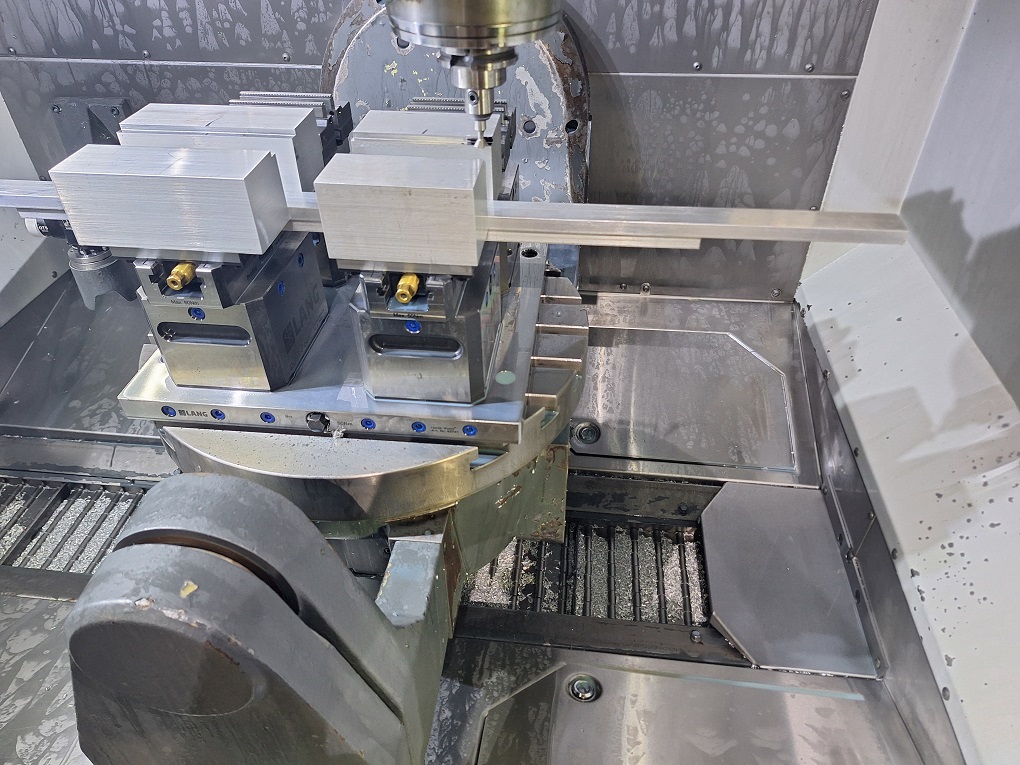

  • B-Axis (Table Tilt) -35 to 110
  • C-Axis (Table Index) .001 Deg
  • Table Size 24.8" x 19.7"
  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 40
  • Table Load Capacity 660 lbs.
  • Rapid Traverse Rates 1200 IPM
  • Max Tool Diameter 5" / 3"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 162" x 113" x 120"
  • Machine Weight 19,200 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Spindle Torque 90 ft. lbs.

Product Features

  • 15000 RPM Optional Spindle Speed
  • 40 Position Side Mount Tool Changer
  • Wireless Intuitive Probing System
  • Through Spindle Coolant
  • Programmable Coolant Nozzle
  • High Speed Machining
  • Remote Jog Handle
  • Macros
  • 1 GB Program Memory
  • Media Display
  • Remote Jog Handle with Color LCD
  • TCPC and DWO
  • Rigid Tapping
  • Spindle Orientation
  • Wireless Networking
  • Compensation Tables
  • Visual Programming System
  • Chip Conveyor
  • Manufacture Date January 2018
  • 24,621 Power On Time
  • 15,195 Servo Time
  • 8435 Feed Time
  • 3195 Spindle Time
