Special Item

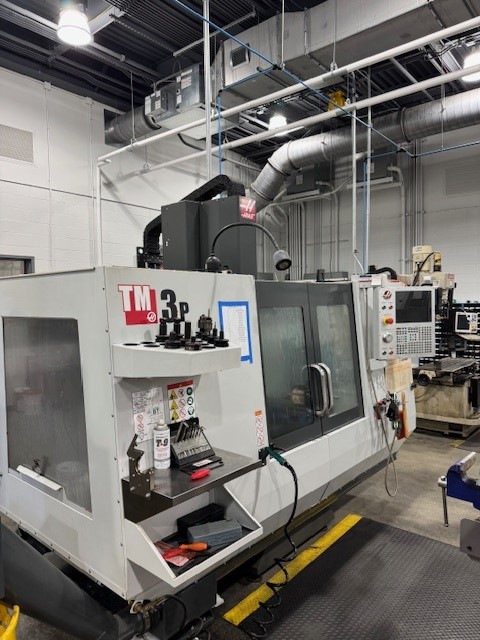

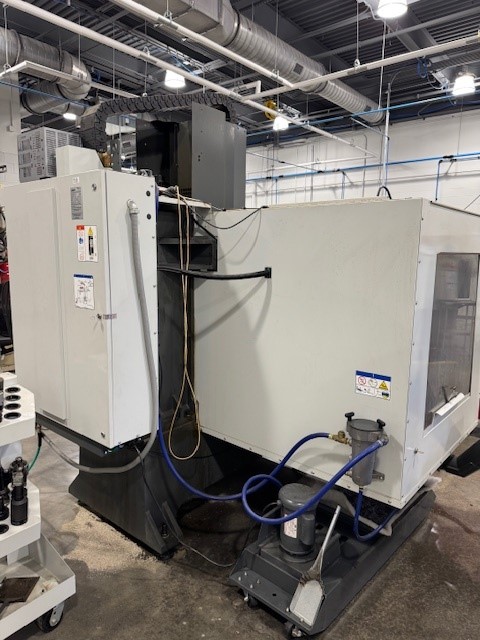

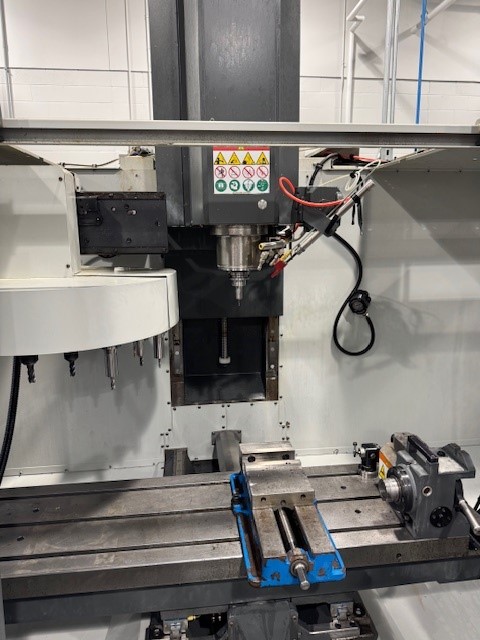

2018 HAAS TM-3P

40.20.16", 10000 RPM, BT 40, 10 Tools, Probes, 4th Int, Chip Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40"
  • Y-Axis 20"
  • Z-Axis 16"
  • Table Size 57.75" x 14.5"
  • Spindle Speed 10,000 RPM
  • Spindle Taper BT40
  • Spindle Motor 7.5 HP
  • Tools 10
  • Table Load Capacity 1000 lbs.
  • Rapid Traverse Rates 400 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 121" x 98" x 105"
  • Machine Weight 6340 lbs.
  • Spindle Nose to Table Top 4" - 20"
  • Spindle Torque 33 ft. lbs.
  • Tool Change Time (T - T / C - C) 5.7 / 6.5 Seconds

Product Features

  • HAAS 32-BIT CNC CONTROL
  • 12" Color LCD
  • 10,000 RPM Spindle
  • BT-40 Spindle Taper
  • 10 Position Tool Changer
  • Wireless Intuitive Probing
  • High Speed Machining
  • 4th-Axis Interface
  • Programmable Coolant
  • VPS Editing
  • Media Display
  • Macros
  • Coordinate Rotation and Scaling
  • Rigid Tapping
  • Spindle Orientation
  • Graphic Display
  • Remote Jog Handle
  • Full Enclosure
  • Chip Auger
  • Manufacture Date June 2018
  • 15,493 Power On Time
