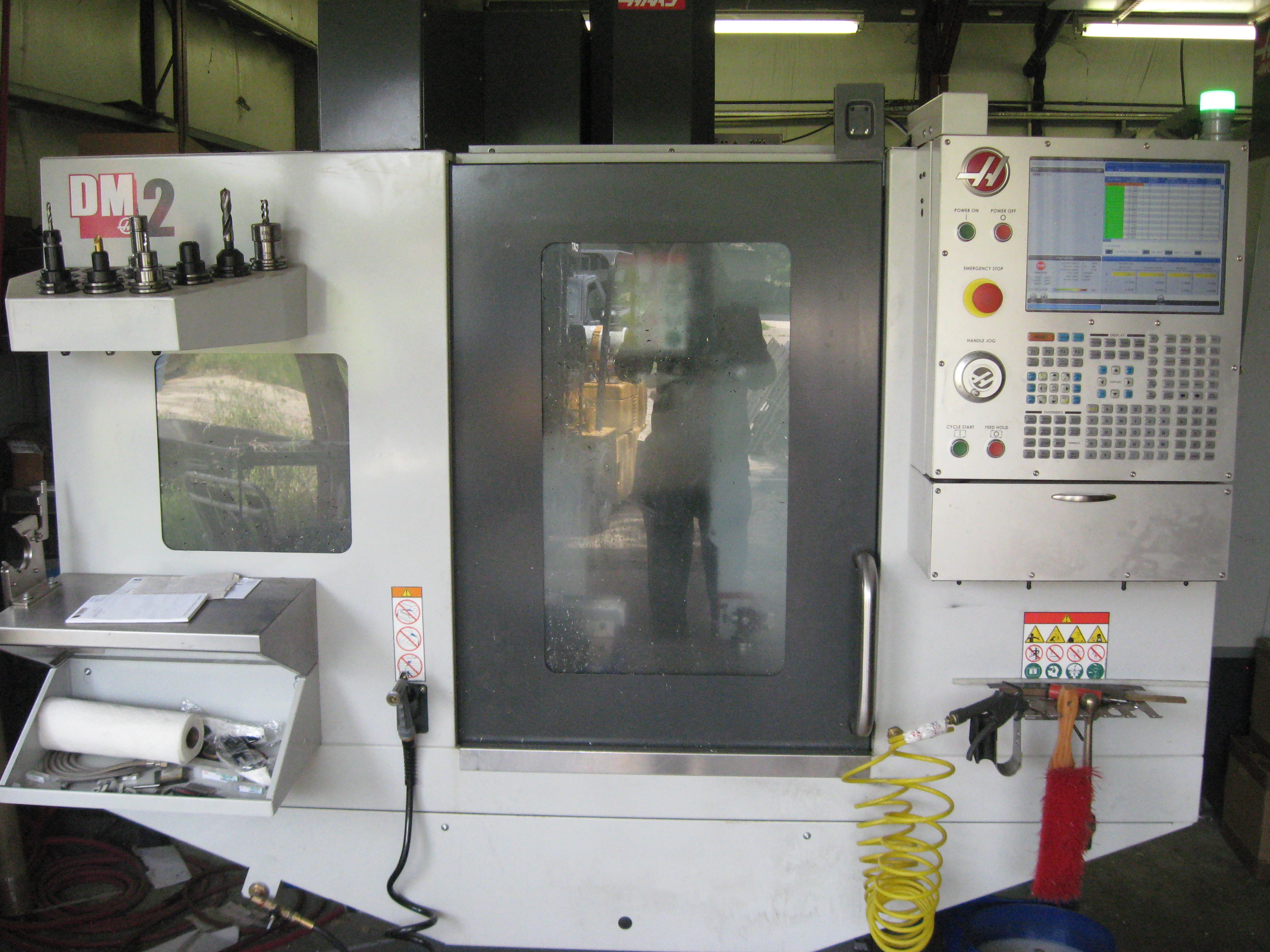

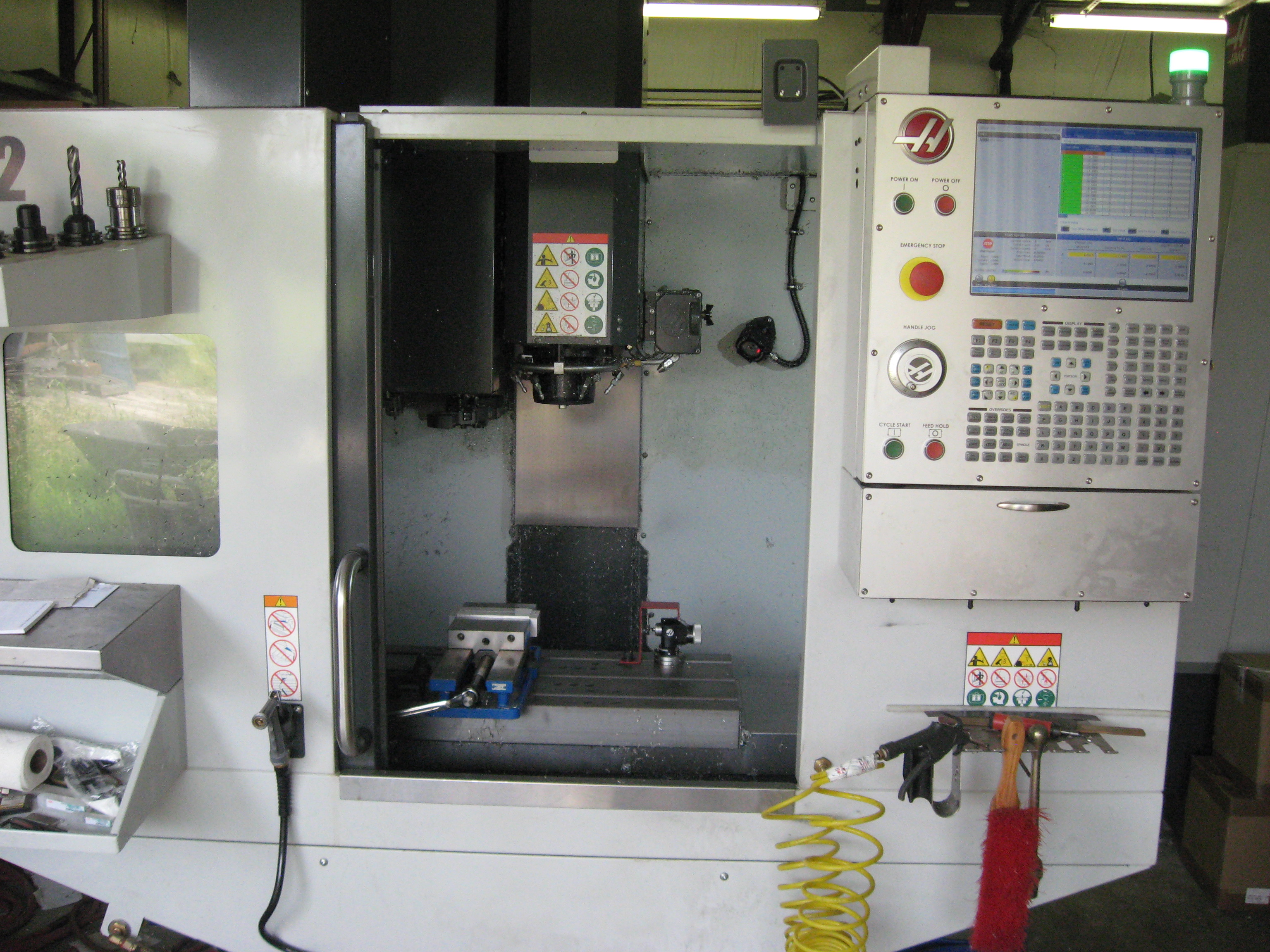

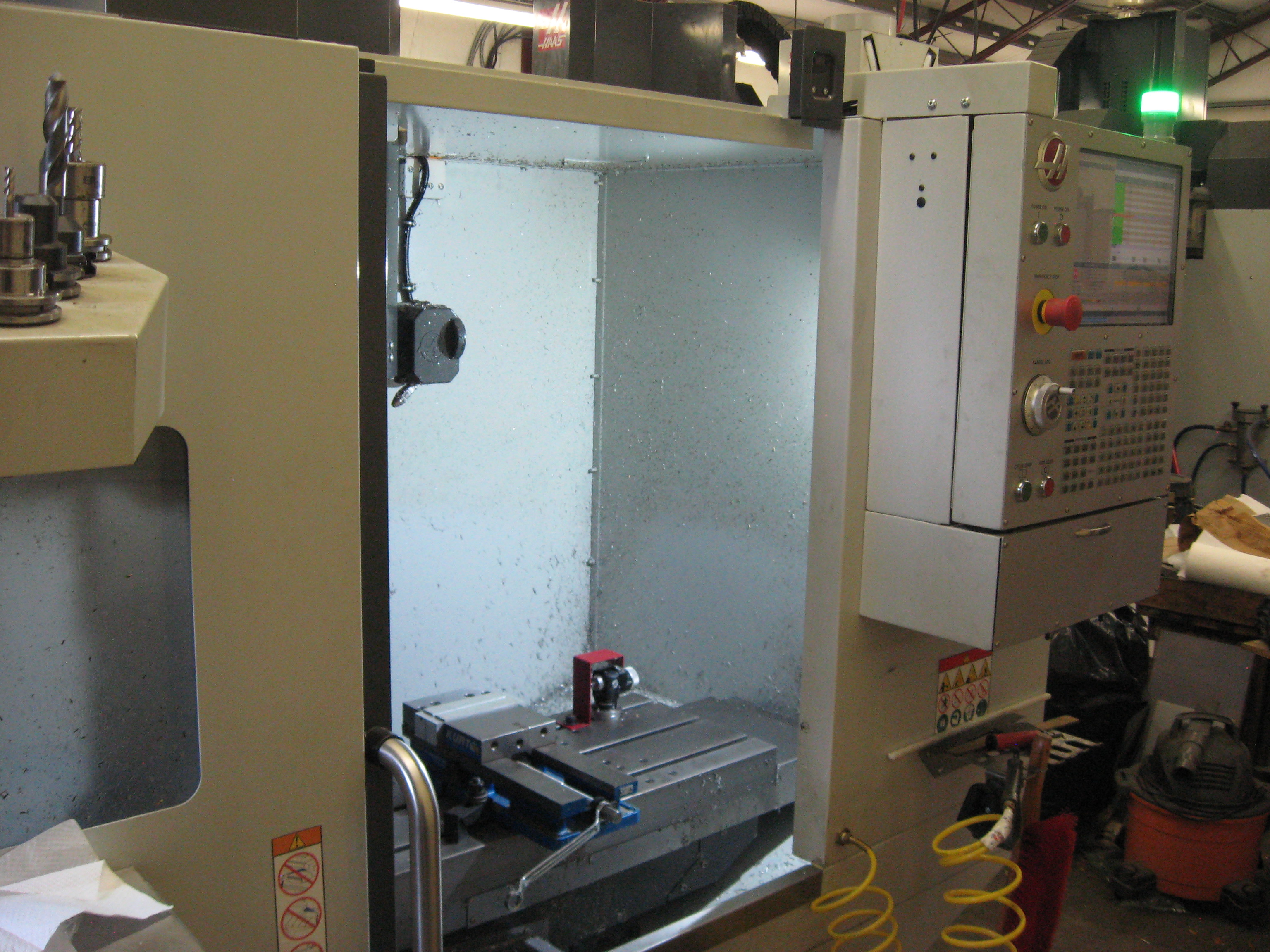

2018 HAAS DM-2

28.16.16, 15,000 RPM, 15 HP, Cat 40, 4th-Axis Interface, TSC, Probes, HSM, 18+1 SMTC, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 28"
  • Y-Axis 16"
  • Z-Axis 15.5"

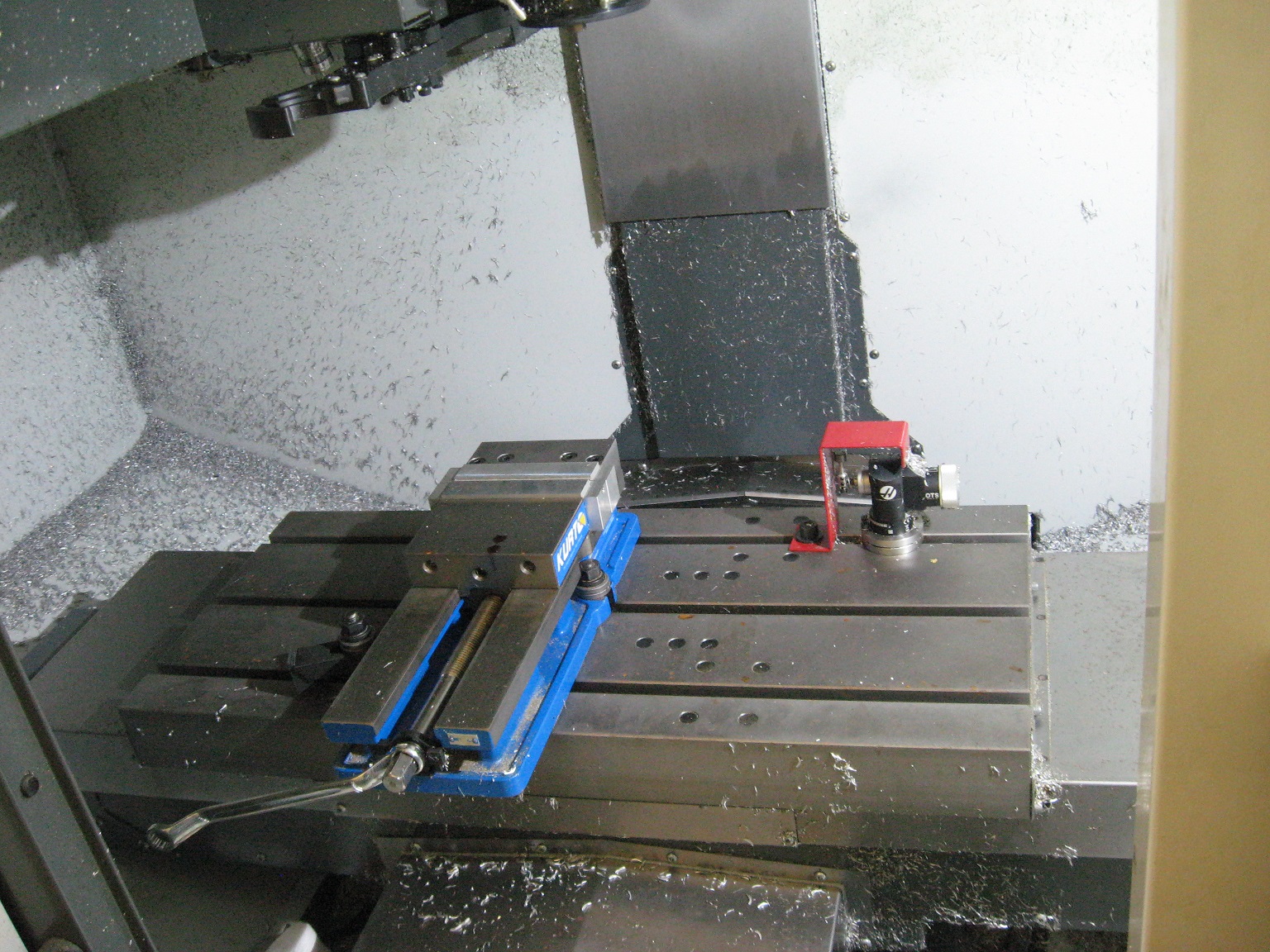

  • Table Size 34" x 15"

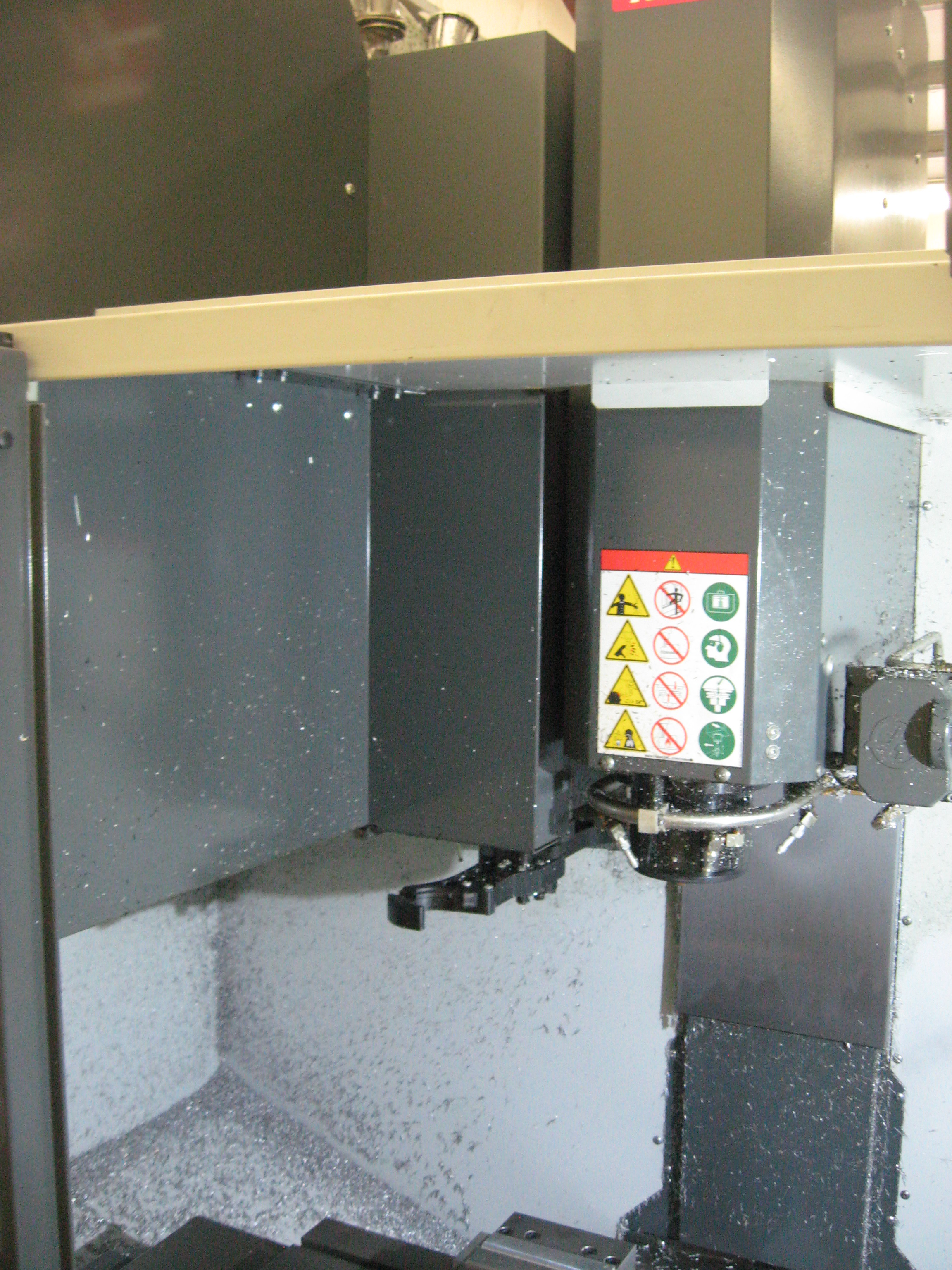

  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 15 HP
  • Table Load Capacity 250 LBS
  • Rapid Traverse Rates 2400 IPM
  • Max Cutting Feed Rate 1200 IPM
  • Max Tapping Speed 5000 RPM
  • Max Tool Diameter 2.5"
  • Max Tool Length 7"
  • Machine Dimensions (L x W x H) 102" x 91" x 100"
  • Machine Weight 6300 LBS
  • Chip-to-Chip Time 1.6 Seconds
  • Side Mount Tool Changer 18+1
  • Spindle Nose To Table Top 6.0" to 21.5"

Product Features

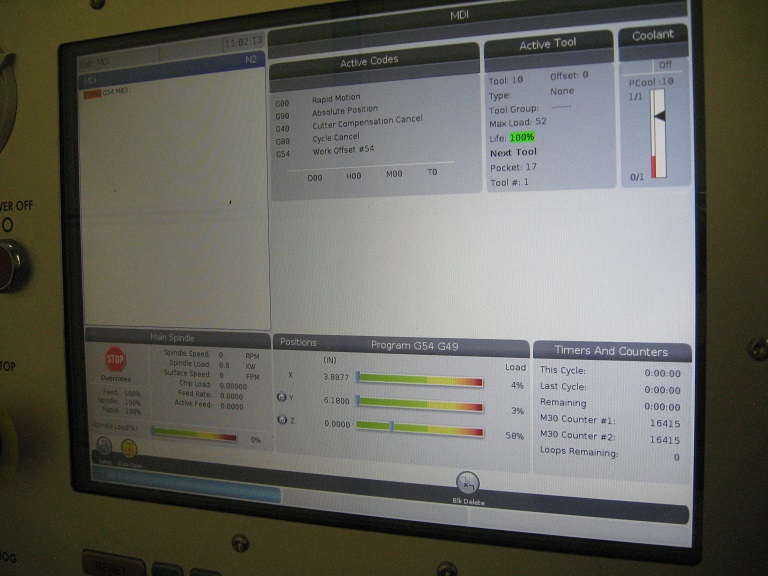

  • HAAS CNC Control
  • 12" Color TFT
  • 15,000-RPM High-Performance Option
  • 4th-Axis Interface
  • Wireless Intuitive Probing System
  • Through-Spindle Coolant
  • High Speed Machining
  • Rigid Tapping
  • 32 GB Memory
  • Ethernet
  • Haas Connect
  • Media Display
  • User Definable Macros
  • Coordinate Rotation and Scaling
  • Visual Part Programming
  • Enclosure Exhaust System
  • Table Work Light
  • Chip Auger
