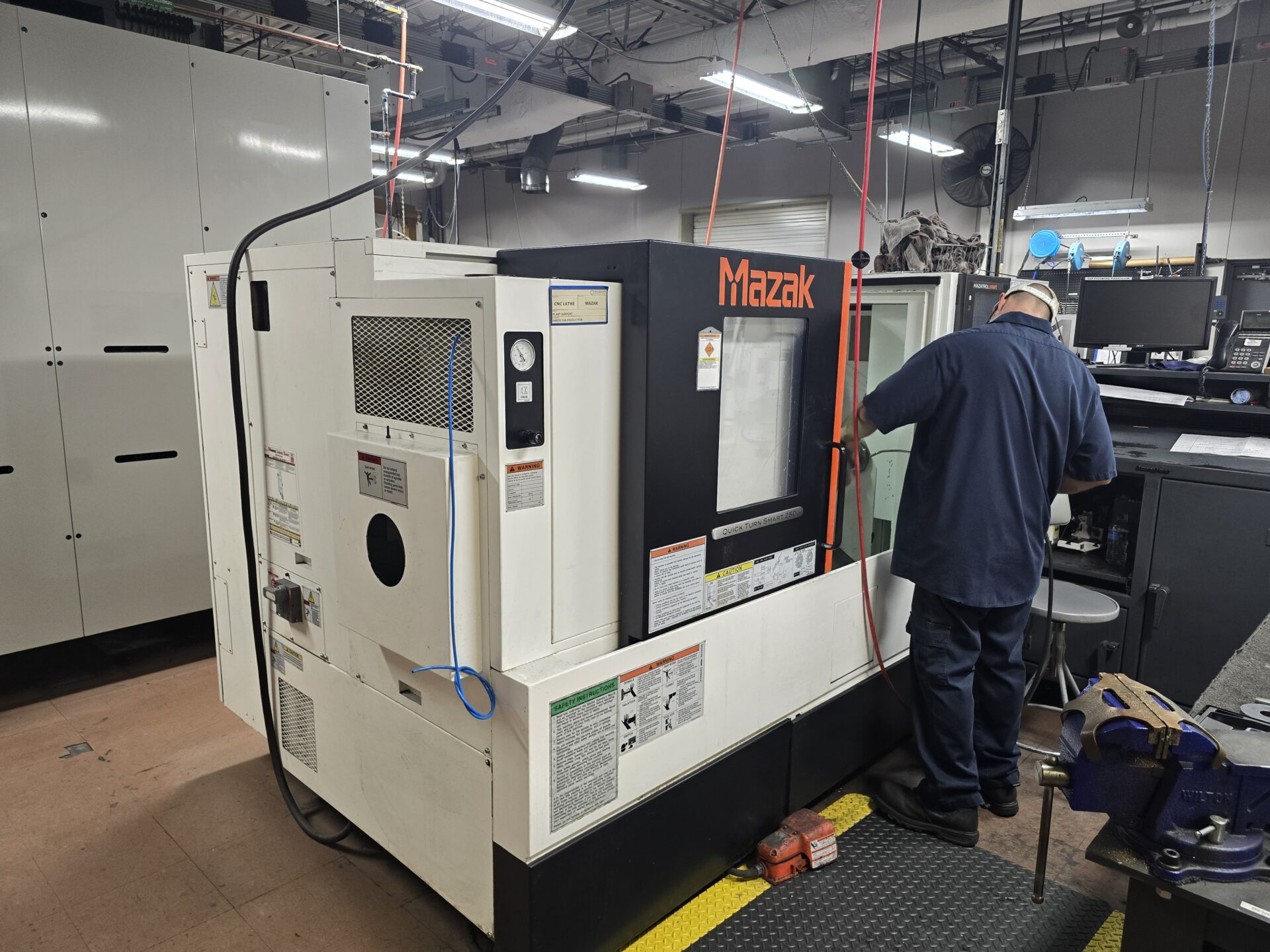

2016 MAZAK QUICK TURN SMART 250

Smart, 3" Bar, 10" Chuck, 14" Max Dia, 19" Length, 35HP, Tool Presetter, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed 26"
  • Max Machining Length 19.608"
  • Spindle Motor 35 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.58"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 1181 / 1299 IPM
  • X-Axis Travel 8.88"
  • Z-Axis Travel 23.75"
  • Turret Index (Single Step) MT#5
  • Machine Dimensions (L x W x H) 133" x 68" x 72"
  • Machine Weight 13,000 lbs.
  • Max Turning Diameter 14.25"

Product Features

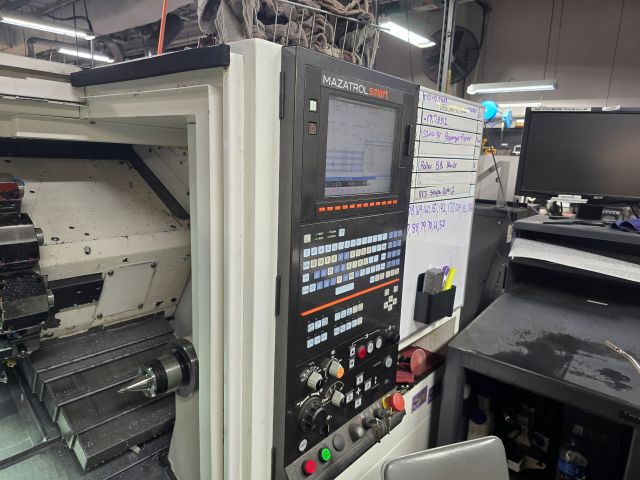

  • MAZATROL SMART CNC CONTROL
  • 10.4" Color LCD
  • Conversational Programming
  • EIA / ISO Input Function
  • Royal A2-8 S30 Collet Chuck

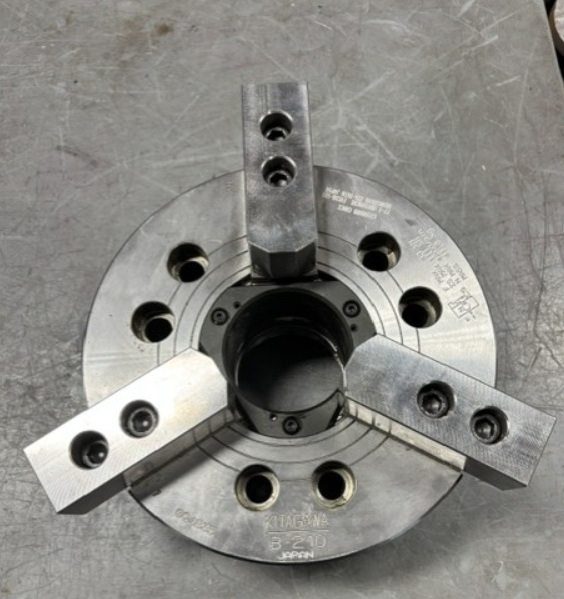

  • 10" Kitagawa B210 Hydraulic 3-Jaw Chuck
  • Programmable Tool Eye
  • Programmable Tailstock
  • Jorgensen Chip Conveyor (Side Exit Hinge Type)
  • High Pressure Coolant

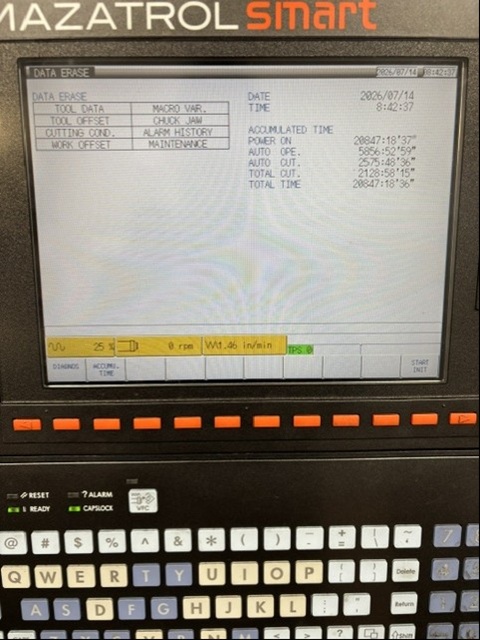

  • 20,847 Power On Hours
  • 5856 Auto Operation Hours
  • 2575 Auto Cut Hours
  • 2128 Total Cut Hours
