Special Item

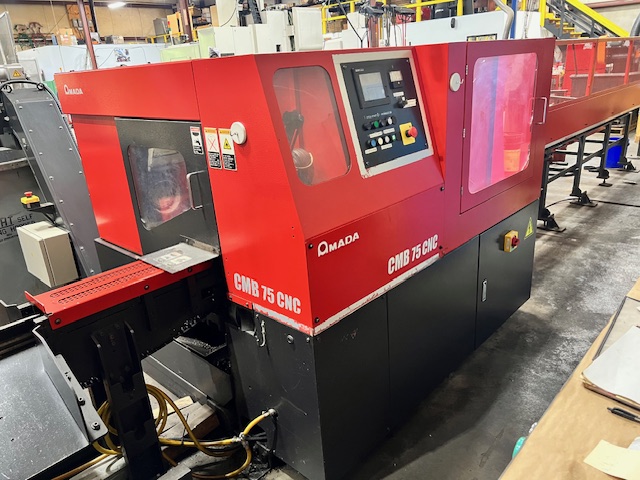

2016 AMADA CMB 75 CNC COLD SAW

CNC Cold Saw, Circular Saw Blade, Round & Rectangle Cutting, High speed, High Precision (.0004"), Automatic Bar Feed, Bar Unloader, Chip Conveyor, J.F. Berns Chamfer Machine
Talk to a representative today!
(803) 548-8000

Product Details

  • Blade Motor 10 HP
  • Blade Speed 56 - 225 RPM
  • Blade 11.22" x 1.57" x .079"
  • Cut-off Length .394" - 236.22"
  • End Trimming Length .394" - 1.57"
  • Horizontal Clamping Pressure 3417 LBS
  • Machine Dimensions (W x L x H) 65.6" x 82.7" x 62.3"
  • Machine Weight 4409 LBS
  • Material Length .394" - 472.44"
  • Rectangular Material Edge Length .394" - 2.36"
  • Round Material Diameter .394" - 3"
  • Stroke 28.1"
  • Vertical Clamping Pressure 876.76 LBS

Product Features

  • Cut-In Control CNC
  • LCD Touch Screen
  • Automatic Bar Feed

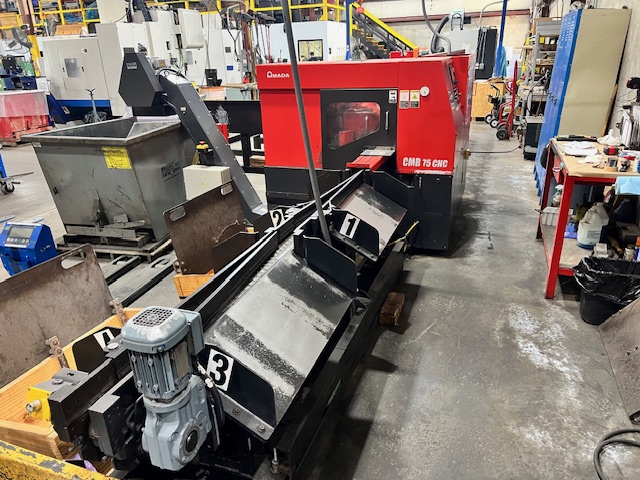

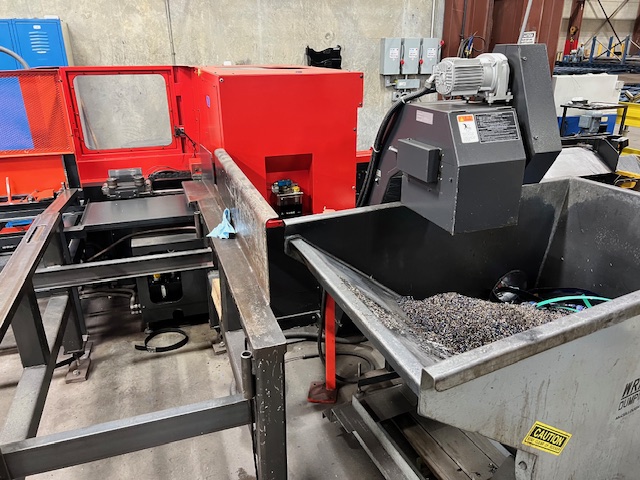

  • Chip Conveyor

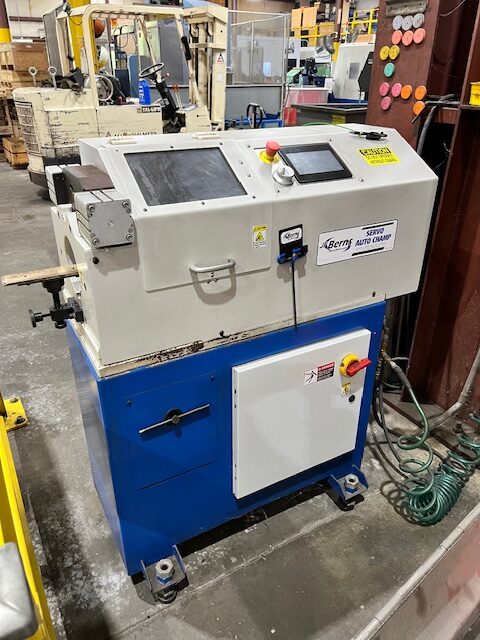

  • J.F. Berns Servo Auto Champ 2 Chamfering Machine
  • Auto Loader

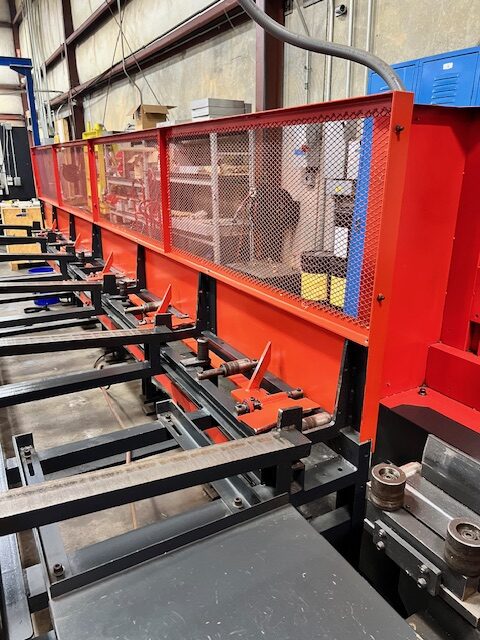

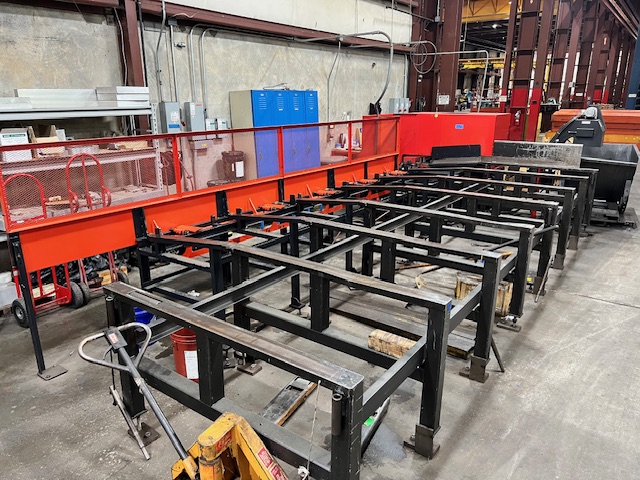

  • High Capacity Table
  • Delivery Chute
  • Short Cycle Time
  • High Precision Cutting (+/- 0.0004")
