Special Item

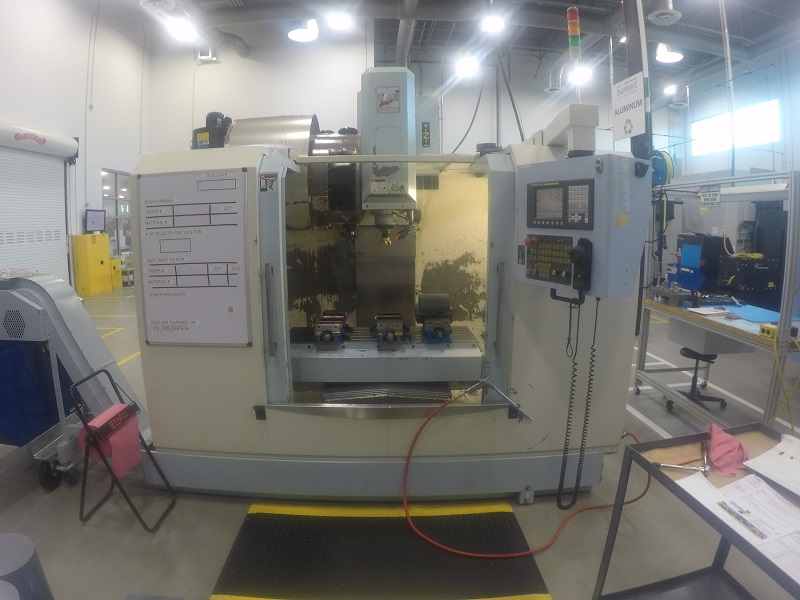

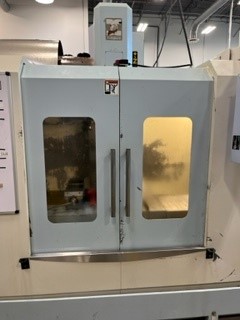

2010 TWINHORN VH-1010

Fanuc 0i-MD, 40.20.20", 8000 RPM, 30 SMTC, 20 HP, Cat 40, TSC, Fourth Axis, Box Ways, Chip Conveyor, Mist Collector
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 39.76"
  • Y-Axis 19.7"
  • Z-Axis 20.47"
  • Table Size 47.24" x 17.71"
  • Spindle Speed 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP AC
  • Tools 30
  • Table Load Capacity 1320 lbs.
  • Rapid Traverse Rates 787 IPM
  • Max Tool Diameter 3.23" / 4.92"
  • Max Tool Length 11.8"
  • Max Tool Weight 15.4 lbs.
  • Machine Dimensions (L x D x H) 117" x 91" x 97"
  • Machine Weight 12,000 lbs.
  • Spindle Nose to Table Top 4.72 - 25.6"

Product Features

  • FANUC 0i-MD CNC Control
  • 10.4" Color LCD
  • USB Port

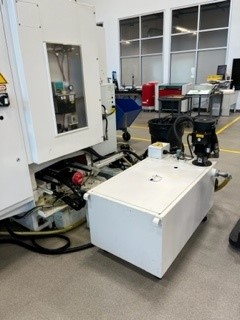

  • Through Spindle Coolant (250 psi)
  • Chip Conveyor (Front Left Exit Hinge Type)
  • 30 Position Side Mount Tool Changer
  • Tanshing VRNC-210 Fourth Axis Rotary Table
  • Horizontal Fixture Plate with Bearing Support

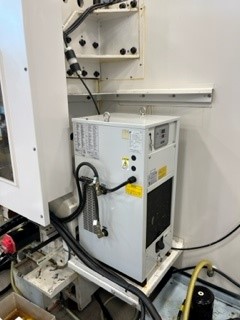

  • Spindle Chiller Unit
  • Rigid Tapping
  • Remote Jog Handle

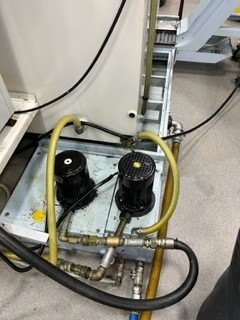

  • Base Coolant Wash System
  • Three Color Tower Light
  • Auto Power Off
  • Spindle Air Blast
  • Mist Collector
  • Two Speed Gearbox
  • Heavy Duty Box Way Construction
  • Manufacture Date June 2010
