Special Item

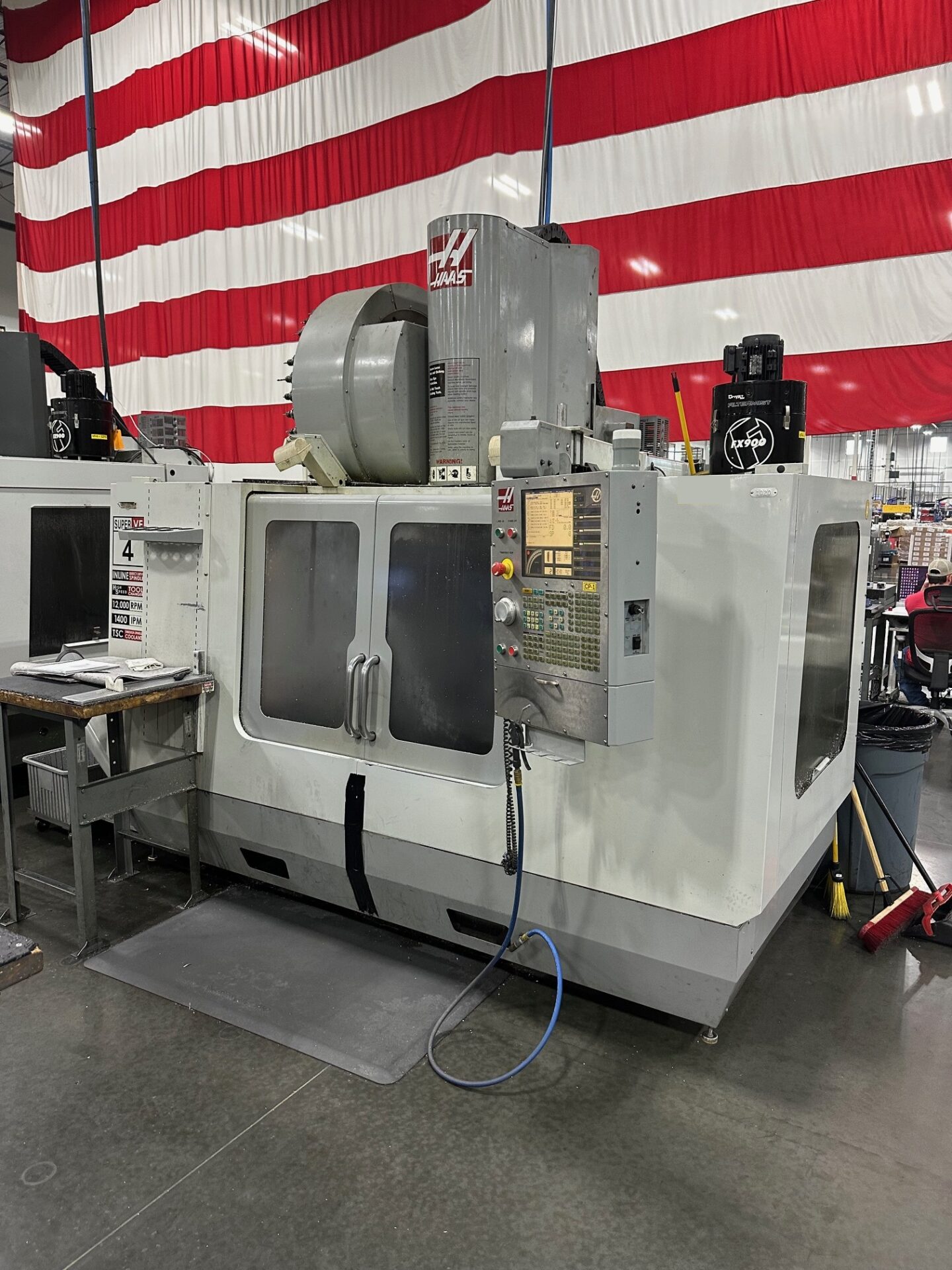

2008 HAAS VF-4SS

50.20.25", 12000 RPM, Cat 40, 30HP, 40 Tools, WIPS, TSC, 4th & 5th Axis Int., HRT-210SP Rotary Table w/ TS, Jog Handle, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 50"
  • Y-Axis 20"
  • Z-Axis 25"
  • Table Size 52" x 18"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 40
  • Table Load Capacity 1750 lbs.
  • Rapid Traverse Rates 1400 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 138.9" x 110" x 123.5"
  • Machine Weight 13,000 lbs.
  • Spindle Nose to Table Top 4" - 29"
  • Spindle Torque 75 ft. lbs.
  • Tool Change Time (T - T / C - C) 1.6 / 2.2 Seconds

Product Features

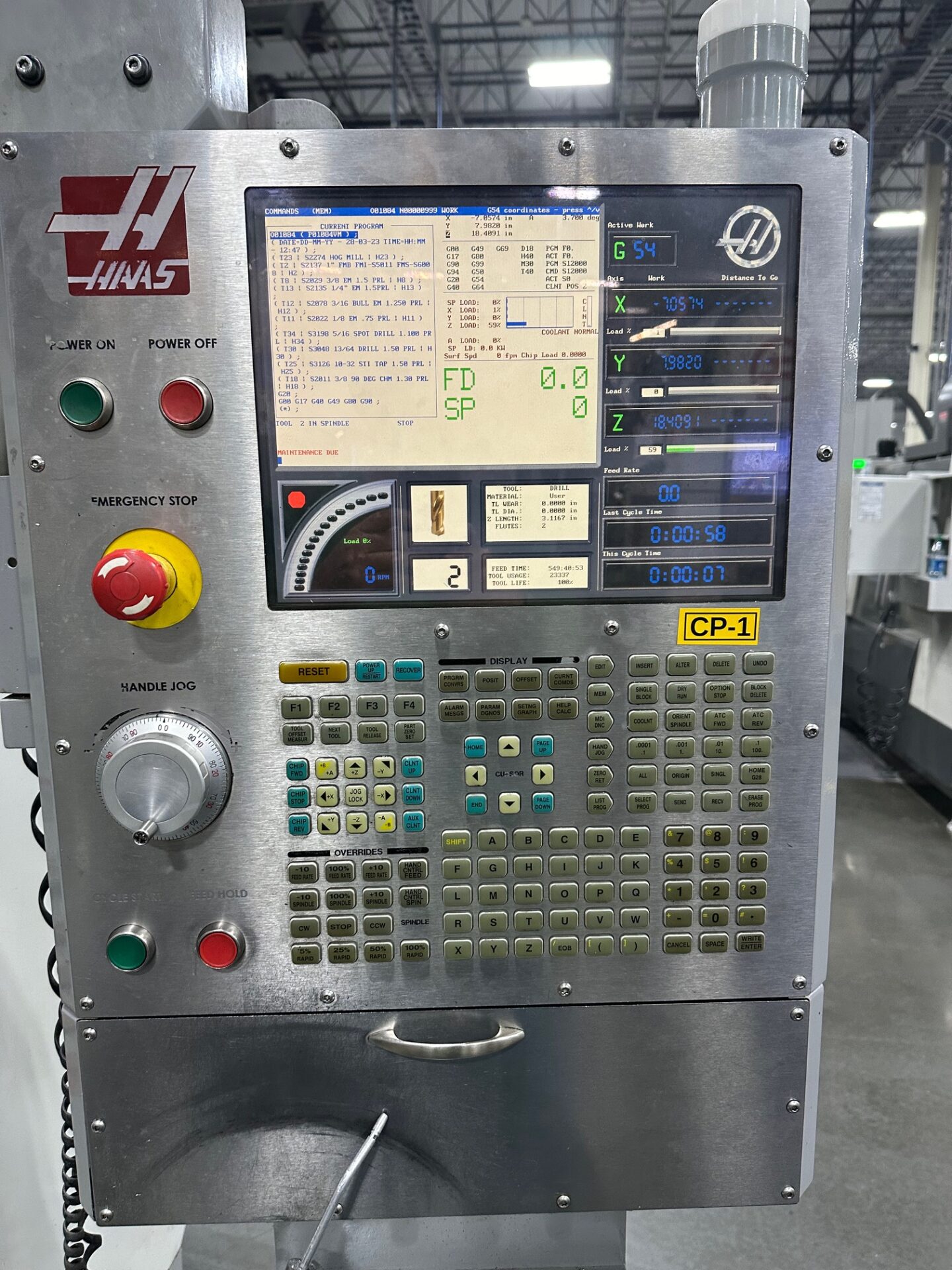

  • HAAS CNC CONTROL
  • 12" Color LCD
  • Thru Spindle Coolant (300 PSI)
  • Wireless Intuitive Probing System

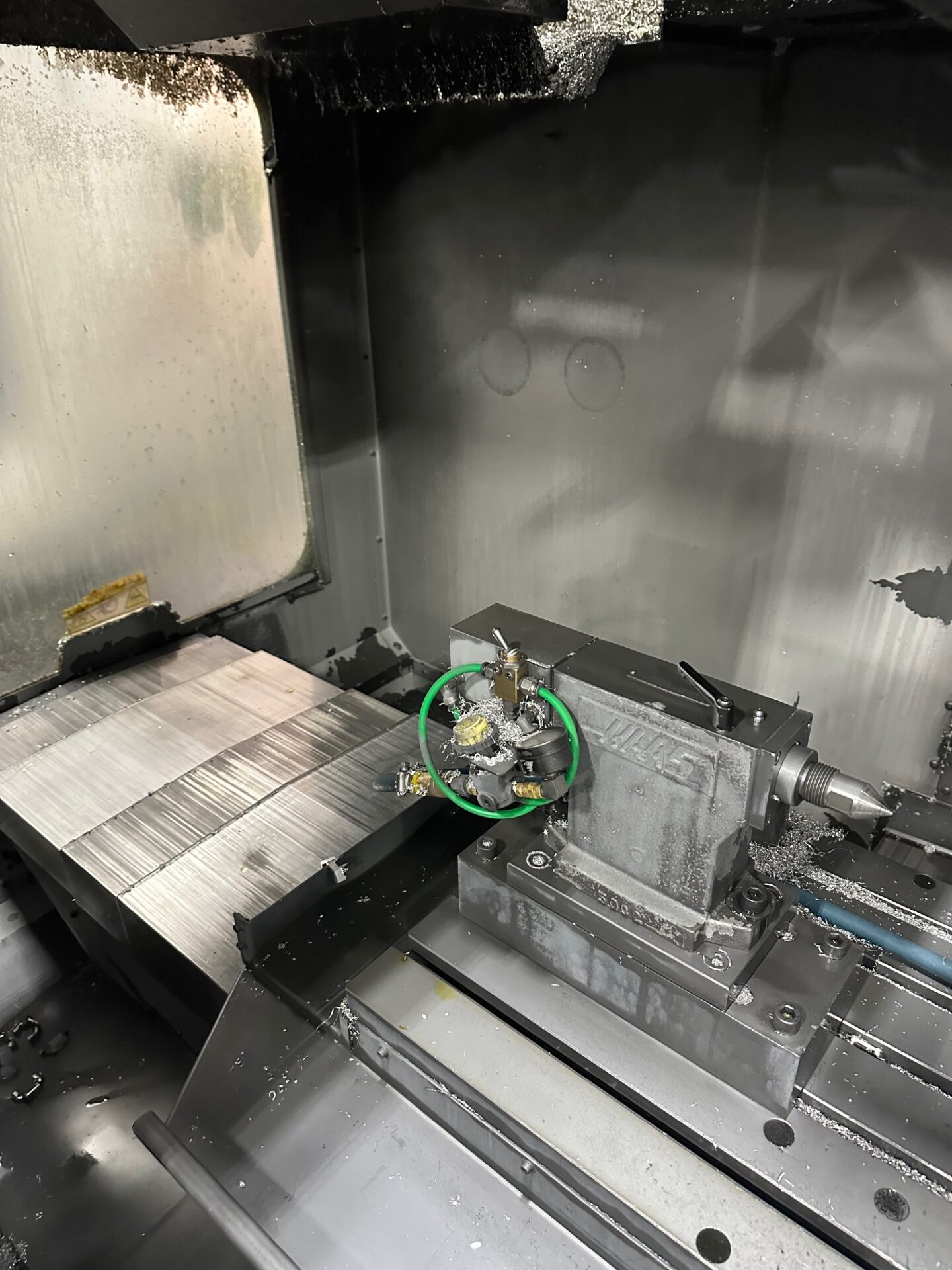

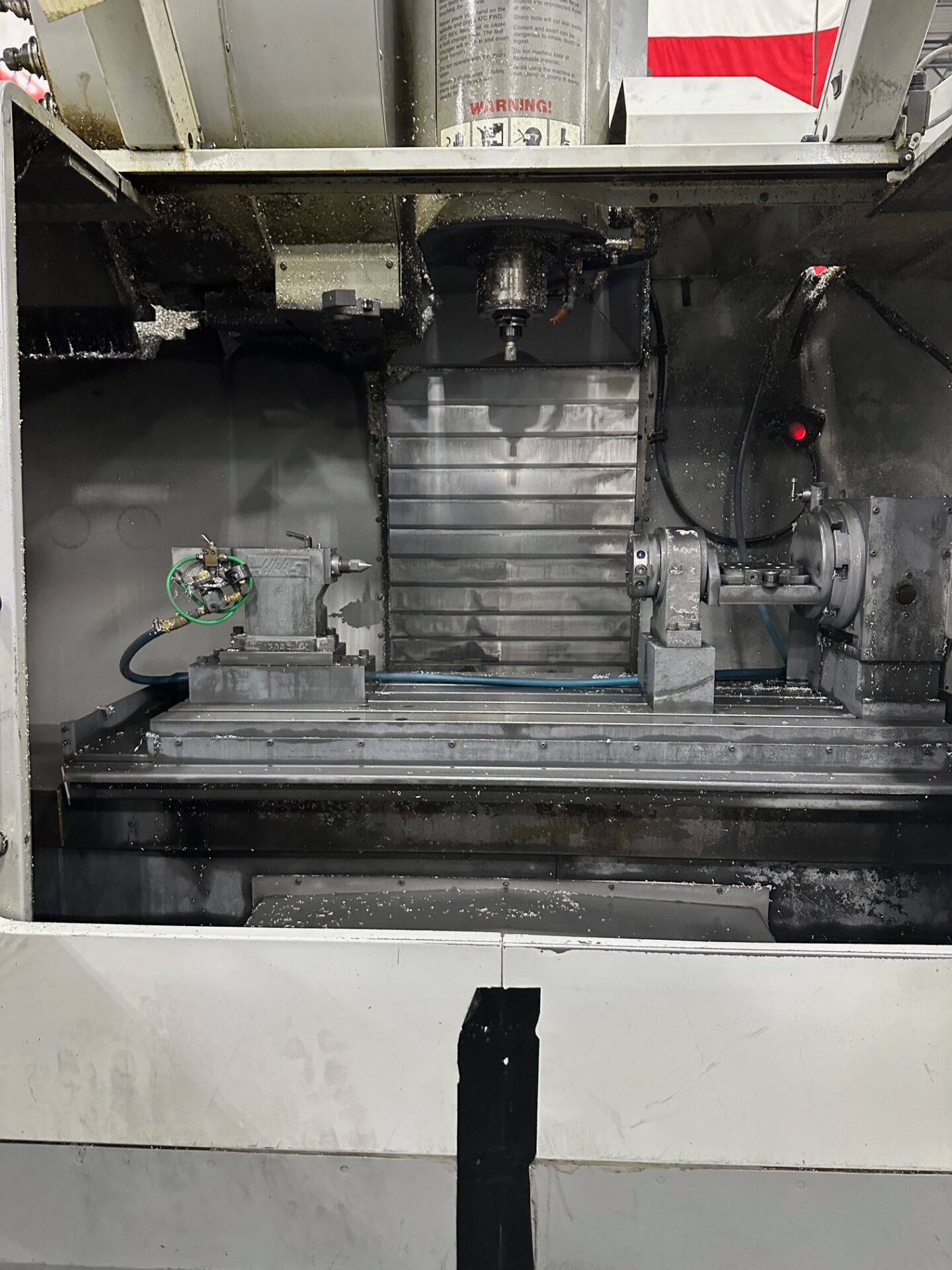

  • HAAS HRT-210SP Fourth Axis Rotary Table

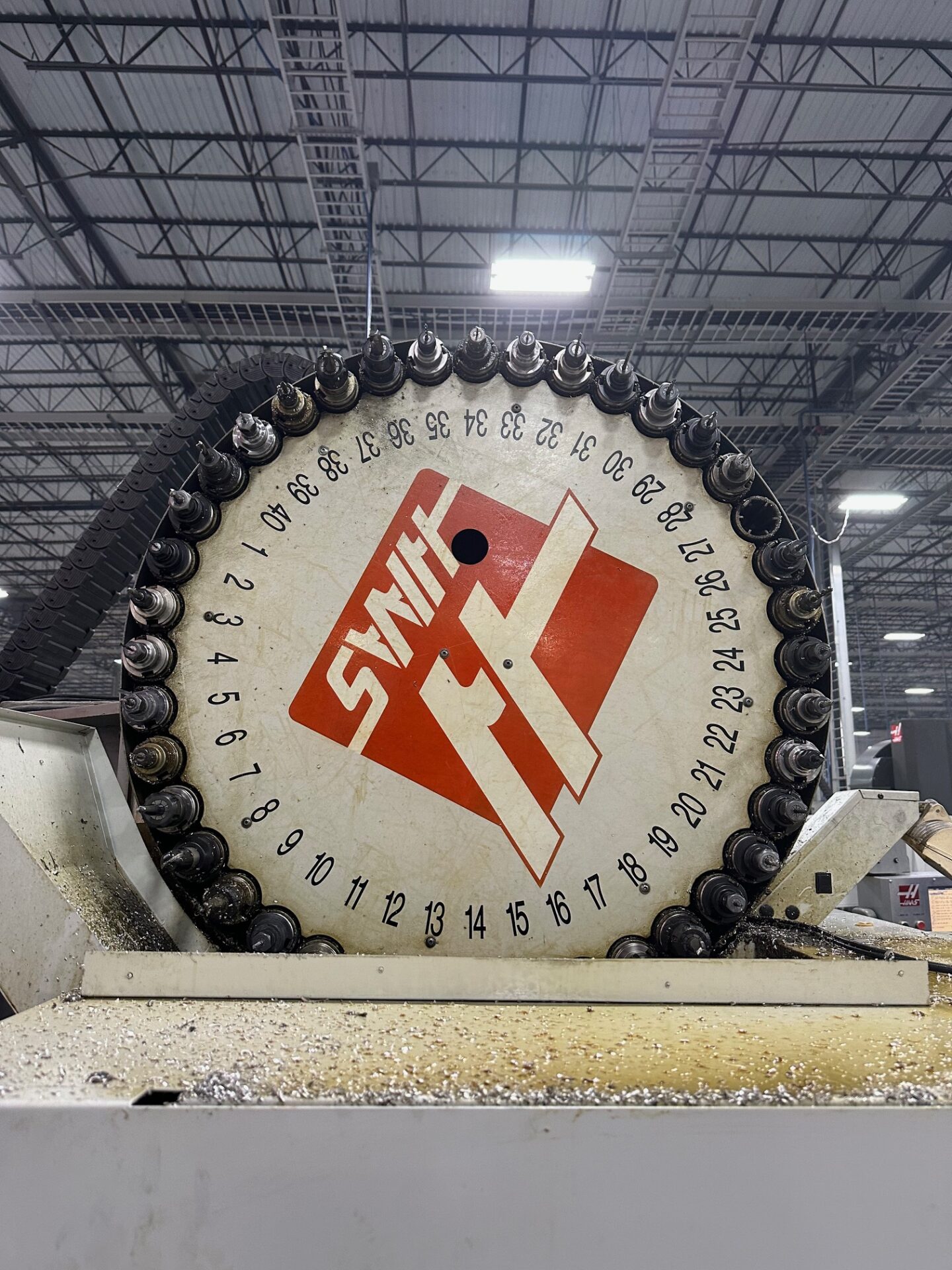

  • 40 Position Side Mount Tool Changer
  • Fourth and Fifth Axis Interfaces
  • High Speed Machining
  • Programmable Coolant Nozzles

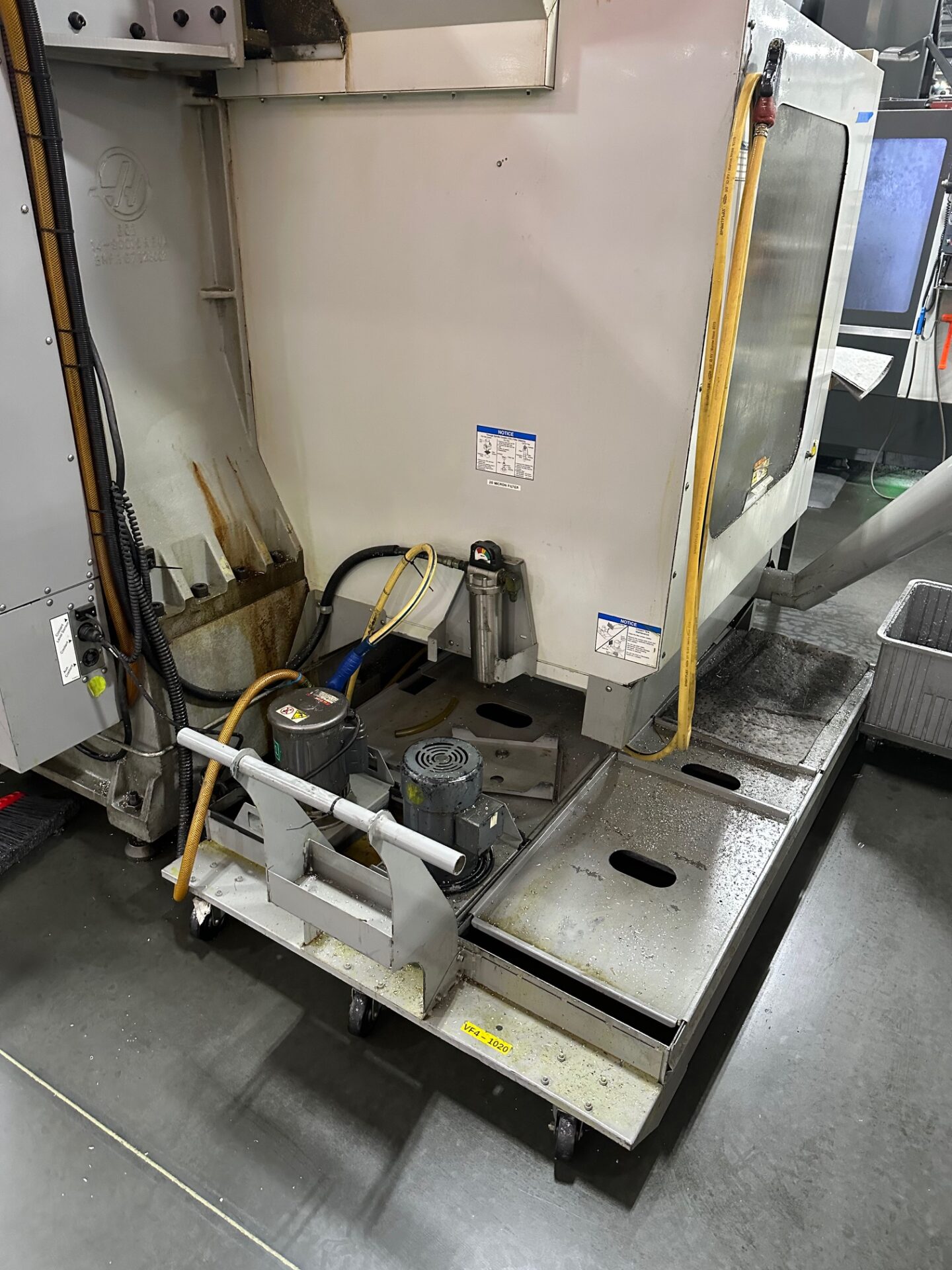

  • Chip Auger
  • 95 Gallon Coolant Tank
  • Mist Collector
  • Auxiliary Coolant Filter
  • Remote Jog Handle
  • Manual Tailstock
  • USB Port
  • Rigid Tapping
  • Coordinate Rotation & Scaling
  • User Definable Macros
  • Spindle Orientation
  • High Intensity Lighting
  • Manufacture Date July 2008

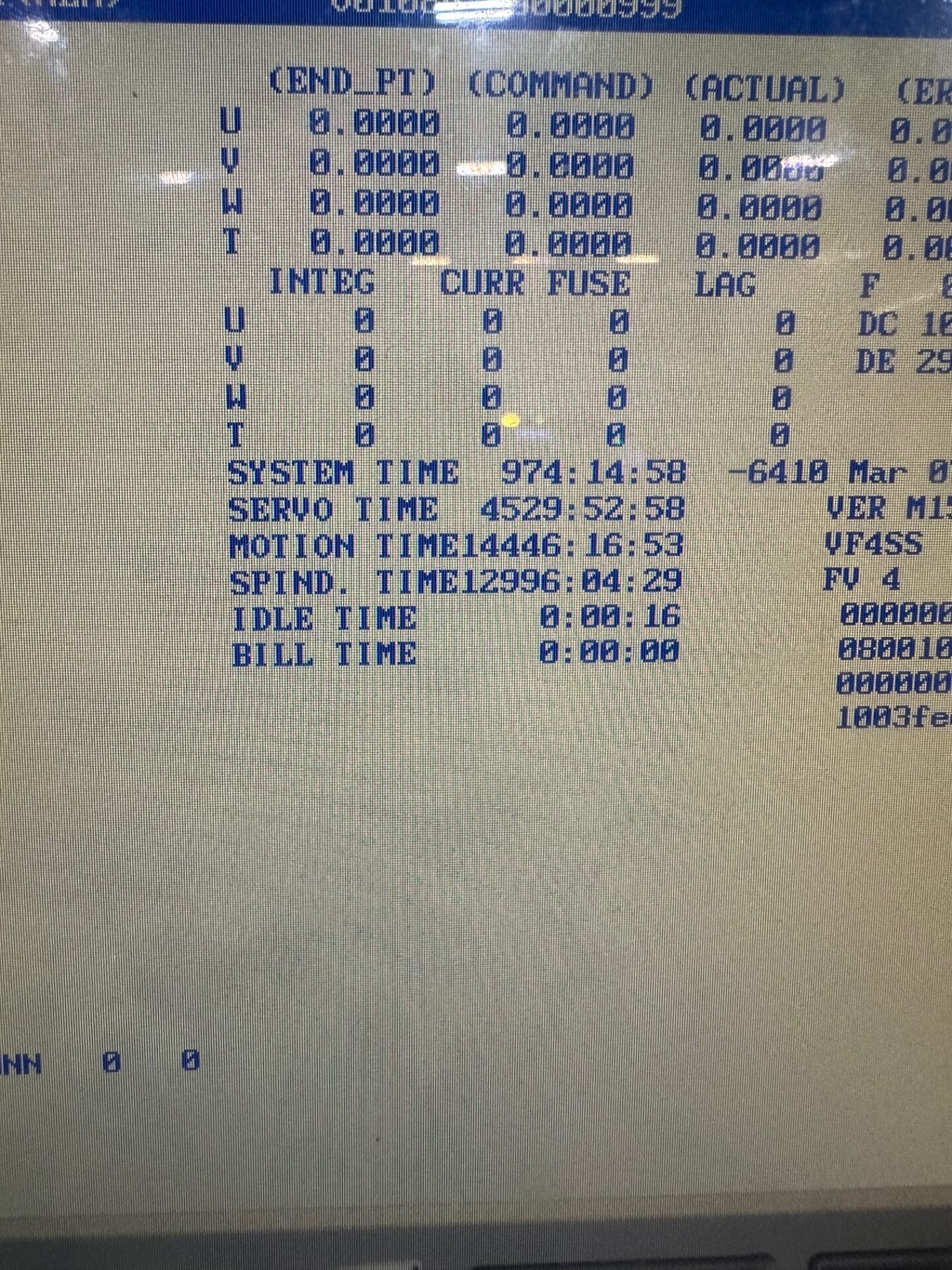

  • 4529 Servo Time
  • 14,446 Motion Time
  • 12,996 Spindle Time
