< Back to Lathes
Special Item

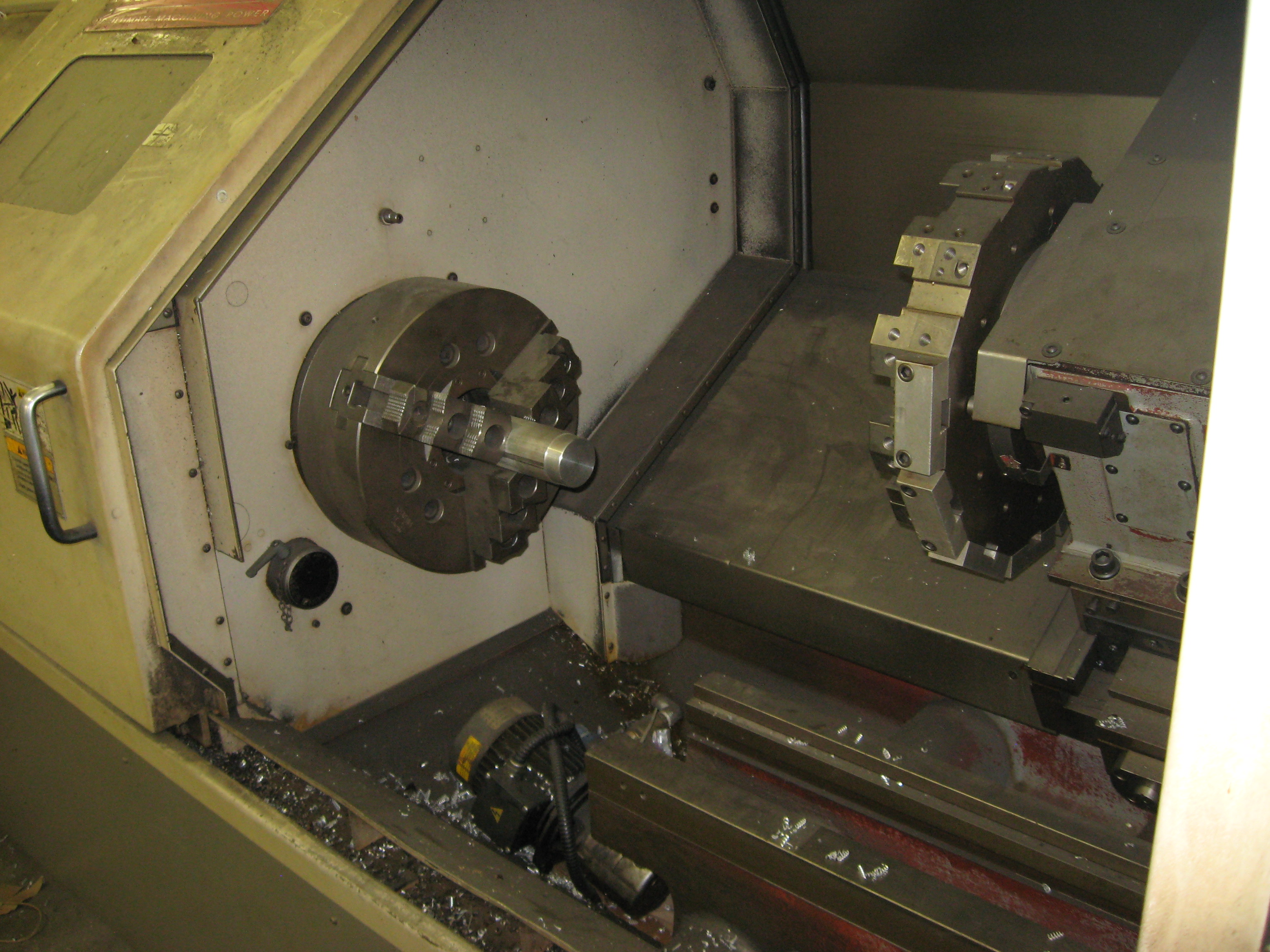

2006 YAMA SEIKI GA-3600L

FAN, 15" Chuck, 4" Bar, 48" Centers, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 15"
  • Max Diameter Bar Capacity 4.13"
  • Max Swing Over Bed 23.6"
  • Rapid Traverse Rate (X / Z) 787 / 944 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 48.43"
  • Machine Weight 16,000 lbs.
  • Max Turning Diameter 19.7"

Product Features

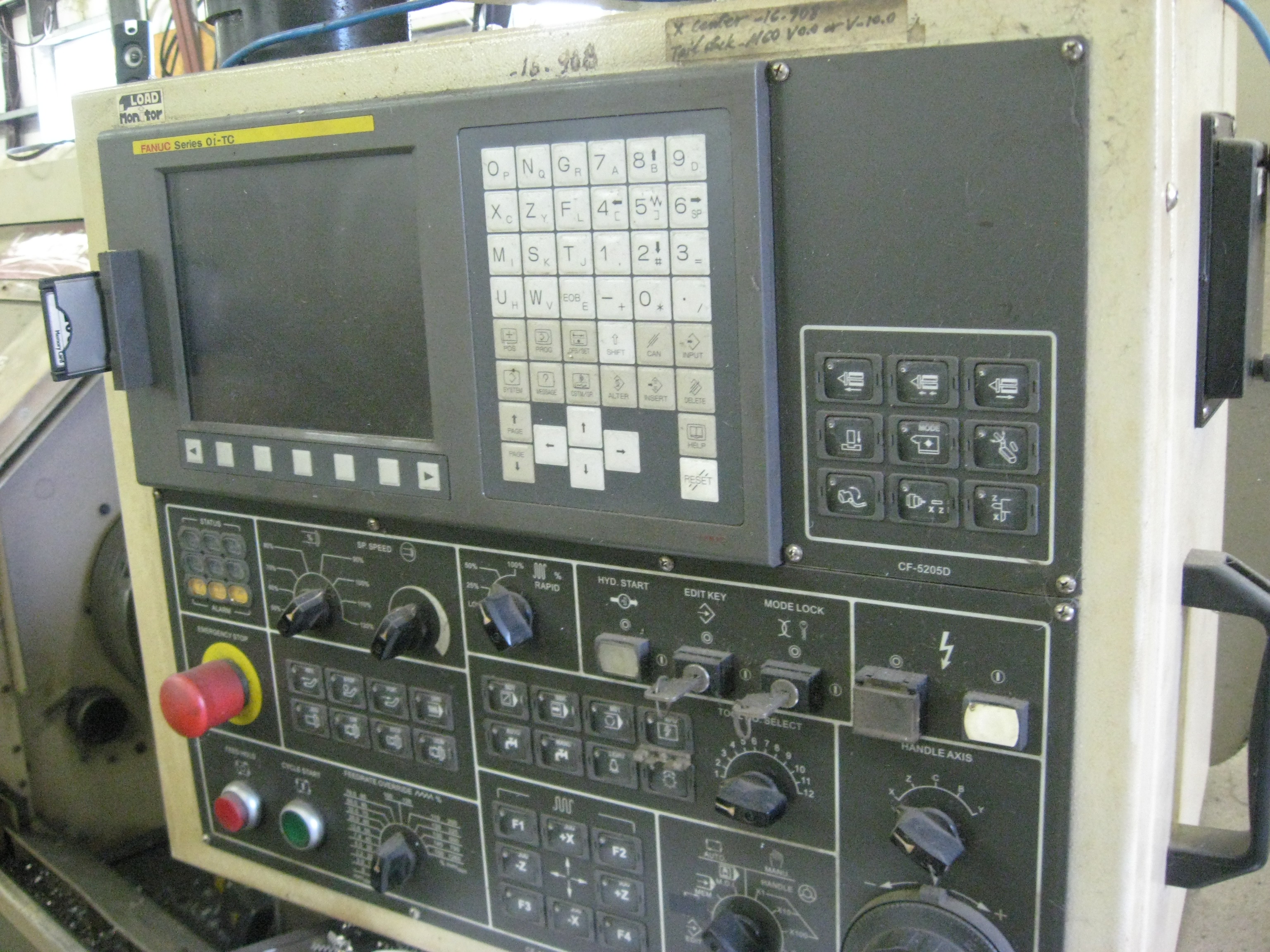

  • FANUC 0i-TC CNC Control
  • 15 Inch Chuck
  • 48 Inch Center Distance
  • Tailstock

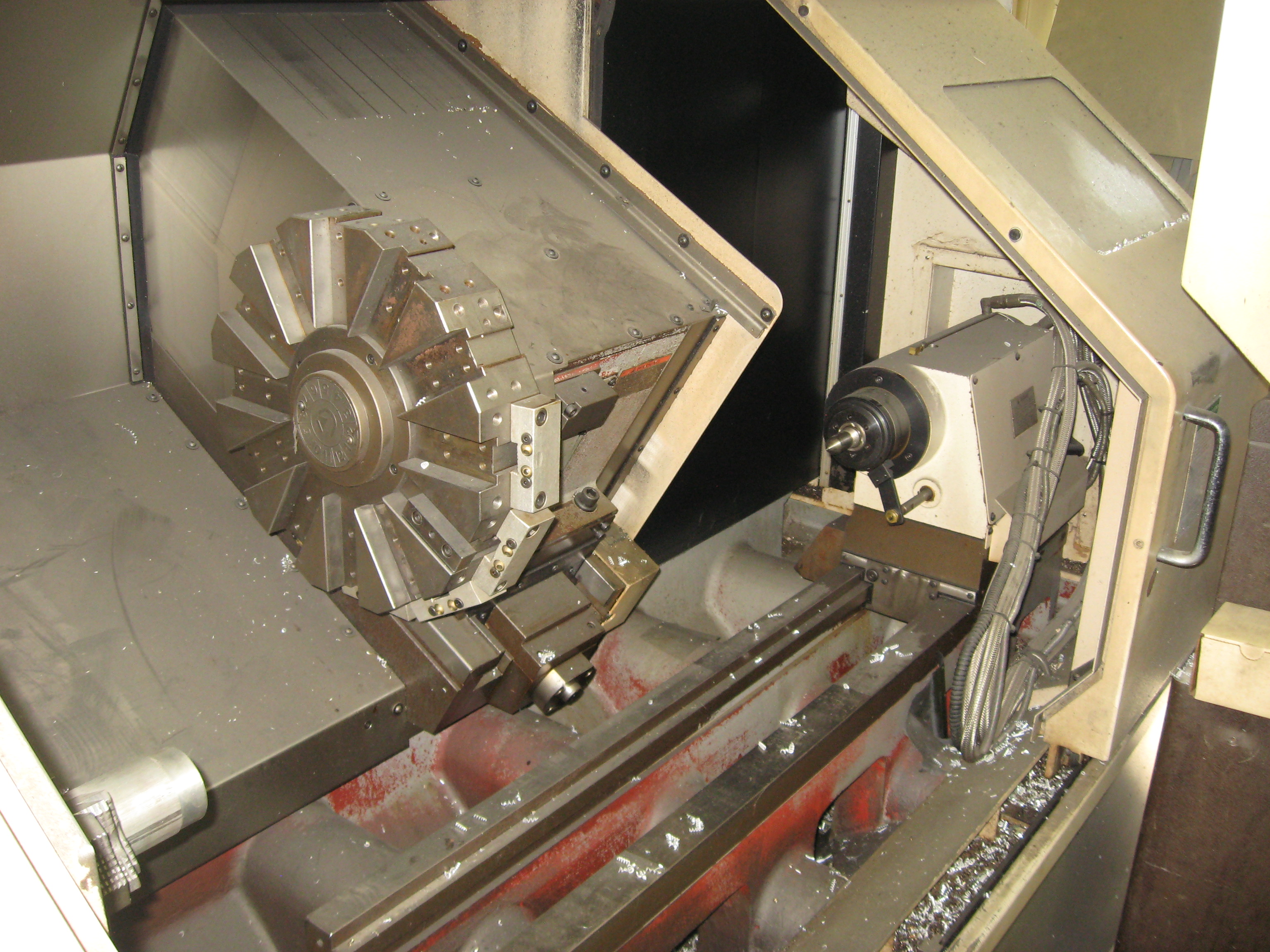

  • 12 Position Turret
  • PC/MCIA Interface
  • Manufacture Date November 2006
