< Back to Horizontal M/C

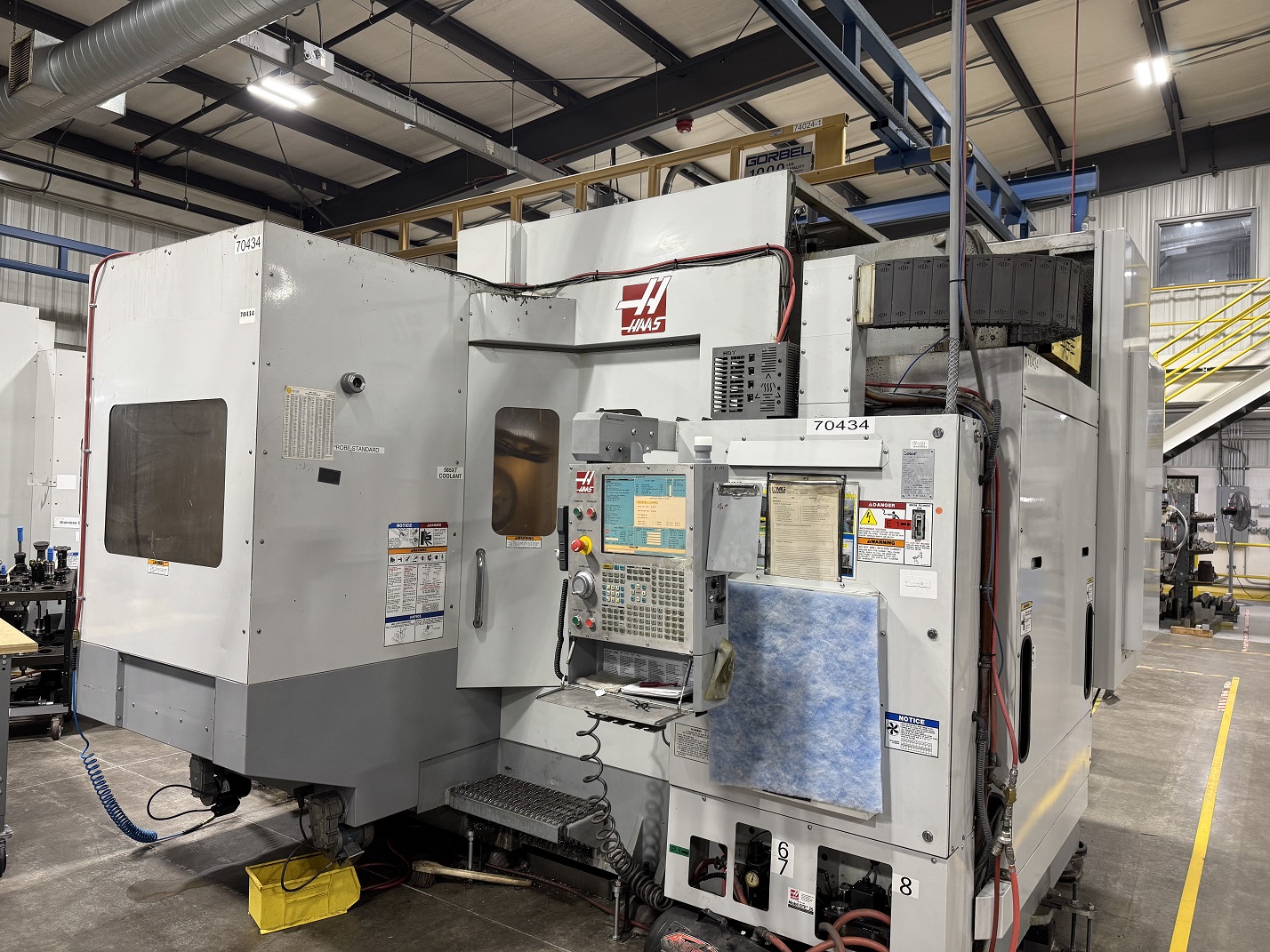

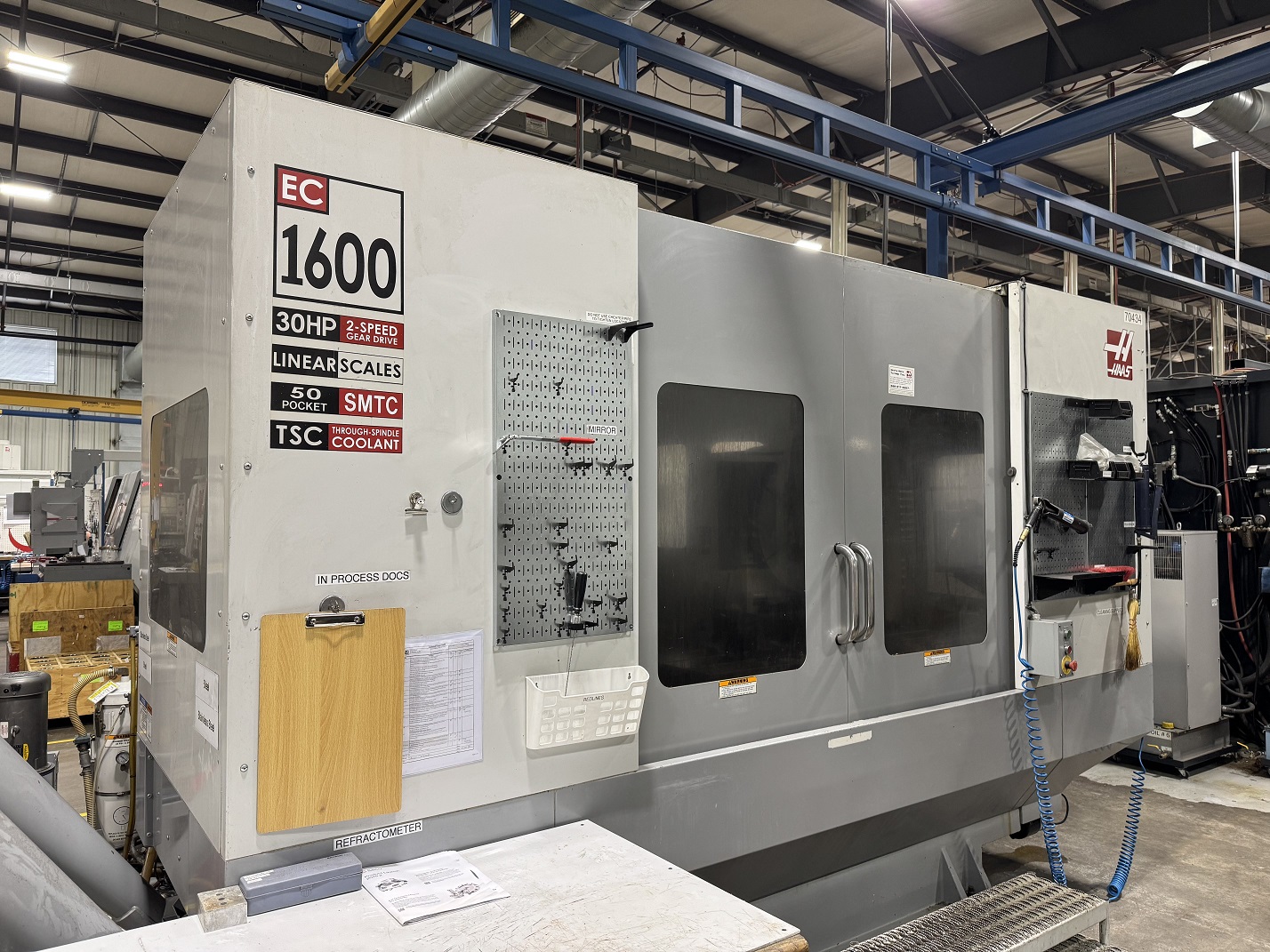

2006 HAAS EC-1600-4X

64.40.32", 6000 RPM, Cat 50, 30HP, 50 Tools, Fourth and Fifth Axis, HRT-600, CTS, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 10,000 lbs.
  • X-Axis 64"
  • Y-Axis 40"
  • Z-Axis 32"
  • Pallet Index .001 Degree
  • Spindle Speed 6000 RPM
  • Spindle Taper CAT 50
  • Spindle Motor 30 HP
  • Tools 50
  • Rapid Traverse Rates 540 IPM
  • Tool Change Time (T - T / C - C) 10.3 / 12.6 Seconds
  • Max Tool Diameter 4" / 10"
  • Max Tool Length 20"
  • Max Tool Weight 30 lbs.
  • Machine Dimensions (L x W x H) 173" x 143" x 119"
  • Machine Weight 31,840 lbs.
  • Spindle Torque 450 ft. lbs.
  • Table Size 64" x 36"

Product Features

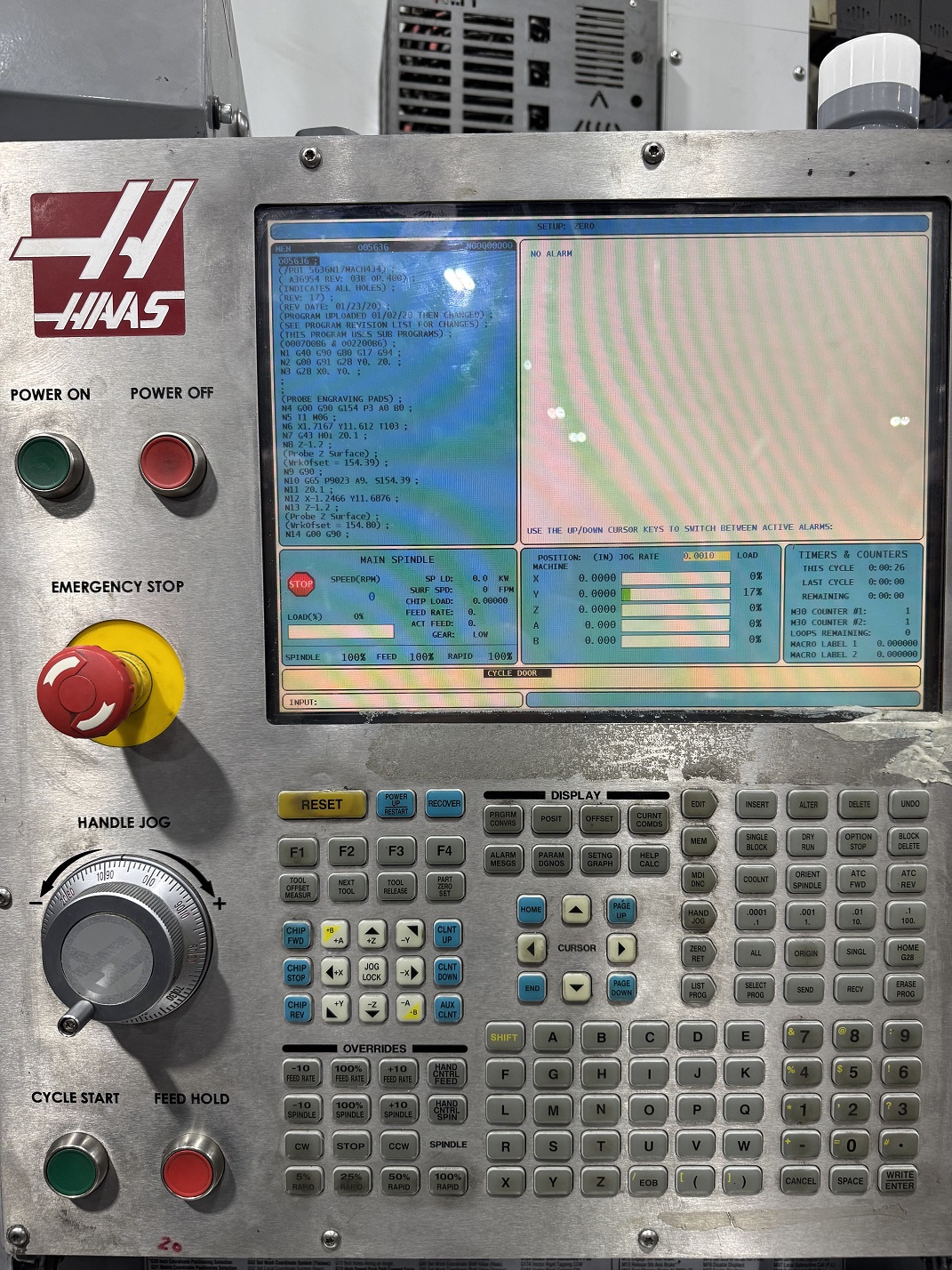

  • HAAS CNC CONTROL
  • 12" TFT Color
  • 3.5" Floppy Disc Drive
  • Fourth and Fifth Axis Interface
  • Built-In 30" Dia. Fourth Axis Rotary Platter

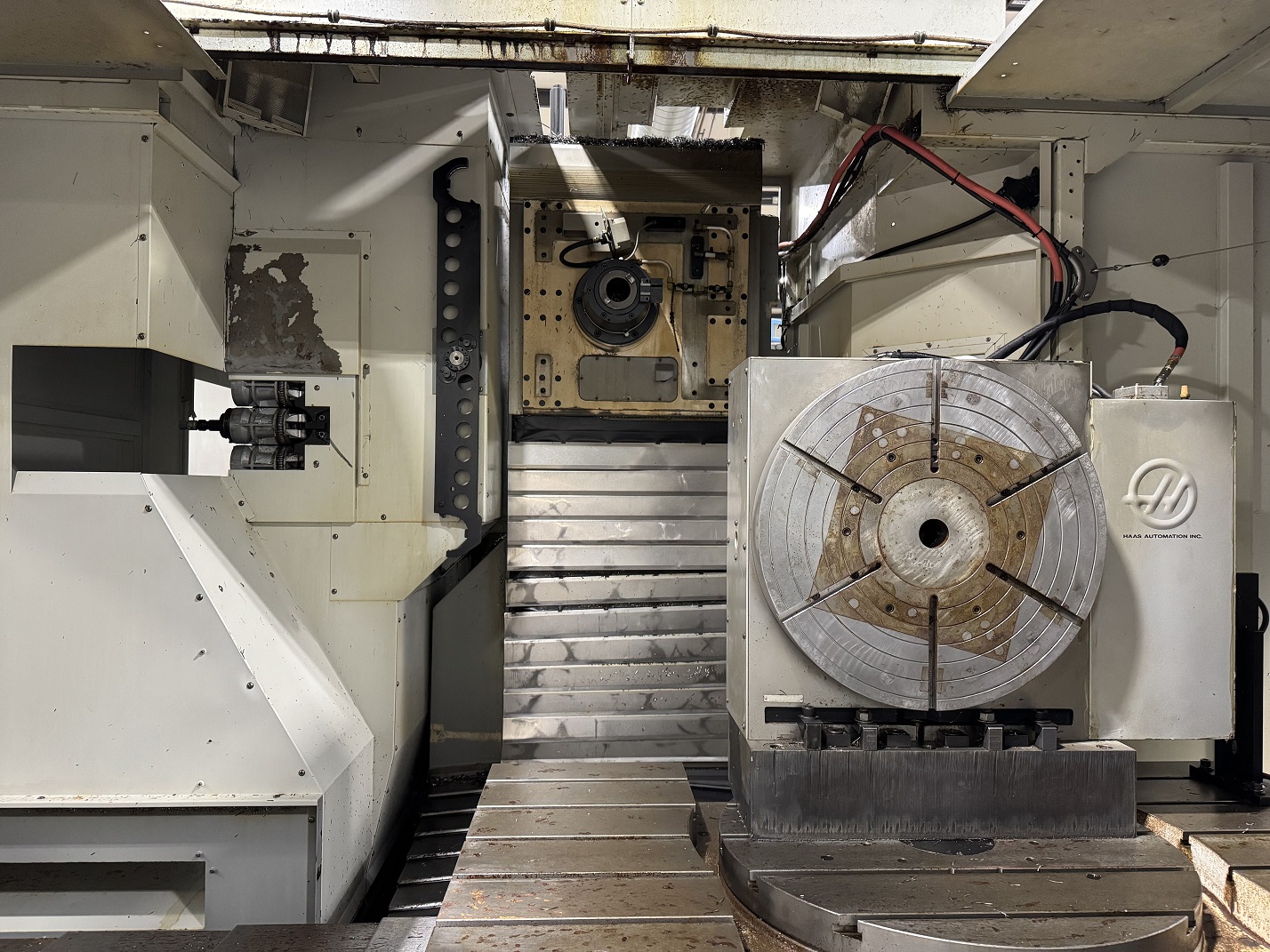

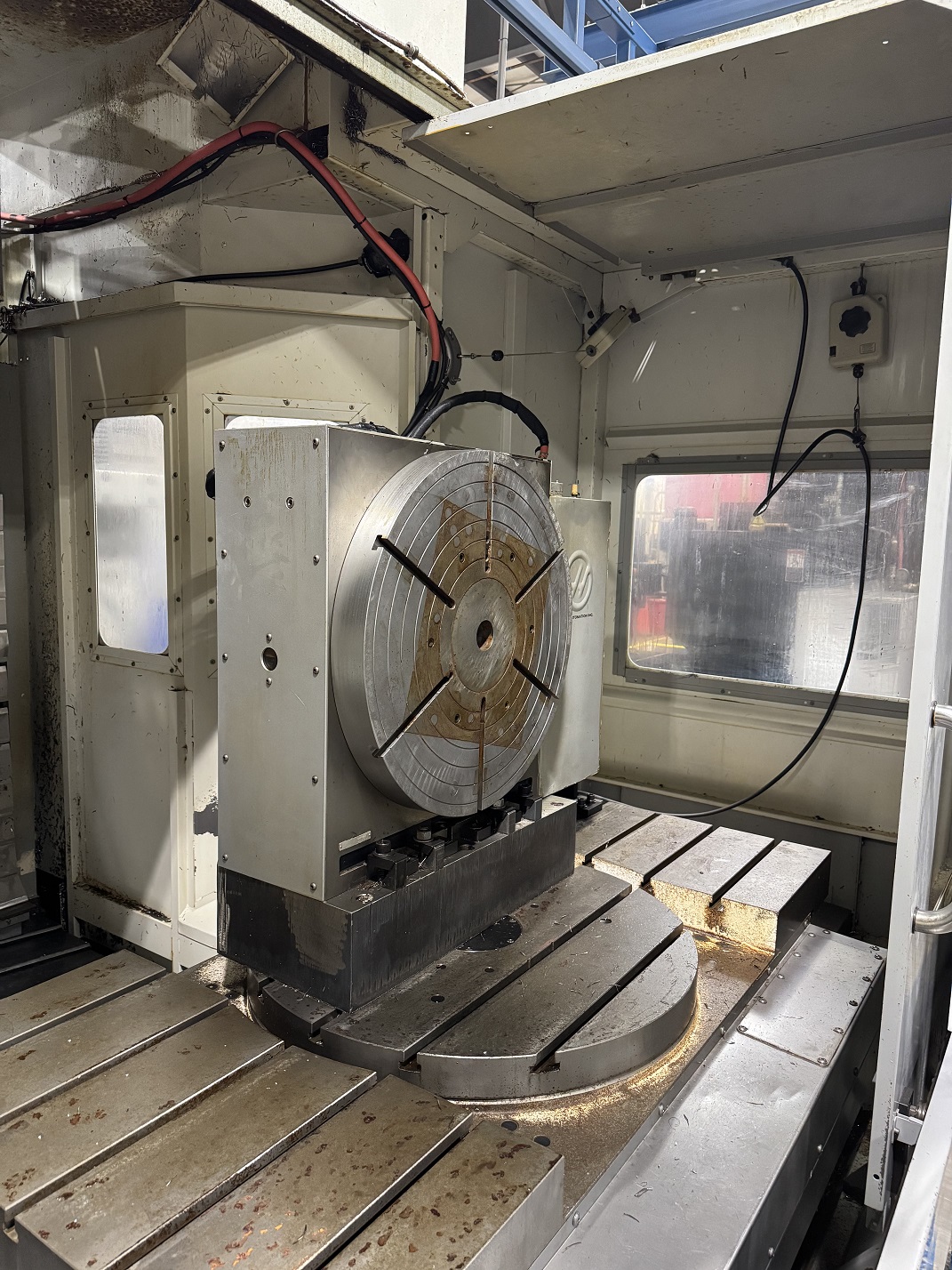

  • Haas HRT 600 Fourth Axis Rotary Table
  • Coolant Thru Spindle
  • Programmable Coolant Nozzle
  • Two Speed Gear Box
  • Linear Scales
  • Chip Auger
  • Green Work Indicator Light
  • Mfg Date November 2006
