< Back to Lathes
Special Item

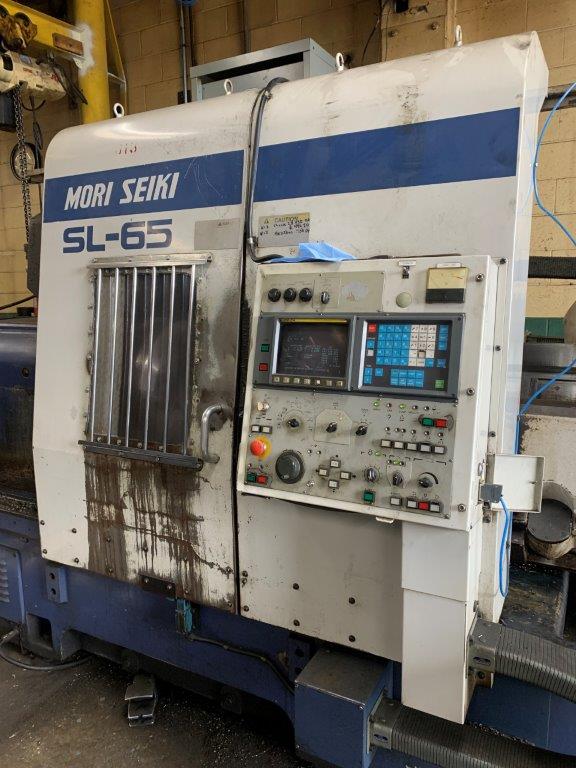

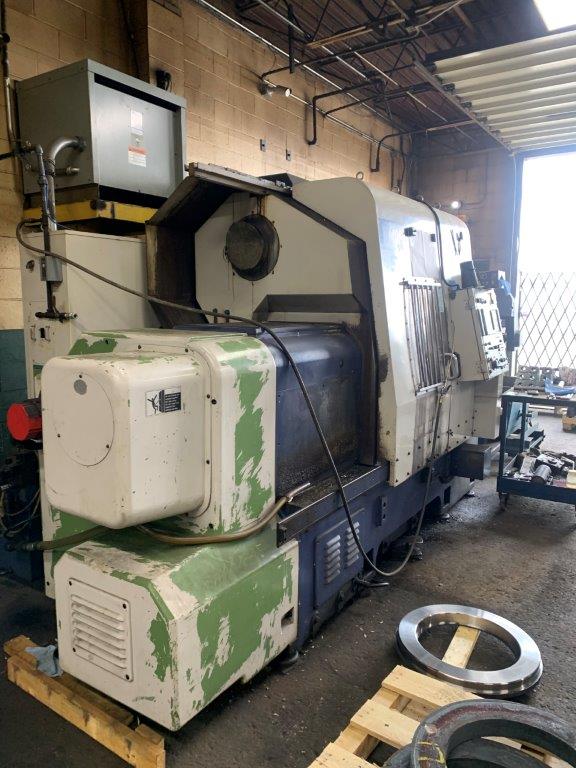

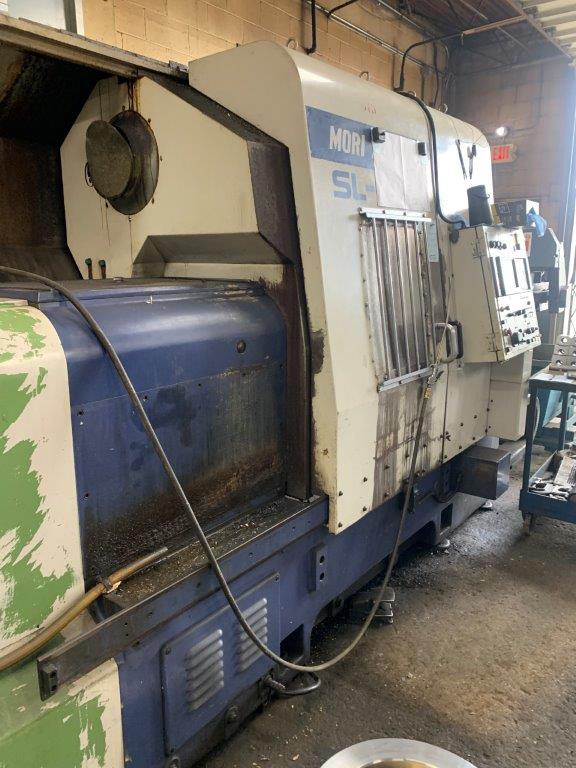

1993 MORI SEIKI SL-65B

Fanuc 0T, 4.75" Bar, 24" Chuck, 50 HP, 1010 RPM, 12 Tools, Tailstock, Chip Conveyor, Gearbox, Box Ways
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 24"
  • Max Diameter Bar Capacity 4.75"
  • Max Swing Over Bed/Front Cover 35" / 27.6"
  • Spindle Motor 50 / 40 HP
  • Spindle Speed 4 - 1010 RPM
  • Spindle Nose A2-11
  • Spindle Bore 6.6"
  • Tools 12
  • Rapid Traverse Rates (X & Y / Z) 197 / 315 IPM
  • X-Axis Travel 17.1"
  • Z-Axis Travel 33.9"
  • Turret Index (Single Step / Full) 2.9 / 5.7 Seconds
  • Machine Weight 20,000 lbs.
  • Max Turning Diameter 32.2"
  • Max Turning Length 31.1"
  • Spindle Torque 2242 ft. lbs.
  • Tailstock Taper MT#4

Product Features

  • MORIC MF-T4 (FANUC 0T) CNC CONTROL
  • 9" Monochrome CRT
  • 24" Hydraulic Chuck
  • Tow-Along Tailstock

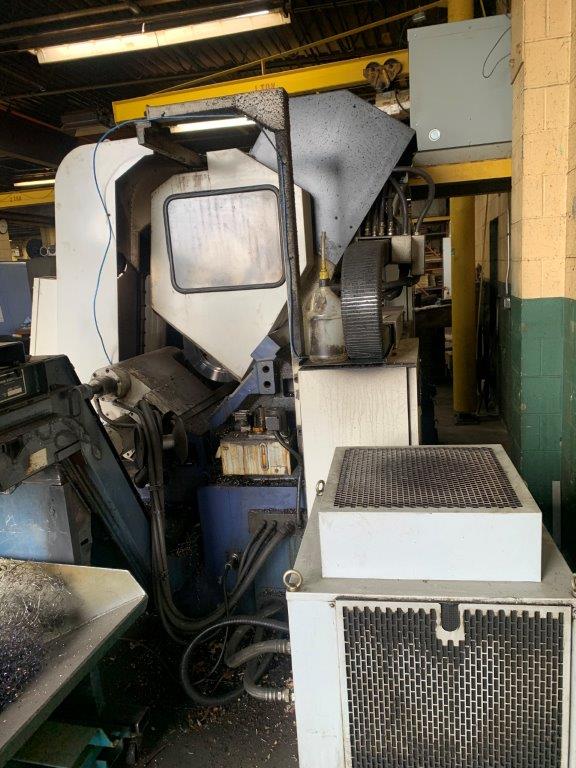

  • Chip Conveyor (Side Exit)
  • Two Gear Range Headstock
  • Slant Bed Box Way Construction
