Special Item

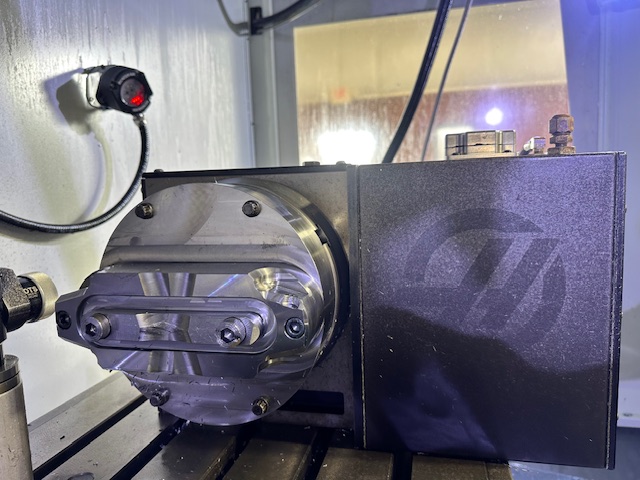

2007 HAAS HRT-210 FOURTH AXIS ROTARY TABLE

8.3" Table Dia, .001 Resolution,
Talk to a representative today!
(803) 548-8000

Product Details

  • Accuracy +/- 15 Arc Sec.
  • Backlash 30 Arc Sec.
  • Brake Toque at 100 psi 200 ft. lbs.
  • Center Height 6.000 +/- 0.001
  • Gear Ratio 1 90
  • Max Rotation / Step 999.999 Degrees
  • Max Speed 0.001 to 100 Deg / Sec
  • Repeatability 10 Arc Sec.
  • Resolution .001 Degrees
  • Runout Max 0.0005"
  • Speeds 0.001 - 60 Degrees / Second
  • Standard T-Slots 6 at 60 Degrees
  • Table Diameter 8.3"
  • Table 165 lbs.
  • Through Bore 2"
  • Timing 2
  • Torque 210 ft. lbs.
  • Worm Gear Diameter 6.3"

Product Features

  • Serial Number 223586
  • Electrical Cables
  • Sigma 1 Motor
  • Manufacture Date December 2007
