Special Item

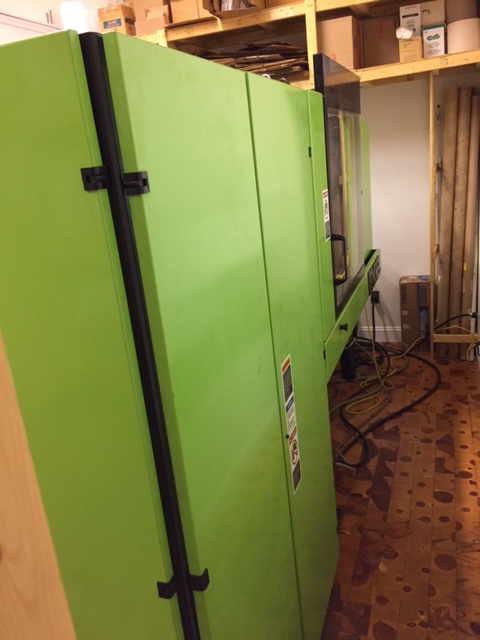

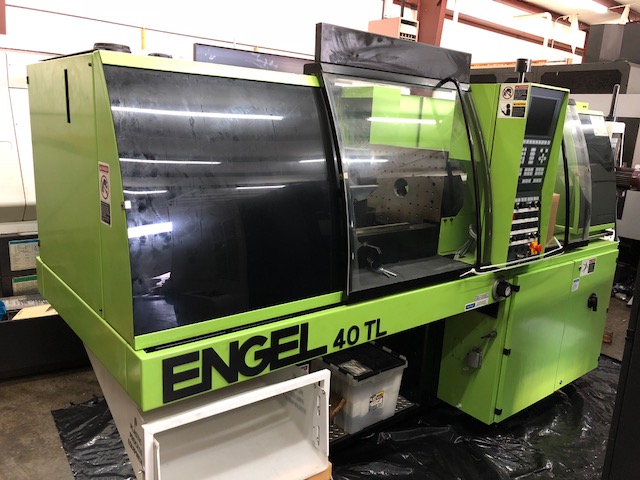

2000 ENGEL ES 80/40 TL Plastic Injection Molding Machine

21.65" x 16.93" Platen, 20.87" Max Daylight, Shot Size 0.8 or 1.6 oz, 40 Ton, 13.78" Clamp Stroke, 18 & 25 mm Screws
Talk to a representative today!
(803) 548-8000

Product Details

  • Clamp Force Opening 2.2 Tons
  • Clamp Force 40 Tons
  • Clamp Stroke (Max) 13.78"
  • Daylight (Min - Max) 7.09 - 20.87"
  • Dry Cycle Performance 1.5 sec
  • Hopper Capacity 44 lbs.
  • Hydraulic Ejector Stroke / Force 3.94" / 3 Tons
  • Hydraulic Oil Reserve Capacity 30 gal
  • Hydraulic Pump Capacity 10.7 gpm
  • Hydraulic System Pressure 2900 psi
  • Injection Capacity 1.5 or 3 in3
  • Machine Dimensions (L x D x H) 121" x 53" x 75"
  • Machine Weight 6500 lbs.
  • Mold Height (Min - Max) 7.09" - N/A
  • Motor 10 HP
  • Number of Heat Control Zones 3+ Nozzle
  • Platen Size (H x V) 21.65" x 16.93"
  • Power Requirements 230/460/575V
  • Recovery Rate 0.1 or 0.3 oz/sec
  • Screw Diameter 18 & 25 mm
  • Screw Speed Range 25 - 360 rpm
  • Screw Stroke 3.9"
  • Screw Torque 163 ft. lbs.
  • Shot Size 0.8 or 1.6 oz
  • Total Heating Wattage 32. kw
  • Water Requirements 3 gpm

Product Features

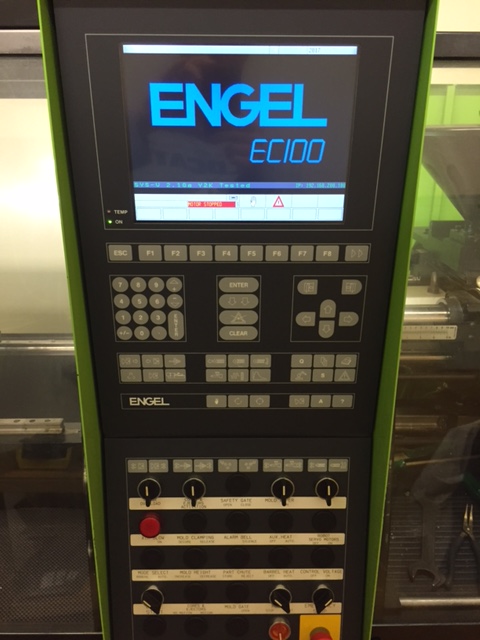

  • ENGEL EX100 CNC Control
  • 10.4" Color LCD
  • Tiebarless
  • 18 & 25 mm Barrels Included

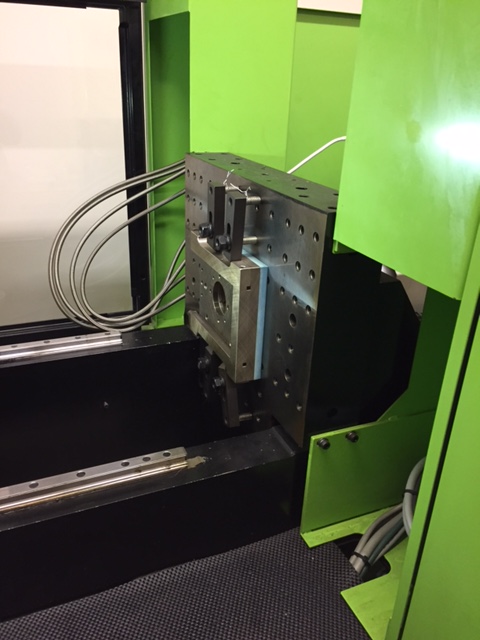

  • SPI Mold Mounting & Ejector Pattern
  • Multi-Stroke Hydraulic Ejection, Speed & Pressure Controlled
  • Center Ejector Rod
  • Mechanical Dropbar
  • (3) Speed Opening & Closing
  • Manufacture Date October 2000
  • 962 Hard Meter Hours
