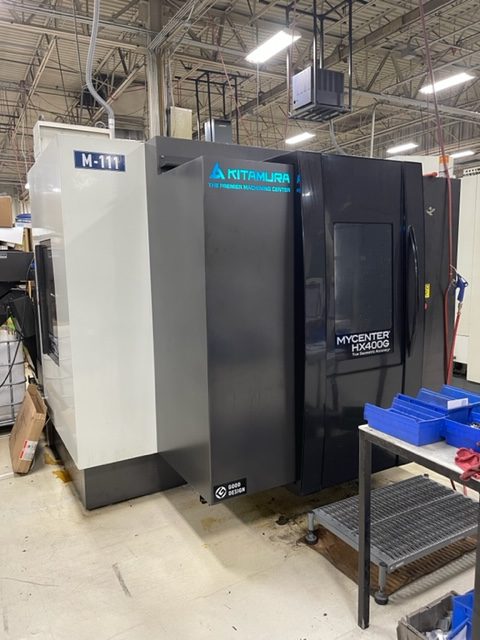

2013 KITAMURA HX400G

Arumatik-Mi, 15.75", 24.24.24", Fourth Axis, 15000 RPM, 50 Tools, Cat 40, 20 HP, TSC, Chip Conveyor, Data Server
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 10 Seconds

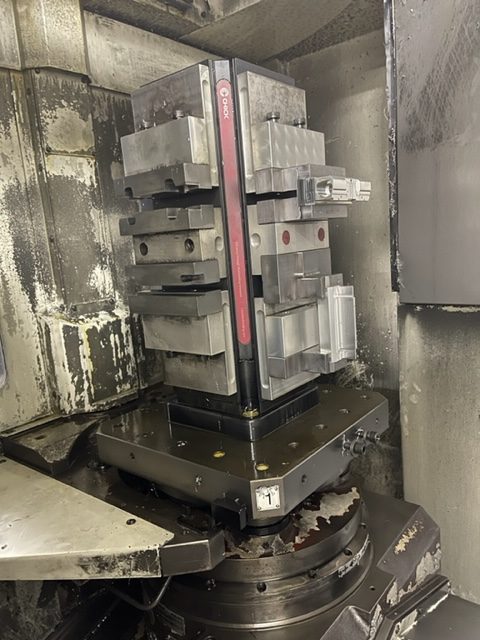

  • Pallet Size 15.75" (2)
  • X-Axis 24"
  • Y-Axis 24"
  • Z-Axis Travel 24"
  • Pallet Index .001 Degrees
  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Spindle Center to Pallet Top 1.57 - 25.6"
  • Spindle Nose to Pallet Center 3.93" - 27.95"
  • Tools 50
  • Rapid Traverse Rates 1969 IPM
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Length 14.57"
  • Max Tool Weight 22 lbs.
  • Max Workpiece Dia / Height 24.8" / 29.3"
  • Machine Dimensions (L x D x H) 119.5" x 160" x 107.8"
  • Machine Weight 30,000

Product Features

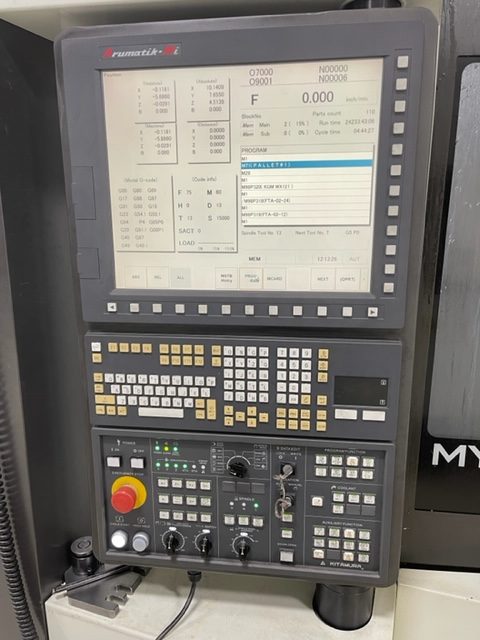

  • ARUMTAIK-Mi (Mitsubishi M750VWM) CNC Control
  • 19" Color TFT
  • Embedded Ethernet
  • USB Port
  • Fourth Axis Rotary Table
  • 50 Tool Magazine (Field Expandable to 300)
  • Auto Two Pallet Expandable Changer
  • Through Spindle Coolant (220 psi)

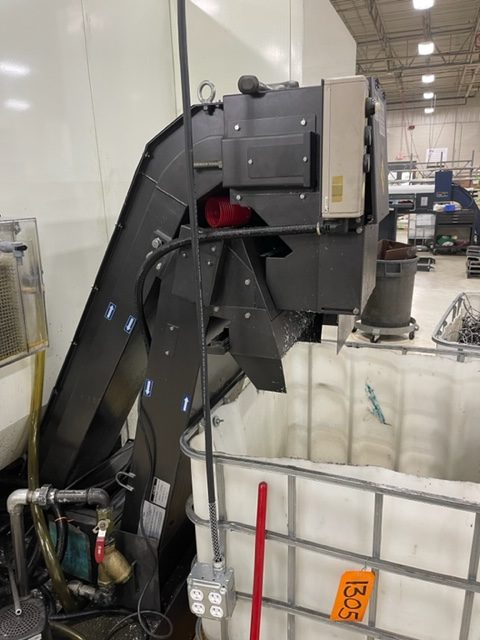

  • Double Decker Filtration Chip Conveyor (Left Rear Exit)
  • Dual Chip Augers
  • Linear Scale Feedback System
  • IAC System 1 Thermal Compensation
  • Dual Contact Spindle
  • 16 Million Pulse Encoder Feedback System
  • High Precision Contour Control
  • (672 ipm Feed with 1 mm/Block, 2800 Blocks/Second)
  • Spindle Chiller Unit
  • Rigid Tapping
  • Helical Interpolation
  • Remote Jog Handle
  • Base Wash & Overhead Shower Coolant
  • 1280 Meter Memory
  • 8 GB Hard Disc Drive
  • RISC 64 Bit Processor with NURBS Interpolation
  • 1000 Registered Programs
  • Spindle Taper Air Blow

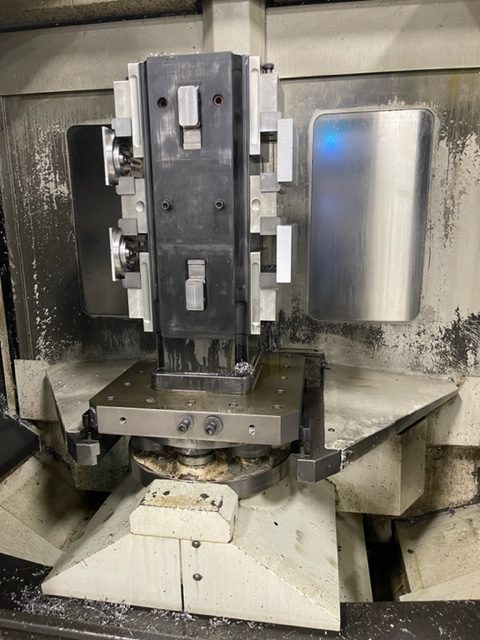

  • Manual Pallet Index at Load Station
  • Cycle Finish Lamp
  • (4) Additional M-Codes
  • Smooth High-Gain Control
  • High Precision Contour Control
  • Nano Interpolation
  • Inch / Metric Selection
  • Heavy Duty Box Way Construction
