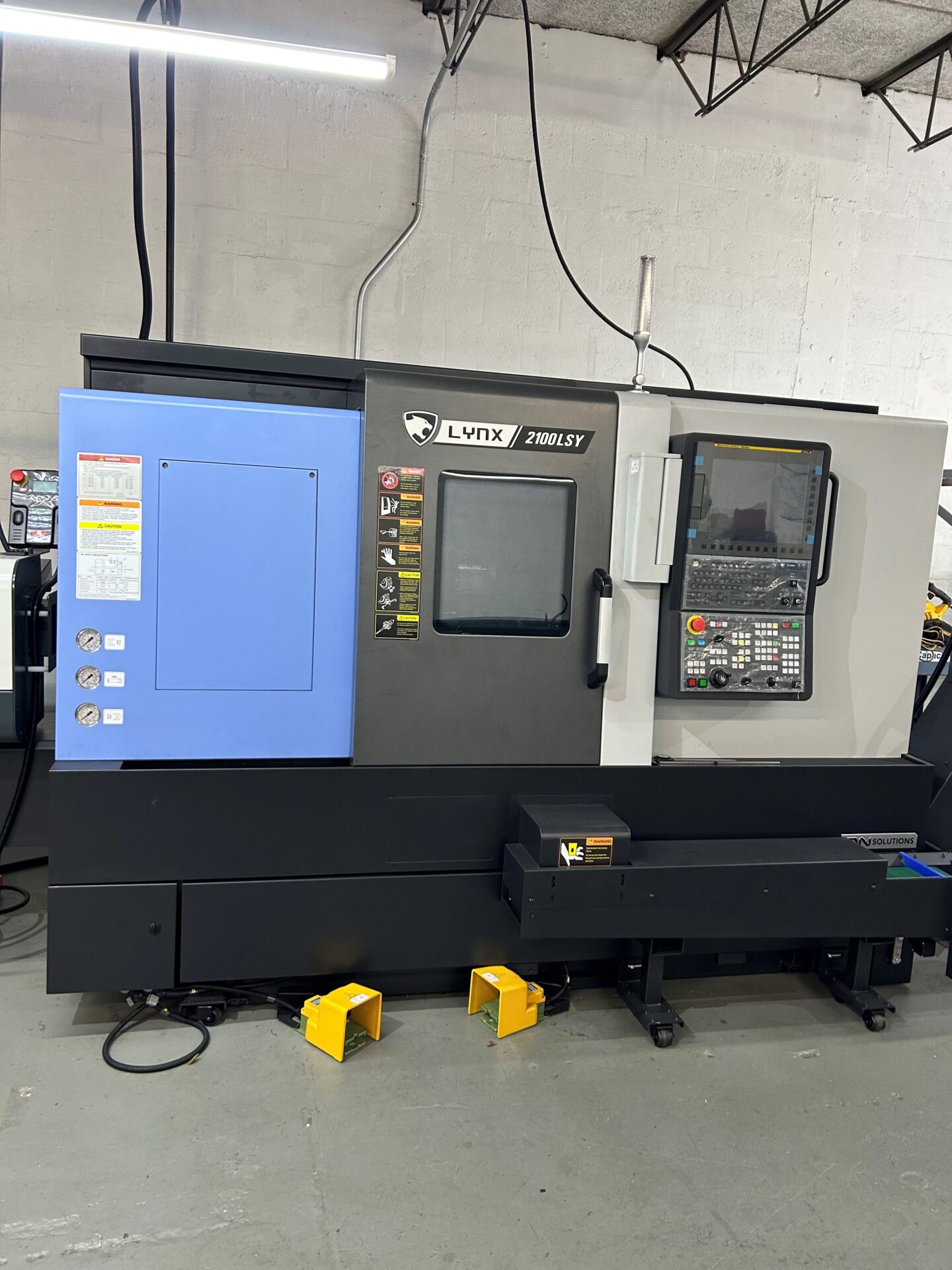

2022 DOOSAN LYNX 2100LSYB
FANUC 0iF PLUS, C & Y-Axis, Main & Sub Spindle, 2.6" Bar, 8" Chuck on Main, 5" Chuck on Sub, 12 Tools, 20 HP, 4500 RPM, Chip Conveyor, Parts Catcher, Tool Presetter, Very Low Hours
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 8"
-
Max Diameter Bar Capacity 2.6"
-
Spindle Motor 20 HP AC
-
Spindle Speed 4500 RPM
-
Tools 12
-
Milling Speed 6000 RPM
-
Sub Spindle Chuck Size 5"
-
Sub Spindle Motor 7.5 HP
-
Rapid Traverse Rates (X / Y / Z) 1181 / 394 / 1417 IPM
-
X-Axis Travel 8.1"
-
Z-Axis Travel 22"
-
Y-Axis Travel +/- 2.1"
-
Machine Dimensions (L x W x H) 113" x 64.1" x 76.2"
-
Machine Weight 9260 lbs.
-
Max Turning Diameter 11.8"
-
Max Turning Length 20.1"
-
Spindle Torque 124.6 ft. lbs.
Product Features
- FANUC 0iF PLUS CNC Control
- 15" Color Touch Screen LCD
- Sub Spindle
- C & Y-Axis Milling
- 8" Samchully Hydraulic Chuck on Main Spindle
- 5" Samchully Hydraulic Chuck on Sub Spindle
- Auto Parts Catcher with Exit Conveyor
- Tool Presetter
- USB Port
- PC/MCIA Interface
- Turbo Chip Conveyor (Hinge Type Side Exit)
- Three Color Tower Light
- (2) Face Holder
- (2) OD Live Holders
- Manufacture Date July 2022
- Never used in production
- Operator training only
