< Back to Vertical M/C

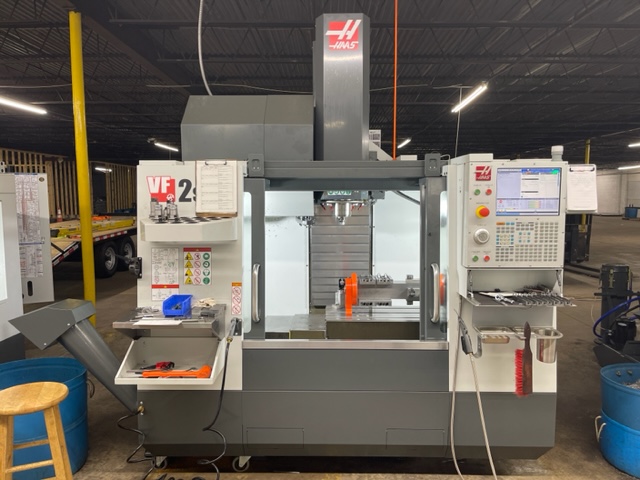

2021 HAAS VF-2SS

30.16.20", 12,000 RPM, 30 SMTC, Cat 40, 30 HP, Fourth Axis, TSC 300 psi, Probes, High Speed Machining, Programmable Coolant, Chip Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 16"
  • Z-Axis 20"
  • Table Size 36 x 14"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 30
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates 1400 IPM
  • Max Tool Diameter 3"
  • Max Tool Length 11"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 88" x 92" x 118"
  • Machine Weight 8000 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Tool Change Time (T - T / C - C) 1.6 / 2.2 Seconds

Product Features

  • Next Generation CNC Control
  • 12" Color TFT
  • USB Port

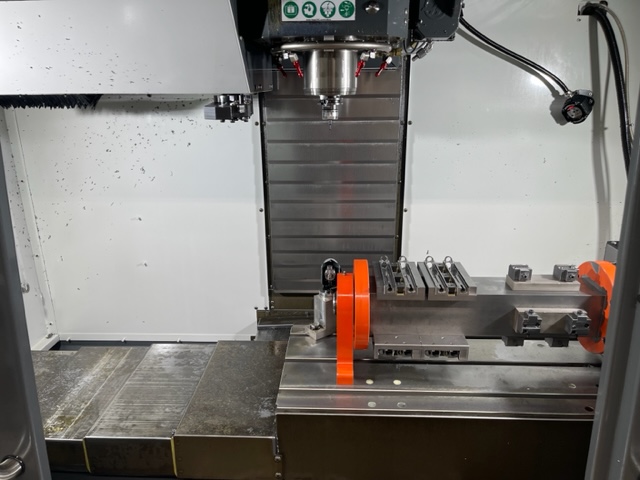

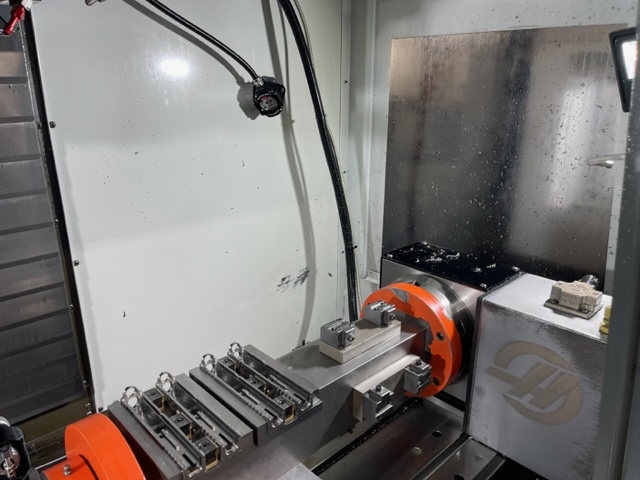

  • HAAS HRT-210 Fourth Axis Rotary Table
  • Through Spindle Coolant (300 psi)
  • Wireless Intuitive Probing System
  • High Speed Machining
  • Programmable Coolant Nozzles
  • Auxiliary Coolant Filter
  • Chip Auger
  • Rigid Tapping
  • Spindle Orientation
  • User Definable Macros
  • Coordinate Rotation and Scaling
  • Visual Part Programming System
  • Early Power Detection Failure Module
  • Ethernet Interface
  • WiFi Connection
  • 1 GB Memory
  • HAASConnect: Remote Monitoring
  • Manufacture Date August 2021
  • New Replacement Cost $114,255

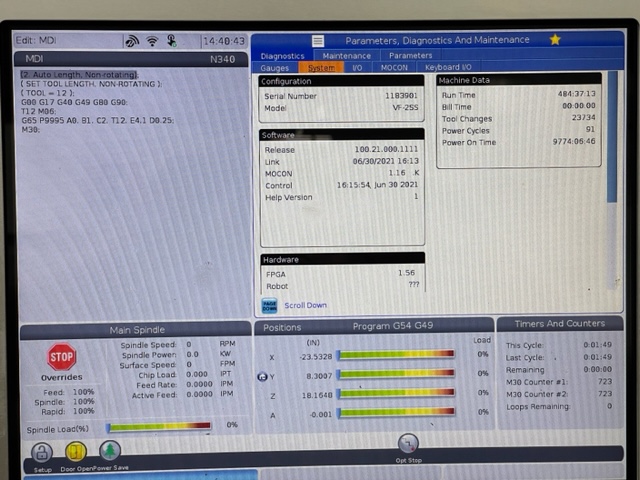

  • 9774 Power On Time
  • 484 Run Time
