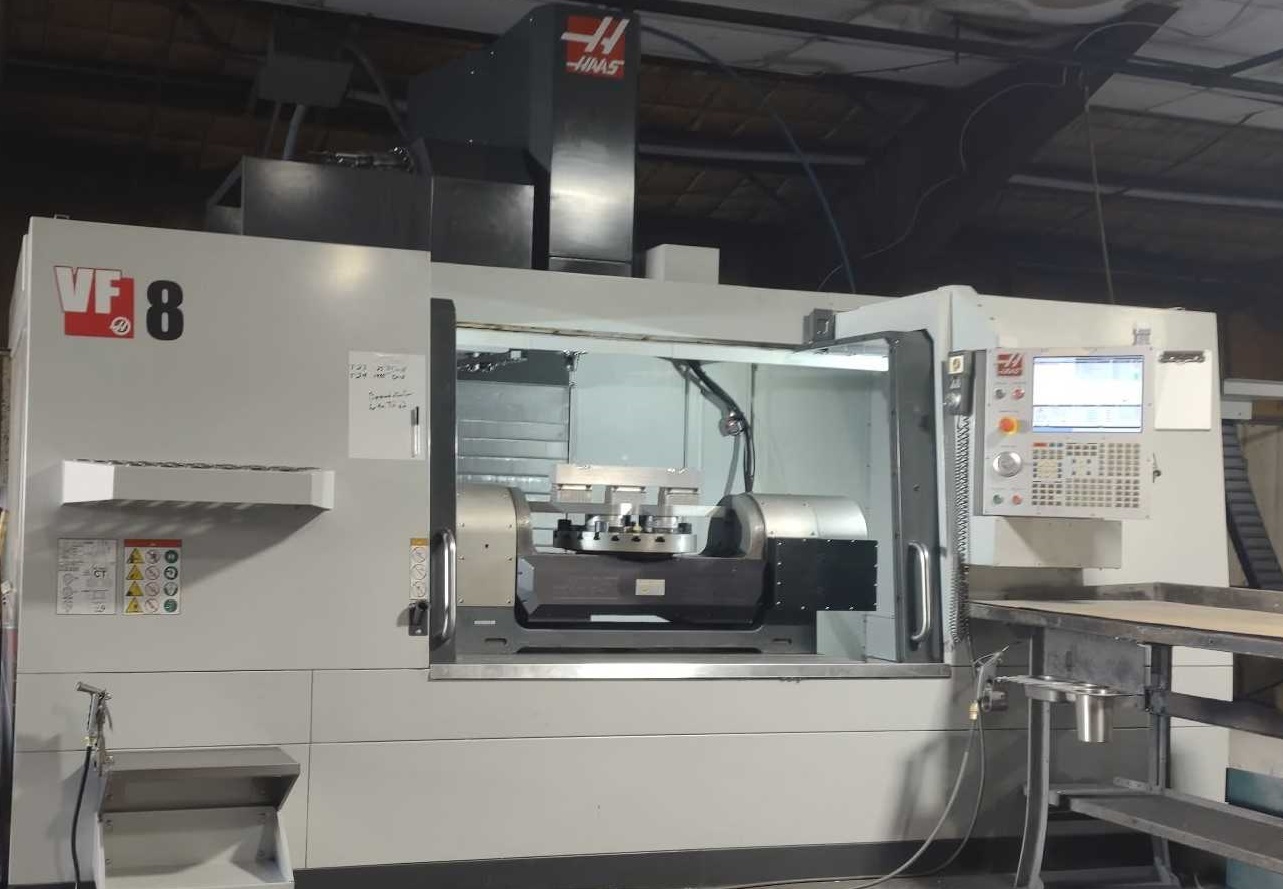

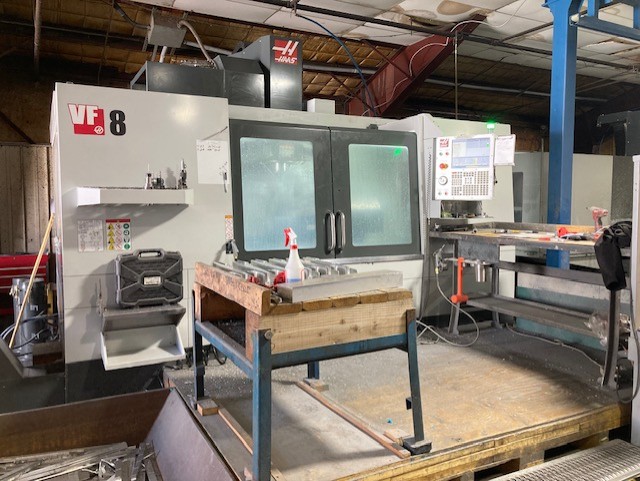

2020 HAAS VF-8/40

64.40.30", 15000 RPM, CAT 40, Probes, 30 SMTC, 4th & 5th-Axis Interface, TR-310 Trunnion, 8" Extended Z-Axis, HSM, Rigid Tapping, Macros, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 64"
  • Y-Axis 40"
  • Z-Axis 30"
  • Table Size 64" x 36"
  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 24
  • Table Load Capacity 4000 lbs.
  • Rapid Traverse Rates 600 IPM
  • Max Tool Diameter 4" / 10"
  • Max Tool Length 16"
  • Max Tool Weight 30 lbs.
  • Machine Dimensions (L x W x H) 189" x 125" x 141"
  • Machine Weight 24,000 lbs.
  • Spindle Nose to Table Top 13" - 43"
  • Spindle Nose to Table Top 5" - 35"
  • Spindle Torque 450 ft. lbs.
  • Tool Change Time (T - T / C - C) 4.2 / 6.3 Seconds

Product Features

  • HAAS Next Generation CNC CONTROL
  • 12" Color TFT
  • 30 Position Side Mount Tool Changer
  • Wireless Intuitive Probing System
  • Through Spindle Coolant (300 PSI)
  • 4th & 5th Axis Interface
  • Haas TR-310 5-Axis Rotary Tilt Trunnion
  • 8" Extended Z-Axis Clearance
  • High Speed Machining
  • Dynamic Work Offsets
  • Tool Center Point Control
  • Rigid Tapping
  • User Definable Macros
  • Visual Part Programming
  • Coordinate Rotation and Scaling
  • Remote Jog Handle
  • Auxiliary Coolant Filter

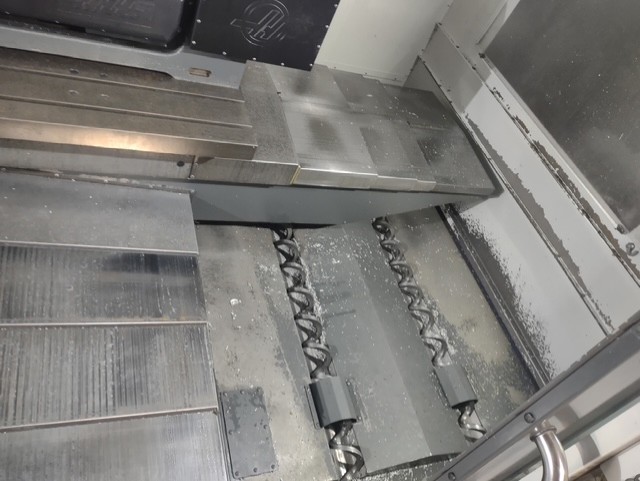

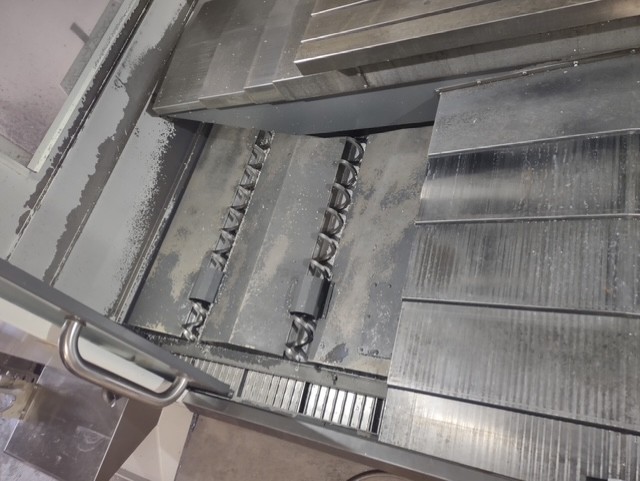

  • Multi Auger Chip Conveyor System
  • Tool Shelves
  • Manufacture date November 2019
  • Installed in January 2020

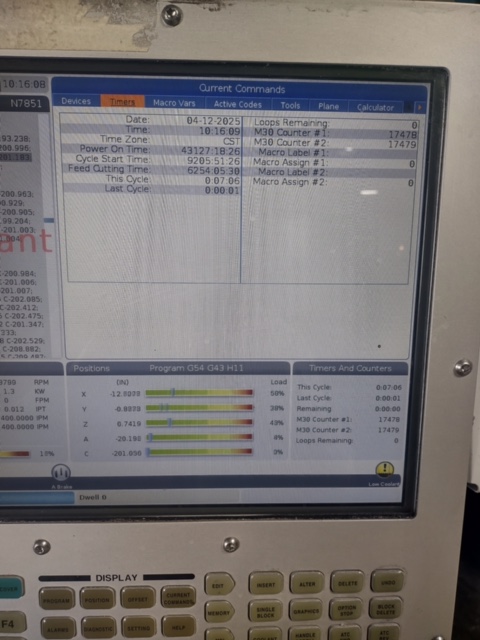

  • 43,127 Power On Time
  • 9205 Cycle Start Time
  • 6254 Feed Cutting Time
