Special Item

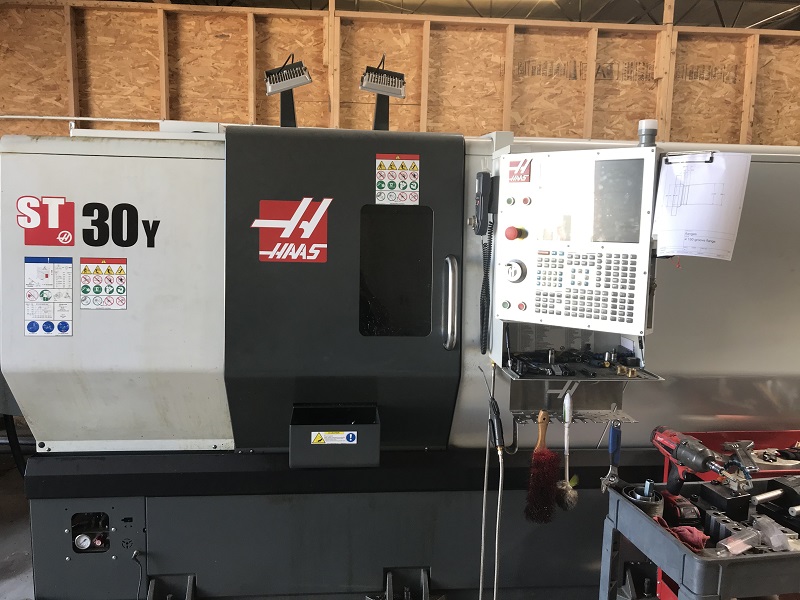

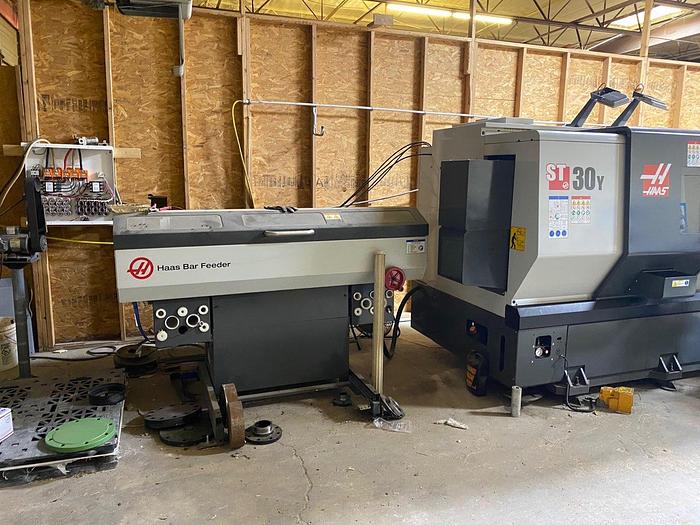

2019 HAAS ST-30Y

3" Bar, 10" Chuck, 3400 RPM, 30 HP, 12 Tools, Y-Axis, Live Tooling, Tool Presetter, Barfeed, Chip Conveyor, Parts Catcher
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Swing Over Bed / Carriage 31.75" / 20.75"
  • Max Machining Length 26"
  • Spindle Motor 30 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Milling Motor 5 HP
  • Rapid Traverse Rates (X / Y / Z) 472 / 472 / 945 IPM
  • X-Axis Travel 12.5"
  • Z-Axis Travel 26"
  • Y-Axis Travel + / - 2.0"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 152" x 99" x 96"
  • Machine Weight 14,300 lbs.
  • Lower Turret Milling Speed 6000 RPM

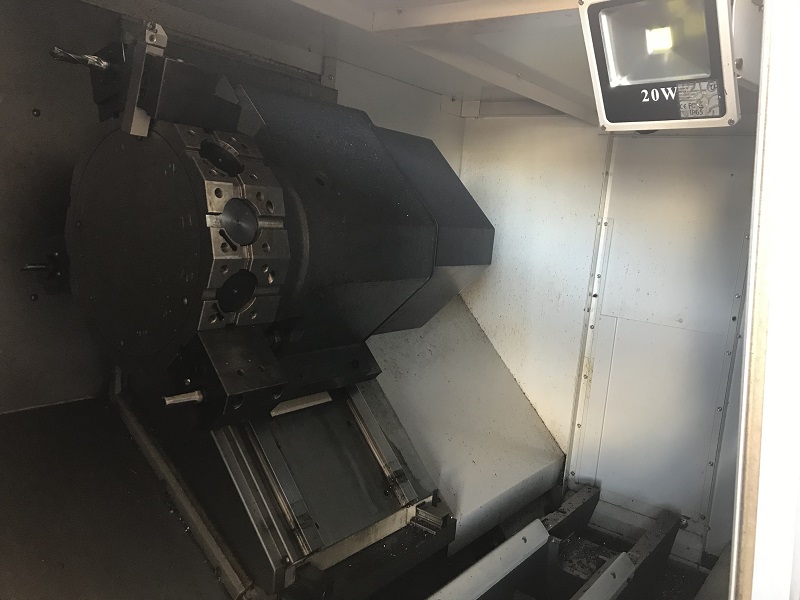

  • Lower Turret Tools 12
  • Max Diameter Bar Caacity 3"
  • Max Turning Diameter 21"
  • Spindle Torque 300 ft. lbs.

Product Features

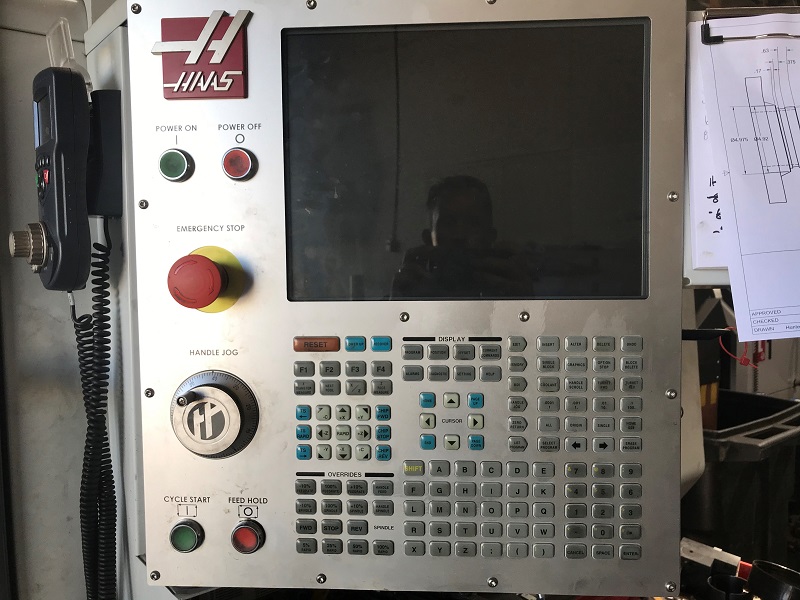

  • HAAS Next Generation CNC Control
  • 15" Color LCD
  • C & Y-Axis Milling Capability
  • USB Port

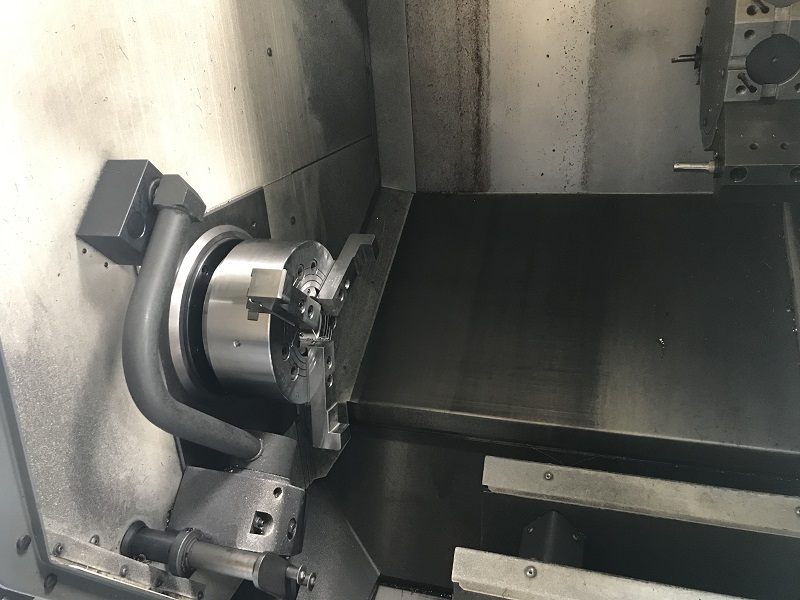

  • 10" Hydraulic Chuck
  • Automatic Tool Presetter
  • Auto Parts Catcher

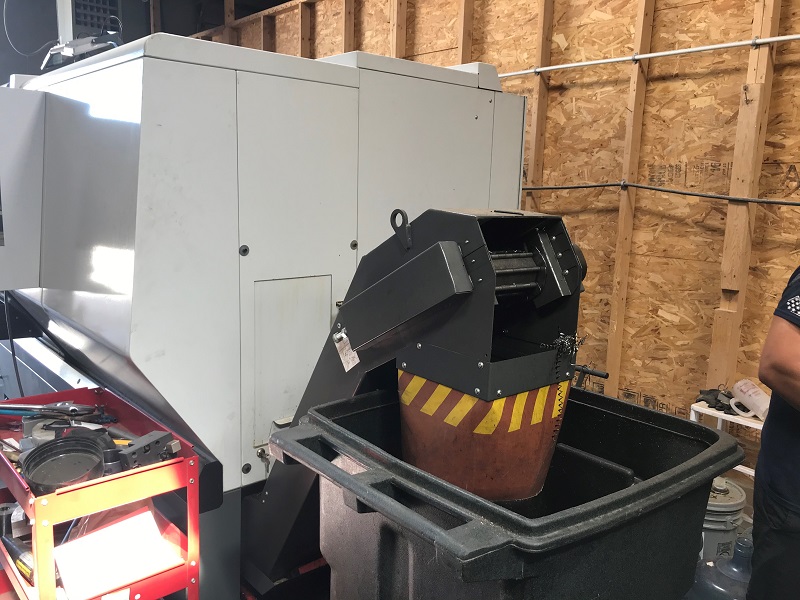

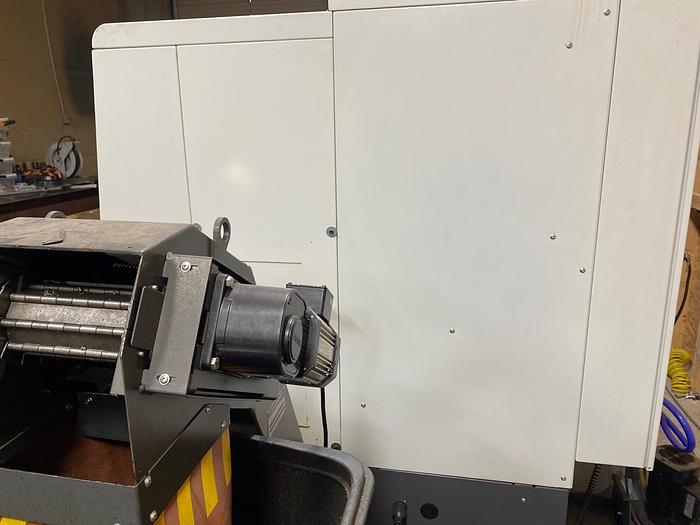

  • Belt-Type Chip Conveyor (Side Exit)

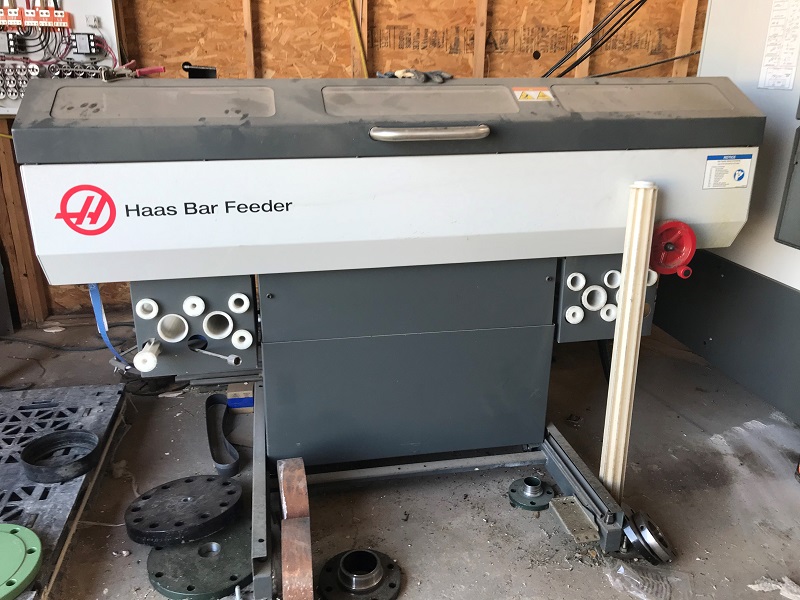

  • HAAS Servo 300 Short Magazine Barfeed
  • 6000 RPM Speed Upgrade for Live Tooling
  • Remote Jog Handle with Color LCD
  • High Intensity Lighting
  • Rigid Tapping
  • Spindle Orientation
  • User Definable Macros
  • Chucker (No Tailstock)
  • (1) OD Live Holder
  • (1) Face Live Holder
  • (3) Turning Holders
  • (1) Boring Bar Holder (1.5" ID)
  • (1) Boring Bar Holder (1" ID)
  • Manufacture Date January 2019

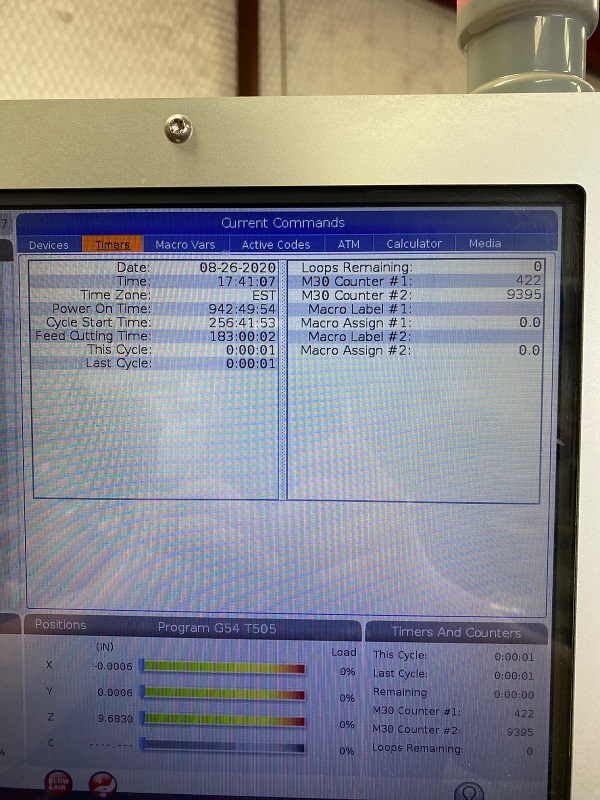

  • 942 Power On Time
  • 256 Cycle Start Time
  • 183 Feed Cutting Time
