< Back to Lathes
Special Item

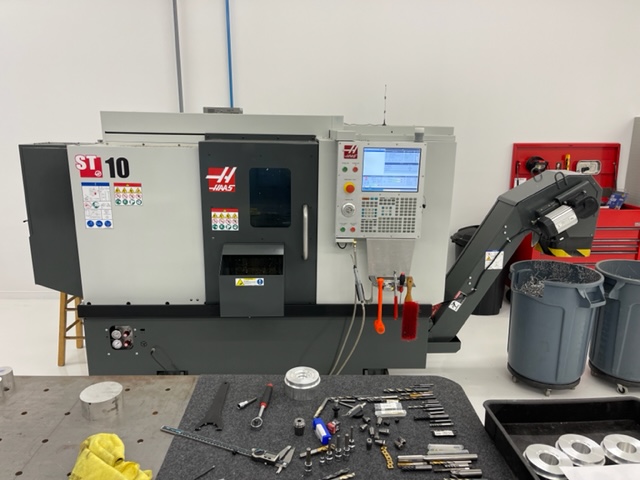

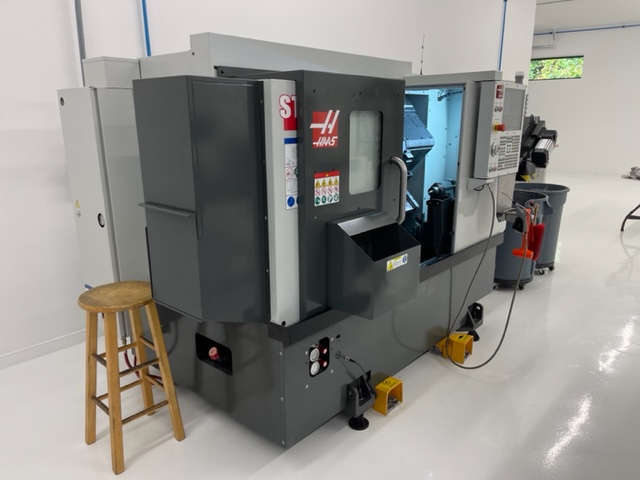

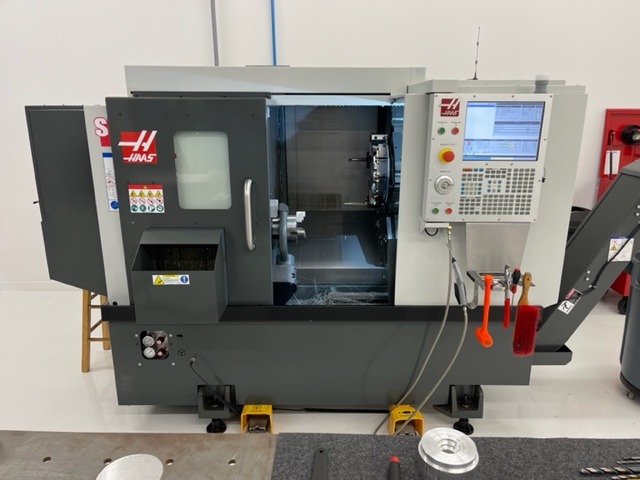

2019 HAAS ST-10T

Next Gen, 1.75" Bar, 6.5" Chuck, 6000 RPM, 12 Tools, Hydraulic Tailstock, Automatic Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6.5"
  • Max Diameter Bar Capacity 1.75"
  • Max Swing Over Bed / Carriage 25.25" / 16.25"
  • Spindle Motor 15 HP
  • Spindle Speed 6000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.31"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 1200 IPM
  • X-Axis Travel 7.88"
  • Turret Index (Single Step / Full) 0.5 Seconds
  • Machine Dimensions (L x W x H) 115" x 76" x 83"
  • Machine Weight 7900 lbs.
  • Max Turning Diameter 12"
  • Max Turning Length 16"
  • Spindle Torque 75 ft. lbs.

Product Features

  • Next Generation CNC Control
  • 12" Color TFT
  • Control Touch Screen
  • USB Port
  • Ethernet Interface
  • WiFi Connection for the HAAS Control
  • Media Display M-Code
  • HAAS Connect: Remote Monitoring
  • 6" LMC PC-6-46-01 Hydraulic Chuck

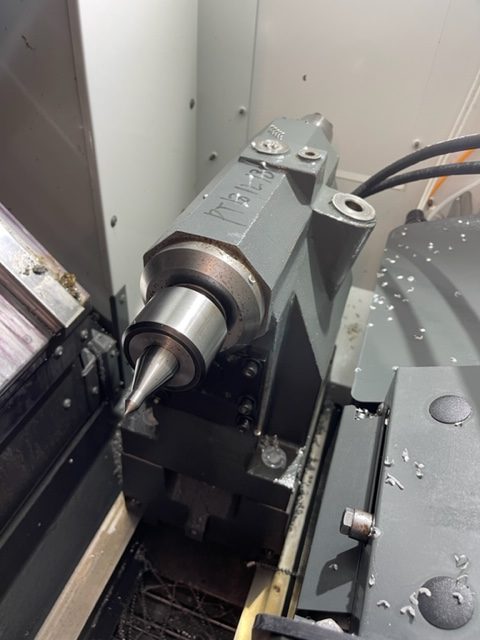

  • Manual Tailstock with Hydraulic Quill
  • Automatic Tool Presetter
  • Parts Catcher
  • Belt-Type Chip Conveyor
  • Auto Door

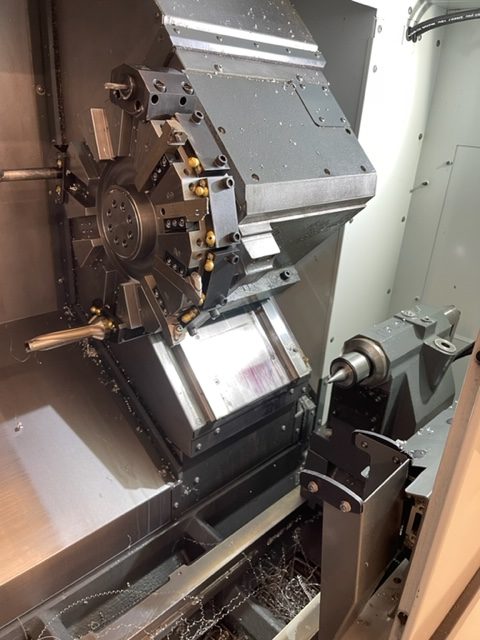

  • 12 Station Bolt-On Turret
  • Enclosure Exhaust System
  • Early Power-Failure Detection Module
  • Rigid Tapping
  • VPS Editing
  • 1 GB Memory
  • (11) Spindle Liners
  • (3) Boring Bar Holders
  • (4) OD Wedge Blocks
  • (2) OD Stick Tools
  • (1) Set of Reversible Hard Jaws
  • (1) Live Center
  • Manufacture Date March 2019

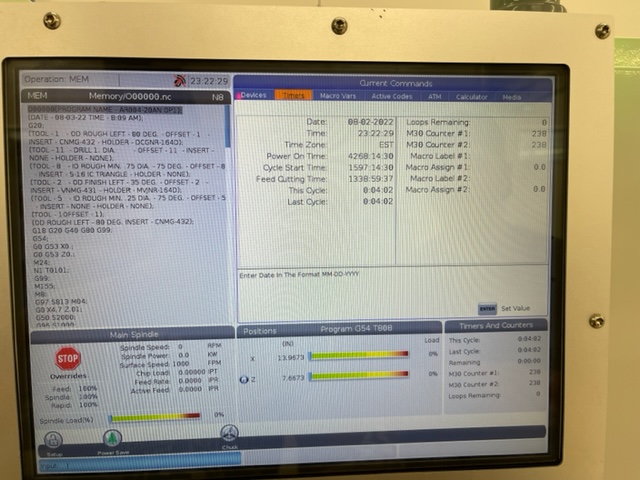

  • 4268 Power On Time
  • 1597 Cycle Start Time
  • 1338 Feed Cutting Time
