Special Item

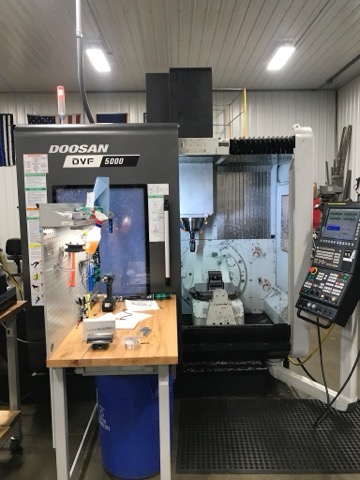

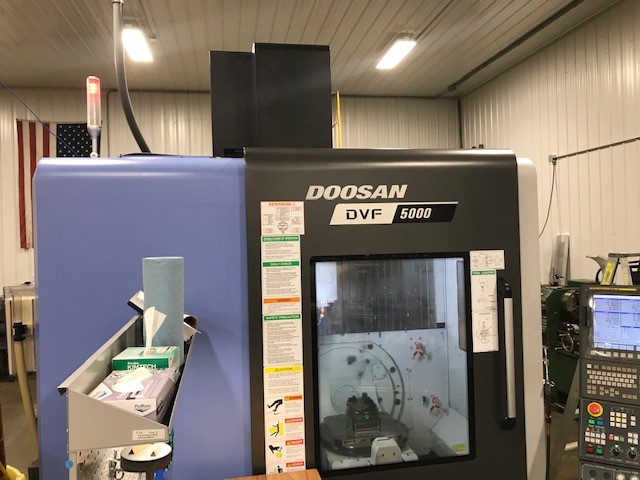

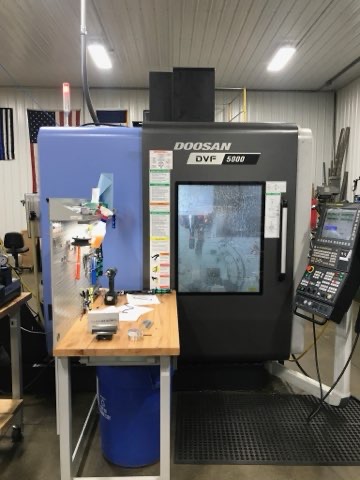

2019 DOOSAN DVF 5000 5-Axis

FANUC 31i-MB5, 25.18.16", 18000 RPM, Cat 40, 60 SMTC, 30 HP, 5-Axis, TSC 230 psi, Probes, Chip Conveyor, Data Server
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 24.6"
  • Y-Axis Travel 17.7"
  • Z-Axis 15.7"
  • B-Axis Travel +110 to -30 Degrees

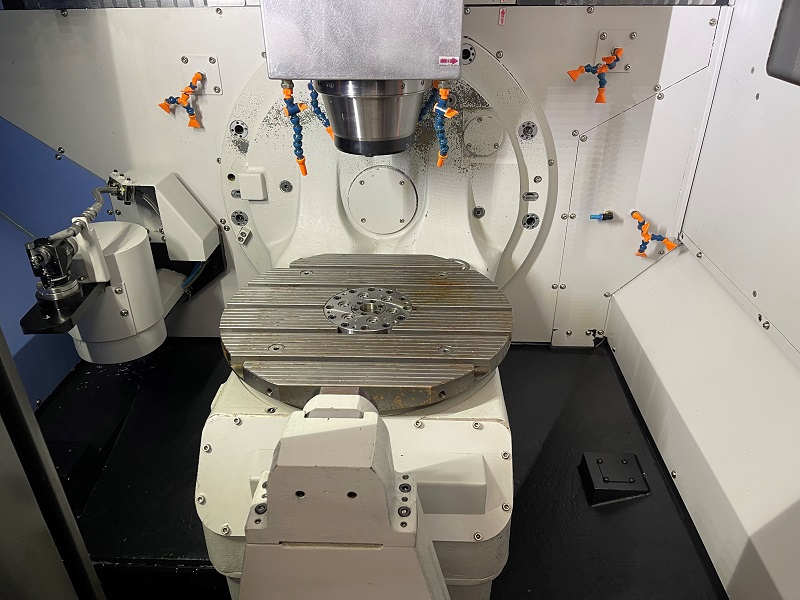

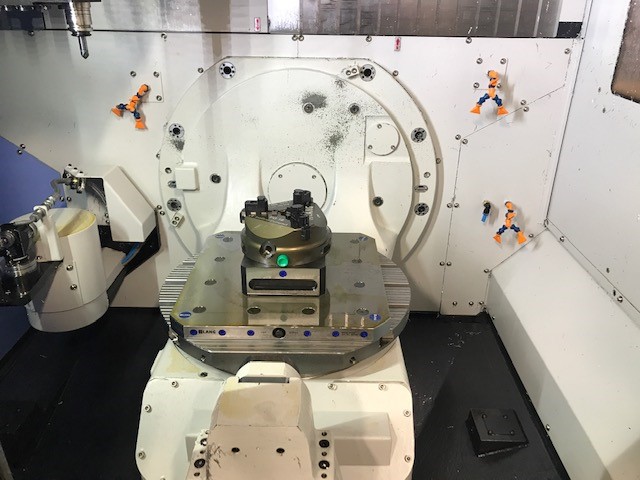

  • C-Axis (Table Index) 360 Degrees
  • Spindle Speed 18,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 / 25 HP
  • Tools 60
  • Table Load Capacity 800 lbs.
  • Rapid Traverse Rates (X & Y & Z) 1575 in/min
  • Max Part Diameter/Height 21.7" / 17.7"
  • Max Tool Length 11.8"
  • Machine Dimensions(L x W x H) 114" x 87" x 114"
  • Machine Weight 16,534 lbs.
  • Platter Diameter 19.7"
  • Spindle Torque 87 ft. lbs.

Product Features

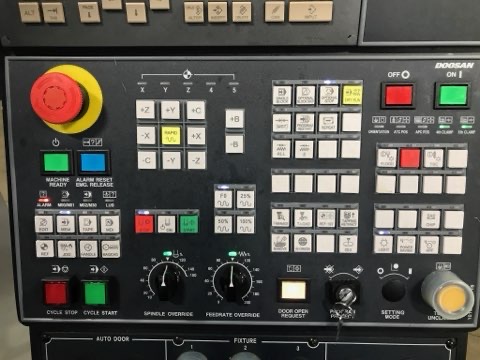

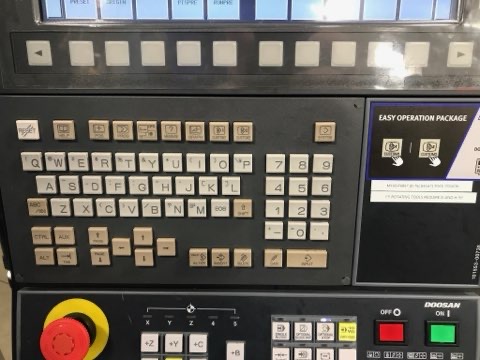

  • Fanuc F31i-B5 Control
  • (5) Simultaneously Controlled Axes (X,Y,Z,B,C)
  • 18,000 RPM Spindle
  • Servo Driven, Double Arm ATC (60 tools)
  • Renishaw RMP600 Spindle Probe

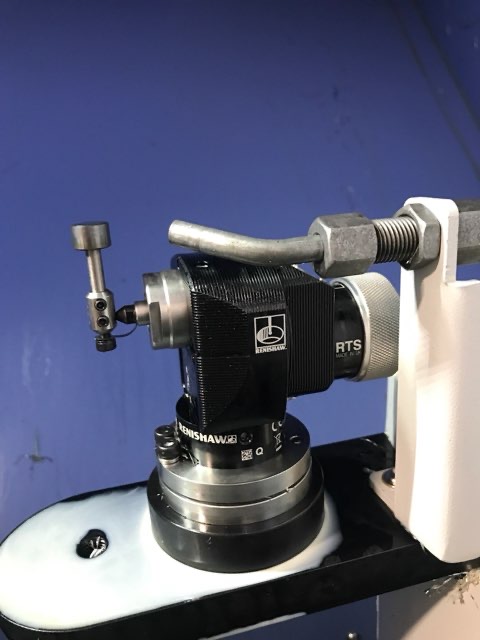

  • RTS Tool Setter
  • Through Spindle Coolant (230 PSI)
  • Through Spindle Air Blast
  • Z-Axis Thermal Compensation
  • Absolute Glass Scales (X,Y, & Z Axes)
  • Absolute Rotary Encoders (B & C Axes)
  • DSQ 3 (AICC II 600 block look ahead + 1 GB Data Server)
  • Doosan Intelligent Kinematic Compensation (IKC) Software
  • Rigid Tapping
  • Spindle Orientation
  • Doosan Tool Load Monitoring and Adaptive Feedrate Control
  • Program and Data Protection Key
  • Portable Manual Pulse Generator
  • High Ridigity, Traveling Column Design

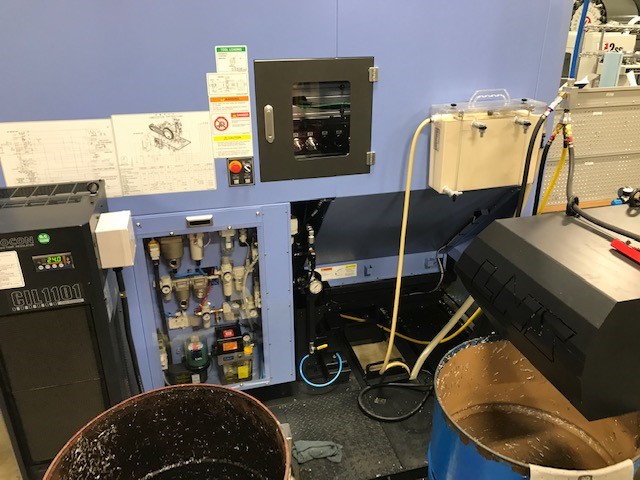

  • Spindle Oil Chiller
  • Flood Coolant
  • Way Oil Skimmer
  • 3 Color Tower Signal Light
  • Turbo Microfine Chip Conveyor

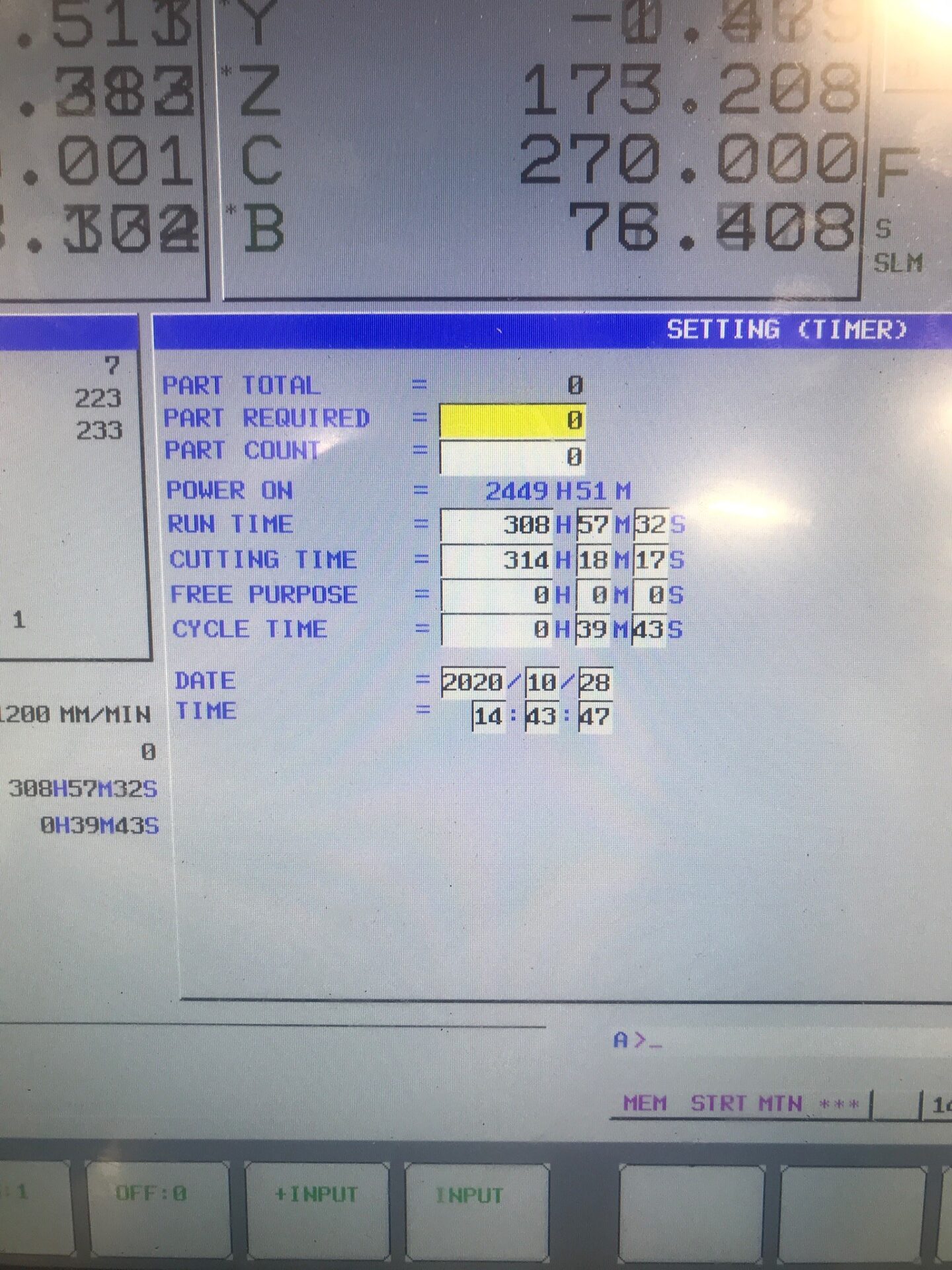

  • 163 Cutting Hours
