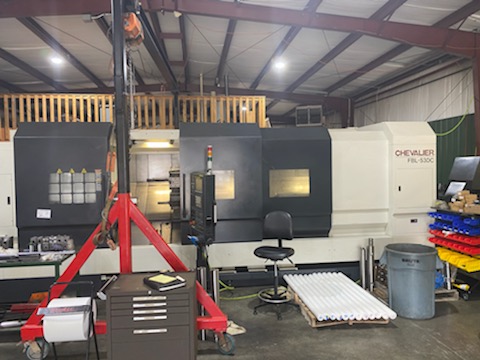

2019 CHEVALIER FBL-530C

Fanuc 0iT, 32" Chuck, 37" Max Dia, 118" Max Length, 12.5" Bore, 60 HP, 500 RPM, 12 Tools, Steady Rest, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 32"
  • Max Swing Over Bed / Carriage 40.5" / 31.5"
  • Spindle Motor 60 HP
  • Spindle Speed 500 RPM
  • Spindle Nose A2-20
  • Spindle Bore 12.5"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 394 / 472 IPM
  • X-Axis 19.3"
  • Z-Axis Travel 118.11"
  • Machine Dimensions (L x D x H) 339" x 118" x 104"
  • Machine Weight 50,000
  • Max Turning Diameter 37"
  • Spindle Torque 3050 ft. lbs.
  • Tailstock Taper MT#6

Product Features

  • FANUC 0iT CNC Control
  • 10.4" Color LCD
  • USB Port

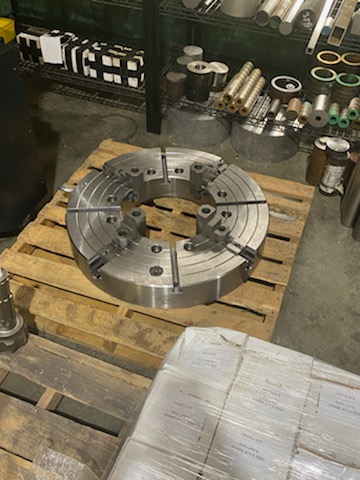

  • 32" Manual 4-Jaw Independent Chuck
  • 18" Manual 4-Jaw Chuck
  • 12.5" Spindle Bore
  • Manual Steady Rest

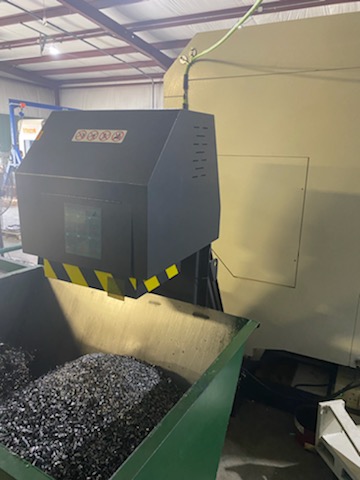

  • Chip Conveyor (Hinge Type Side Exit)
  • Tailstock
  • Three Color Tower Light
  • Step Down Transformer
