Special Item

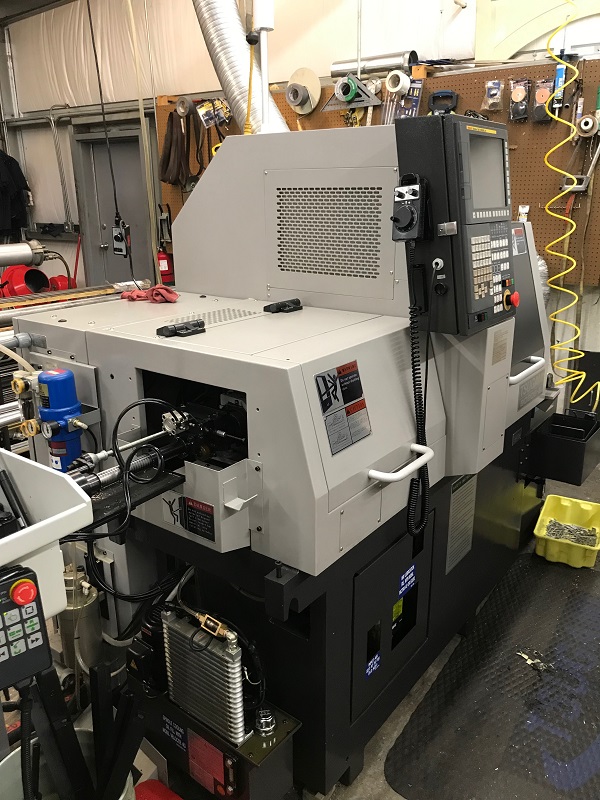

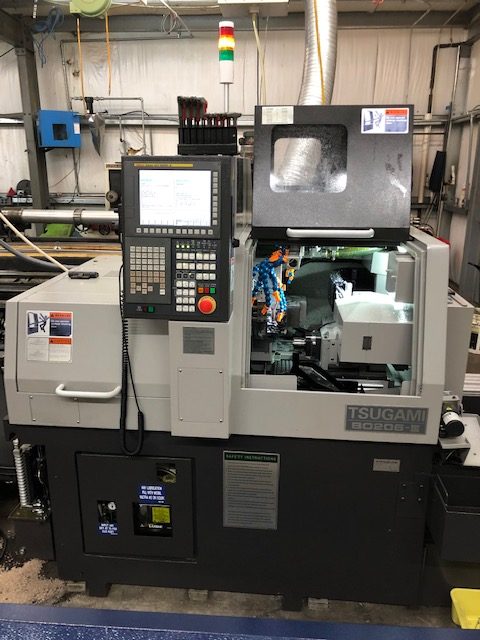

2018 TSUGAMI B0206-III

Fanuc 32i-TD, 0.75" Bar, 5 HP, 10000 RPM, 21 Tools, Live Tooling, Sub Spindle, Barfeed, Chucker Kit, Chip Conveyor, TSC 1000 psi
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 0.787"
  • Sub Spindle Index .001 Degrees
  • Sub Spindle Motor 3 HP
  • Sub Spindle Speed 200 - 10,000 RPM
  • ID Positions for Main or Sub Spindle 5
  • Live Tools 4
  • Main Spindle Indexing .001 Degrees
  • Main Spindle Motor 5 HP
  • Main Spindle Speed 10000 RPM
  • Max Front Rotary Drilling/Tapping Dia. 0.315" / M6
  • Rigid Tapping on Main Sub and Cross Tools
  • Static Backworking Stations 4
  • Turning Tools 5

Product Features

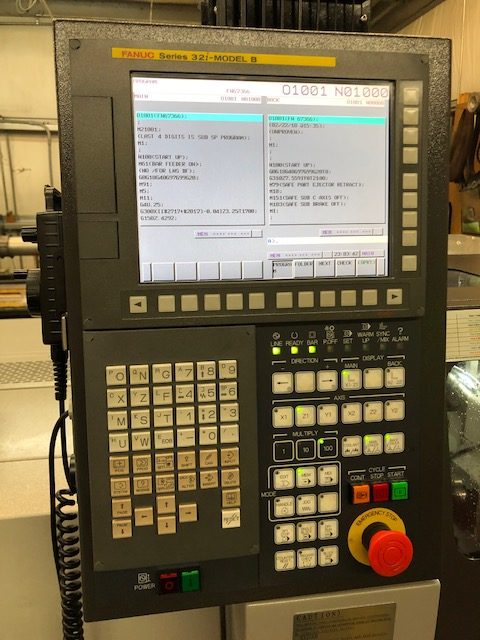

  • Fanuc 32i-TD CNC Control
  • 8.25" Color LCD

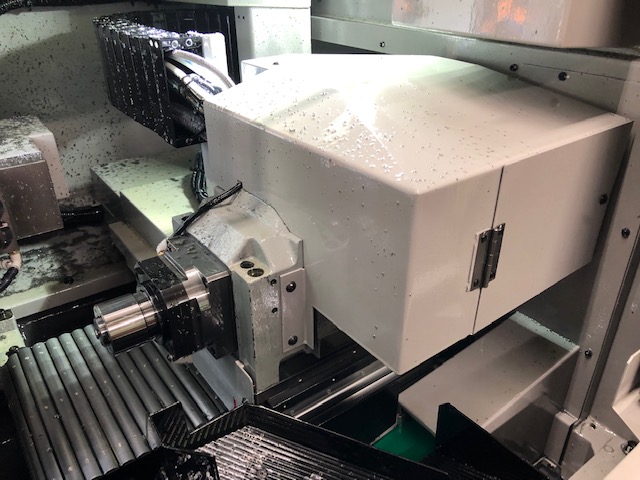

  • Main & Sub Spindle Full C-Axis with Brake

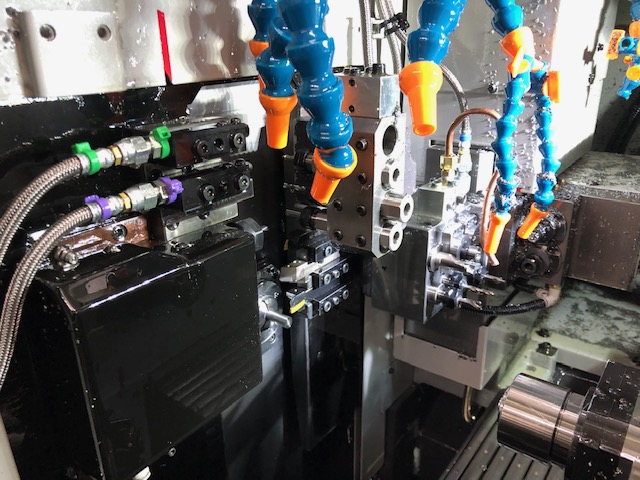

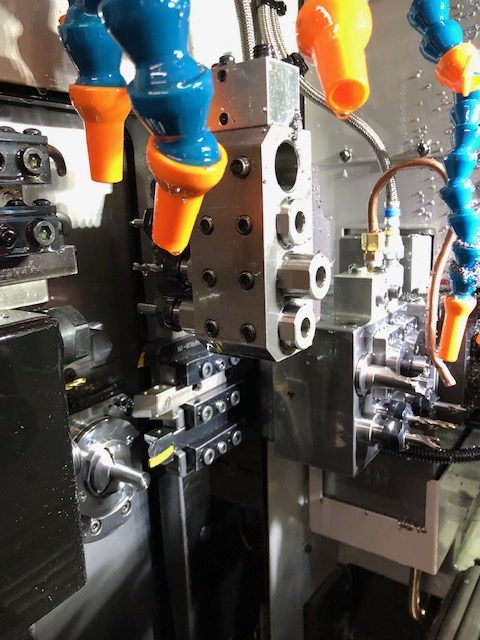

  • (5) Turning Tools
  • (4) Spindle Cross Drill - (2) ER16, (2) ER11 with Rigid Tapping
  • (2) Live Cross (2) Live Main - ER Collet for Sub Use
  • (9) OD Tool Storage Capacity - (5) OD Turn, (4) Cross Drills
  • (4) OD Fixed Tool Positions Main Spindle
  • (8) ER11 Holders, Main & Sub Spindles
  • Rotary Tools Drive System
  • Sub Side Y-Axis
  • Work Front Ejector and Confirmation
  • Direct Drive Rotary Guide Bushing (TD26)
  • Carrier Type Rotary Guide Bushing
  • Chucker Kit
  • Work Forward Discharge Unit (Air Blow, Stroke Variable)
  • Auto Parts Catcher with Work Conveyor & Basket
  • Coolant Tank with Coolant Flow Detector (180 liter)
  • Spindle Cooling for Main & Sub Motors
  • Air/Oil Pressurized Driven Tool Gearbox Units
  • Part Program Optimization Check
  • 99 Pairs of Tool Offsets
  • PC/MCIA Interface
  • Ethernet T10 Connection Interface

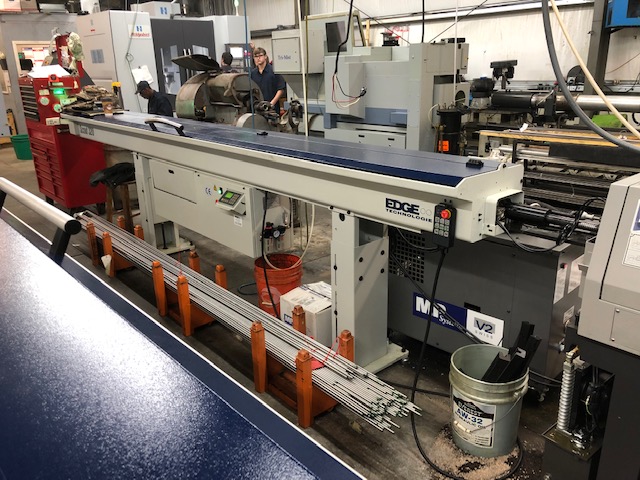

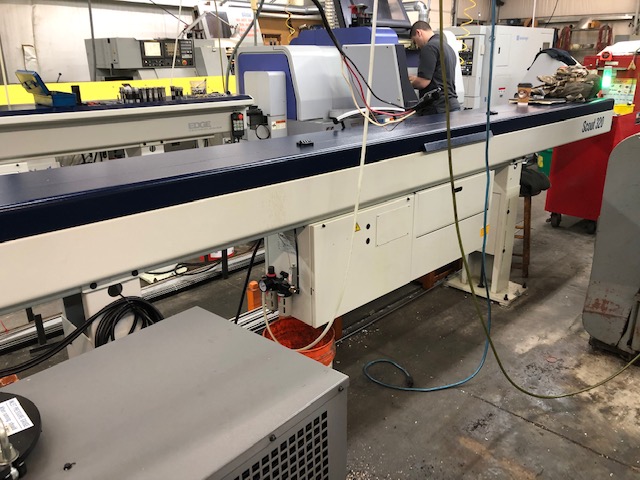

  • Edge Scout 320 Magazine 12 ft. Barfeed
  • (2) Guide Channel Sets (10 mm & 20 mm)

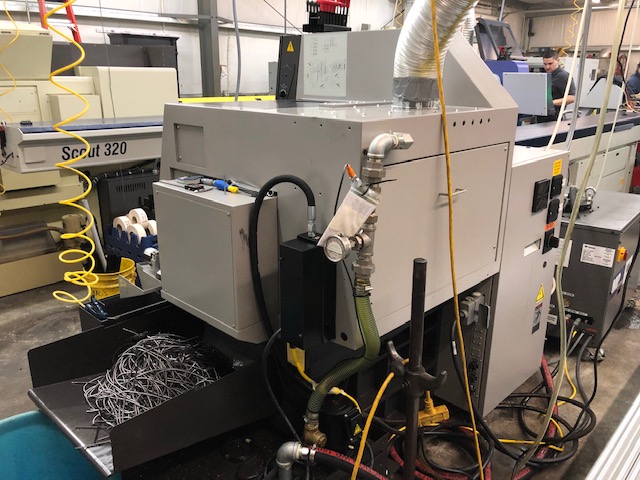

  • MP Systems V2-HW8 High Pressure 1000 psi Coolant System (8 Outputs)
  • Three Color Tower Light
  • Remote Jog Handle
  • Manufacture Date September 2017
  • Installed in February 2018
  • 1931 Power On Time
  • 961 Run Time
  • 633 Cutting Time
