Special Item

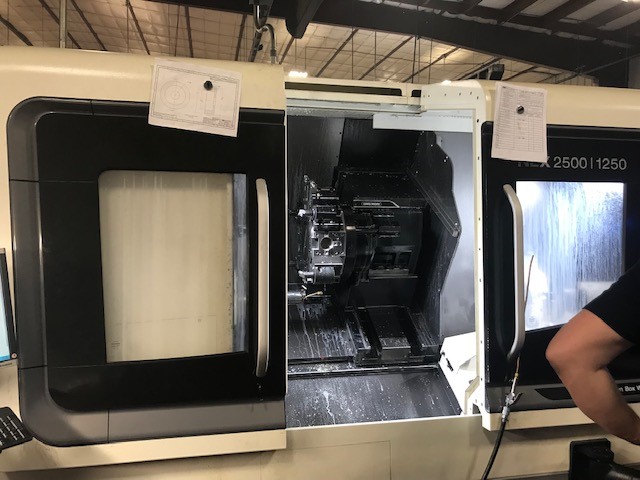

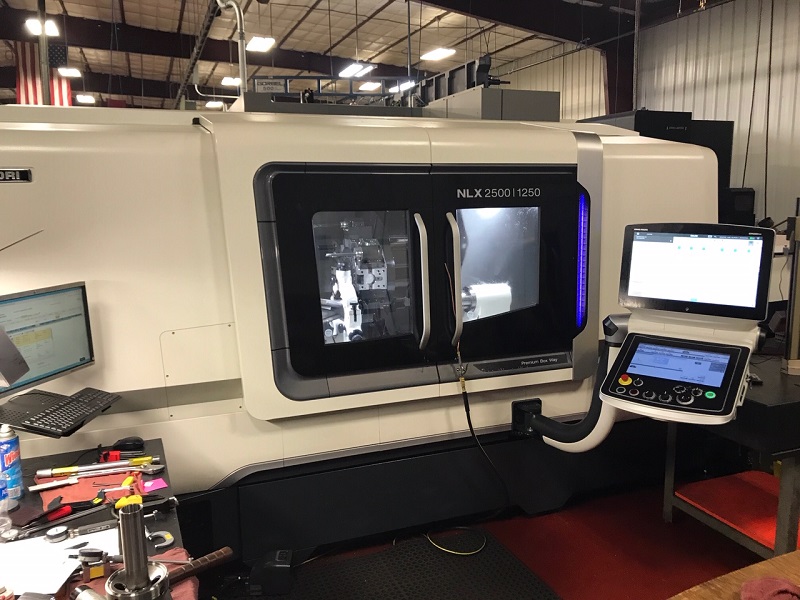

2018 DMG MORI SEIKI NLX-2500/1250

Celos, 3.1" Bar, 10" Chuck, 14" Max Dia, 49.4" Length, 12 Tools, 25 HP, 4000 RPM, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed/Cover/Carriage 36.2"/26.4"/29.2"
  • Spindle Motor 25 / 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"

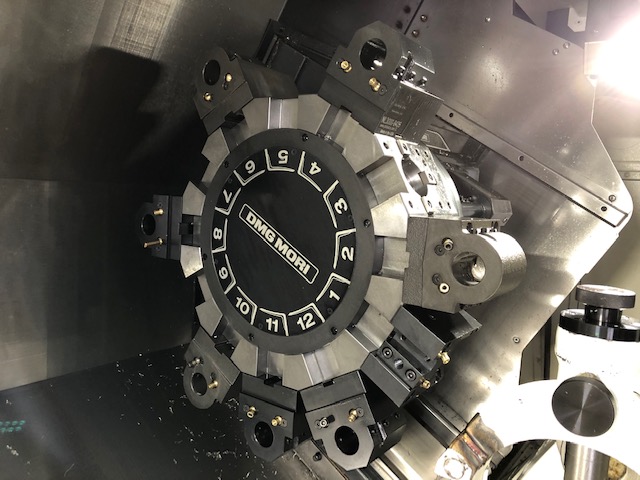

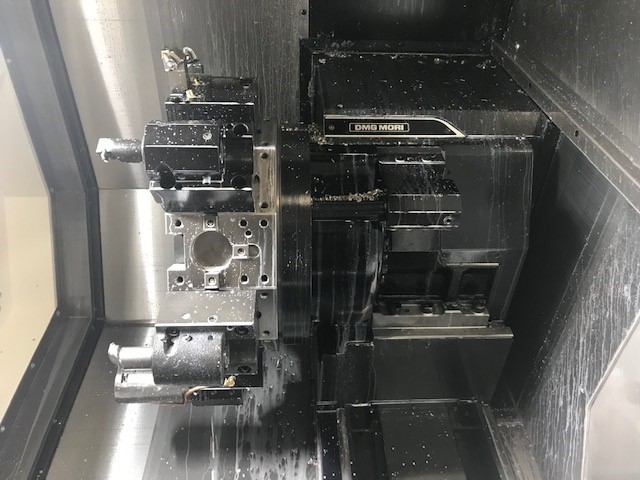

  • Tools 12
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 53"
  • Turret Index (Single Step / Full) 0.25 Seconds
  • Machine Dimensions (L x D x H) 199.3" x 81.2" x 86.6"
  • Machine Weight 16,000 lbs.
  • Max Turning Diameter / Std. 14" / 10.8"
  • Max Turning Length 49.4"
  • Spindle Torque 329 ft. lbs.
  • Tailstock Taper MT #5

Product Features

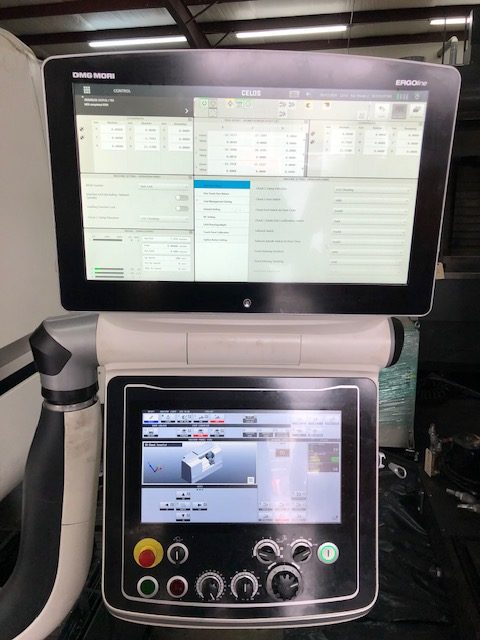

  • Celos CNC Control
  • 15" Color TFT

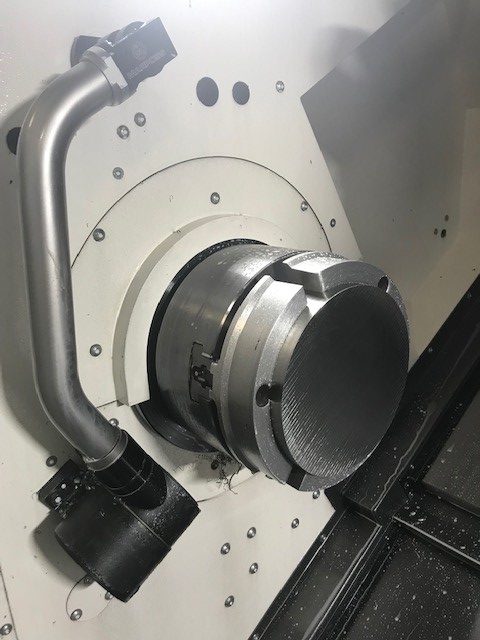

  • 10" Kitagawa Hydraulic Chuck
  • 49.4" Optional Cutting Length
  • Tool Presetter
  • Tailstock Live Center
  • High Pressure Coolant Interface
  • X-Axis Scales Full Closed Loop Control
  • Z-Axis Scales Full Closed Loop Control

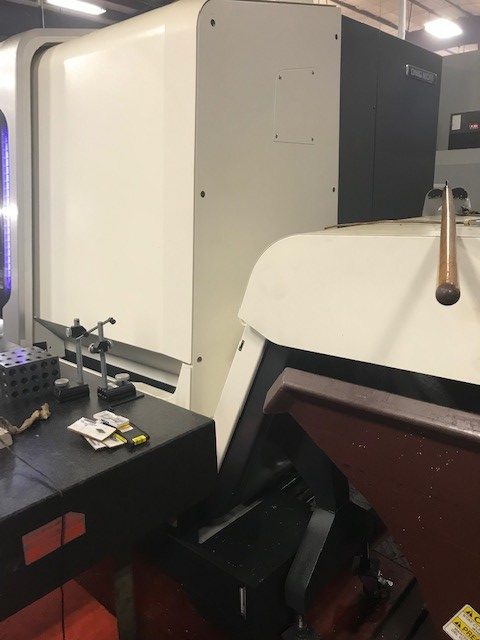

  • Chip Conveyor (Right Side Hinge Type)
  • Alternating Speed

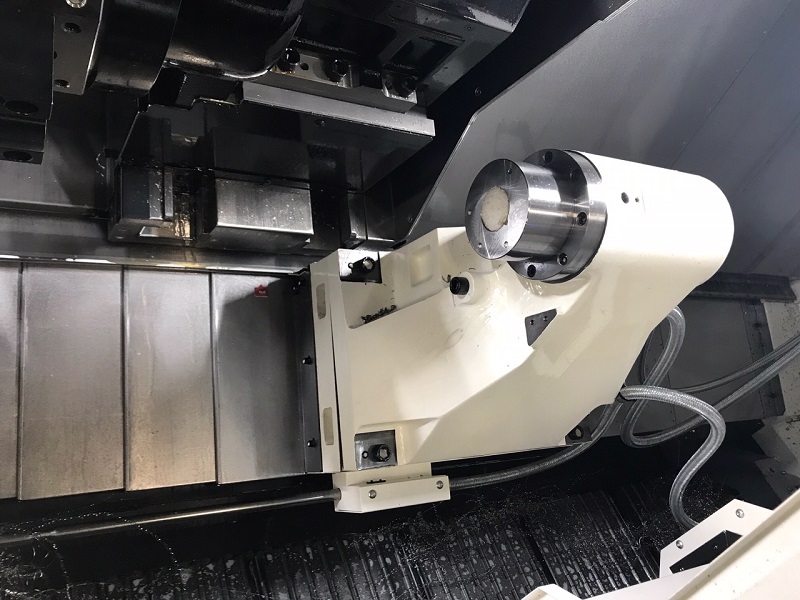

  • Servo Driven Tailstock
  • (6) Boring Bar Holders
  • (4) Turning Holders
  • (1) Facing Holder

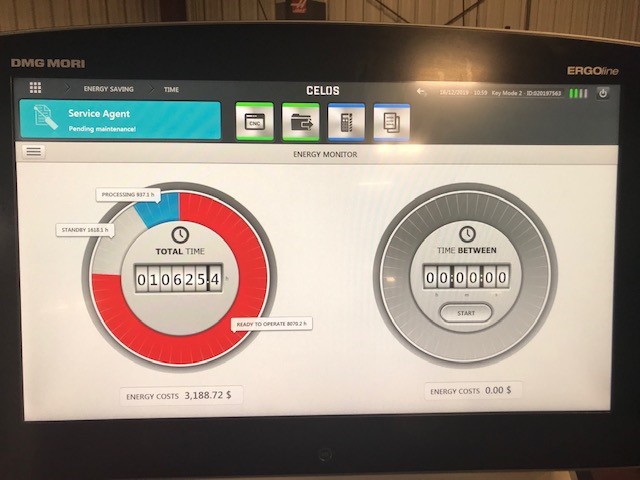

  • 10,826 Total Time
  • 1418 Standby Time
  • 965 Processing Time
