Special Item

2018 MIYANO BNX-51MSY

MIT M70V, 2" Bar, 12 Tools (Live), 6000 RPM, 20 HP, Live Tooling, Y-Axis, Sub Spindle, Barfeed, Parts Catcher, Collet Chucks
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6"
  • Max Machining Length 5.906"
  • Spindle Motor 20 HP AC
  • Spindle Speed 60 - 6000 RPM
  • Spindle Nose A2-6
  • Tools 12 (Live)
  • Sub Spindle Chuck Size 5"
  • Sub Spindle Motor 10 HP AC
  • Sub Spindle Nose Flat
  • Sub Spindle Speed 50 - 5000 RPM
  • Rapid Traverse Rates 787 IPM
  • Z-Axis Travel 11.8"
  • Y-Axis Travel +/- 1.57"
  • Machine Dimensions (L x D x H) 153" x 61" x 70"
  • Machine Weight 11,000 lbs.
  • Live Tool Motor 5.3 HP
  • Live Tool Speed 6000 RPM
  • Max Dia Bar Capacity (Left & Right Spindles) 2.04"
  • X1-Axis 6.5"
  • X2-Axis 3.39"
  • Z2-Axis 21.77"

Product Features

  • MITSUBISHI M70V CNC Control
  • 12" Color TFT
  • USB Port
  • Y-Axis Live Tooling Capability

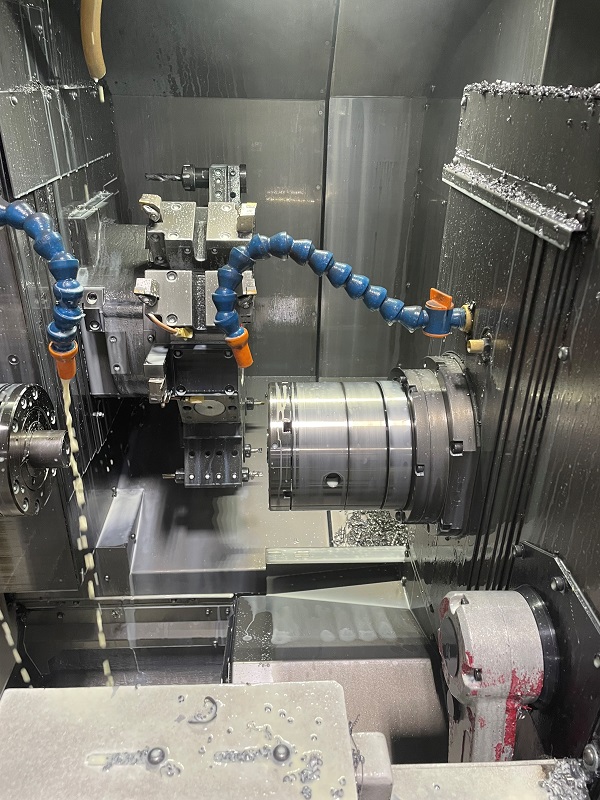

  • Sub Spindle for Superimposed Machining
  • (2) H-S22 Collet Chucks
  • Auto Parts Catcher
  • Parts Exit Conveyor
  • Work Ejector

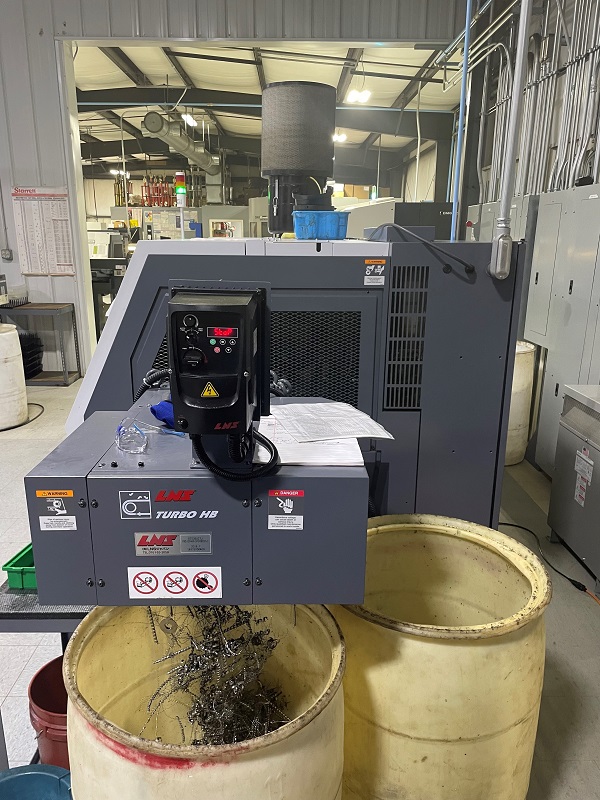

  • LNS Turbo HB Chip Conveyor (Side Exit Hinge Type)

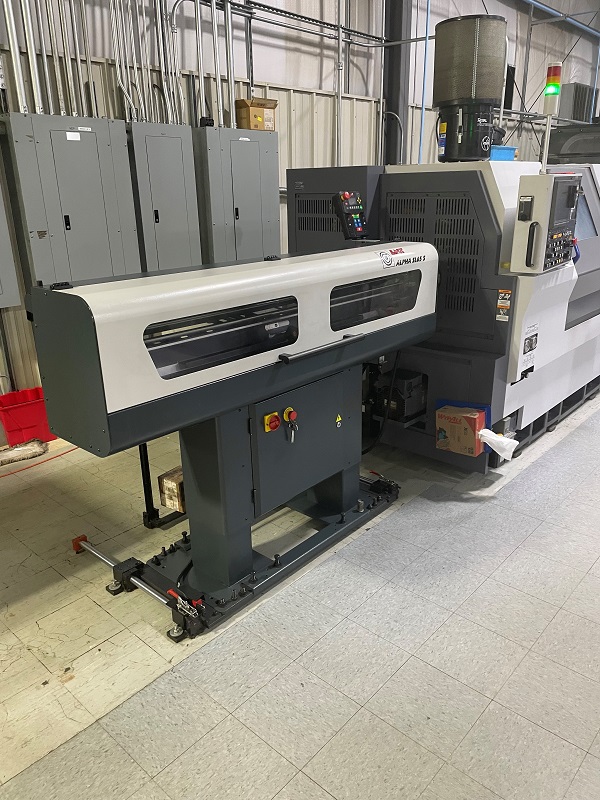

  • LNS Alpha SL65 S Short Magazine Barfeed
  • High Pressure Coolant (145 psi)
  • Three Color Tower Light
  • Royal Filter Mist FX-575
  • Spindle Disk Brakes on Main and Sub Spindles
  • Air Blow on Main and Sub Spindles
  • Cut-Off Confirmation Function
  • (2) Turning Tool Holder A
  • (2) Double Plain Head C
  • (1) Double Turning Holder
  • (1) Double Plain Head B
  • (1) Double and Turning Holder F
  • (1) Double and Turning Holder R
  • (1) Double and Turning Holder B
  • (5) Spindle Liners
  • Automatic Power Off
  • Background Editing
  • On Machine Program Check Function
  • Custom Macro
  • Inch/Metric Conversion
  • 80 Sets of Tool Offsets
  • Rigid Tapping
  • Helical Interpolation
  • Milling Interpolation
  • Polygon Turning Function
  • Manufacture Date September 2018
  • Running Time 12,858
