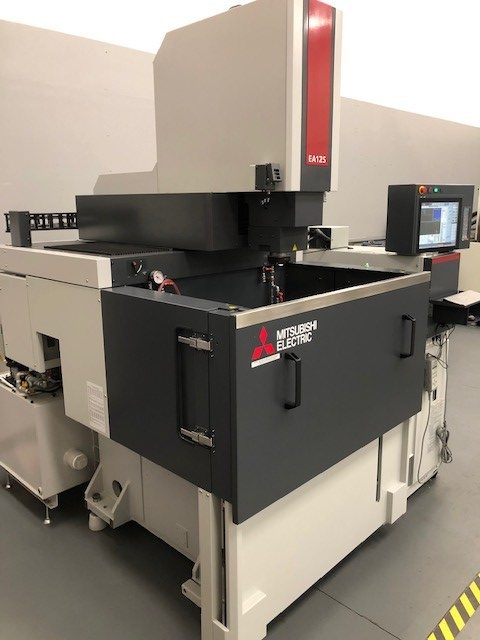

2018 MITSUBISHI EA12ST Advance SINKER EDM

Mitsubishi M700, 16.12.12", 41.27.18" Tank Size, 80 Amps, C-Axis, 3R Chuck, Fine Finishing
Talk to a representative today!
(803) 548-8000

Product Details

  • C-Axis Index .001 Degrees
  • Dielectric Tank Capacity 145 Gal
  • Floor to Table Level 35.4"
  • Machine Dimensions (L x D x H) 76" x 83" x 95"
  • Machine Weight 7495 lbs.
  • Max Electrode Weight (On Platen) 110 lbs.
  • Max Workpiece Weight 2204 lbs.
  • Power Pack 80 Amp
  • Rapid Traverse Rates 78.7 IPM
  • Table Size 27.55" x 19.68"
  • Table to Electrode Mount 9.8 - 21.6"

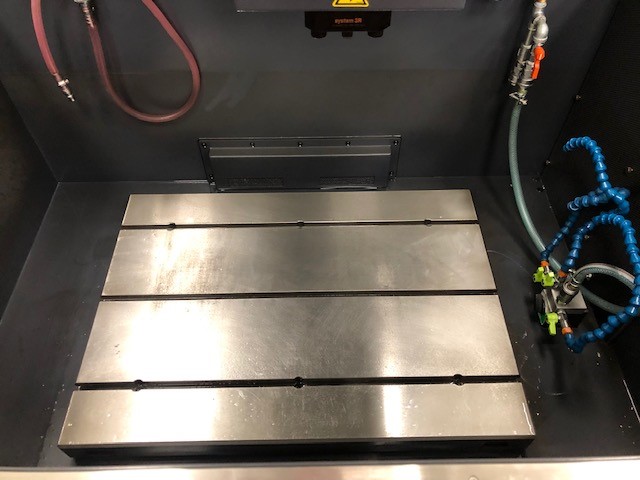

  • Work Tank Size (W x D x H) 41.3" x 27.5" x 17.7"
  • X-Axis Travel 15.74"
  • Y-Axis Travel 11.81"
  • Z-Axis Travel 11.81"

Product Features

  • MITSUBISHI M700 CNC Control
  • 15" Color TFT
  • 80 GB Hard Drive with 1 GB User Program Storage
  • C-Axis Capability (System 3R)
  • C-Axis Linked Orbital Rotation
  • FP-80S Power Supply
  • FTS Chiller Unit
  • ESPER II Navigator Advance Programming
  • Fuzzy Pro 3-Plus
  • Manual Front Door with Air Assist
  • Remote Pendant Box
  • Auto Lubrication Device
  • SS Jump 5 (High-Speed Jump Stabilization System)
  • Z-Axis Linear Scale
  • IDPM (Power Master Adaptive Control)
  • PS Circuit (Fine Matte Finishing Circuit)
  • Dielectric Fluid Emission
  • Dielectric Fluid Suction
  • (2) USB Flash Memory Ports
  • DNC Hardware (Ethernet FTP)
  • Manufacture Date March 2016
  • Installed in June 2018
  • 27 Burning Hours
