Special Item

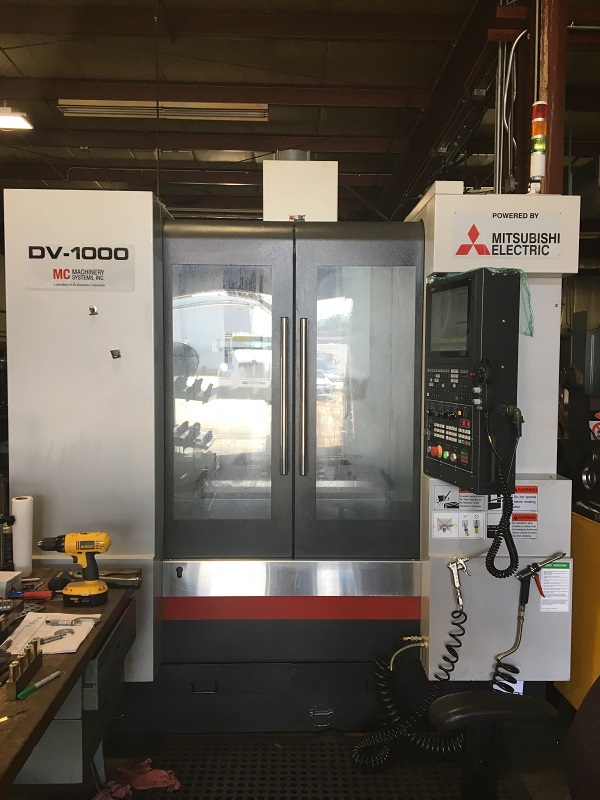

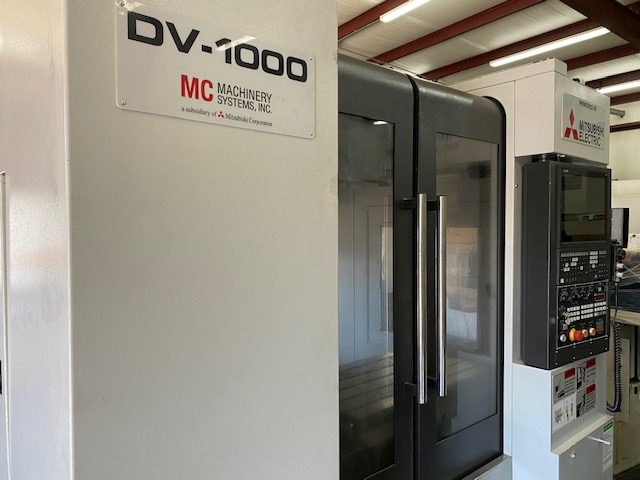

2018 MITSUBISHI DV-1000

M80, 40.22.23", 12000 RPM, 15 HP, Cat 40, 32 SMTC, TSC 500 psi, Auger, High Speed Machining, Super Clean
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40.2"
  • Y-Axis 22.0"
  • Z-Axis 23.6"

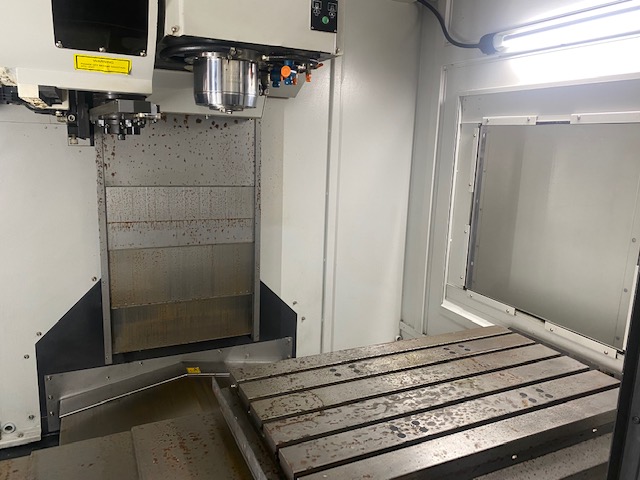

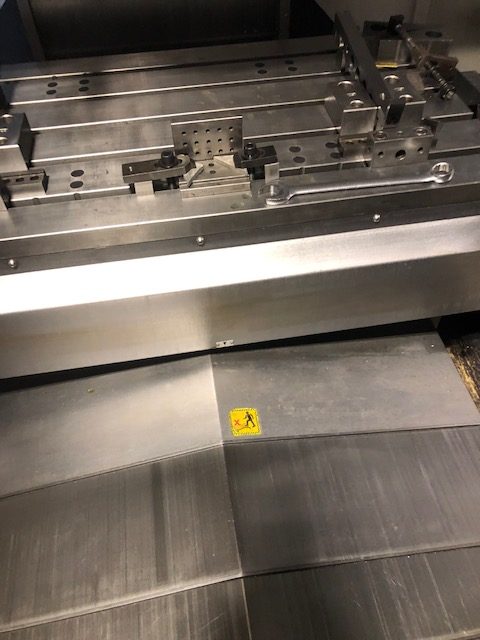

  • Table Size 39" x 22"
  • Spindle Speed 12,000 RPM

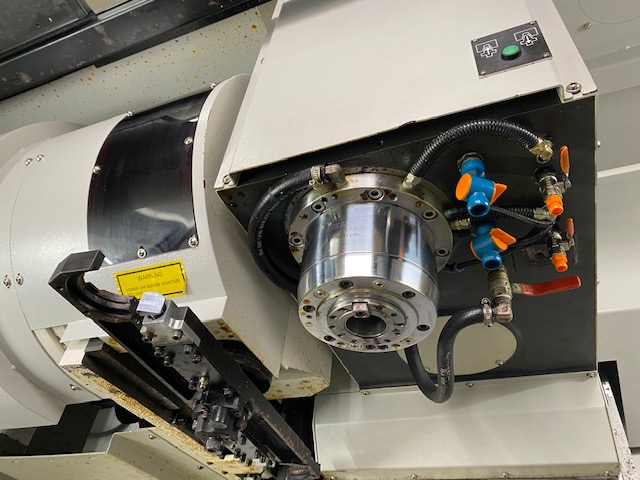

  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 15 / 10 HP AC
  • Tools 32
  • Table Load Capacity 1650 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1417 / 787 IPM
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Weight 15.4 lbs.
  • Machine Dimensions 88" x 76" x 103"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 5.3" - 28.9"

Product Features

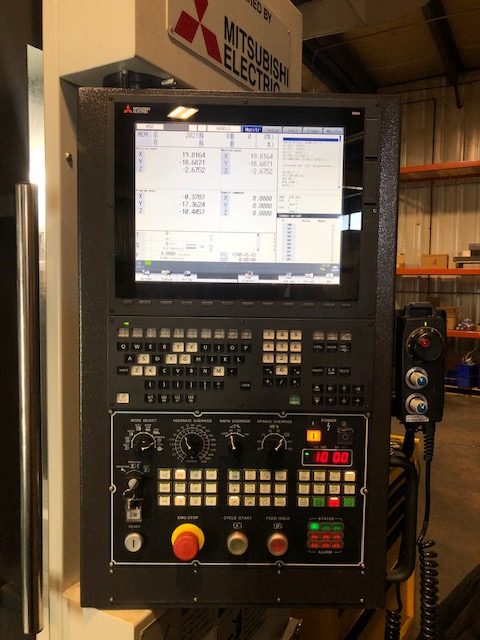

  • Mitsubishi M80 CNC Control
  • 10.4" Color TFT
  • Touch Screen Graphic Display
  • Through Spindle Coolant (500 psi ChipBlaster)
  • 32 Position Side Mount Tool Changer
  • Chip Auger
  • Remote Jog Handle

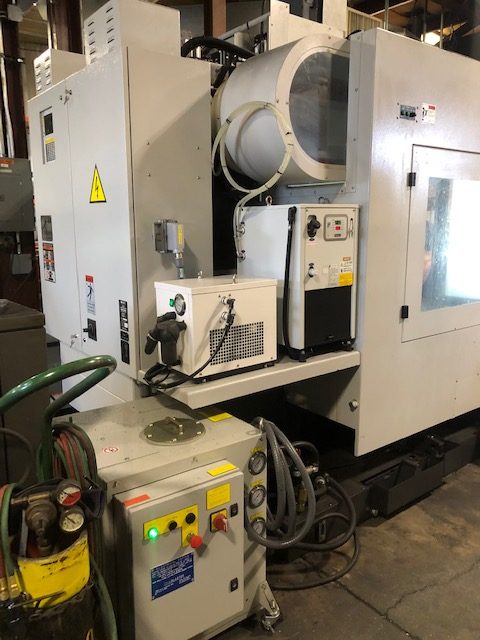

  • Spindle Chiller Unit
  • Three Color Tower Light
  • Air Gun/Water Gun
  • Disc-Type Oil/Coolant Separator
  • Automatic Power Shut Down Circuit
  • 337 Block Look Ahead
  • 33,700 BPM Processing Speed
  • Editable Data Server (Flashcard Type)
  • Ethernet with TCP/IP Protocol & RS232 Interface
  • 512 MB Memory
  • Inch/Metric Switchable
  • Helical Interpolation
  • Coordinate Rotation
  • Rigid Tapping
  • Tool Life Management
  • Additional Work Offsets
  • Workpiece Pickup Routines
  • Navi (Conversational) Programming
  • Total List Price $157,000
  • Manufacture Date August 2016
  • Installed in March 2018
  • 5673 Power On Time
  • 1914 Auto Operation
  • 1390 Cycle Start
