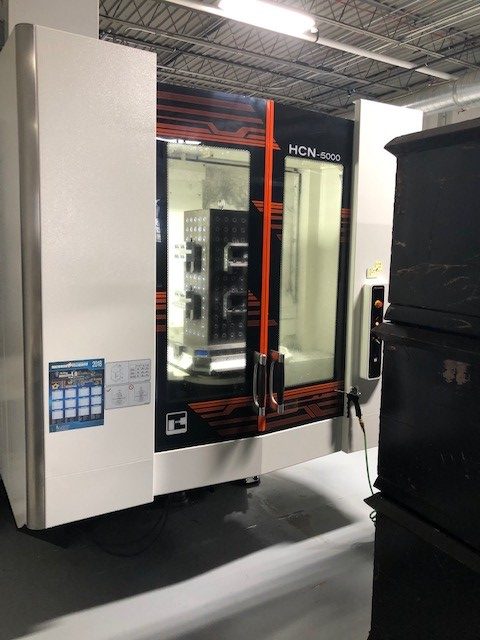

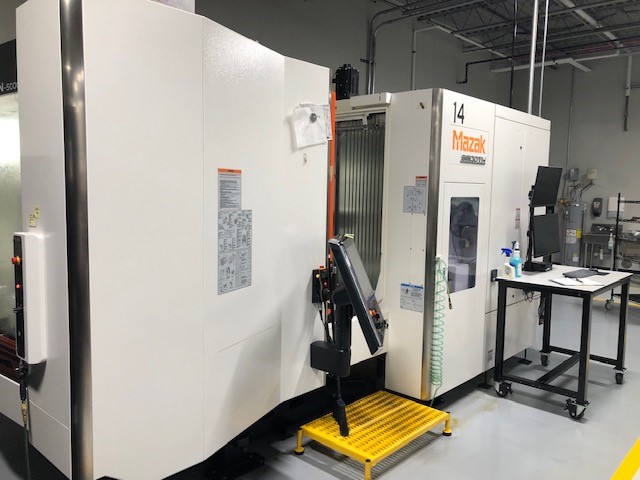

2018 MAZAK NEXUS HCN-5000

Matrix, 19.7" Plts, 29.29.29", Fourth Axis, 14000 RPM, Cat 40, 40 HP, 60 Tools, TSC 1000 psi, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 7.0 Seconds
  • Pallet Load Capacity 1542 lbs.
  • Pallet Size 19.68" (2)
  • X-Axis 28.74"
  • Y-Axis 28.74"
  • Z-Axis 29.13"
  • Pallet Index .001 Degree

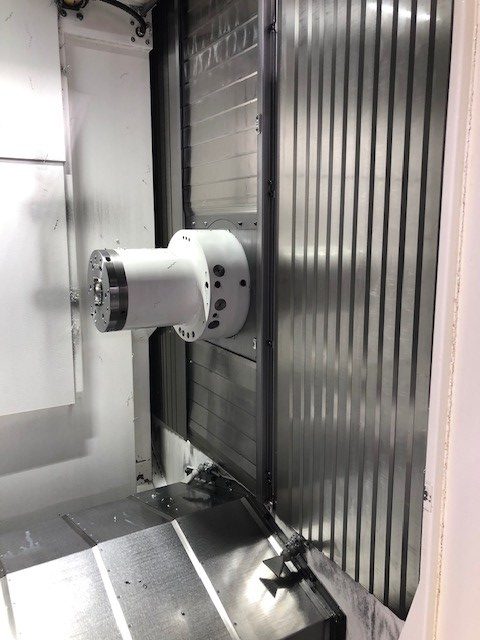

  • Spindle Speed 14,000
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 40 / 30 HP
  • Spindle Center to Table Top 3.94" - 31.88"
  • Spindle Nose to Table Center 2.75" - 31.88"
  • Tools 60
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (C - C) 2.7 Seconds
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Length 16.53"
  • Max Tool Weight 26 lbs.
  • Max Workpiece Dia / Height 39.37" / 31.49"
  • Machine Dimensions (L x W x H) 218.5" x 91.73" x 114.17"
  • Machine Weight 24,000
  • Spindle Torque 406 ft. lbs.

Product Features

  • MAZATROL Smooth G CNC Control
  • 19" Color LCD
  • USB Port
  • PC/MCIA Interface
  • Conversational Programming
  • EIA/ISO Package
  • Fourth Axis Rotary Table
  • 60 Tool Magazine
  • MAZAK Super Flow S8 High Pressure Coolant (1000 psi / 8 GPM)
  • Renishaw OMP60 Touch Probe
  • Auto Tool Length Measurement
  • Tool Breakage Detection & Tool Life Management

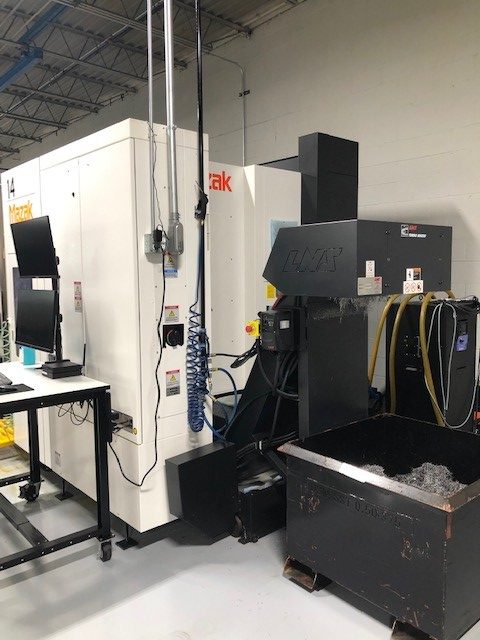

  • LNS Turbo MH250 Chip Conveyor (Rear Exit)
  • Dual Chip Augers
  • Spindle Chiller Unit
  • Mist Fit MF1050 Mist Collector

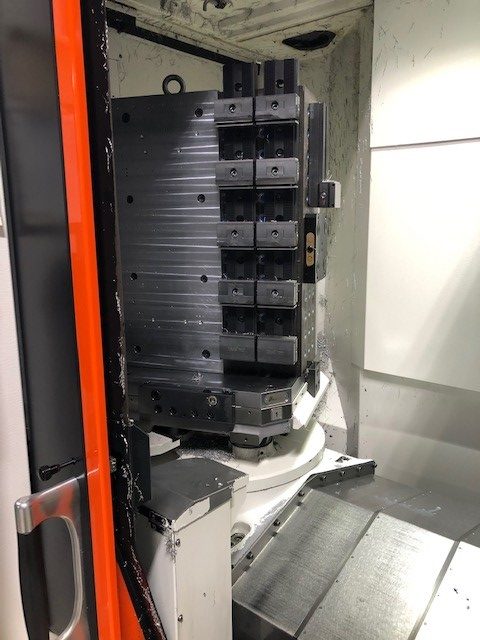

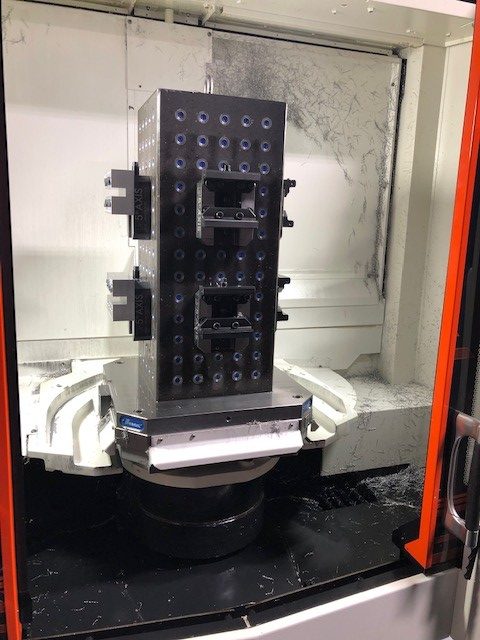

  • (2) Epoxy Tombstones ($50,000 Retail Value)
  • Manufacture Date February 2018

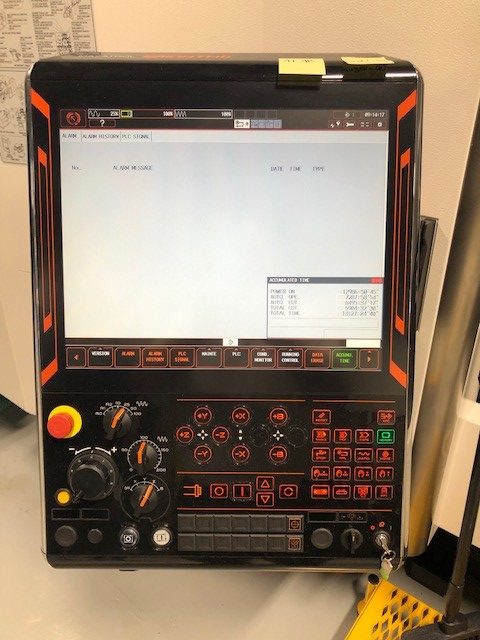

  • 12,986 Power On Time
  • 7287 Auto Operation Time
  • 6495 Auto Cut Time
  • 5904 Total Cut Time
  • 13,127 Total Time
