Special Item

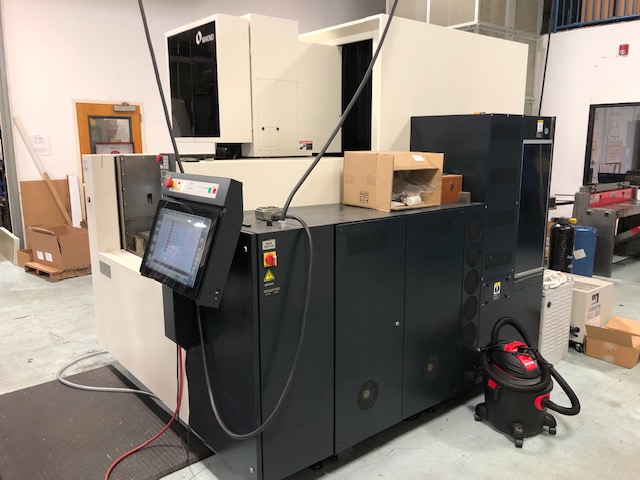

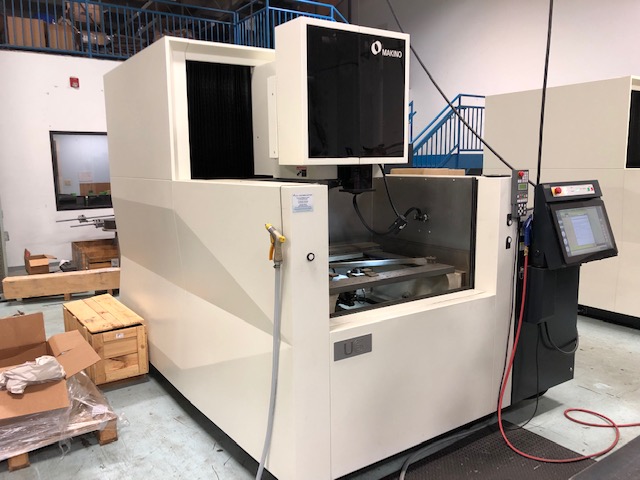

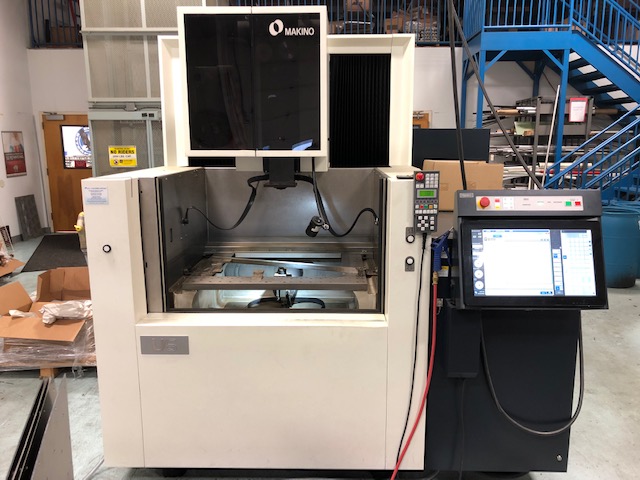

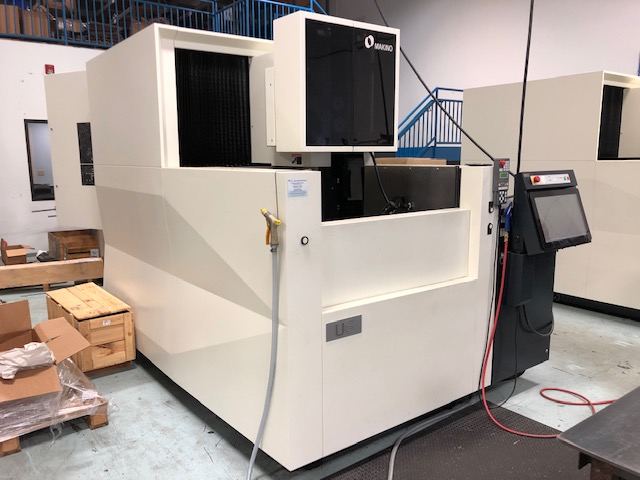

2018 MAKINO U6 CNC Wire EDM

Hyper i, 26.18.16", U & V +/- 3", 42" x 34" Tank, .004-.012" Wire, 15 Degree Taper, Auto Wire Threader, Drop Tank
Talk to a representative today!
(803) 548-8000

Product Details

  • Machine Dimensions (L x D x H) 115" x 91" x 93"
  • Machine Weight 11,500 lbs.
  • Max Taper Angle 15 Degrees
  • Max Wire Spool Weight 22 lbs.
  • Max Workpiece Size 39.4" x 31.5" x 15.8"
  • Max Workpiece Weight 3300 lbs.
  • Tank Size 42.12" x 34.64"
  • U & V-Axis Travel +/- 3.0"
  • Wire Diameter .004" - 0.012"
  • X-Axis Travel 25.6"
  • Y-Axis 17.7"
  • Z-Axis 16.5"

Product Features

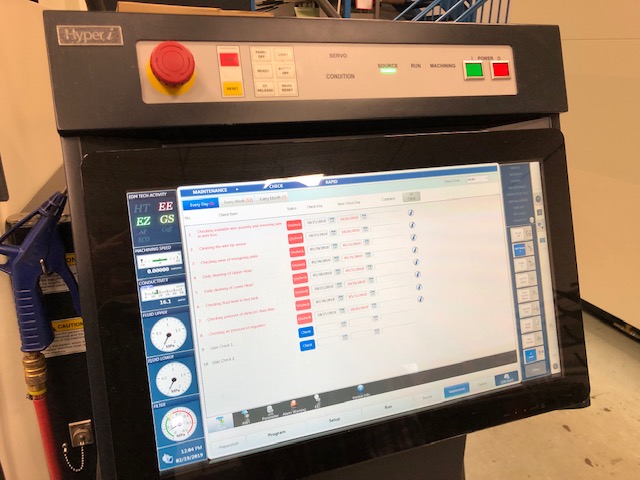

  • EW100A Control (Hyper i)
  • Large HD Touch Screen
  • EDM Explorer
  • Ethernet Network Connection
  • Antivirus Function
  • Pro Tech (Anti Rust Function)
  • USB Terminal
  • PICO Precision Round Guide System
  • Fine Hole Automatic Wire Threading Unit
  • AWT Jet Needle Type 10 (0.08" Dia.)
  • Taper Machining Unit
  • Wire Diameter 0.010" Dia.
  • Programmable Z-Axis

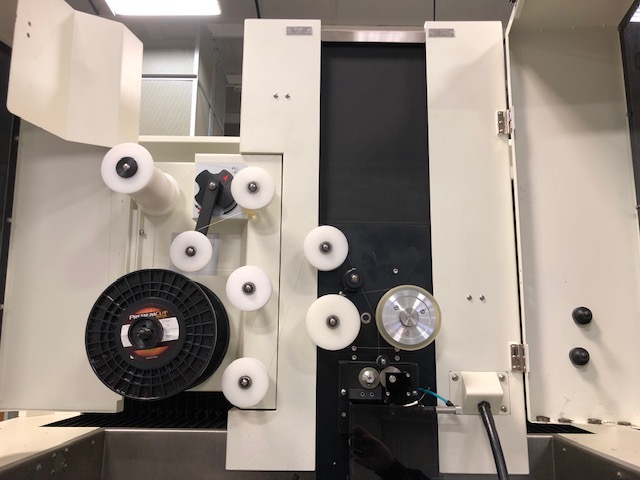

  • Automatic Wire Threading Unit
  • AWT Thermal Cutter
  • AWT Jet Nozzle (PICO 1.2)
  • AWT Jet Filter Unit

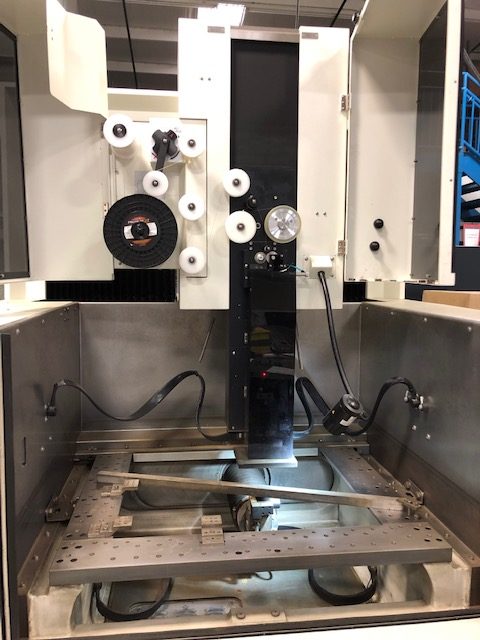

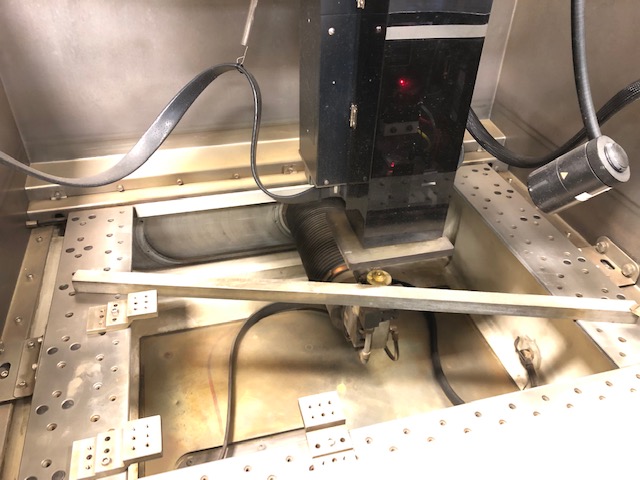

  • Special Hardening U-Shape Table
  • 0.05 Micron Scale Feedback (X Y-Axis)
  • Automatic Tank Height Setting Function

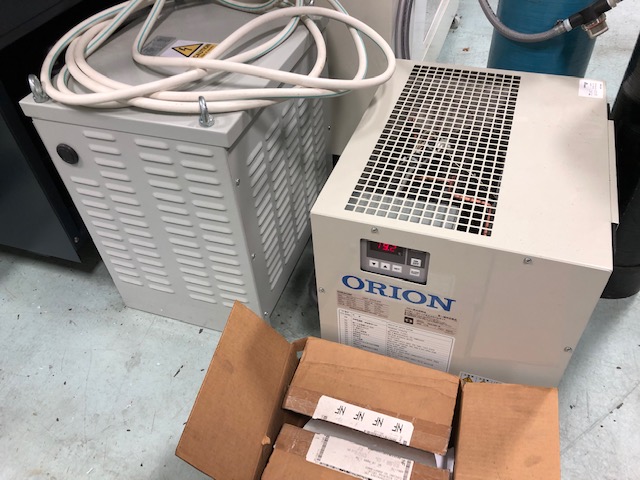

  • Dielectric Fluid Cooling Unit
  • Two Filters Unit
  • Dielectric Filter Air Purge
  • Washdown Hose Kit
  • Resin Tank System with 0.010" Wire
  • Export Transformer
  • 10 GM Part Program Storage
  • Power Supply Line Filter
  • Automatic Power Failure Recovery
  • Portable Operation Panel FPB2
  • Wire Box
  • Manufacture Date November 2017
  • Installed in February 2018
  • 904 Power On Time
  • 380 Auto Run Time
  • 359 Machining Time
