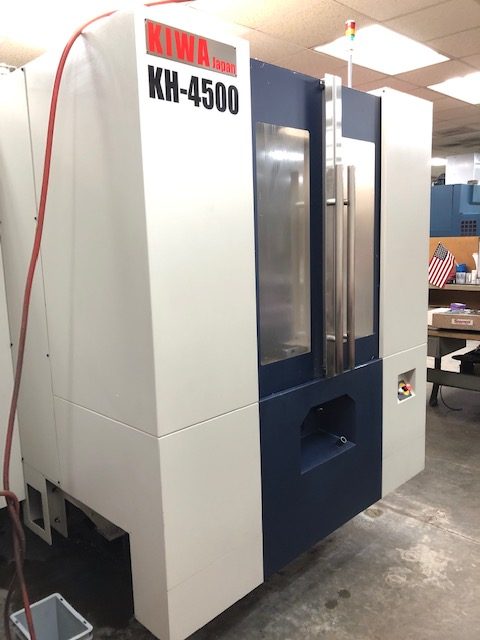

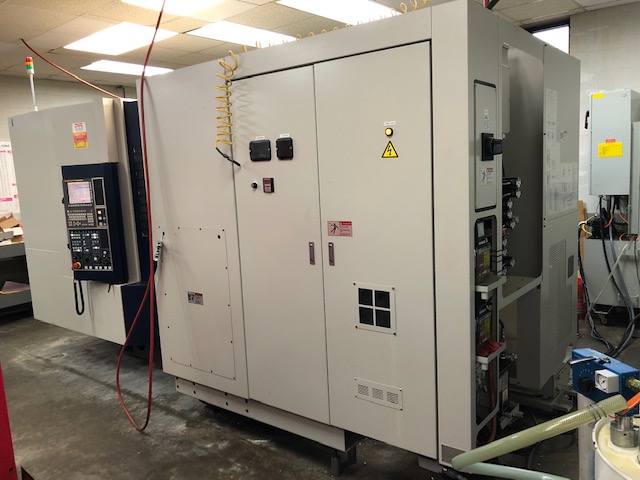

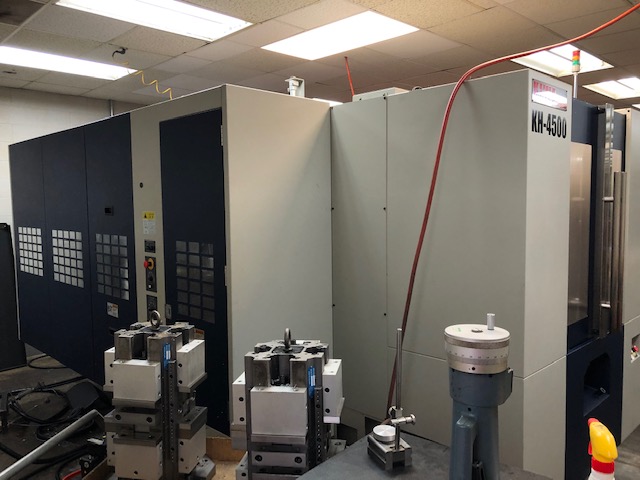

2017 KIWA KH-4500

Fanuc 31iMB, 15.7" Pallets, 25.24.27", 15000 RPM, Fourth Axis, 1200 Tools, 50 HP, Through Spindle Coolant, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 8.7 Seconds

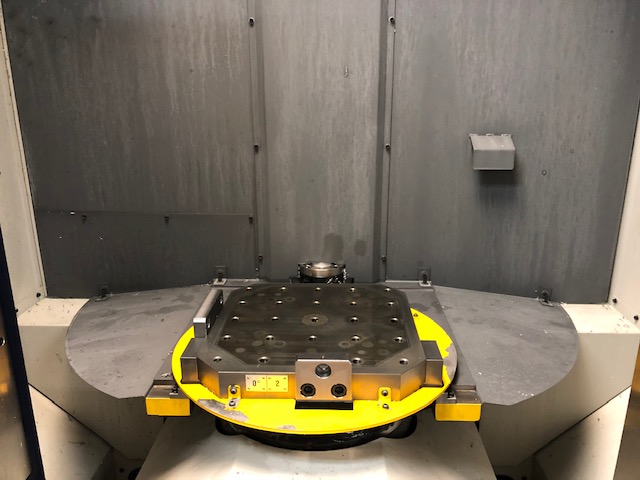

  • Pallet Load Capacity 1100 lbs.
  • Pallet Size 15.7" (2)
  • X-Axis 25.2"
  • Y-Axis 24.0"
  • Z-Axis 26.8"
  • Pallet Index .001 Degree

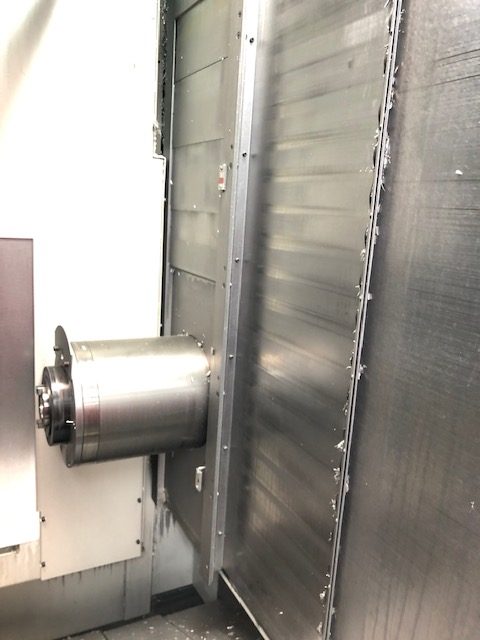

  • Spindle Speed 15,000 RPM
  • Spindle Taper BT 40
  • Spindle Motor 50/20 HP
  • Spindle Center to Table Top 2" - 26"
  • Spindle Nose to Table Center 3.9" - 30.7"
  • Tools 120
  • Rapid Traverse Rates (X/Y/Z) 3150 IPM
  • Tool Change Time (T - T / C - C) 0.9 / 2.8 Seconds
  • Max Tool Length 15.7"
  • Max Tool Weight 17.6 lbs.
  • Max Workpiece Dia / Height 29.5" / 39.4"
  • Machine Dimensions (L x W) 178.7" x 94.4" x 108.9"
  • Machine Weight 22,000

Product Features

  • Fanuc 31iMB CNC Control
  • 10.4" Color LCD

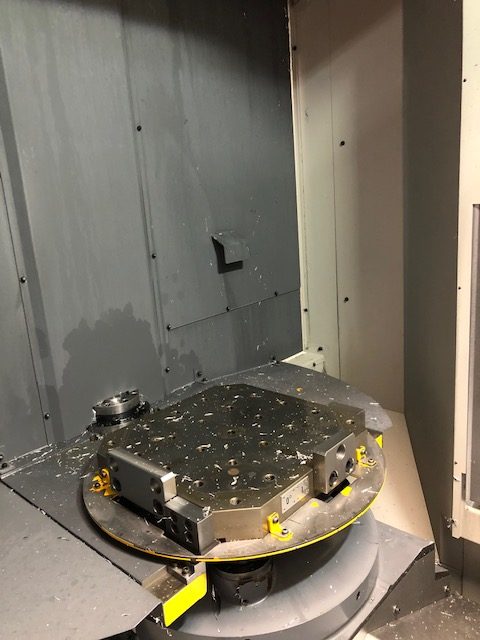

  • Fourth Axis Rotary Table

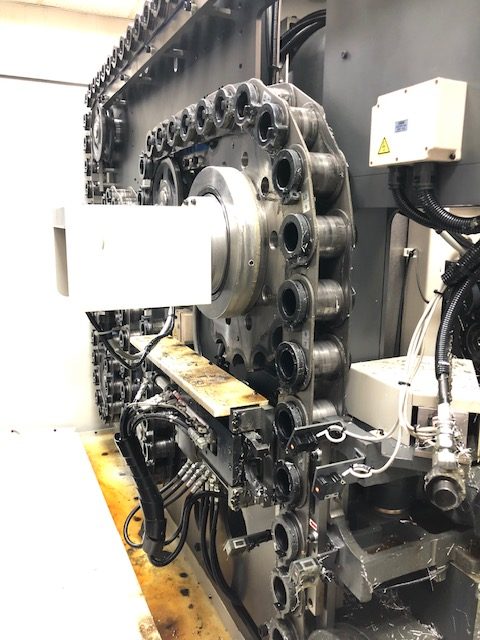

  • 120 Tool Magazine

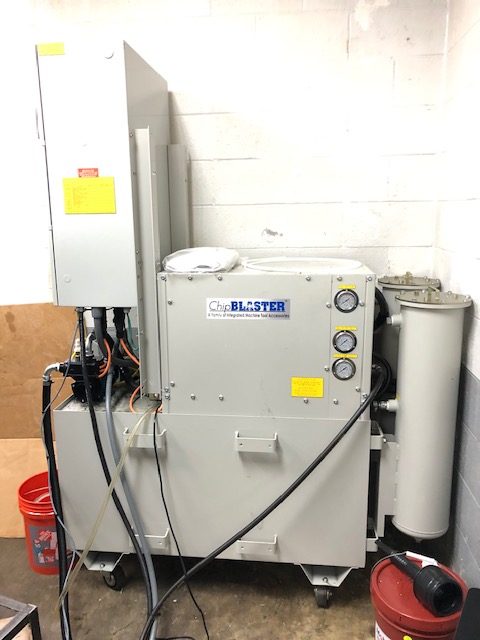

  • Through Spindle Coolant Chip Blaster J30 (1000 psi)
  • LNS Turbo MH-500 Chip Conveyor (Front or Rear Left Exit)
  • Dual Chip Augers
  • 15000 RPM Spindle Speed
  • 50 HP Spindle Motor
  • Cat 40 ATC Fingers Included
  • Expandable Tool Changer & Pallet Changer Field Installable
  • Three Color Tower Light
  • 1 G Plus Acceleration/Deceleration
  • Coolant Through Ballscrews
  • Rigid Tapping
  • Helical Interpolation
  • Inch/Metric Conversion
  • AI Contour Control
  • 48 Sets Workpiece Coordinate System
  • Custom Macro
  • Tool Life Management Function
  • 400 Sets Tool Offsets
  • 512 KB Program Storage
  • 1000 Registerable Programs
  • Background Editing
  • 3693 Power On Time
  • 2633 Run Time
  • 966 Cutting Time
