< Back to Vertical M/C
Special Item

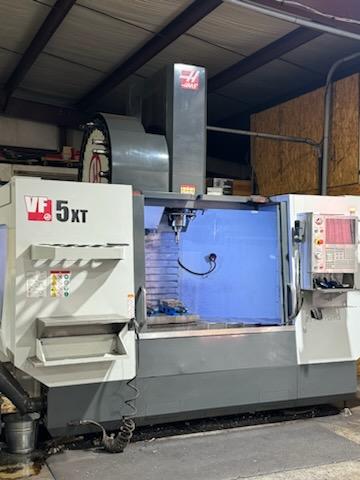

2018 HAAS VF-5/50XT

60.26.25", 7500 RPM, Cat 50, 30 HP, 30 SMTC, Gearbox, TSC 1000 psi, Probes, Programmable Coolant, Remote Jog Handle
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 60"
  • Y-Axis 26"
  • Z-Axis 25"
  • Table Size 62" x 23"
  • Spindle Speed 7500 RPM
  • Spindle Taper CAT 50
  • Spindle Motor 30 HP
  • Tools 30
  • Table Load Capacity 4000 lbs.
  • Rapid Traverse Rates 710 IPM
  • Max Tool Diameter 4.7"
  • Max Tool Length 12"
  • Max Tool Weight 30 lbs.
  • Machine Dimensions (L x W x H) 168" x 102" x 125"
  • Machine Weight 16,250 LBS
  • Spindle Nose to Table Top 7" - 32"
  • Spindle Torque 340 ft. lbs.
  • Tool Change Time (T - T / C - C) 4.2 / 6.3 Seconds

Product Features

  • HAAS NEXTGEN CNC Control
  • 15" Color LCD
  • Ethernet
  • USB Port
  • 10" Extended X-axis Travel
  • #50 Spindle Taper
  • Through Spindle Coolant (1000 psi)
  • Two Speed Gearbox
  • Wireless Intuitive Probing System
  • Visual Part Programming System
  • 30 Position Side Mount Tool Changer
  • Programmable Coolant Nozzles
  • Chip Auger
  • Remote Jog Handle
  • Auxiliary Coolant Filter
  • 80 Gallon Coolant Tank
  • Rigid Tapping
  • Coordinate Rotation & Scaling
  • Spindle Orientation
  • Macros
  • Manufacture Date November 2017
  • Installed in 2018
