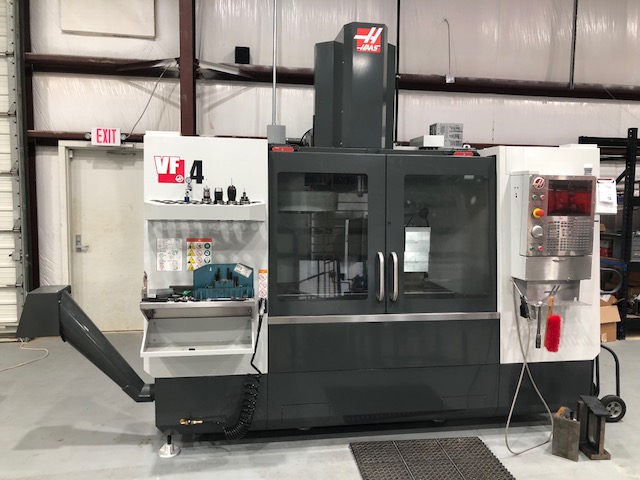

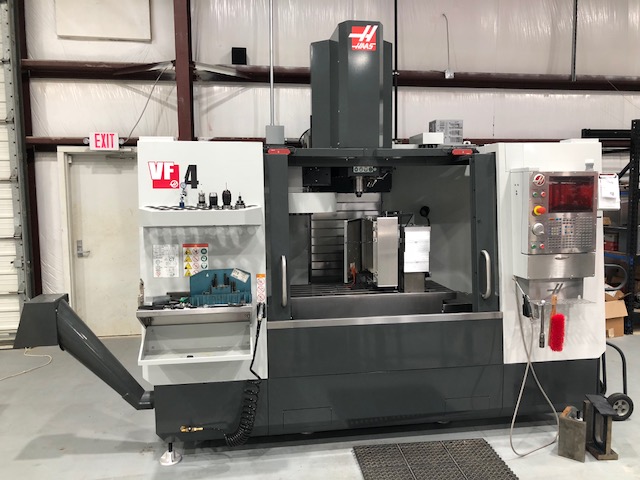

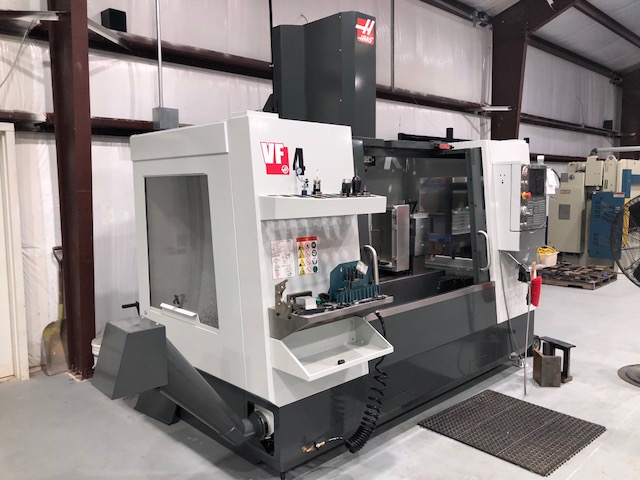

2018 HAAS VF-4

50.20.25", 8100 RPM, 30 HP, Cat 40, 20 Tools, Probes, Auger, Barely Used
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 50"
  • Y-Axis 20"
  • Z-Axis 25"
  • Table Size 52" x 18"
  • Spindle Speed 8100 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 20
  • Table Load Capacity 3500 lbs.
  • Rapid Traverse Rates 1000 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 122" x 110" x 117.5"
  • Machine Weight 13,000 lbs.
  • Pallet Change Time 30 Seconds
  • Spindle Nose to Table Top 4" - 29"
  • Tool Change Time (T - T / C - C) 4.2 / 4.5 Seconds

Product Features

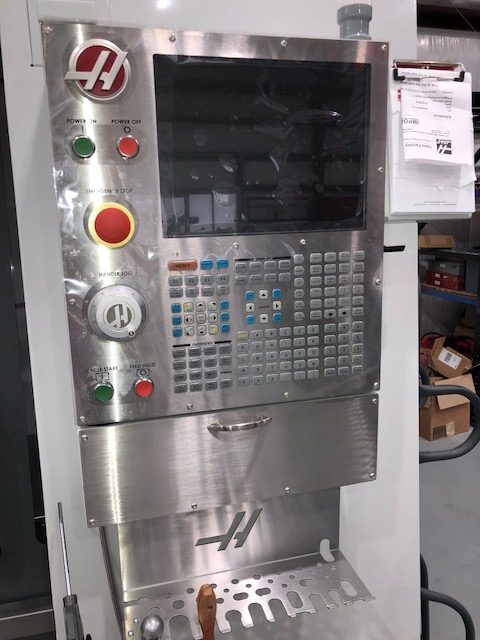

  • HAAS CNC Control
  • 15" Color TFT
  • 1 GB Memory
  • USB Port
  • Wireless Intuitive Probing System (Tool & Touch Probes)
  • Chip Auger
  • Wifi Connection
  • Ethernet Interface
  • Rigid Tapping
  • Early Power Failure Detection Module
  • Visual Part Programming System
  • Coordinate Rotation & Scaling
  • User Definable Macros
  • Spindle Orientation
  • Rigid Tapping
  • HAAS Connect Remote Monitoring
  • Media Display
  • Window Air Blast
  • Manufacture Date January 2018
