Special Item

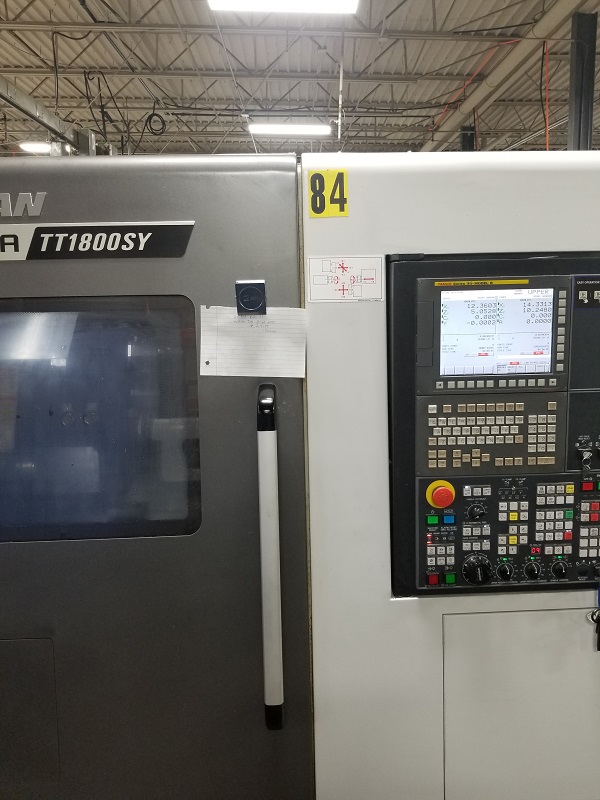

2018 DOOSAN PUMA TT-1800SY (84)

Fanuc 31iB, 2.6" Bar, (2) 8" Chucks, 24 + 24 Tools, 5000 RPM, 30 HP, Y-Axis, Twin Spindles, Twin Turrets, Live Tooling, Barfeed
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8" (2)
  • Max Diameter Bar Capacity 2.63"
  • Max Machining Length 27.38"
  • Spindle Motor 30 / 20 HP
  • Spindle Speed 50 - 5000 RPM
  • Spindle Nose (Left & Right) A2-6
  • Spindle Bore (Left & Right) 2.99"
  • Tools (Upper / Lower Turret) 12 / 12 (All Live)
  • Tools (Upper/Lower Turret) 24 / 24
  • Milling Motor 7.5 HP
  • Milling Speed 5000 RPM
  • Sub Spindle Motor 30 HP
  • Sub Spindle Speed 5000 RPM
  • Sub Spindle Travel 30.31"
  • Rapid Traverse Rates (X / Z) 787 / 1574 IPM
  • X-Axis Travel (Upper / Lower Turret) 6.5" / 7.48"
  • Z-Axis Travel (Upper / Lower Turret) 27.5" / 28.34"
  • C-Axis Index (Left & Right) .001 Degrees
  • Machine Dimensions (L x W x H) 154" x 81" x 82"
  • Machine Weight 19,000 lbs.
  • Distance Between Spindles 38.5"
  • Max Turning Diameter 9.05"
  • Max Turning Length 9.1"
  • Spindle Torque (Left & Right) 152 ft. lbs.
  • Y Axis Travel 3.93"

Product Features

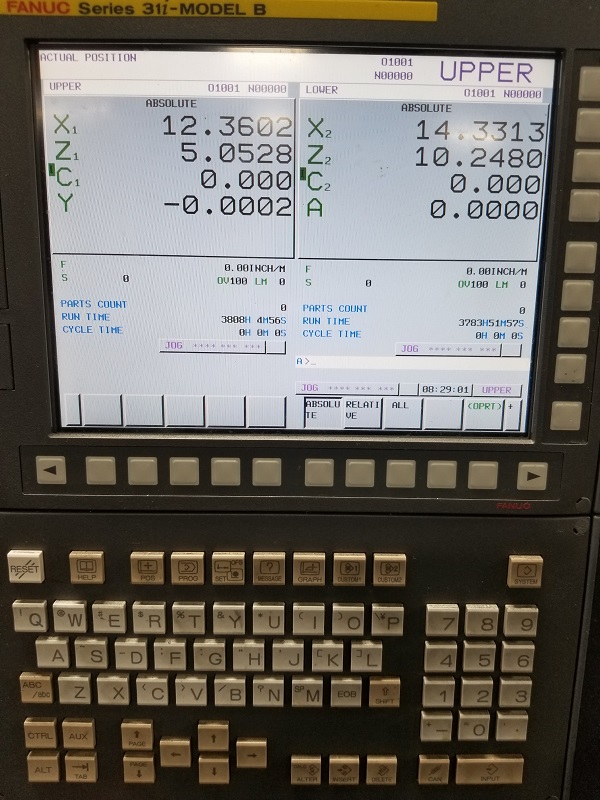

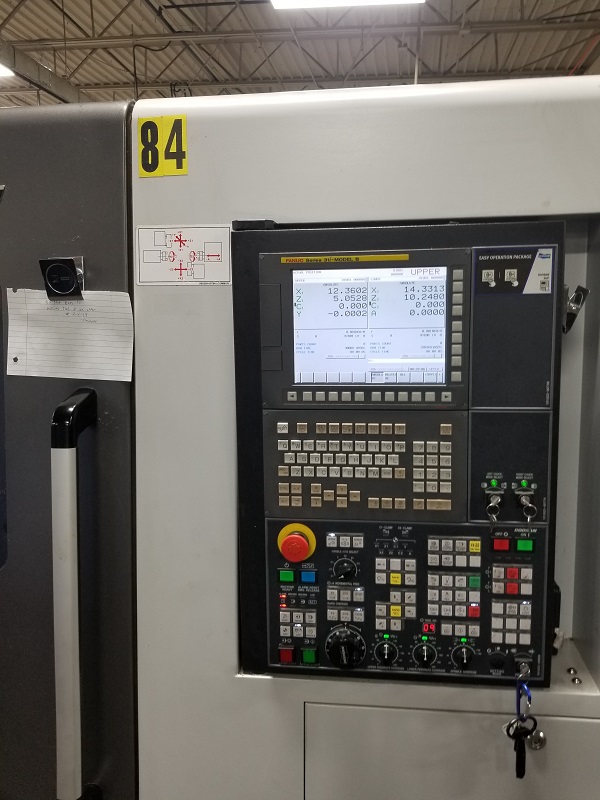

  • Fanuc 31iB CNC Control
  • 10.4" Color LCD

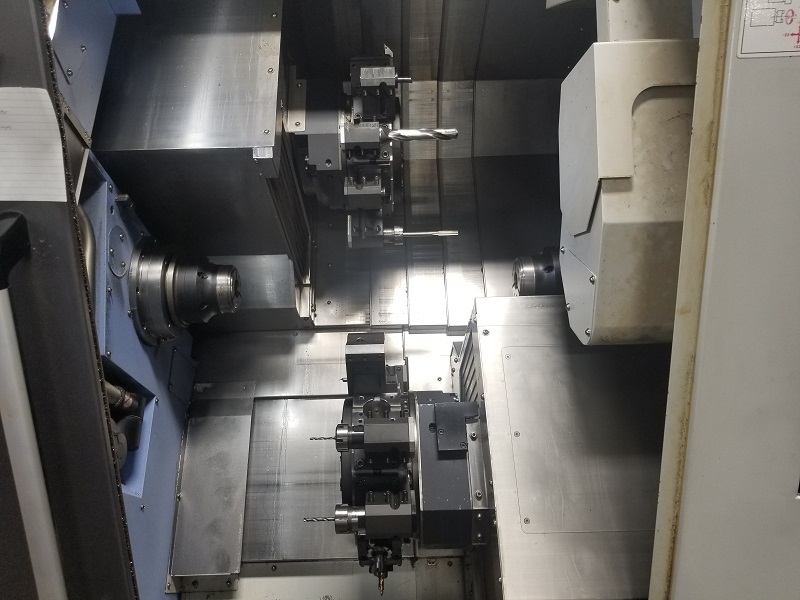

  • Twin Opposed Spindles with Upper & Lower Turrets
  • Y-Axis Live Tooling on Upper Turret
  • C-Axis Milling Capability on Both Spindles
  • Twin Servo Driven Turrets
  • USB & PC/MCIA Interface
  • EZ-Guide i Programming

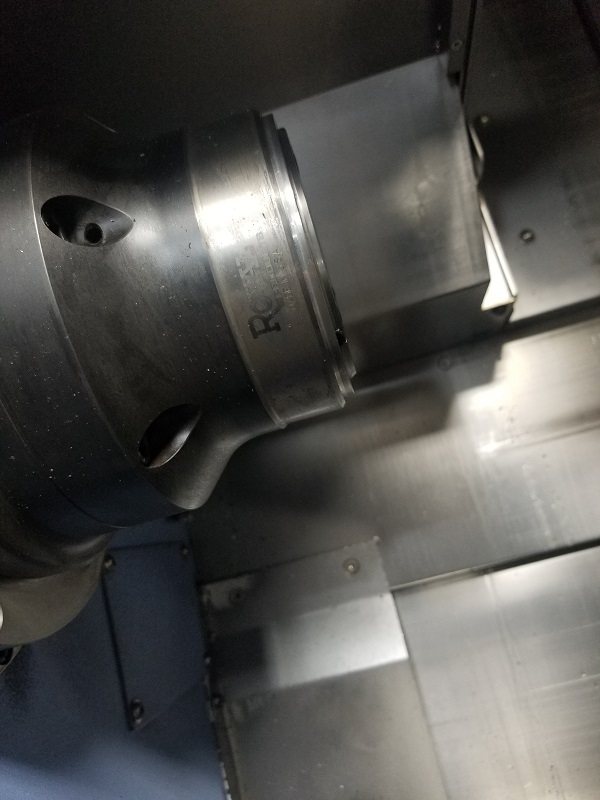

  • (2) Royal Quick Grip 65 Dead Length Collet Chucks
  • Auto Parts Catcher
  • Work Exit Conveyor
  • LNS Turbo Chip Conveyor (Side Exit)
  • LNS Quick Load Servo 80 S2 Short Magazine Barfeed
  • Automatic Tool Presetter
  • (4) OD Live Holders (Eppinger BMT-55 ER25)
  • (2) Face Live Holders (Eppinger BMT-55 ER25)
  • (5) Turning Holders
  • (1) Double Turning Holder (Main/Sub Spindle)
  • (2) Double Turning Holder for Sub Spindle
  • (2) Facing Holders
  • (1) Cut-Off Holder
  • (7) Boring Bar Holders (1.25" ID)
  • (2) Triple Boring Bar Holders (1.0" ID Rear)
  • Manufacture Date August 2017
  • Installed in February 2018
  • 5760 Power On Time
  • 3808 Run Time
  • 1868 Cutting Time
