Special Item

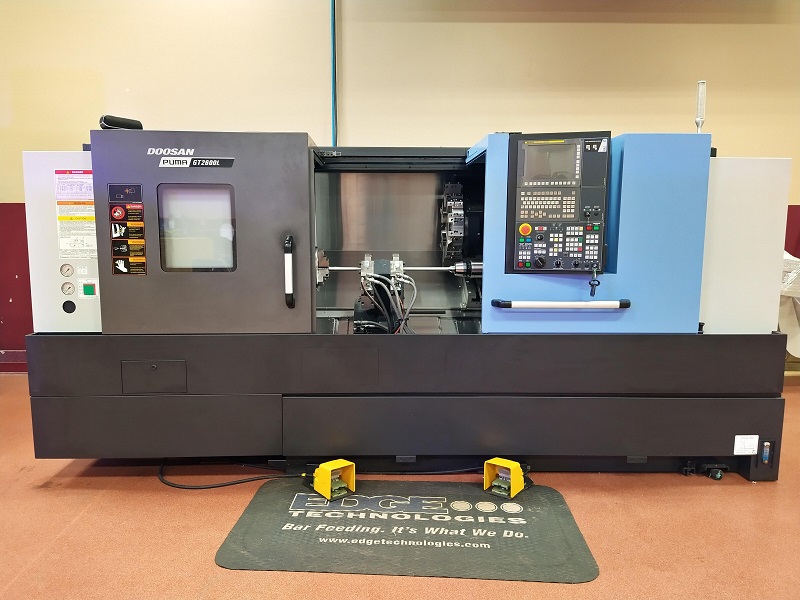

2018 DOOSAN PUMA GT2600L

Fanuc 0i, 3.2" Bar, 10" Chuck, 18.1" Dia, 42" Length, 30 HP, 12 Tools, 3500 RPM, Programmable Dual Steady Rest, Tailstock, 211 Cutting Hours
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.2"
  • Max Machining Length 42.5"
  • Spindle Motor 30 HP
  • Spindle Speed 3500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.58"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 945 / 1181 IPM
  • X-Axis Travel 10.4"
  • Z-Axis Travel 43.3"
  • Turret Index (Single Step) 0.15 Seconds
  • Max Turning Diameter 18.1"
  • Spindle Torque 459 ft. lbs.
  • Tailstock Taper MT #5

Product Features

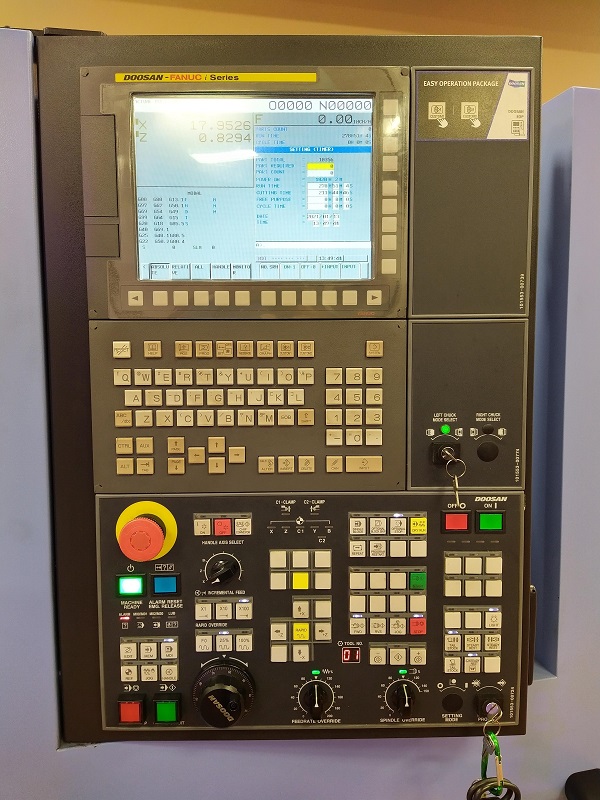

  • FANUC 0i Series CNC Control
  • 10.4" Color LCD
  • USB Port
  • Ethernet Function
  • PC/MCIA Interface
  • DOOSAN EZ Guide i Programming
  • 10" Samchully MH-210 Hydraulic Chuck
  • 42" Optional Cutting Length

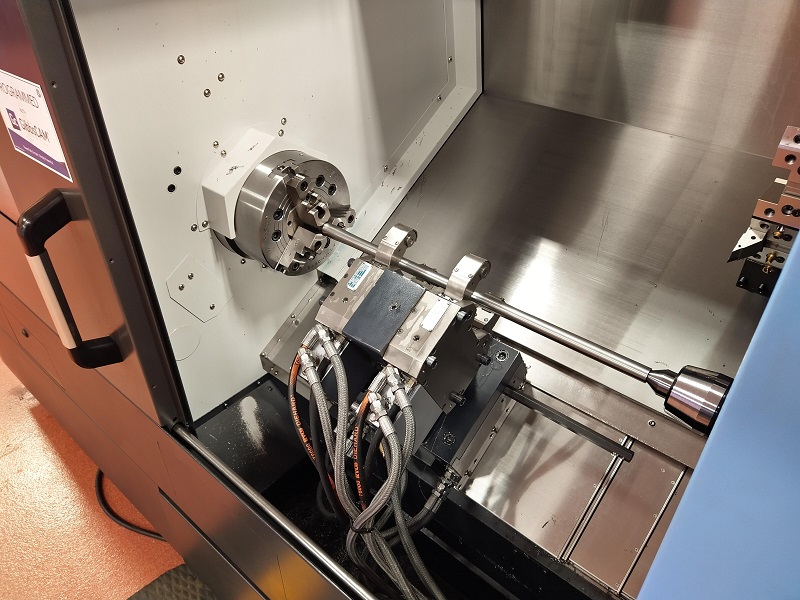

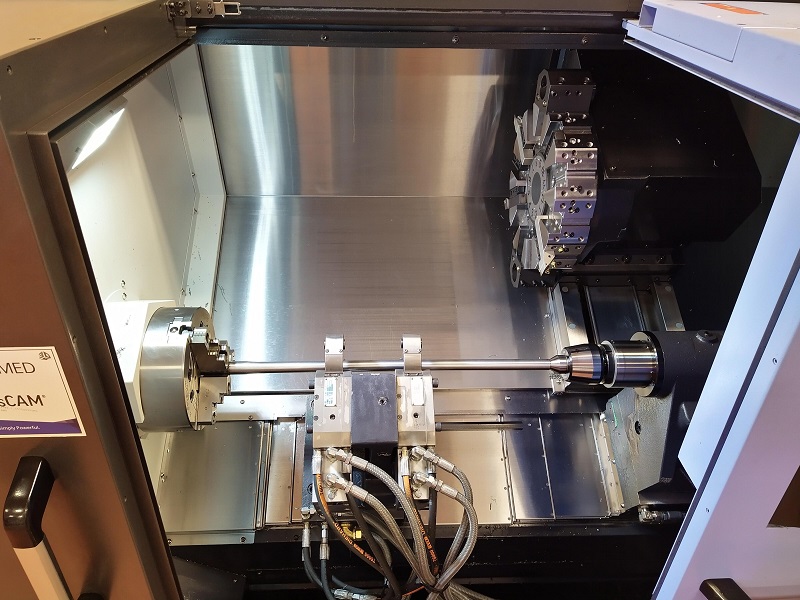

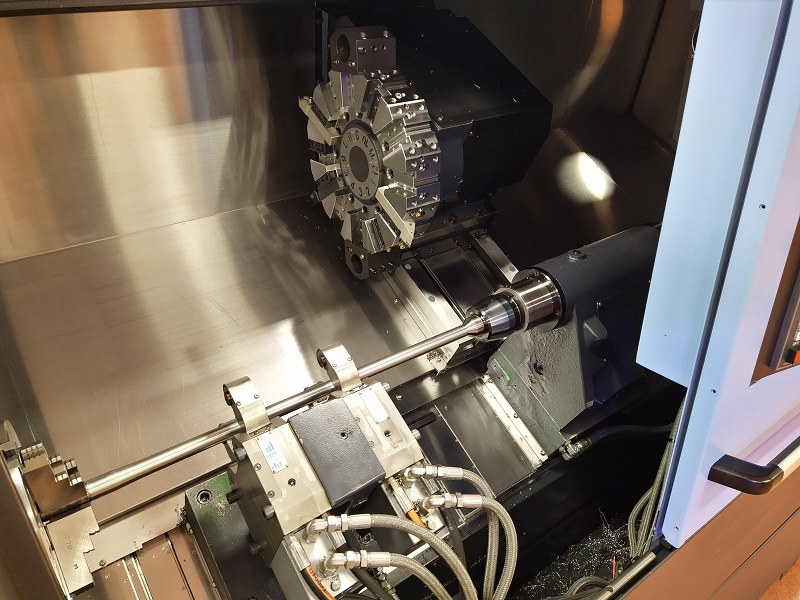

  • Programmable Dual Steady Rest
  • Programmable Hydraulic Tailstock
  • Rigid Tapping
  • Three Color Tower Light
  • 512 KB Program Memory
  • 400 Registerable Programs
  • 128 Sets of Tool Offsets
  • Nano Interpolation
  • Backlash Compensation
  • Heavy Duty Slant Bed Box Way Construction
  • Manufacture Date December 2018

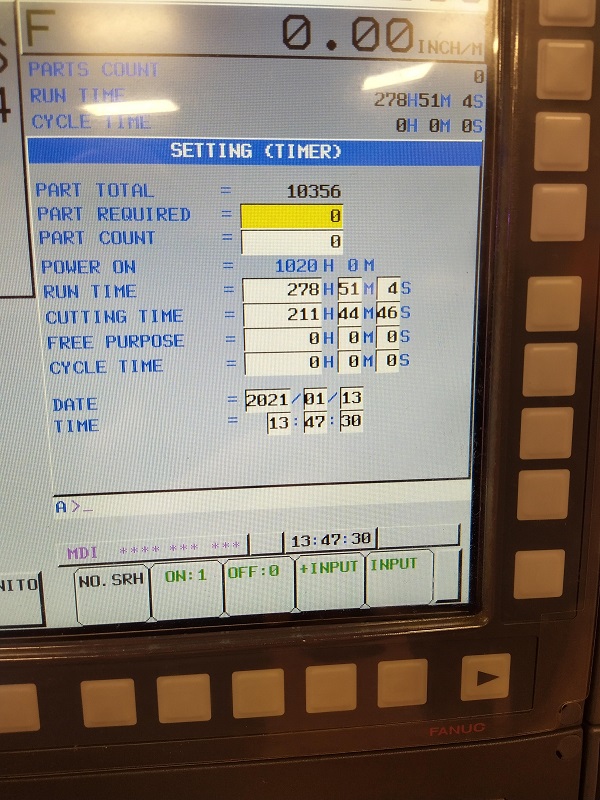

  • 1020 Power On Time
  • 278 Run Time
  • 211 Cutting Time
