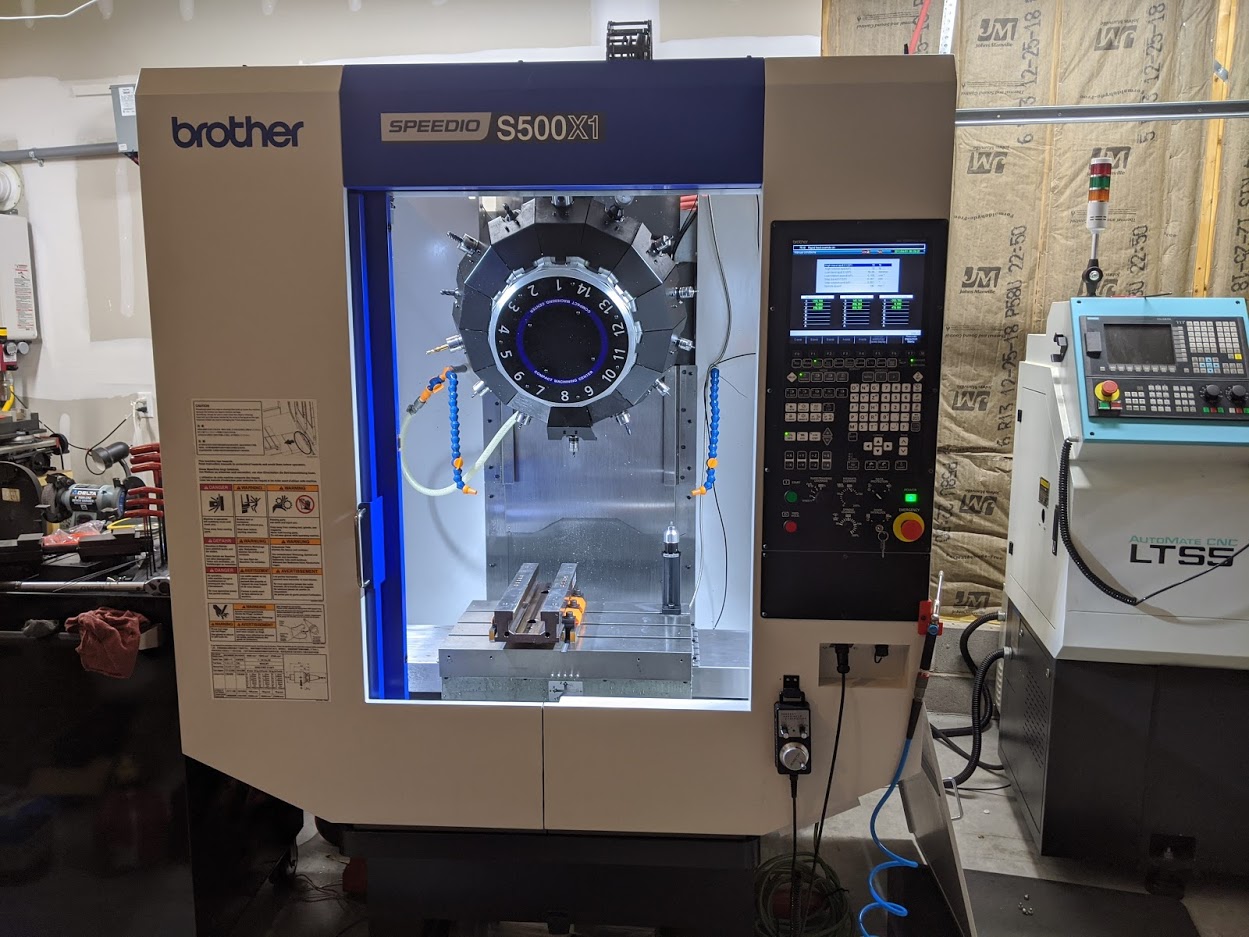

2018 BROTHER SPEEDIO S500X1

Brother CNC C00 Control, 20.16.12", BT30, 10k RPM, 14 Tools, Tool Presetter
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 19.7"
  • Y-Axis 15.7"
  • Z-Axis 11.8"

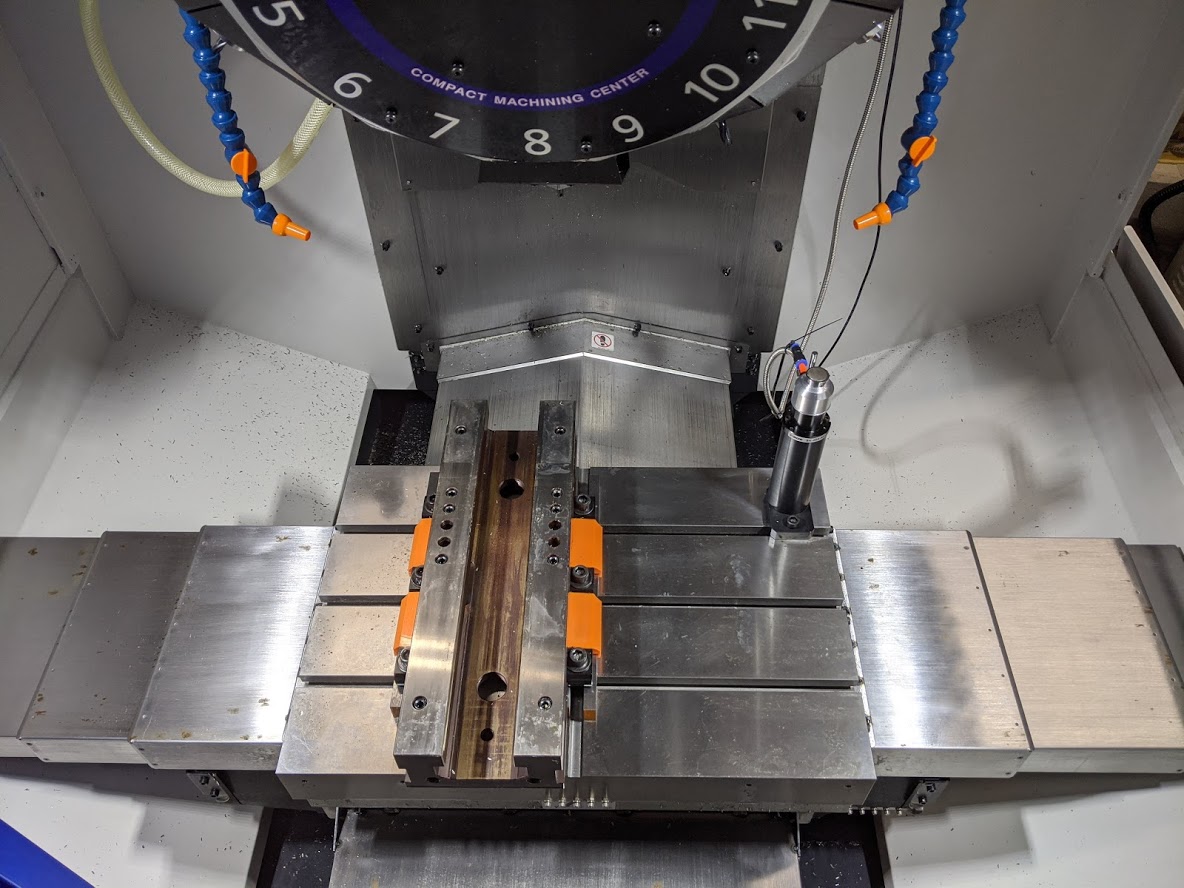

  • Table Size 23.6" x 15.7"
  • Spindle Speed 10,000 RPM
  • Spindle Taper BT 30
  • Tools 14
  • Rapid Traverse Rates 1969 IPM
  • Max Feed Rate 1181
  • Max Table Load 551 lbs.
  • Max Tapping Speed 6000 RPM
  • Max Tool Diameter 4.3"
  • Max Tool Length 9.8"
  • Max Tool Weight 6.6 lbs.
  • Machine Dimensions (L x W X H) 61.4" x 87.4" x 98.3"
  • Machine Weight 4960 LBS
  • Spindle Nose to Table Top 7.1" - 18.9"
  • Tool Change Time (T - T / C - C) 0.8 / 1.5 Seconds

Product Features

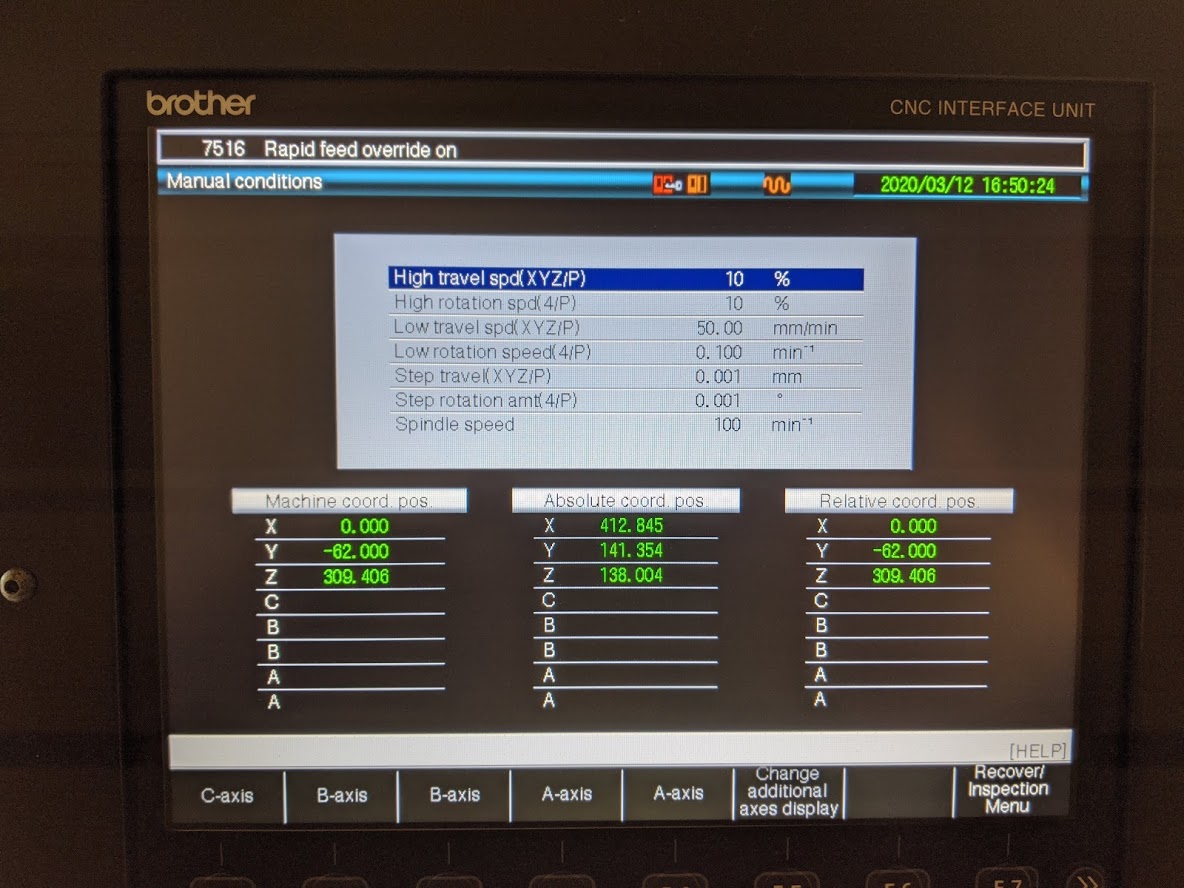

  • BROTHER CNC-C00 CONTROL
  • 12.1" Color LCD
  • Ethernet Interface
  • USB Memory Interface
  • 10,000 RPM Spindle Speed
  • BT 30 Spindle Taper

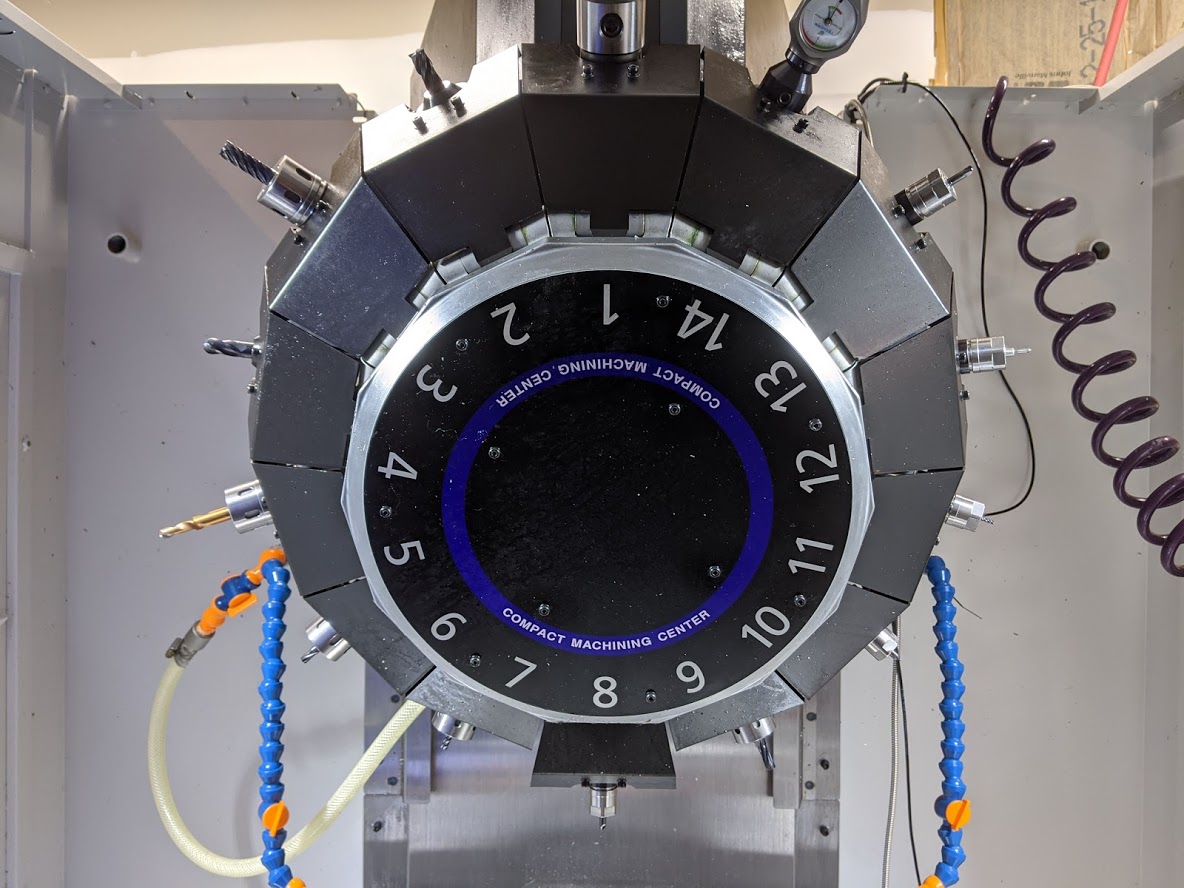

  • 14 Position Turret
  • Tool Presetter
  • Remote Jog Handle
  • Coolant Tank

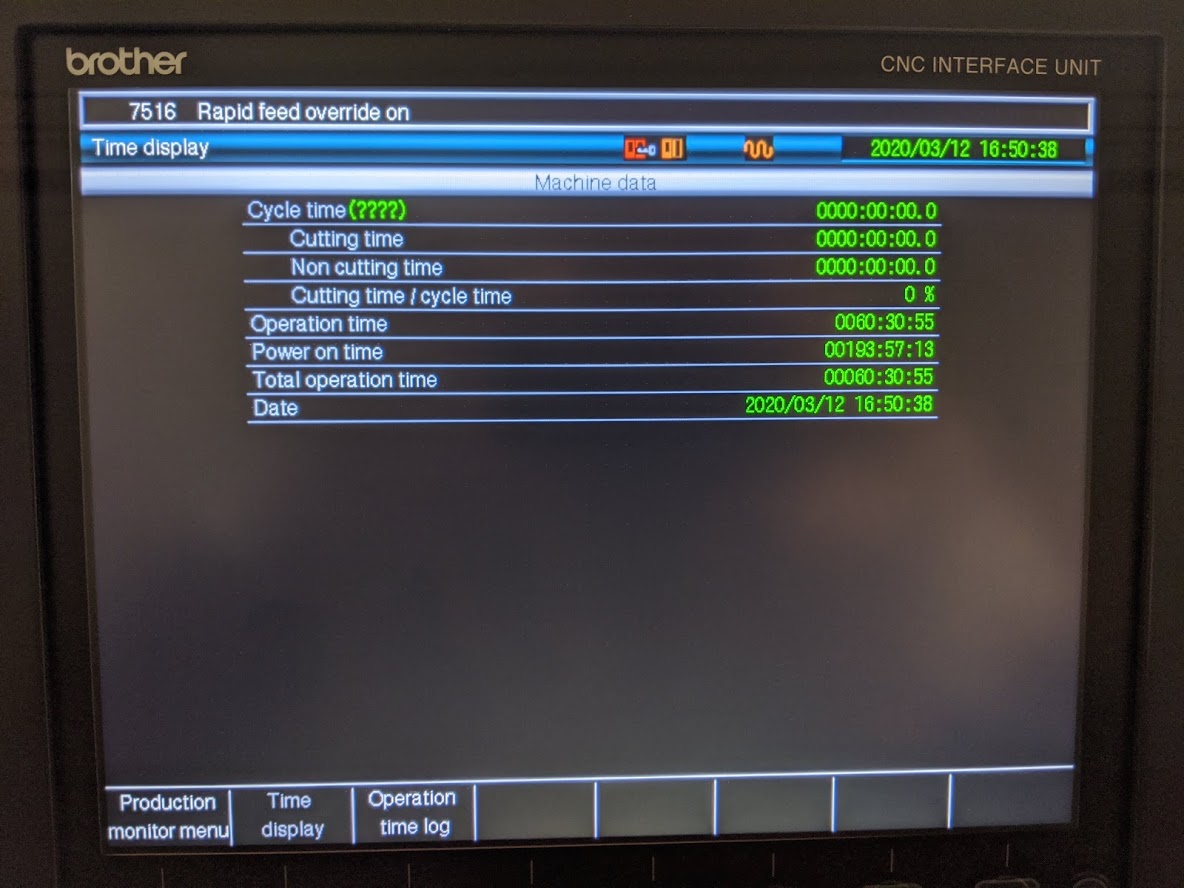

  • 193 Power On Time
  • 60 Operation Time
