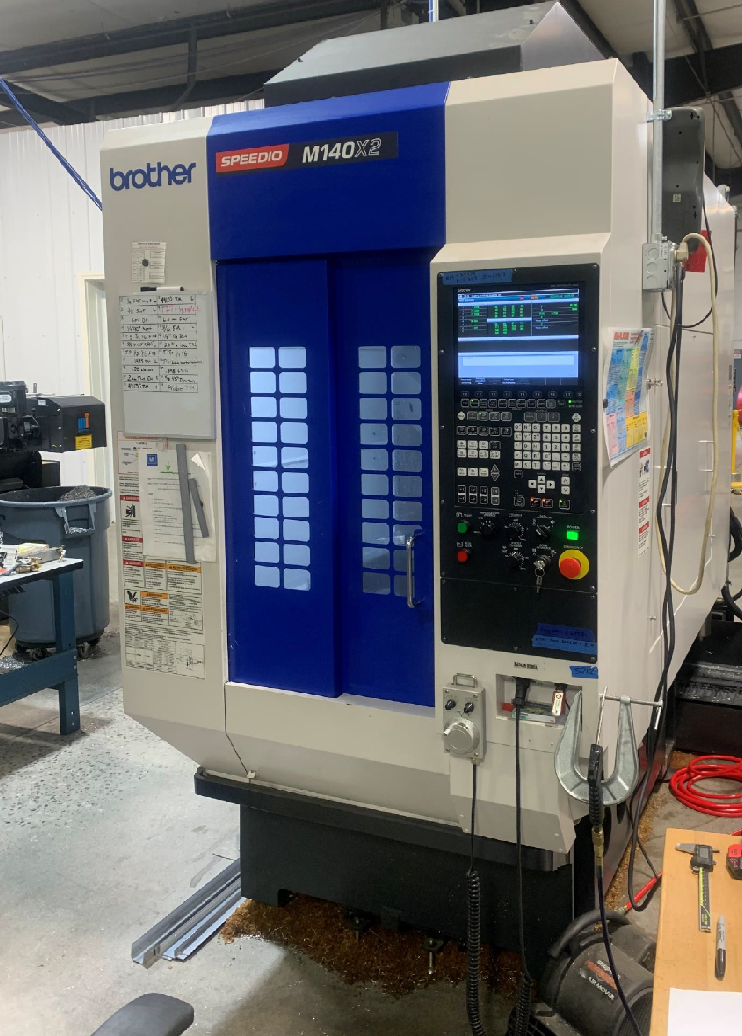

2018 BROTHER SPEEDIO M140X2 5-AXIS

Brother CNC-C00, 5-Axis, BT-30, 5.5" Platter, 16,000 RPM, 22 Position ATC, Turning Capability, TSC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 7.9"
  • Y-Axis Travel 17.3"
  • Z-Axis Travel 12.0"
  • C-Axis 360 Degrees
  • Spindle Speed 16,000 RPM
  • Spindle Taper BT 30
  • Spindle Motor 9.9 / 6.6 HP
  • Tools 22
  • Table Load Capacity 88.2 LBS
  • Rapid Traverse Rates (X, Y, & Z) 1969 IPM
  • Max Feedrate 1181 IPM
  • Max Tapping Speed 6000 RPM
  • Max Tool Diameter 3.1"
  • Max Tool Length 7.9"
  • Machine Dimensions (L x W x H) 50.4" x 150.7" x 102.5"
  • Machine Weight 5979
  • Chip to Chip Time 1.4 Seconds
  • Table Diameter 5.5"

Product Features

  • BROTHER CNC-C00 Control
  • High Accuracy Machining Mode
  • Smooth Path Offset Function
  • 200 Block Look-Ahead
  • 16,000 RPM
  • BT-30 Spindle Taper
  • 22 Position High-Speed ATC
  • 2000 RPM Turning Capability
  • 5.5" Rotary Table
  • Thru-Spindle Coolant (435 PSI)
  • Manual Pulse Generator
  • Work Light
  • Chip Shower System
  • Mayfran Chip Conveyor (Left Side Discharge)
  • 1134 Operation Time
  • 4457 Power On Time
  • 1134 Total Operation Time
