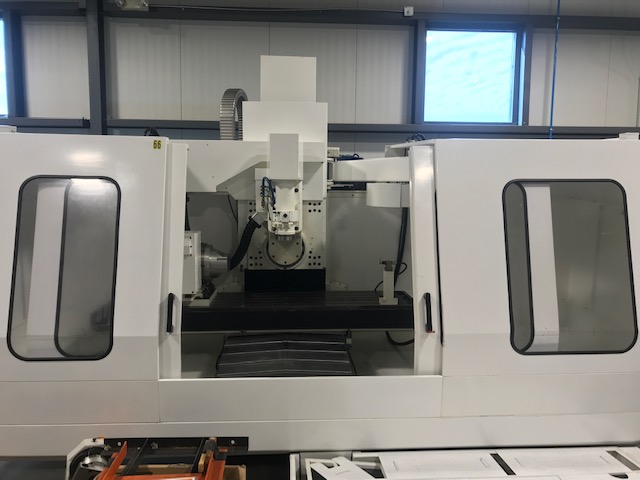

2018/2000 BOSTOMATIC BD605 5-AXIS CNC Head Porting Machine

MDSI, 50.22.22", 8000 RPM, HSK 63A, 15 Tools, 13 HP, 5-Axis, Head Tilt, Fourth Axis Rotary Table, (2) Tailstocks, ATLM
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 50"
  • Y-Axis 22.05"
  • Z-Axis 17.22"
  • A-Axis Index .001 Degrees
  • B-Axis +/- 100 Degrees

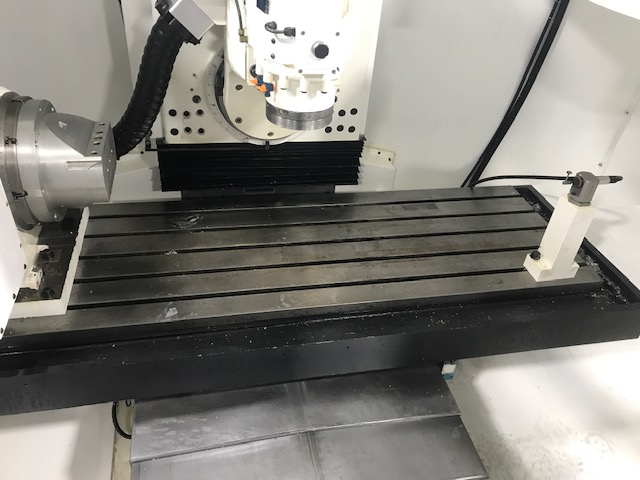

  • Table Size 85" x 22"
  • Spindle Speed 50 - 8000 RPM
  • Spindle Taper HSK-63A
  • Spindle Motor 13 HP
  • Tools 15
  • Table Load Capacity 2205 lbs.
  • Max Tool Diameter 3.1"
  • Max Tool Length 8"
  • Max Tool Weight 7 lbs.
  • Machine Weight 18,000 lbs.

Product Features

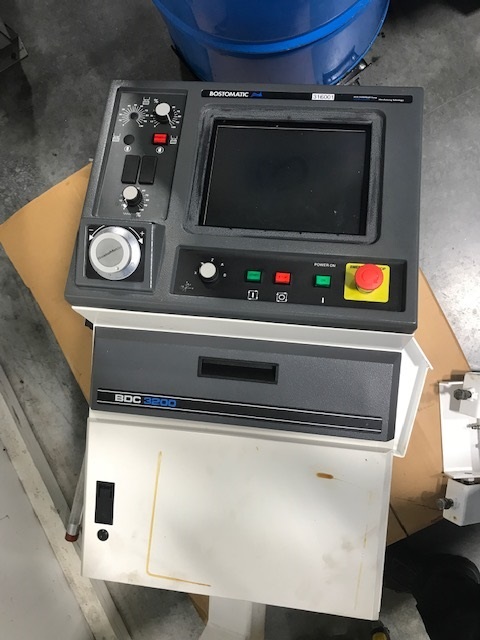

  • MDSI OPEN CNC Control

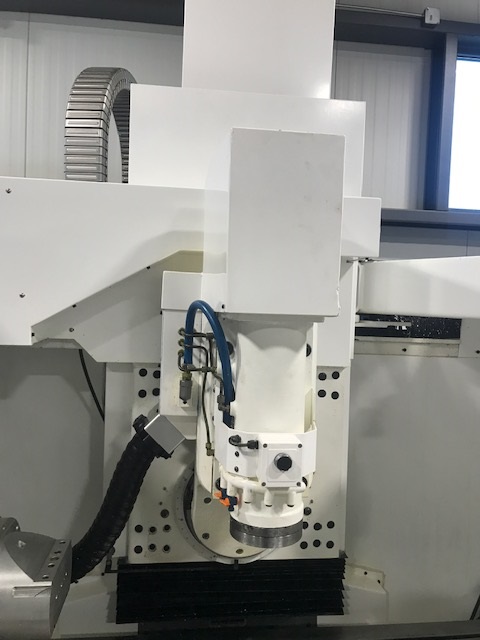

  • B-Axis Tilting Head

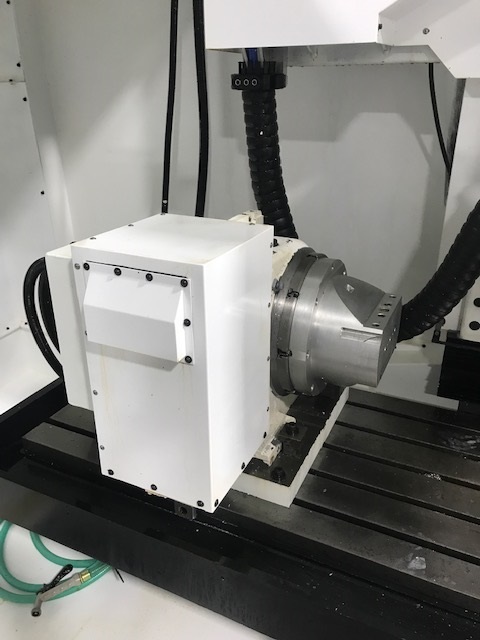

  • NIKKEN CNC-320VLFA Fourth Axis Rotary Table
  • Optional 50" X-Axis Travel

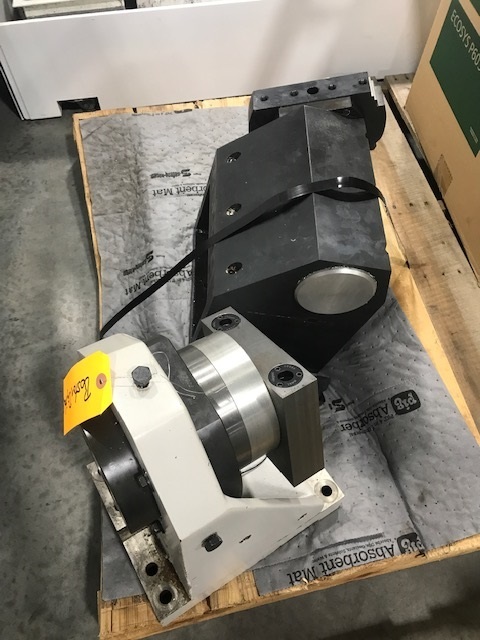

  • (2) Manual Tailstocks
  • 15 Tool Magazine
  • 0.5 Micron Scale Feedback System
  • 5000 Line Encoders on X, Y & Z Axes
  • 5-Axis Tool Length Compensation

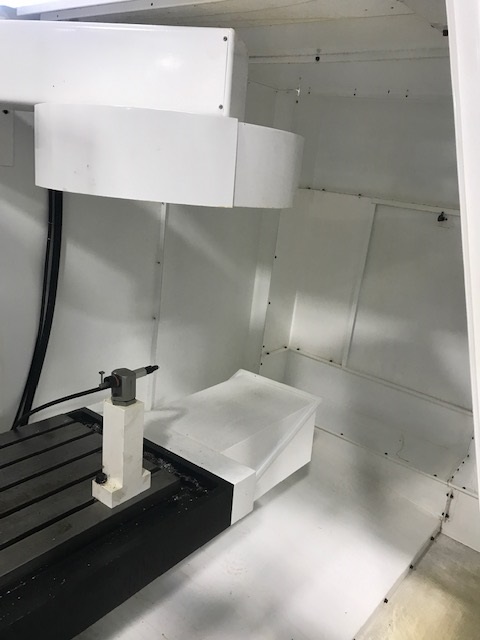

  • Marposs Auto Tool Length Measurement & Breakage Detection
  • High Capacity Compensation Package
  • Spindle Orientation
  • Full Machine Enclosure
  • High Intensity Worklight
  • Setup Pendant
  • Approx (110) HSK-63A Tool Holders
  • (2) Spindle Chiller Units
  • New List Price When Purchased $466,320
  • Completely Rebuilt in 2017 at a Cost of $259,155
