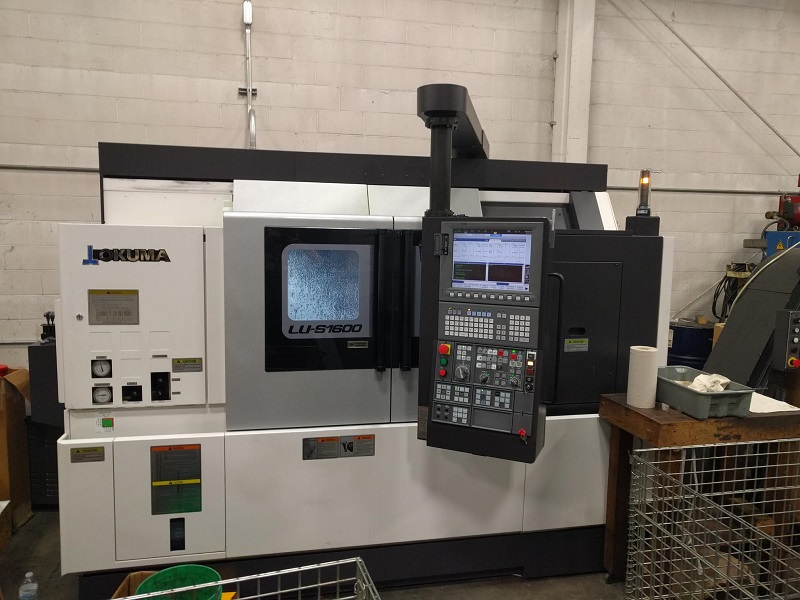

2017 OKUMA LU-S1600-2SC x 1000

OSP-P300L, 2" Bar, 8" Chuck, 6 + 6 Tools, 4000 RPM, 20 HP, Upper & Lower Turrets, Steady Rest, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Swing Over Bed 19.68"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 40 - 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.44"
  • Tools (Upper/Lower Turret) 6 / 6
  • Rapid Traverse Rates (X / Z) 787 / 1181 IPM
  • X-Axis Travel (Upper & Lower Turrets) 3.94"
  • Z-Axis Travel (Upper & Lower Turrets) 40.15"
  • Turret Index (Single Step) 0.15 Seconds
  • Max Turning Diameter 6.3"
  • Max Turning Length 39.37"
  • Tailstock Quill MT#5

Product Features

  • OKUMA OSP-P300L CNC Control
  • 15" Color TFT
  • USB Port
  • PC/MCIA Interface
  • Upper & Lower Turrets with Tailstock
  • Simultaneous 4-Axis Turning Capability
  • 8" Hydraulic Chuck

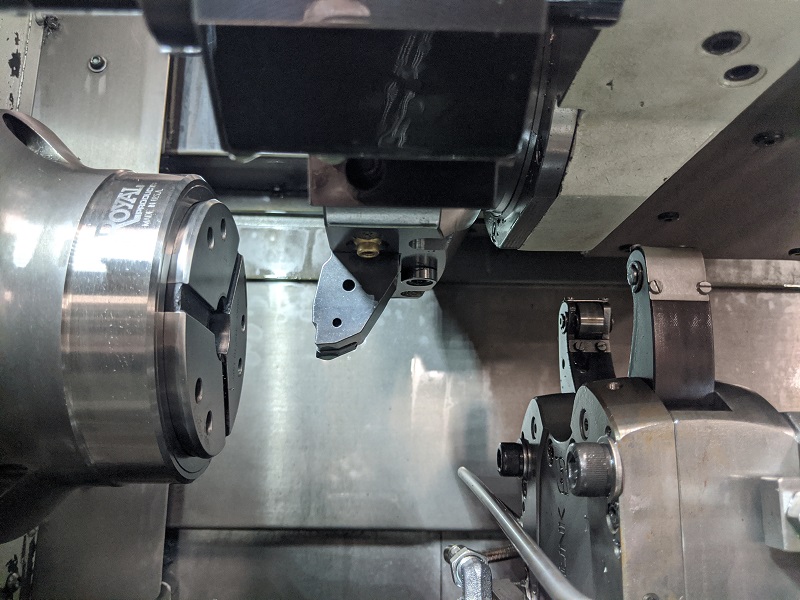

  • Royal Qucik Grip 65 Collet Chuck

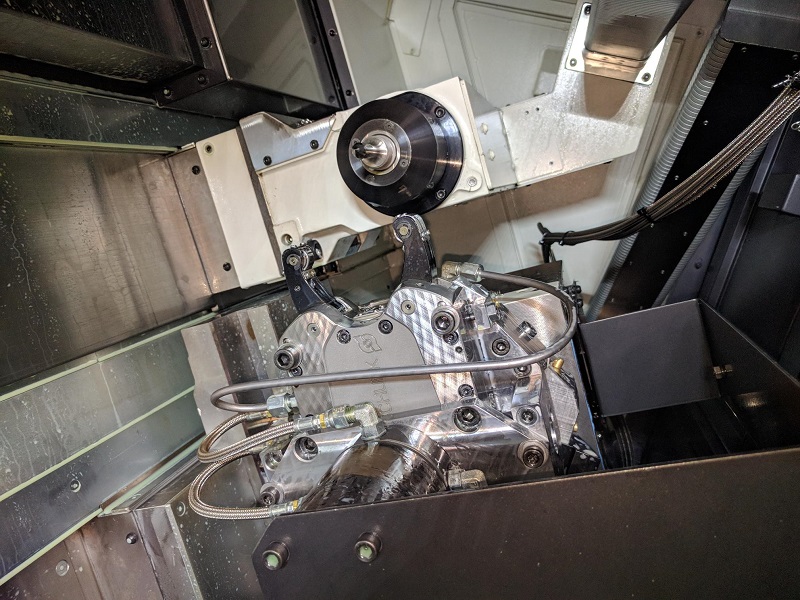

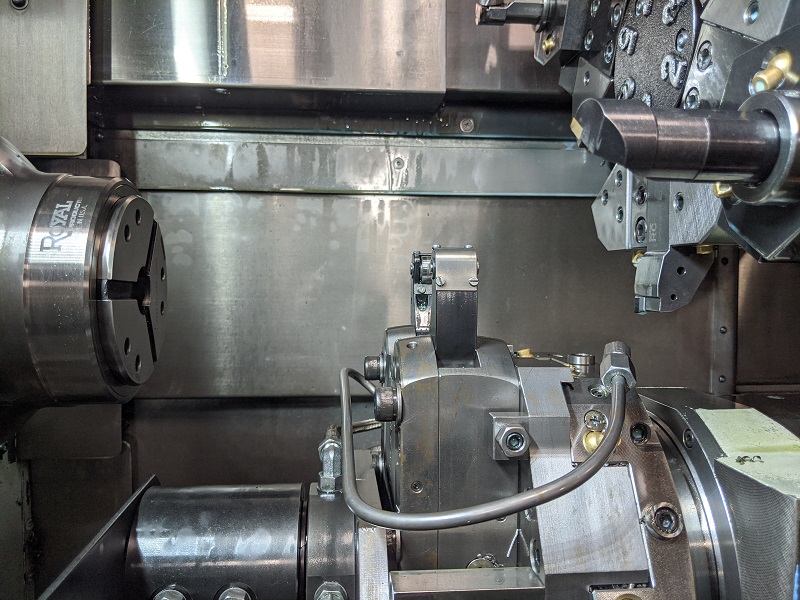

  • Schunk THL Plus 100 Hydraulic Steady Rest Mounted on Lower Turret

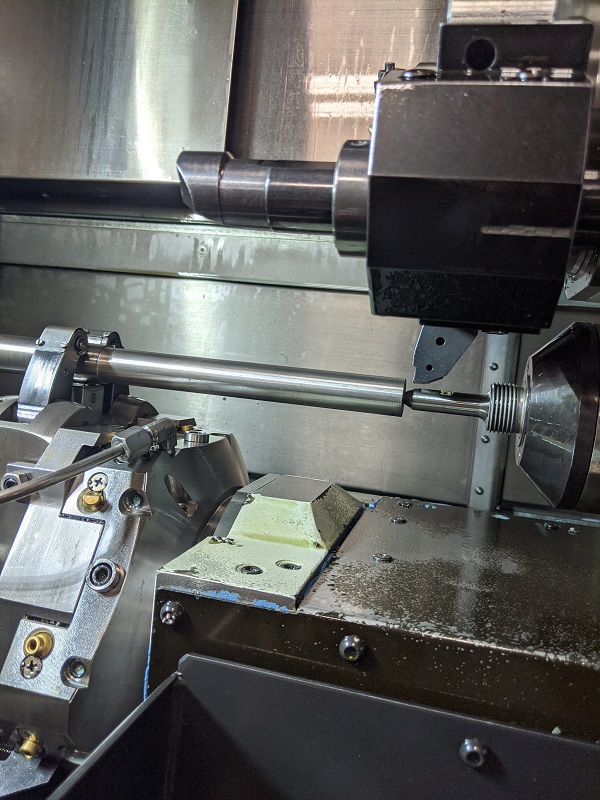

  • Ballscrew Driven Tailstock
  • Live Quill Tailstock
  • Tailstock Thrust Hi/Lo
  • 20 HP Spindle Motor High Power Option
  • Manual Touchsetter
  • Chip Conveyor (Side Exit Hinge Type)
  • Machining Navi L-G Auto Chatter Detection & Correction System
  • Multi-Tap Transformer
  • (8) Additional M-Codes
  • MP System RF8 High Pressure Coolant (1000 psi)
  • New List Price $316,000
  • Manufacture Date 2014
  • Installed in March 2017

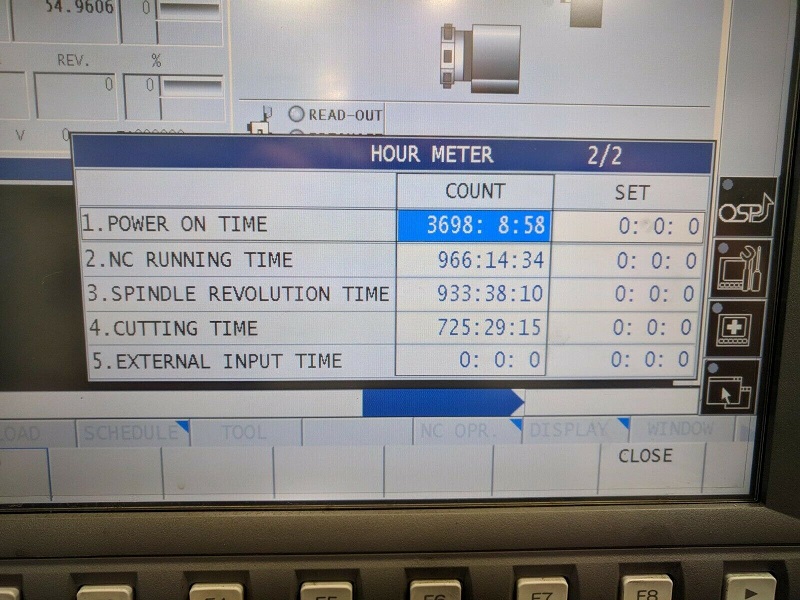

  • 3698 Power On Time
  • 966 NC Running Time
  • 933 Spindle Revolution Time
  • 725 Cutting Time
