< Back to Lathes

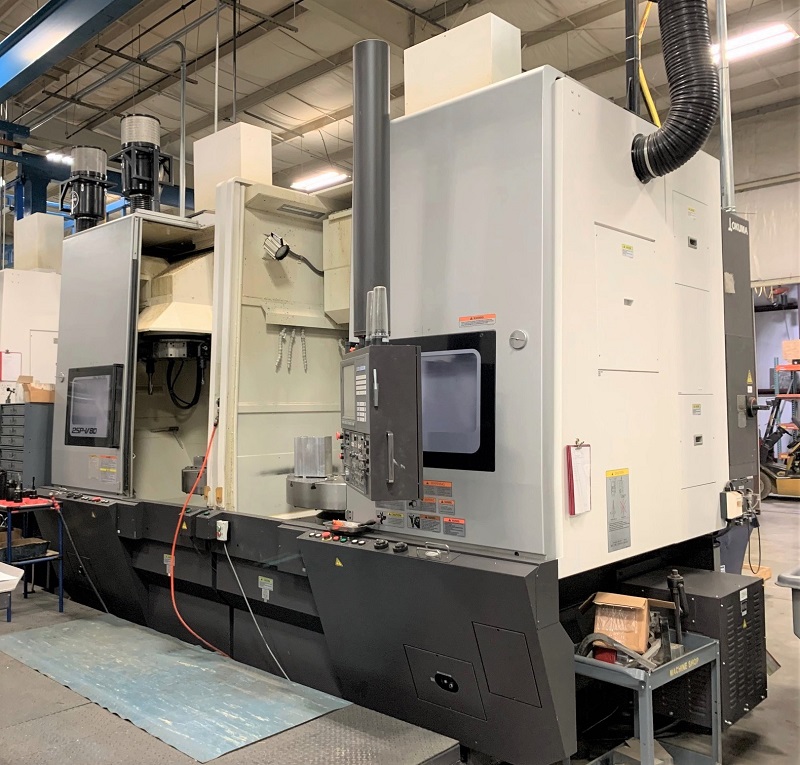

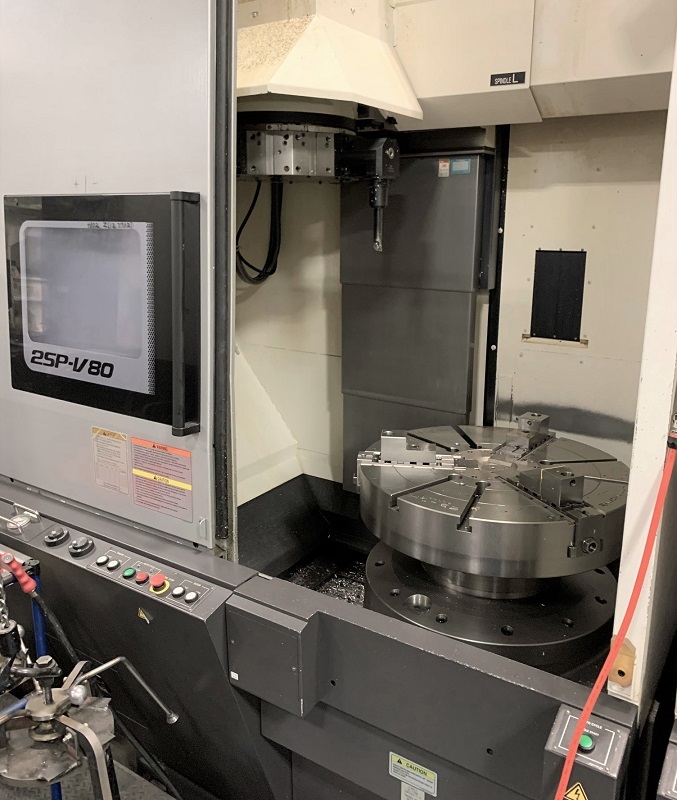

2017 OKUMA 2SP-V80 CNC VTL

OSP-300L, (2) 32" Chucks, (2) 12 Tools, 60 HP, 1000 RPM, 31.5" Max Dia, Twin Spindles & Twin Turrets, Chip Conveyors, TouchSetters
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Swing 39.37"
  • Spindle Motor 60 HP
  • Spindle Speed 10 - 1000 RPM
  • Spindle Nose A2-11
  • Spindle Bore 4.33"
  • Tools 12 (2)
  • Rapid Traverse Rate 945 IPM
  • X-Axis Travel (Left & Right Turrets) 18.31"
  • Z-Axis Travel (Left & Right Turrets) 33.07"
  • Turret Index 0.4 Seconds
  • Machine Dimensions (L x W x H) 177.16" x 108.46" x 160"
  • Machine Weight 48,000 lbs.
  • Distance Between Spindles 43.31"
  • Max Table Capacity 1760 lbs.
  • Max Turning Diameter 31.5"
  • Max Turning Height 33.07"
  • Max Weight on Chuck 4400 lbs.
  • Spindle Height From Floor 45.3"
  • Spindle Torque 3960 ft. lbs.
  • Table Diameter 32"

Product Features

  • OKUMA OSP-300L CNC Control
  • 15" Color TFT
  • Twin Spindles & Twin Turrets

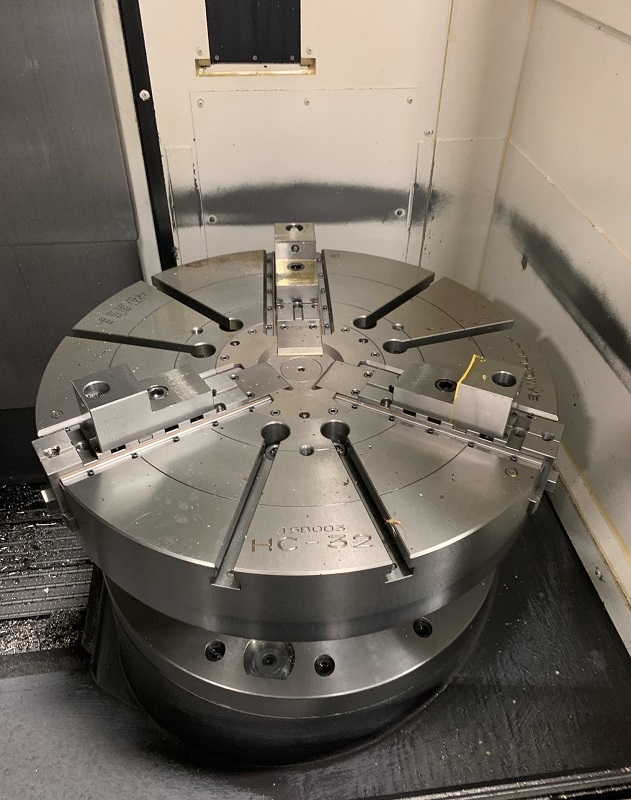

  • (2) 32" Samchully HC-32 Hydraulic Chucks
  • (2) 12 Position Servo Driven Non-Lift Turrets
  • (2) 60 HP Optional Spindle Motors
  • (2) Automatic Touchsetters
  • (2) Chip Conveyors (Rear Exit)
  • MP Systems High Pressure Coolant Units (1000 psi)
  • MP Systems Mist Collector
  • (8) Additional Spare M-Codes
