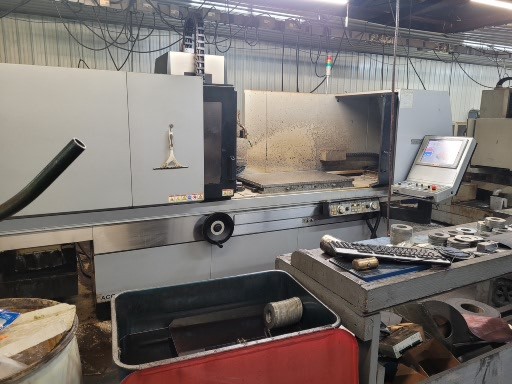

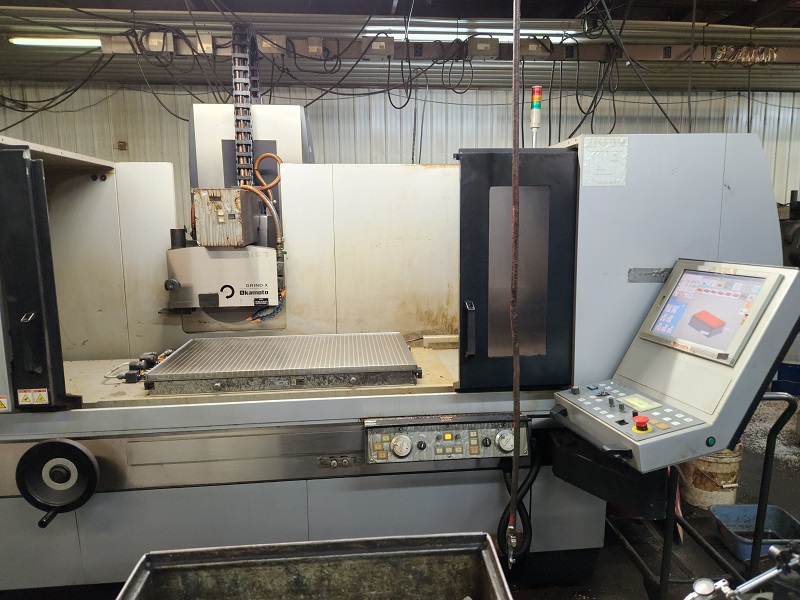

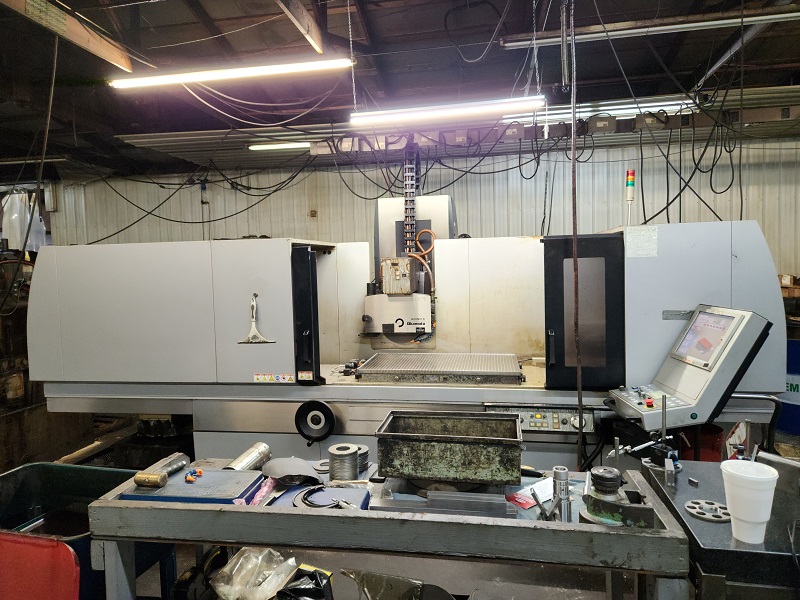

2017 OKAMOTO ACC-2440CA-IQ CNC SURFACE GRINDER

iQ, 40" x 24" Capacity, 10 HP, 2500 RPM, 16" x 2" x 5" Grinding Wheel, Electro Magnetic Chuck, Paper Filter Coolant
Talk to a representative today!
(803) 548-8000

Product Details

  • Cross Feed Motor 1 HP AC
  • Grinding Capacity Length 40"
  • Grinding Capacity Width 24"
  • Grinding Wheel Size 16" x 2" x 5"
  • Grinding Wheel Speed 500 - 2500 RPM
  • Hydraulic Pump Motor 5 HP
  • Longitudinal Feed Speed 9.8 to 82 SFM
  • Machine Dimensions (L x D x H) 175" x 142" x 90"
  • Machine Weight 16,600 lbs.
  • OD Wheel Drive Motor 10 HP
  • Table Hand Feed per Revolution 1.85"
  • Table Load Capacity 3000 lbs.
  • Table Size 40" x 23.6"
  • Table Top to Wheel Bottom -0.1" to 19.6"
  • Vertical Feed Motor 2 HP AC
  • X-Axis 47.2"
  • Y-Axis 25.7"

Product Features

  • iQ Touch Screen CNC Control
  • 15" Color TRT
  • Full CNC Column Type Surface Grinder Design

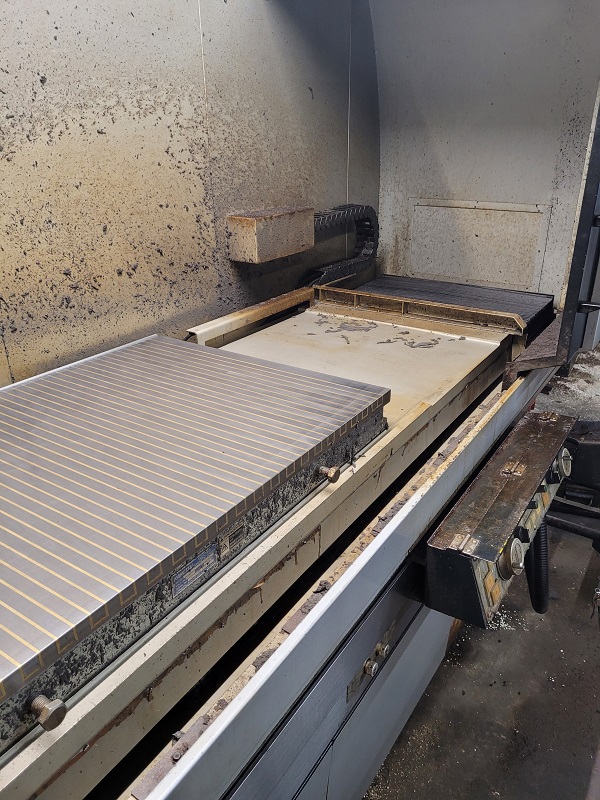

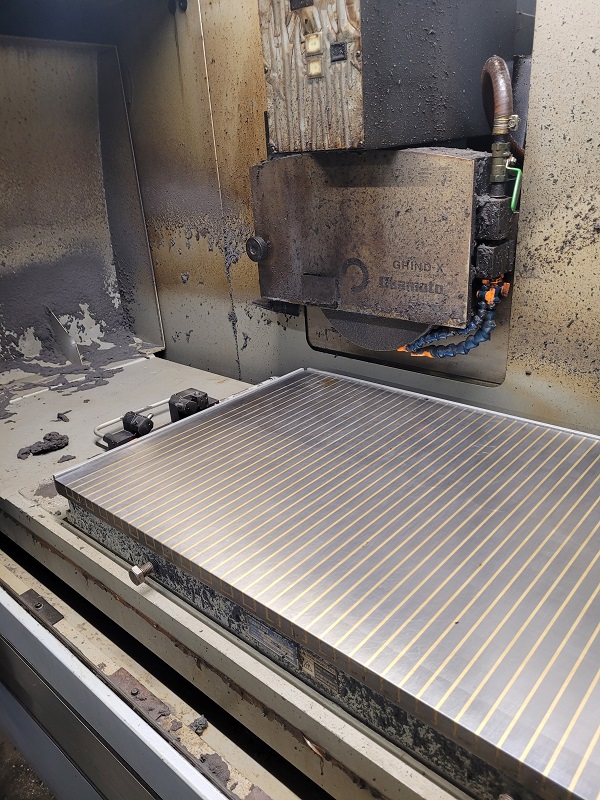

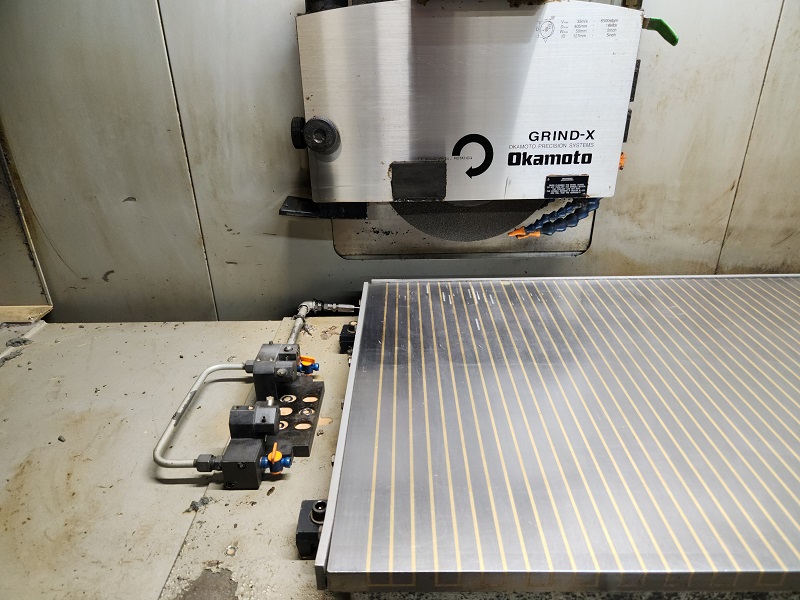

  • Kanetec 40" x 24" Electromagnetic Chuck
  • Coolant System with Paper Filter
  • 60 Gallon Coolant Tank
  • Magnetic Separator Column Type
  • Three Color Tower Light
  • (2) Worklights
  • Installed in June 2017

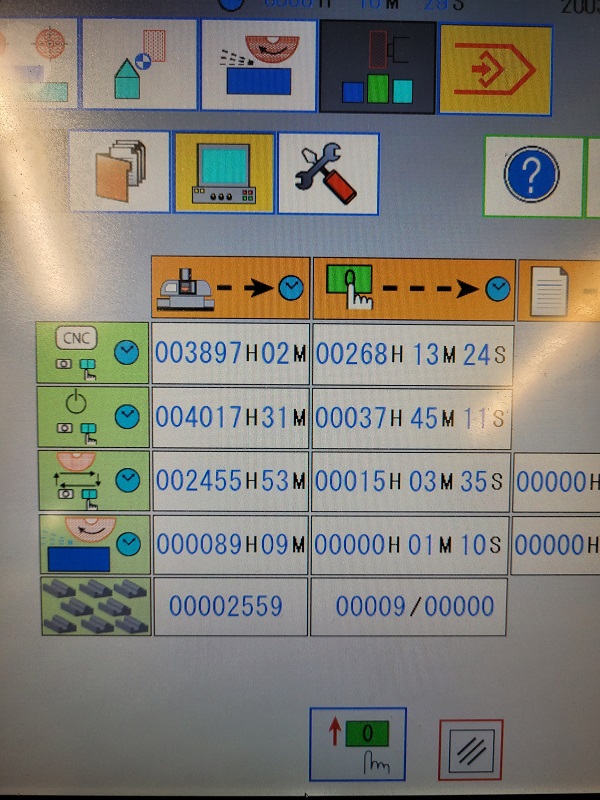

  • 4017 Power On Time
  • 3897 CNC On Time
  • 2455 Auto Operation Time
  • 89 Grinding Time
