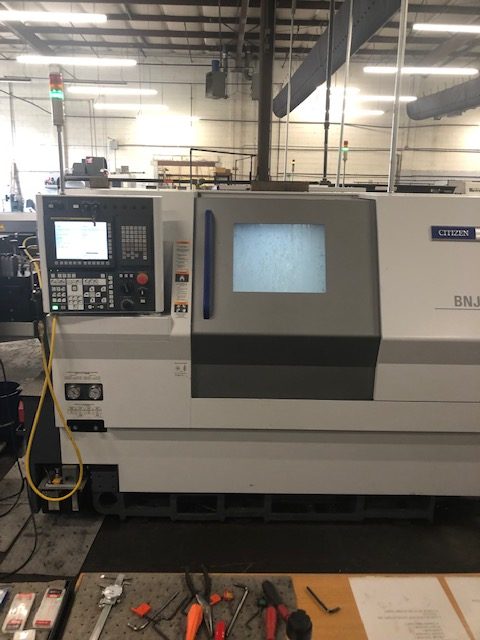

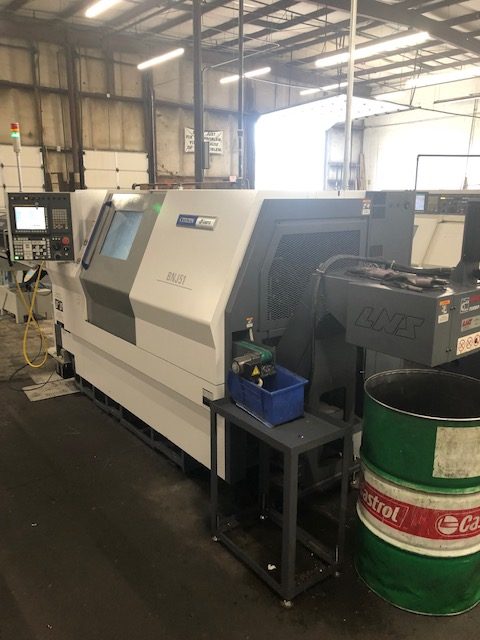

2017 MIYANO BNJ-51SY6

Fanuc 0i-TF, 2" Bar, 6" & 5" Chucks, 3.9" Length, 20 HP, 5000 RPM, Y-Axis, Two Turrets, Sub Spindle, Barfeed, APC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6"
  • Max Diameter Bar Capacity 2"
  • Max Machining Length 3.93"
  • Spindle Speed 50 - 5000 RPM
  • Spindle Bore 2.4"
  • Tools 12 / 24
  • Milling Motor 3 HP
  • Milling Motor 3.3 HP
  • Milling Speed 0 - 6000 RPM
  • Sub Spindle Chuck Size 5"
  • Sub Spindle Motor 20 / 15 HP
  • Sub Spindle Motor 7.5 HP
  • Sub Spindle Speed 50 - 5000 RPM
  • X-Axis Travel 6.5"
  • Z-Axis Travel 9.8"
  • Y-Axis Travel +/- 1.57"
  • C-Axis Index .001 Degrees
  • Machine Weight 11,880 lbs.

Product Features

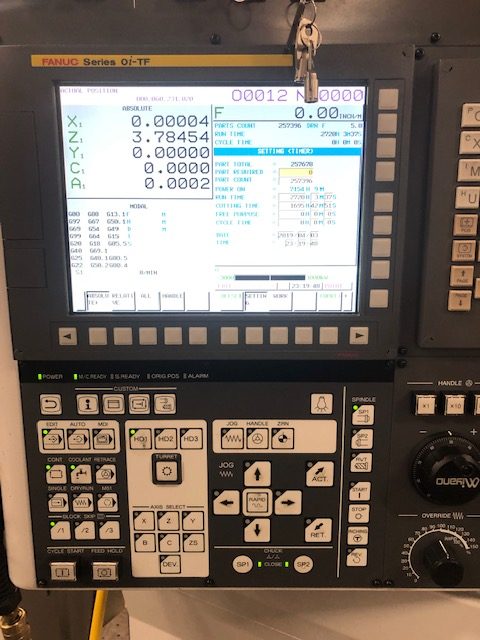

  • Fanuc 0i-TF CNC Control
  • 7" Color LCD

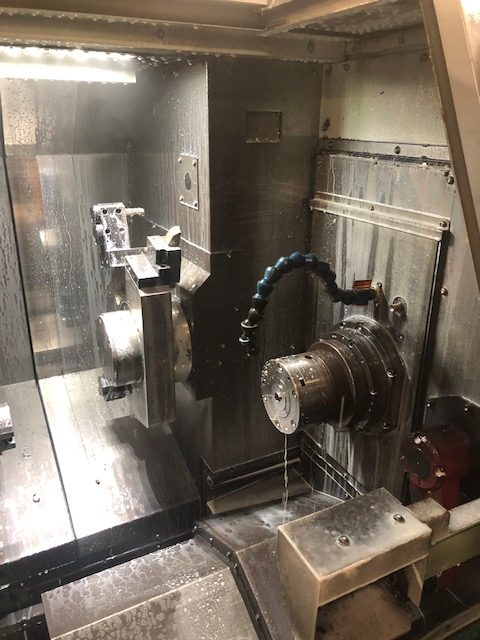

  • Main & Sub Spindles with Two Turrets & Y-Axis
  • Collet Chucks for Main & Sub Spindle

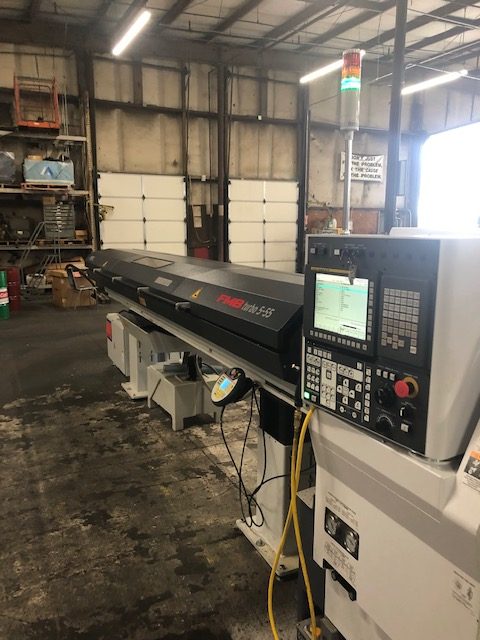

  • Edge Technologies FMB Turbo 5-55 Magazine 12 Ft. Barfeed

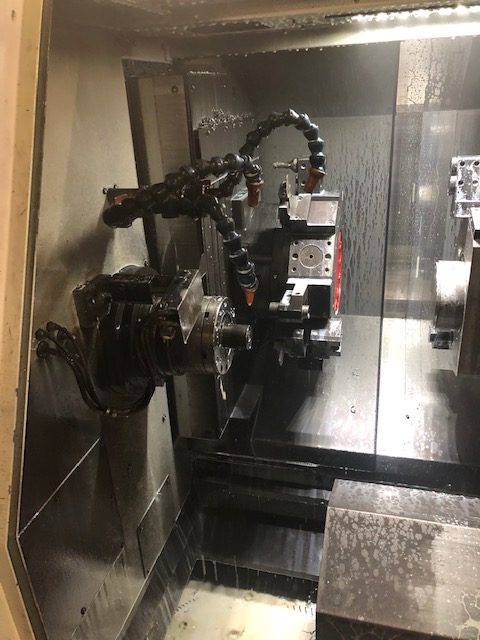

  • 12/24 Position Left Turret (12 Live Positions)
  • (8) Position Right Turret (4 Live Positions)
  • Auto Parts Catcher
  • Parts Exit Conveyor
  • LNS Turbo Chip Conveyor (Side Exit)
  • Three Color Tower Light
  • Manufacture Date May 2017
  • 7154 Power On Time
  • 2720 Run Time
  • 1695 Cutting Time
