Special Item

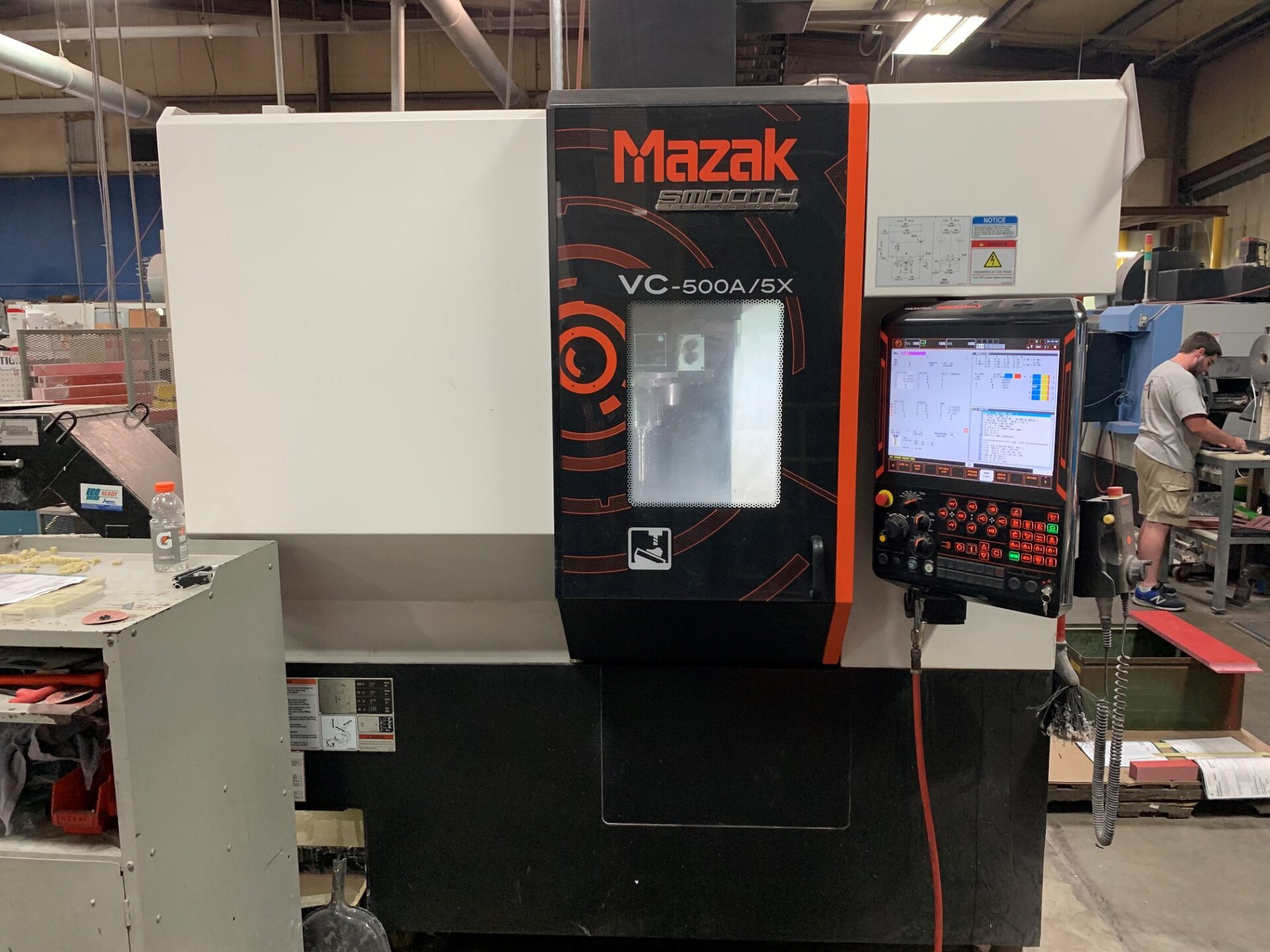

2017 MAZAK VC-500A/5X

SmoothX, 20.20.20", 12000 RPM, #40, 25 HP, 30 Tools, 5-Axis, Touch Probe, TSC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 21.85"
  • Y-Axis 19.88"
  • Z-Axis 20.07"
  • B-Axis +/- 110 Deg
  • C-Axis +/- 360 Deg
  • Table Size 19.7" x 19.7"
  • Spindle Speed 12,000 RPM
  • Spindle Motor 25 HP
  • Tools 30
  • Table Load Capacity 440 lbs.
  • Rapid Traverse Rates 1181 IPM
  • Max Tool Diameter 4.92"
  • Max Tool Length 10.23"
  • Max Tool Weight 17.64 lbs.
  • Machine Dimensions (L x W x H) 99.2" x 118.45" x 118.11"
  • Machine Weight 13,227 LBS
  • Spindle Nose to Table Top 4.53" / 24.61"
  • Tool Change Time (C - C) 2.8 Seconds

Product Features

  • MAZATROL SMOOTHX CNC CONTROL with 5-Axis Machining Package

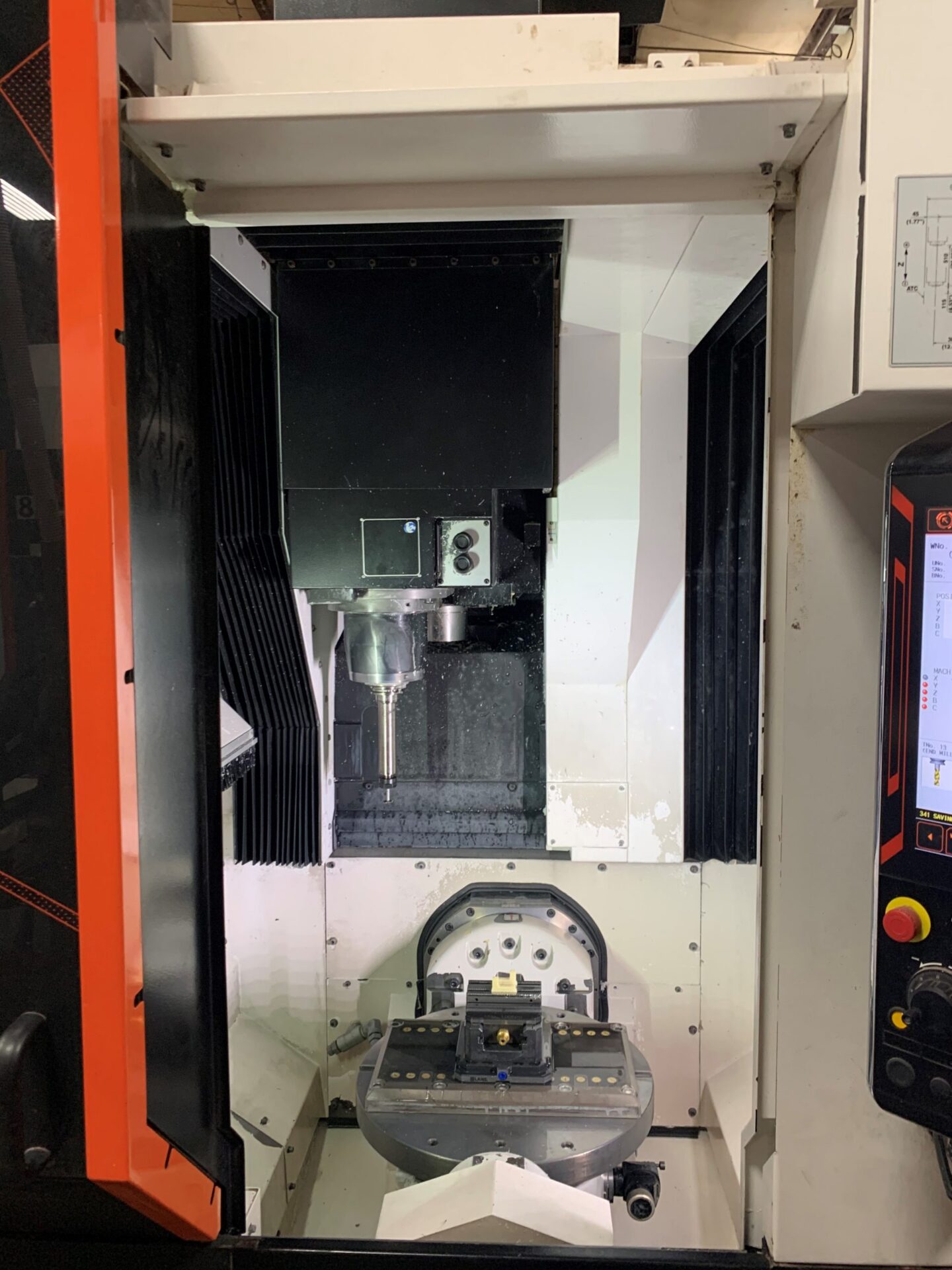

  • 19.68" Integral Trunnion Table with Drilled and Tapped Holes
  • 30 Position Side Mount Tool Changer
  • 12,000 RPM Spindle Speed
  • High Pressure Coolant Through Spindle System (213 PSI)
  • Dual Probing Kit RMP600/RTS-AA with EIA Inspection Plus
  • Jorgensen Chip Conveyor (Hinge Type with Left Side Discharge)
  • Maximum Program Size: 8MB
  • Auto Power On/Off + Warm-up
  • Multi-tap Transform
  • B) GOO Slope Constant
  • Work Setting Error Compensation
  • Tool Radius Compensation / 5-Axis
  • Cylindrical Interpolation
  • 3-D Coordinate Conversion
  • LED Work Light

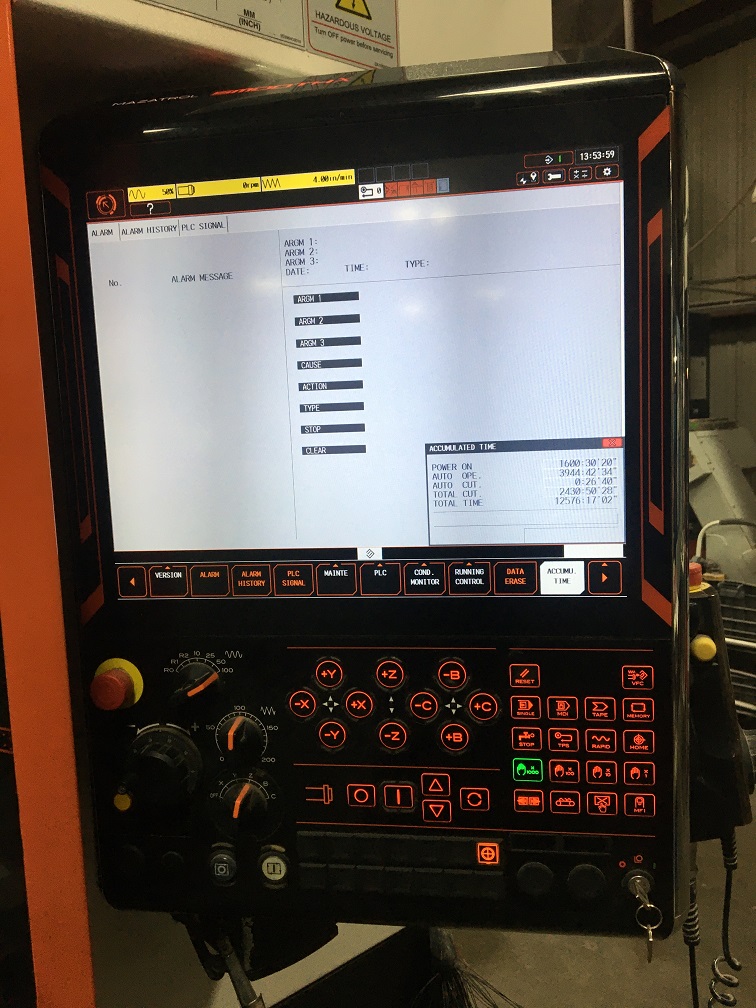

  • 1448 Power On Time
  • 3917 Operation Time
  • 2 Auto Cut Time
  • 2410 Total Cut Time
  • 12424 Total Time
