< Back to Lathes
Special Item

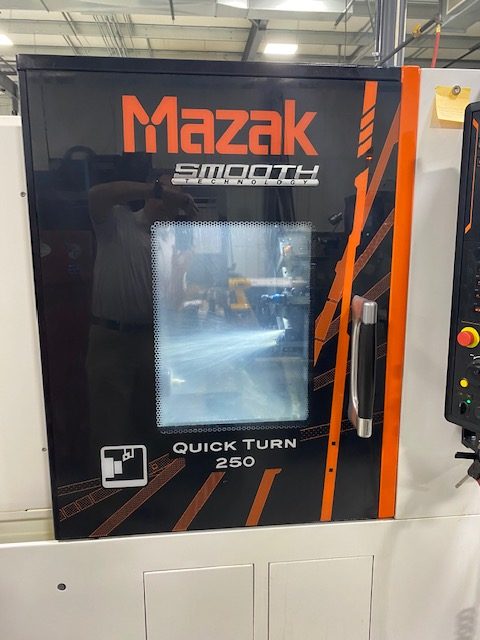

2017 MAZAK QUICK TURN 250

Smooth C, 3" Bar, 10" Chuck, 35 HP, 4000 RPM, 12 Tools, Tool Eye, Chip Conveyor, Servo Driven Tailstock
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed 24"
  • Max Machining Length 18.7"
  • Spindle Motor 35 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Tools 12
  • Rapid Traverse Rates (X / Z) 1181 / 1299 IPM
  • X-Axis Travel 8.75"
  • Z-Axis Travel 20.25"
  • Machine Dimensions (L x D x H) 104.3" x 70" x 72.4"
  • Machine Weight 11,000 lbs.
  • Max Turning Diameter 13.78"
  • Spindle Torque 343 ft. lbs.
  • Tailstock Taper MT #5

Product Features

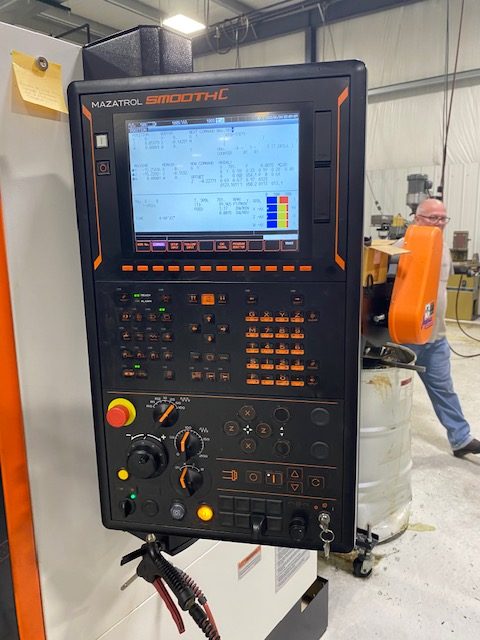

  • MAZATROL SMOOTH C CNC Control
  • 10.4" Color TFT
  • USB Port
  • Conversational Programming
  • 10" Kitagawa Hydraulic Chuck

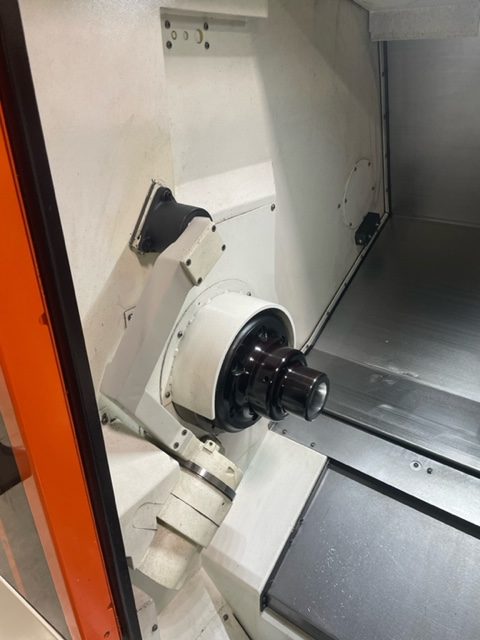

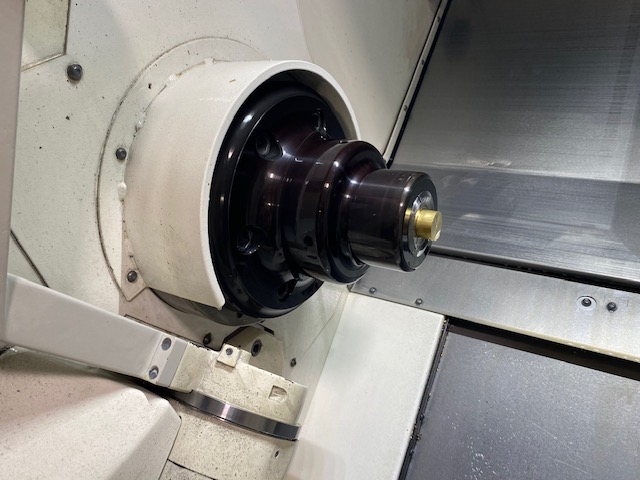

  • Collet Chuck

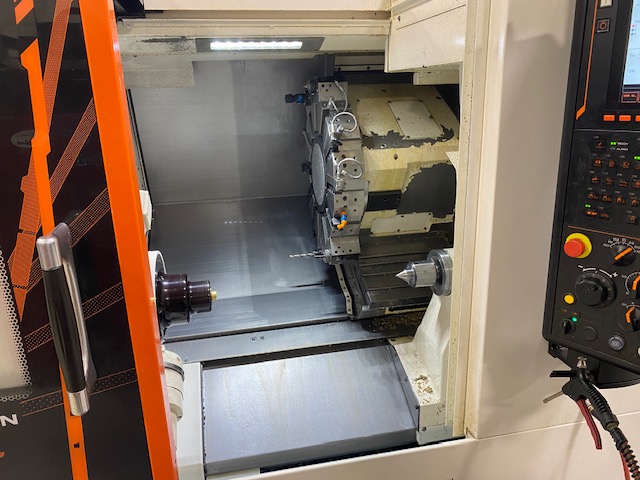

  • Servo Driven Turret
  • Servo Driven Tailstock

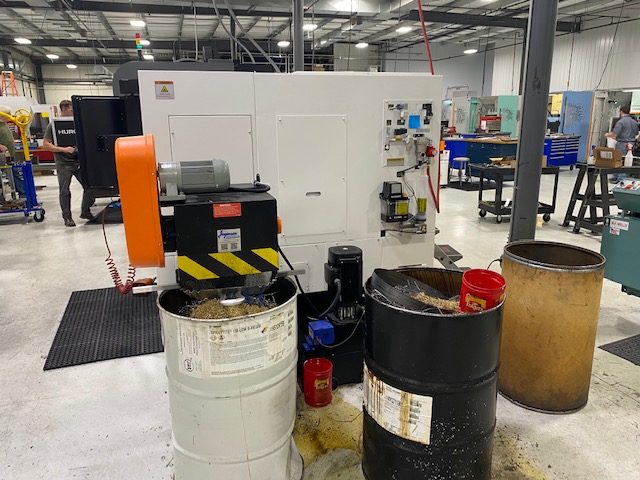

  • Jorgenson Chip Conveyor (Hinge-Type Side Exit)
  • High Power Coolant (213 psi)
  • Multi-Tap Transformer
  • (4) Boring Bar Holders
  • (8) OD Wedge Blocks
  • Manufacture Date August 2017
  • 9511 Power On Time
  • 880 Auto Operation Time
  • 595 Auto Cut Time
  • 465 Total Cut Time
  • 9511 Total Time
