< Back to Vertical M/C

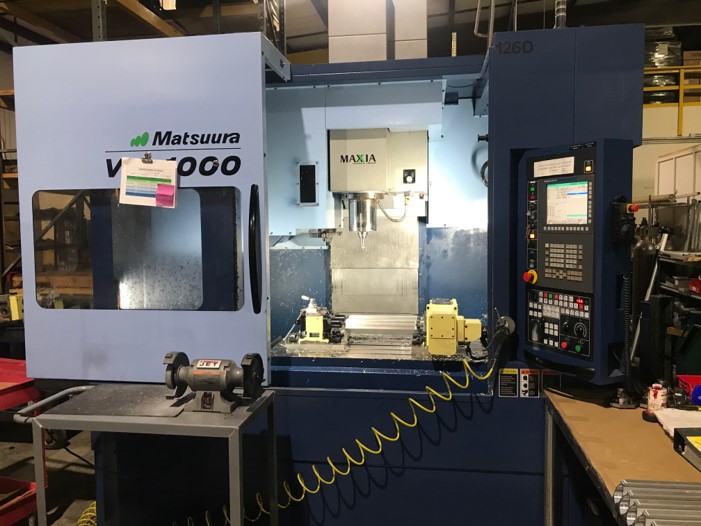

2017 MATSUURA VX-1000 (#4)

G-TECH 31i, 40.24.24", 20000 RPM, 48 SMTC, 30 HP, Cat 40, TSC 300 psi, Dual Spindle Rotary Table, Tailstock, ATLM, Microfine Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40.15"
  • Y-Axis 24.0"
  • Z-Axis 24"
  • Table Size 47.2" x 23.6"
  • Spindle Speed 20,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 48
  • Table Load Capacity 1100 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1575 / 1420 IPM
  • Max Tool Diameter 3.1" / 4.92"
  • Max Tool Length 11"
  • Max Tool Weight 15.4 lbs.
  • Machine Weight 16,000 lbs.
  • Spindle Torque 110.7 ft. lbs.

Product Features

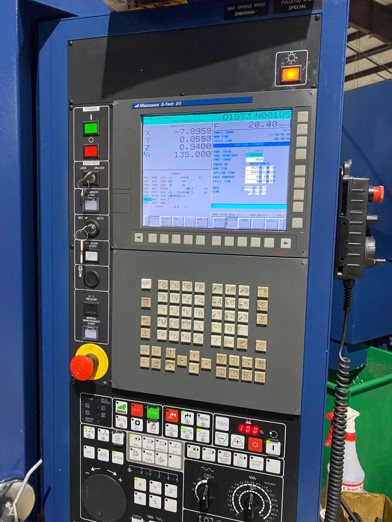

  • MATSUURA G-Tech 31i (Fanuc 31iM) CNC Control
  • 10.4" Color LCD
  • NIKKEN CNCZ10002W Dual Spindle Rotary Table
  • Tailstock
  • Through Spindle Coolant (300 psi)
  • Microfine Chip Conveyor (Left Rear Exit)
  • 48 Position Side Mount Tool Changer
  • 20000 RPM Spindle Speed
  • Rigid Tapping
  • Three Color Tower Light
  • Remote Jog Handle
  • Dual Chip Augers
  • Base Coolant Flush
  • 8 MB Memory
  • (8) Additional M-Functions
  • Full Enclosure with Top Cover

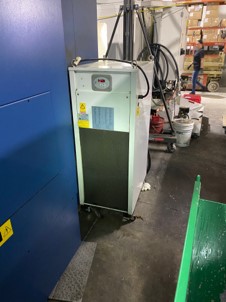

  • Spindle Chiller Unit
  • Spindle Thermal Displacement Compensation
  • Manufacture Date August 2017
  • 14,410 Power On Time
  • 7527 Run Time
  • 4767 Cut Time
