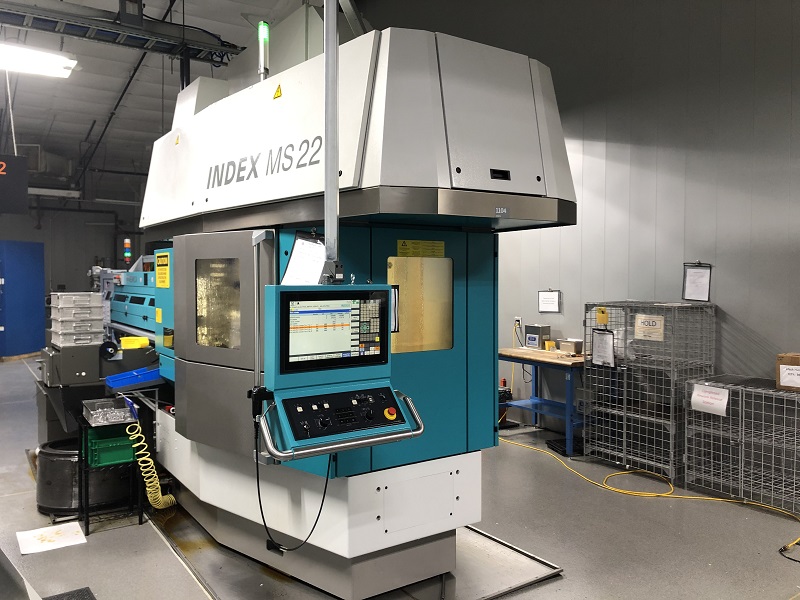

2017 INDEX MS 22 SIX SPINDLE CNC Screw Machine

Seimens S840D SL, 0.944" Bar, 6 Spindles, 11 Tools, 202 HP, 10000 RPM, Iemca Barfeed, Chip Conveyor, Knoll System
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 0.945"
  • Spindle Motor 20 HP
  • Spindle Speed 10,000 RPM
  • Tools 11
  • X-Axis Travel 2.44"
  • Z-Axis Travel 3.35"
  • Y-Axis Travel +/- 0.47"
  • Machine Weight 12,760 lbs.
  • Number of Spindles 6
  • Spindle Torque 13.3 ft. lbs.

Product Features

  • Seimens S840D SL CNC Control
  • 15" Color TFT
  • 6 Spindles
  • 10000 RPM Spindle Speed

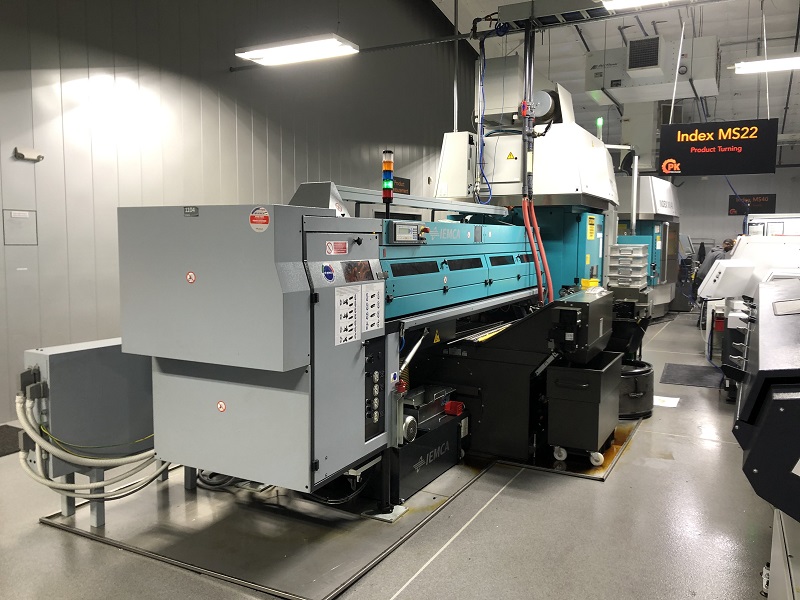

  • IEMCA SIR Barfeed 3.3 Meter Length

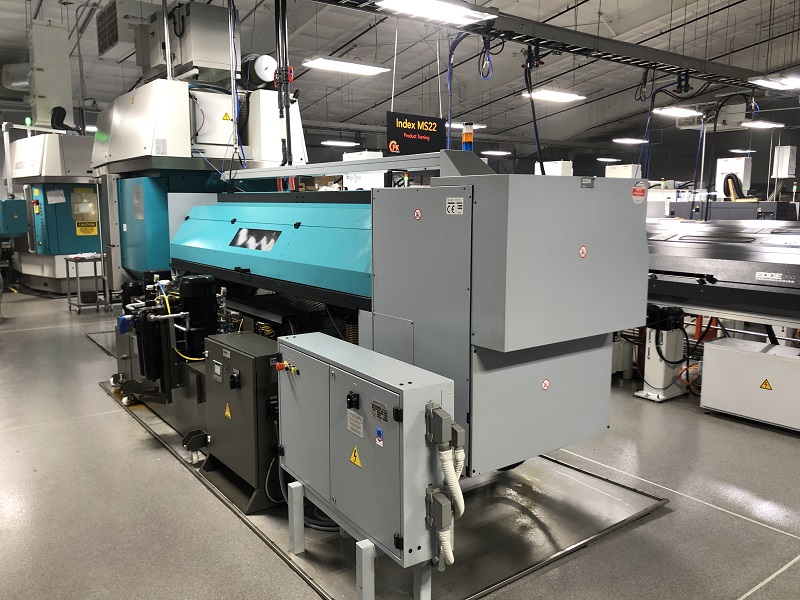

  • Chip Conveyor (Left Rear Exit)
  • Installed in October 2017
  • Began Production in May 2018
  • 18,093 Power On Time
