Special Item

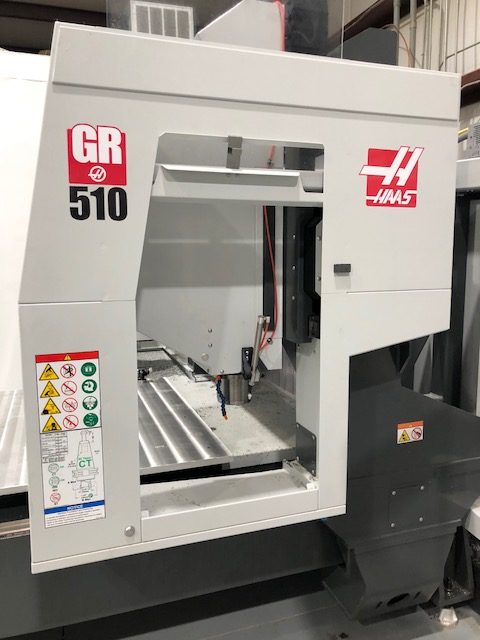

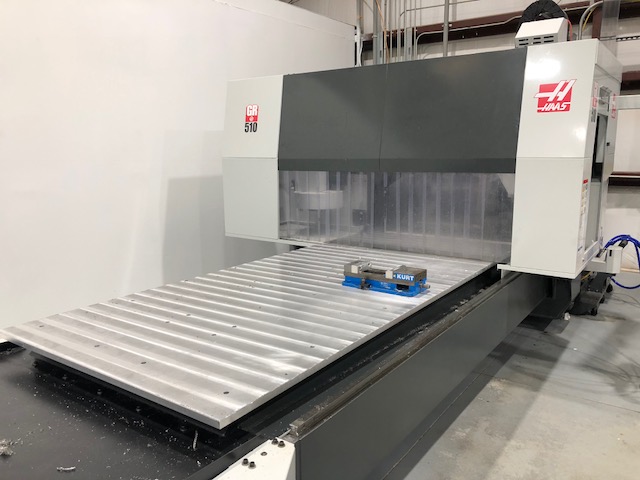

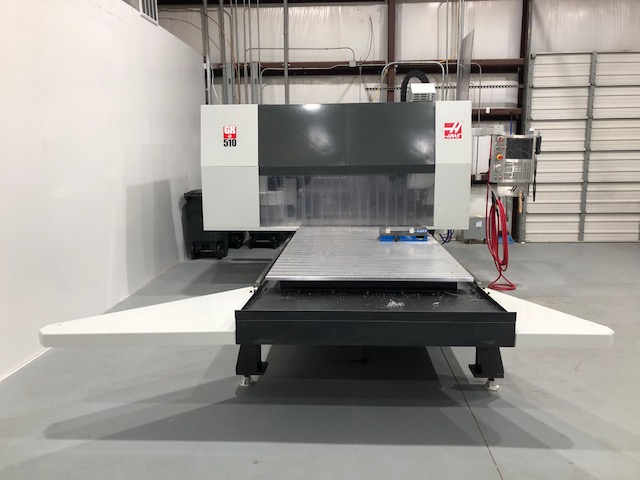

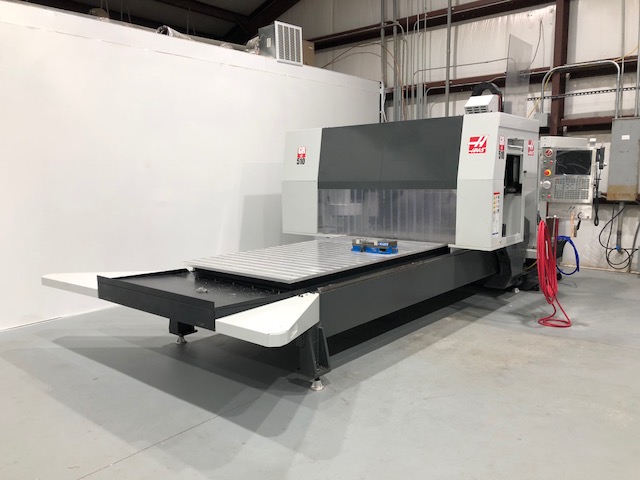

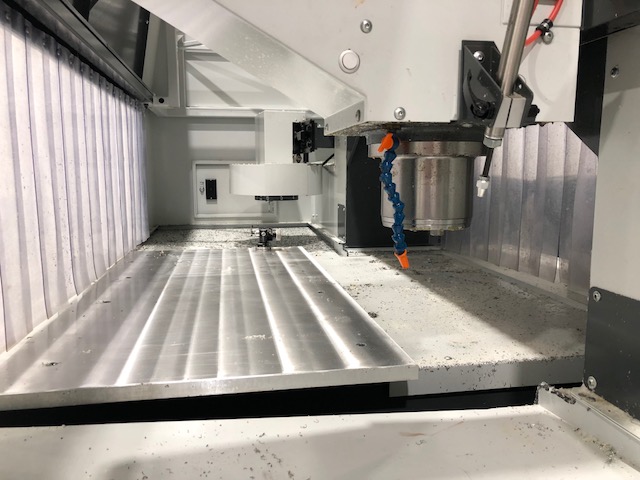

2017 HAAS GR-510 GANTRY ROUTER

121.61.11", 15 HP, 15000 RPM, 10 Tools, Cat 40, Probes, Aluminum Table, Immaculate Condition
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 121"
  • Y-Axis Travel 61"
  • Z-Axis Travel 11"
  • Table Size 122" x 53"

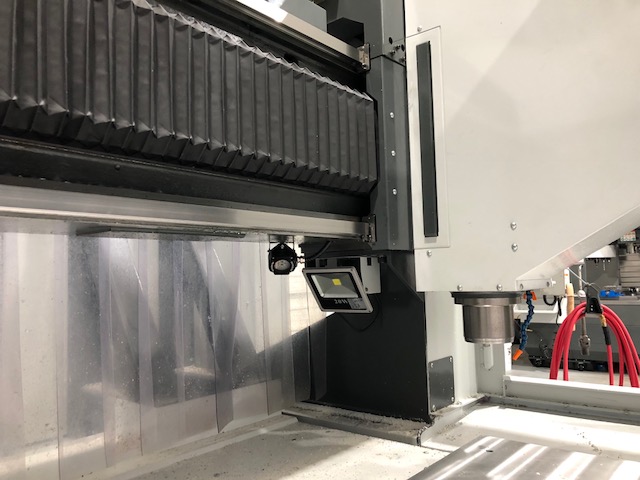

  • Spindle Speed 15000 RPM
  • Spindle Taper Cat 40
  • Spindle Motor 15 HP

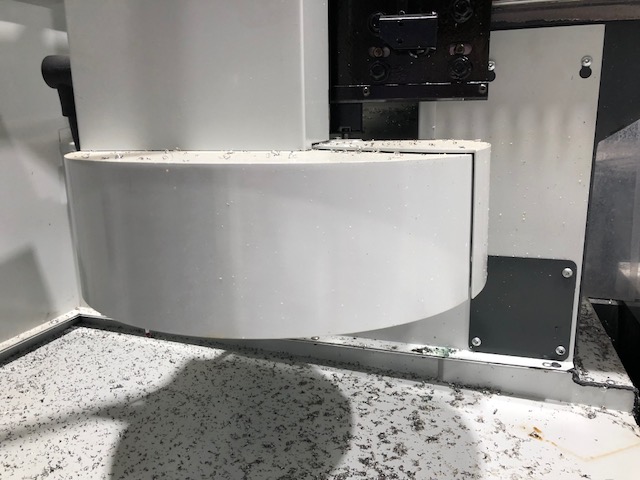

  • Tools 10
  • Rapids Traverse Rates (X / Y / Z) 800 / 2100 / 1100
  • Max Tool Diameter 3.5"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 215" x 105" x 101"
  • Machine Weight 15
  • Distance Between Columns 62"
  • Spindle Nose to Table Top 2.5" - 13.5"
  • Spindle Torque 17 ft. lbs.

Product Features

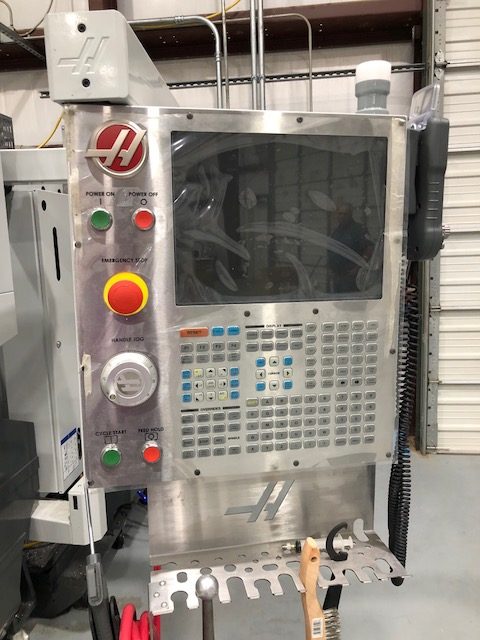

  • HAAS CNC Control
  • 15" Color TFT
  • 15000 RPM Spindle Speed

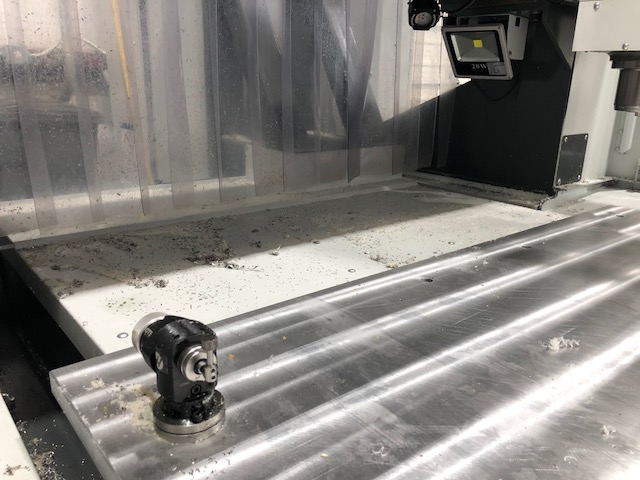

  • Wireless Intuitive Probing System (Tool & Touch Probes)
  • Chip & Coolant Guard
  • Ethernet Connection
  • Media Display
  • Remote Jog Handle
  • Rigid Tapping
  • Automatic Air Gun
  • HAAS Connect Remote Monitoring
  • Spindle Orientation
  • User Definable Macros
  • Coordinate Rotation & Scaling
  • Visual Part Programming System
  • Manufacture Date June 2017
  • 651 Power On Time
  • 160 Cutting Time
